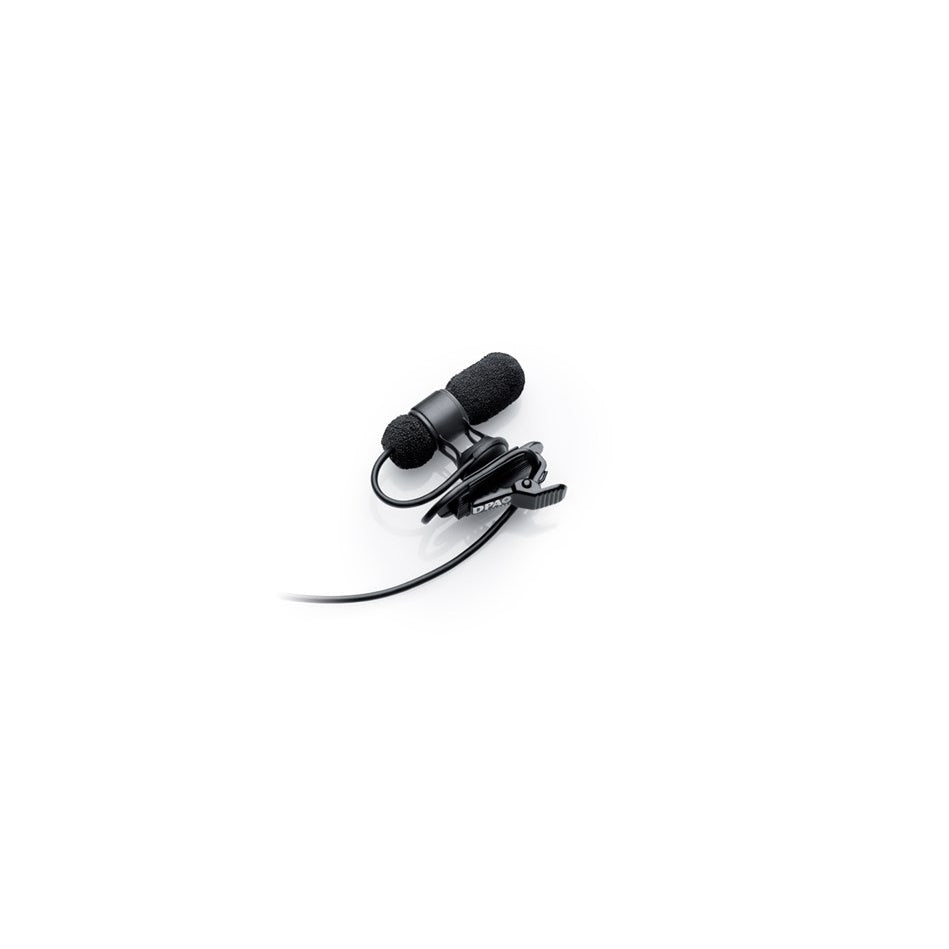

DPA Microphones 4080 Cardioid Lavalier Mic With CORE+ | TA4F Mini-XLR | Black

DPA Microphones 4080 Cardioid Lavalier Mic With CORE+ | TA4F Mini-XLR | Black

SoundPro Item: 150901 | Part Number: 4080-DP-D-B10

$845.00
$845.00 $845.00
Your Price Sold out
MSRP: $845.00 | MAP: $845.00

Usually ships in 5-7 business days

  • CORE+ Technology Delivers Exceptional Speech Definition With Natural Presence Enhancement
  • Cardioid Pattern Maximizes Side Rejection For Challenging Acoustic Environments
  • IP58 Capsule Rating Provides Water And Dust Protection For Field Production
  • Reversible Mounting Design Fits Both Left And Right Buttoned Garments
  • Modular Adapter System Integrates With Professional Wireless Transmitter Platforms
  • Dual Color Pop Filters Enable Quick Wardrobe Matching Without Equipment Swap
Log in or register for YOUR best price

Designed for broadcast engineers, live production crews, and conference AV teams who need directional pickup in challenging acoustic environments, this cardioid lavalier microphone solves the noise rejection problem that omnidirectional mics cannot address. The CORE+ technology delivers unusually high definition speech reproduction with a natural 4–6 kHz presence boost, ensuring intelligibility in both studio and field applications without post-processing.

The pressure gradient capsule provides maximum side rejection while maintaining a compact 5.7 mm profile that remains discreet on camera. IP58-rated protection ensures reliable operation in demanding production environments, from outdoor broadcasts to high-humidity venues. The modular adapter system integrates seamlessly with professional wireless transmitters, while the included dual-color pop filters enable quick visual matching to wardrobe without equipment changes.

Built for professionals who demand consistent performance across multi-day shoots and touring productions, this lavalier handles 134 dB SPL peak without distortion—enough headroom for close-miked vocals and high-energy speaking. The 1.2 meter cable and reversible mounting design accommodate both left and right buttoned shirts, reducing setup time between talent changes.

Downloads

View full details

Specifications

Performance
Directional Pattern
Cardioid
Principle of Operation
Pressure gradient
Cartridge Type
Pre-polarized condenser
Frequency Response
20 Hz - 20 kHz
Effective Frequency Range ±2 dB
250 Hz - 17 kHz with typ. 4 dB soft boost at 4 - 6 kHz (-5 dB at 100 Hz)
Sensitivity, Nominal, ±3 dB at 1 kHz
20 mV/Pa; -34 dB re. 1 V/Pa
Equivalent Noise Level, A-weighted
Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
Distortion, THD < 0.5%
127 dB SPL RMS, 130 dB SPL peak
Distortion, THD < 1%
128 dB SPL RMS, 131 dB SPL peak
Dynamic Range
Typ. 108 dB
Max. SPL, THD 10%
134 dB SPL peak
Rated Output Impedance
30 - 40 Ω
Electrical
Power Supply (For Full Performance)
For wireless systems Min. 5 V - max. 10 V through DPA adapter; With DAD9001: P48 (Phantom Power). Will work from 12 V
Current Consumption
Typ. 1.5 mA (microphone). 3.5 mA with DAD9001 XLR Adapter
Connectivity
Connector
TA4F Mini-XLR
Cable Drive Capability
Up to 300 m (984 ft) with DAD9001 XLR Adapter
Polarity
Positively increasing sound pressure produces positive going voltage on MicroLock pin
Construction
Capsule IP Rating
IP58
Color
Black
Microphone Diameter
5.7 mm (0.22 in)
Microphone Length
30 mm (1.2 in)
Cable Length
1.2 m (3.9 ft)
Cable Color
Black
Cable Diameter
1.6 mm (0.06 in)
Weight
Weight
15 g (0.5 oz) incl. Cable and MicroLock connector
Environmental
Temperature Range
-40°C to 45°C (-40°F to 113°F)
Relative Humidity (RH)
Up to 90%
