DPA Microphones 4091 Omni Mic, Loud SPL, P48

DPA Microphones 4091 Omni Mic, Loud SPL, P48

SoundPro Item: 203343 | Part Number: 4091

$785.00
$785.00 $785.00
Your Price Sold out
MSRP: $785.00 | MAP: $785.00

Usually ships in 5-7 business days

  • Natural and open sound
  • For instrument miking in the studio or on the stage
  • Handles high-SPL with ease
Log in or register for YOUR best price

With 144 dB SPL handling, this microphone can meet just about any challenge including miking an electric guitar amp.

It is also an excellent microphone for use with percussion instruments as well as wind and string instruments. Due to their remarkably linear frequency response in the 20 Hz to 20 kHz range, sound system engineers can also use these mics for sound system alignment, testing and tuning.

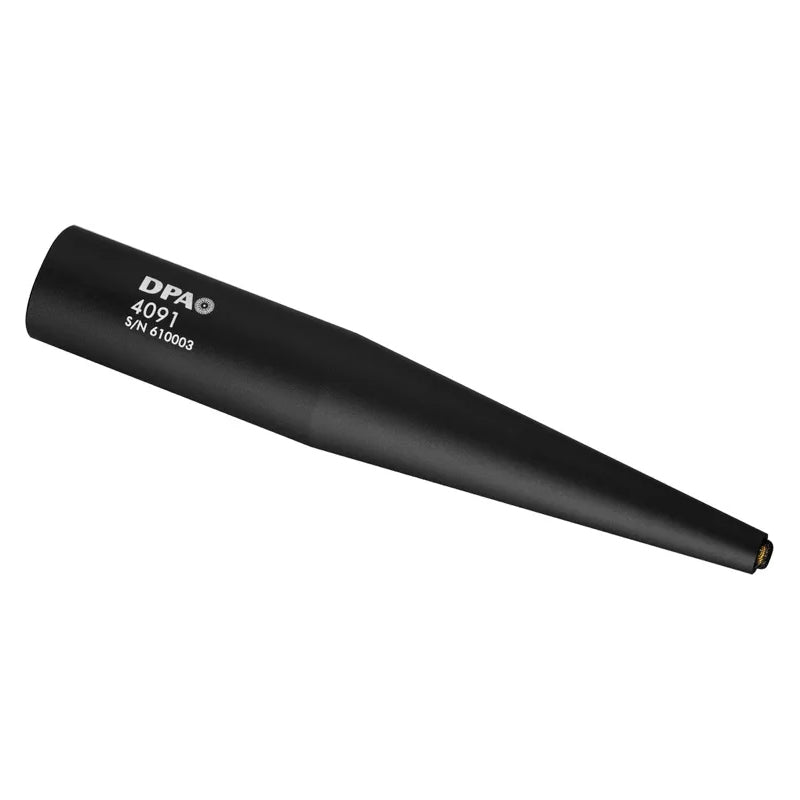

The rugged and compact design features a 5.4 mm (.21 in) diameter pre-polarized condenser capsule in a tapered body measuring just 12 cm (4.76 in).

View full details

Specifications

GENERAL SPECIFICATIONS
Directional Pattern
Omnidirectional
Principle of Operation
Pressure
Cartridge Type
Pre-polarized condenser
FREQUENCY & PERFORMANCE
Frequency Response
20 Hz - 20 kHz
Effective Frequency Range (±2 dB)
20 Hz - 20 kHz
Sensitivity (±3 dB @ 1 kHz)
6 mV/Pa; -44 dB re 1 V/Pa
Equivalent Noise Level (A-weighted)
Typ. 26 dB(A) re 20 µPa; max. 28 dB(A)
Equivalent Noise Level (ITU-R BS.468-4)
Typ. 38 dB; max. 40 dB
Distortion (THD < 1%)
120 dB SPL RMS; 123 dB SPL peak
Dynamic Range
Typ. 97 dB
Max SPL (THD 10%)
144 dB SPL peak
ELECTRICAL SPECIFICATIONS
Rated Output Impedance
<40 Ω
Cable Drive Capability
100 m (328 ft)
Output Balance Principle
Impedance balanced
Common Mode Rejection Ratio (CMRR)
>40 dB
Power Supply
P48 (Phantom Power)
Current Consumption
2 mA
Connector
3-pin XLR-M
Polarity
+V at pin 2 for positive sound pressure
PHYSICAL SPECIFICATIONS
Weight
38 g (1.34 oz)
Microphone Diameter
19 mm (0.75 in); 6.7 mm (0.26 in) at tip
Microphone Length
122 mm (4.8 in)
ENVIRONMENTAL
Temperature Range
-40°C to 45°C (-40°F to 113°F)
Relative Humidity
Up to 90%
