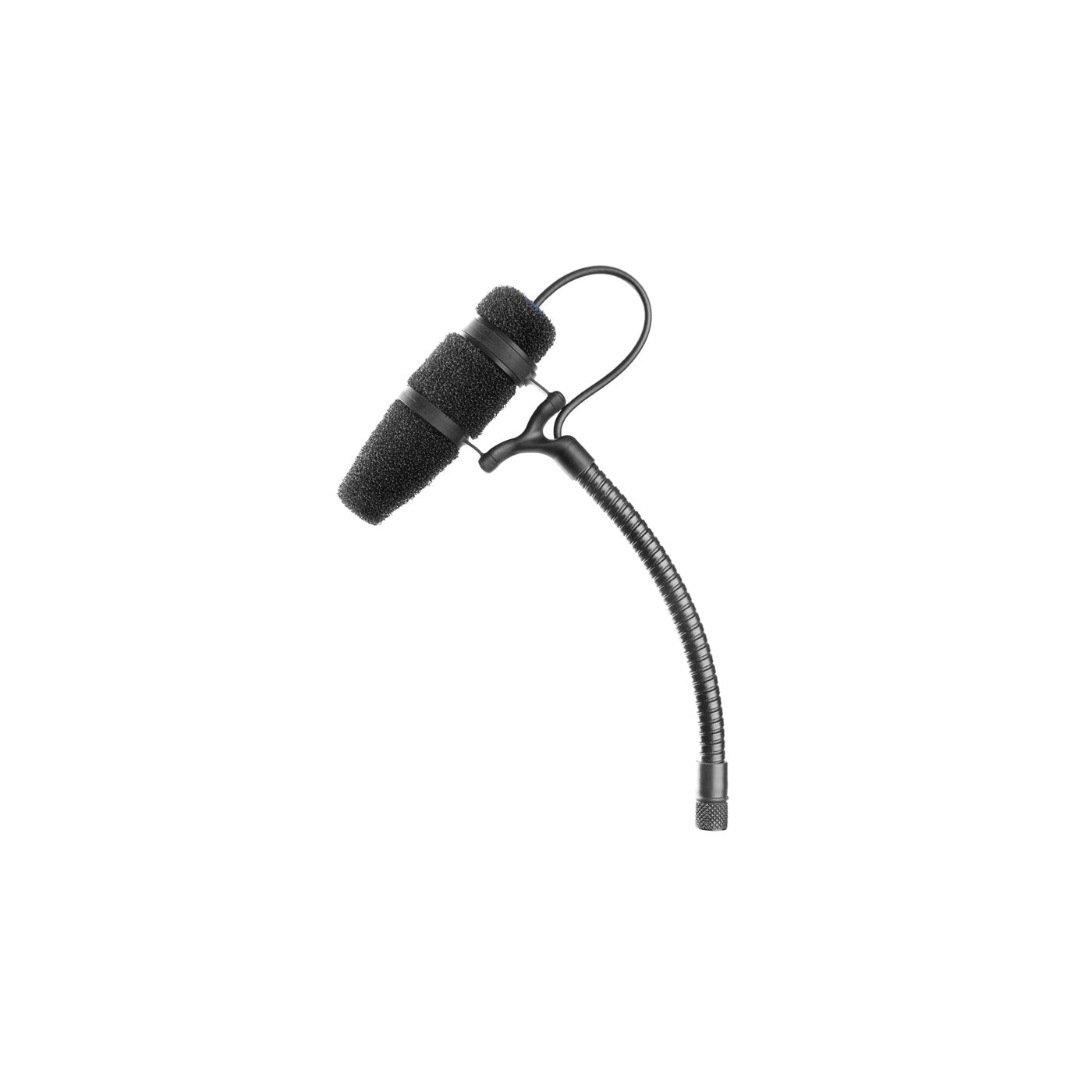

DPA Microphones 4097 Micro Shotgun Microphone

DPA Microphones 4097 Micro Shotgun Microphone

SoundPro Item: 203439 | Part Number: 4097-DP-G-B90-010

$528.00
$660.00 $528.00
Your Price Sold out
MSRP: $660.00 | MAP: $528.00

Usually ships in 5-7 business days

  • Outstanding audio quality
  • Wireless podium mic capability
  • Highly directional – very isolated
  • High rejection of radio frequency interference
  • Sleek Scandinavian design
Log in or register for YOUR best price

With its supercardioid polar plot, the 4097 CORE Micro Shotgun Mic offers a highly-directional pick-up pattern as well as low self noise and high sensitivity. The mic is capable of handling high SPLs, which allows it to deliver undistorted natural sound, even when users speak loudly or yell.

View full details

Specifications

GENERAL SPECIFICATIONS
Directional Pattern
Supercardioid
Principle of Operation
Pressure gradient
Cartridge Type
Pre-polarized condenser
FREQUENCY & PERFORMANCE
Frequency Response
20 Hz - 20 kHz
Effective Frequency Range (±2 dB @ 20 cm)
80 Hz - 15 kHz; 2 dB soft boost at 10-12 kHz
Sensitivity (±3 dB @ 1 kHz)
16 mV/Pa; -36 dB re 1 V/Pa
Equivalent Noise Level (A-weighted)
Typ. 23 dB(A) re 20 µPa; max. 26 dB(A)
Equivalent Noise Level (ITU-R BS.468-4)
Typ. 35 dB; max. 38 dB
Distortion (THD < 1%)
130 dB SPL RMS; 133 dB SPL peak
Dynamic Range
Typ. 110 dB
Max SPL (THD 10%)
135 dB SPL peak
ELECTRICAL SPECIFICATIONS
Rated Output Impedance
30 - 40 Ω (MicroDot); 100 Ω (DAD9099-BC XLR Adapter)
Cable Drive Capability
Up to 300 m (984 ft) with DAD9099-BC XLR Adapter
Common Mode Rejection Ratio (CMRR)
>60 dB; 50 Hz - 15 kHz (DAD4099-BC XLR Adapter)
Power Supply
Min. 5 V - max. 10 V (wireless via DPA adapter); P48 (Phantom Power) with DAD6001-BC; operates from 12 V
Current Consumption
Typ. 1.5 mA (microphone); 3.5 mA with DAD9001-BC XLR Adapter
Connector
MicroDot
PHYSICAL SPECIFICATIONS
Weight
10 g (0.35 oz)
Microphone Length
10.4 cm (4 in)
ENVIRONMENTAL
Temperature Range
-40°C to 45°C (-40°F to 113°F)
Relative Humidity
Up to 90%
