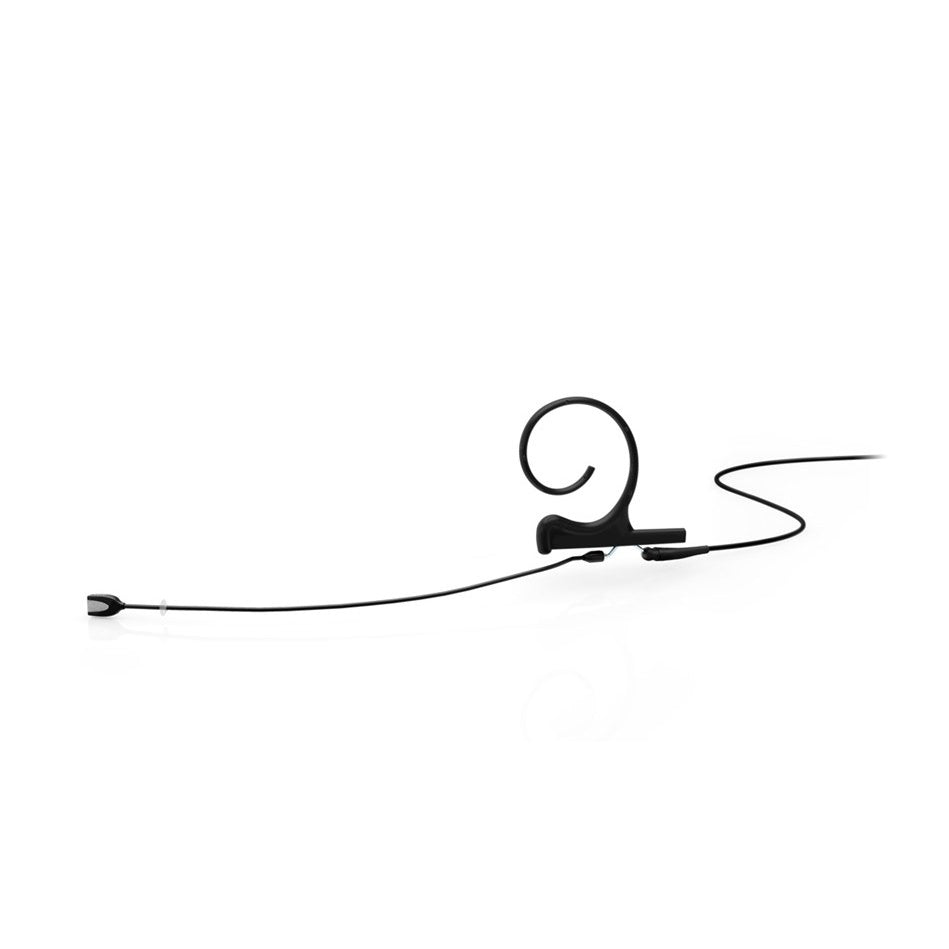

DPA Microphones 4188 Directional Flex Headset Mic | Medium | Long Headset | MicroLock | Black

DPA Microphones 4188 Directional Flex Headset Mic | Medium | Long Headset | MicroLock | Black

SoundPro Item: 151031 | Part Number: 4188-DP-F-B90-LH

$1,135.00
$1,135.00 $1,135.00
Your Price Sold out
MSRP: $1,135.00 | MAP: $1,135.00

Usually ships in 5-7 business days

  • CORE+ Capsule Technology Delivers Extended High-Frequency Response To 20 kHz
  • Cardioid Pattern Provides Off-Axis Rejection For Monitor And Stage Noise Suppression
  • Dual-Ear Hook System Ensures Stable Positioning During Movement And Performance
  • MicroLock Connector Interface Enables Fast Transmitter Swaps Without Re-Fitting
  • IP58 Rating Protects Internal Elements From Moisture And Airborne Contaminants
Log in or register for YOUR best price

Built for demanding vocal applications in theater, broadcast, and corporate AV environments, this directional headset microphone pairs the 4088 CORE+ cardioid capsule with a dual-ear mounting system. The pressure gradient design maintains natural voice intelligibility across spoken word and sung passages without distortion, even at sustained high output levels. Its 116 dB dynamic range and extremely low self-noise floor make it equally effective for miked presenters in quiet studios and performers in high-energy stage productions.

The lightweight dual-ear hook design distributes contact pressure evenly while the flexible boom positions the 5.4 mm capsule precisely at the optimal near-field distance. IP58-rated protection against moisture and dust ensures consistent performance under stage lighting and outdoor conditions. The included connector interfaces directly with professional wireless transmitters, eliminating the need for external preamps or impedance matching in typical installs.

Designed for integrators managing multi-source reinforcement systems, the microphone's cardioid pattern provides substantial rejection of stage wash and monitor bleed. The flexible adapter system accommodates most wireless transmitter platforms without firmware updates or gain structure changes, simplifying inventory management across venues with mixed transmitter fleets.

Downloads

View full details

Specifications

Audio
Directional Pattern
Cardioid
Principle Of Operation
Pressure gradient
Cartridge Type
Pre-polarized condenser
Frequency Response
20 Hz - 20 kHz
Effective Frequency Range
100 Hz - 20 kHz with 3 dB soft boost at 8 - 20 kHz
Sensitivity
6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent Noise Level A-Weighted
Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
Equivalent Noise Level ITU-R BS.468-4
Typ. 38 dB (max. 40 dB)
Distortion THD < 0.5%
137 dB SPL RMS, 140 dB SPL peak
Distortion THD < 1%
139 dB SPL RMS, 142 dB SPL peak
Dynamic Range
Typ. 116 dB
Max SPL THD 10%
146 dB SPL peak
Connectivity
Rated Output Impedance
From MicroLock: 30 - 40 Ω. From DAD9001: 100 Ω
Cable Drive Capability
Up to 300 m (984 ft) with DAD9001 XLR Adapter
Output Balance Principle
Signal balanced with DAD9001 XLR Adapter
Common Mode Rejection Ratio
> 60 dB from 50 Hz to 15 kHz with DAD9001 XLR Adapter
Connector
MicroLock
Electrical
Power Supply
For wireless systems Min. 5 V - max. 10 V through DPA adapter. With DAD9001: P48 (Phantom Power). Will work from 12 V
Current Consumption
Typ. 1.5 mA (microphone). 3.5 mA with DAD9001 XLR Adapter
Polarity
+V at MicroLock pin for positive sound pressure (and pin 2 on DAD9001 XLR adapter)
Construction
Microphone Diameter
5.4 mm (0.21 in)
Capsule IP Rating
IP58
Color
Black
Weight
Microphone Boom
0.8 g (0.03 oz)
Earhook
1.1 g (0.04 oz)
Cable
6.6 g (0.23 oz)
Total Weight
8.5 g (0.30 oz)
Cable
Cable Length
1.3 m (4.3 ft)
Cable Color
Black
Cable Diameter
1.6 mm (0.06 in)
Environmental
Electromagnetic Compatibility
Fully compatible
Temperature Range
-40°C to 45°C (-40°F to 113°F)
Relative Humidity
Up to 90%
