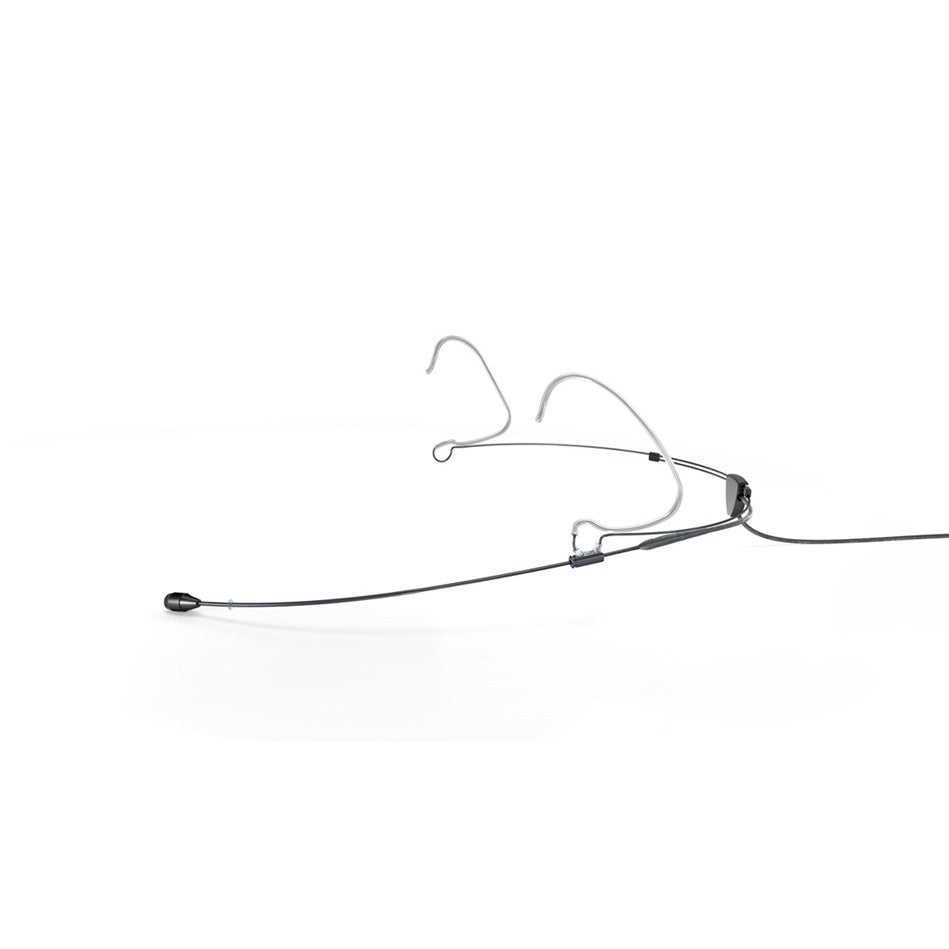

DPA Microphones 4466 Omni Dual-Ear Headset With CORE+ | MicroLock | Beige

DPA Microphones 4466 Omni Dual-Ear Headset With CORE+ | MicroLock | Beige

SoundPro Item: 148011 | Part Number: 4466-OP-R-F90

$990.00
$990.00 $990.00
Your Price Sold out
MSRP: $990.00 | MAP: $990.00

Usually ships in 5-7 business days

  • Three-Point Dual-Ear Frame Provides Secure Fit Across All Head Sizes And Shapes
  • CORE+ By DPA Technology Reduces Distortion And Expands Dynamic Range For Broadcast
  • IP58-Rated Capsule Protects Against Moisture And Dust In Outdoor Production Environments
  • Adjustable Boom Length And Cable Guide Enable Precise Placement For Camera Visibility
  • Non-Reflective PVD Surface Eliminates Stage Light And Studio Reflections
Log in or register for YOUR best price

Designed for professional broadcast, theatre, house of worship, and conferencing environments, the 4466 CORE+ headset integrates DPA's 5 mm pre-polarized condenser capsule with advanced CORE+ by DPA signal processing. The omnidirectional polar pattern provides consistent off-axis response while maintaining clean reproduction across the full 20 Hz to 20 kHz range. With 6 mV/Pa sensitivity matched to typical wireless transmitter inputs, this headset eliminates gain staging guesswork and delivers reliable signal levels whether the talent is speaking or singing.

The Red Dot award-winning dual-ear frame accommodates all head sizes through its adjustable three-point grip system, which secures the mic above, below, and behind the ear. Boom length and capsule placement adjust independently, while a 90° rotating cable guide keeps the 1.3 m cable discreetly routed away from camera sightlines. The non-reflective PVD coating on the frame, boom, and capsule housing eliminates glare under stage lighting and studio fixtures.

The IP58-rated capsule withstands exposure to moisture and dust, making this headset suitable for outdoor festivals, humid worship spaces, and demanding theatrical productions. Maximum SPL handling reaches 144 dB peak at 10% THD, allowing engineers to push input levels without audible distortion even during dynamic vocal performances.

Downloads

View full details

Specifications

Audio
Directional Pattern
Omnidirectional
Principle Of Operation
Pressure
Frequency Response
20 Hz - 20 kHz
Sensitivity
6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent Noise Level, A-Weighted
Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
Equivalent Noise Level, ITU-R BS.468-4
Typ. 38 dB (max. 40 dB)
Dynamic Range
Typ. 113 dB
Distortion, THD < 0.5%
133 dB SPL RMS, 136 dB SPL peak
Distortion, THD < 1%
136 dB SPL RMS, 139 dB SPL peak
Max SPL, THD 10%
144 dB SPL peak
Rated Output Impedance
30 - 40 Ω
Electrical
Power Supply
For wireless systems Min. 5 V - max. 10 V through DPA adapter; With DAD9001: P48 (Phantom Power). Will work from 12 V
Current Consumption
Typ. 1.5 mA (microphone). 3.5 mA with DAD9001 XLR Adapter
Polarity
Positively increasing sound pressure produces positive going voltage on MicroLock pin
Construction
Cartridge Type
Pre-polarized condenser
Capsule Diameter
5.4 mm (0.21 in)
Color
Beige
Weight
12 g (0.4 oz) incl. Cable and MicroLock connector
Connectivity
Connector
MicroLock
Cable Length
1.3 m (4.3 ft)
Cable Diameter
1.6 mm (0.06 in)
Cable Drive Capability
Up to 300 m (984 ft) with DAD9001 XLR Adapter
Certifications
Capsule IP Rating
IP58
Environmental
Temperature Range
-40°C to 45°C (-40°F to 113°F)
Relative Humidity (RH)
Up to 90%
