DPA Microphones 5100 Mobile Surround Microphone

DPA Microphones 5100 Mobile Surround Microphone

SoundPro Item: 203344 | Part Number: 5100

$4,150.00
$4,150.00 $4,150.00
Your Price Sold out
MSRP: $4,150.00 | MAP: $4,150.00

Usually ships in 5-7 business days

  • Plug-and-play solution
  • Compact, lightweight and portable
  • Rich, smooth and fully enveloping sound
  • Discrete 5.1 analog output – no processing needed
Log in or register for YOUR best price

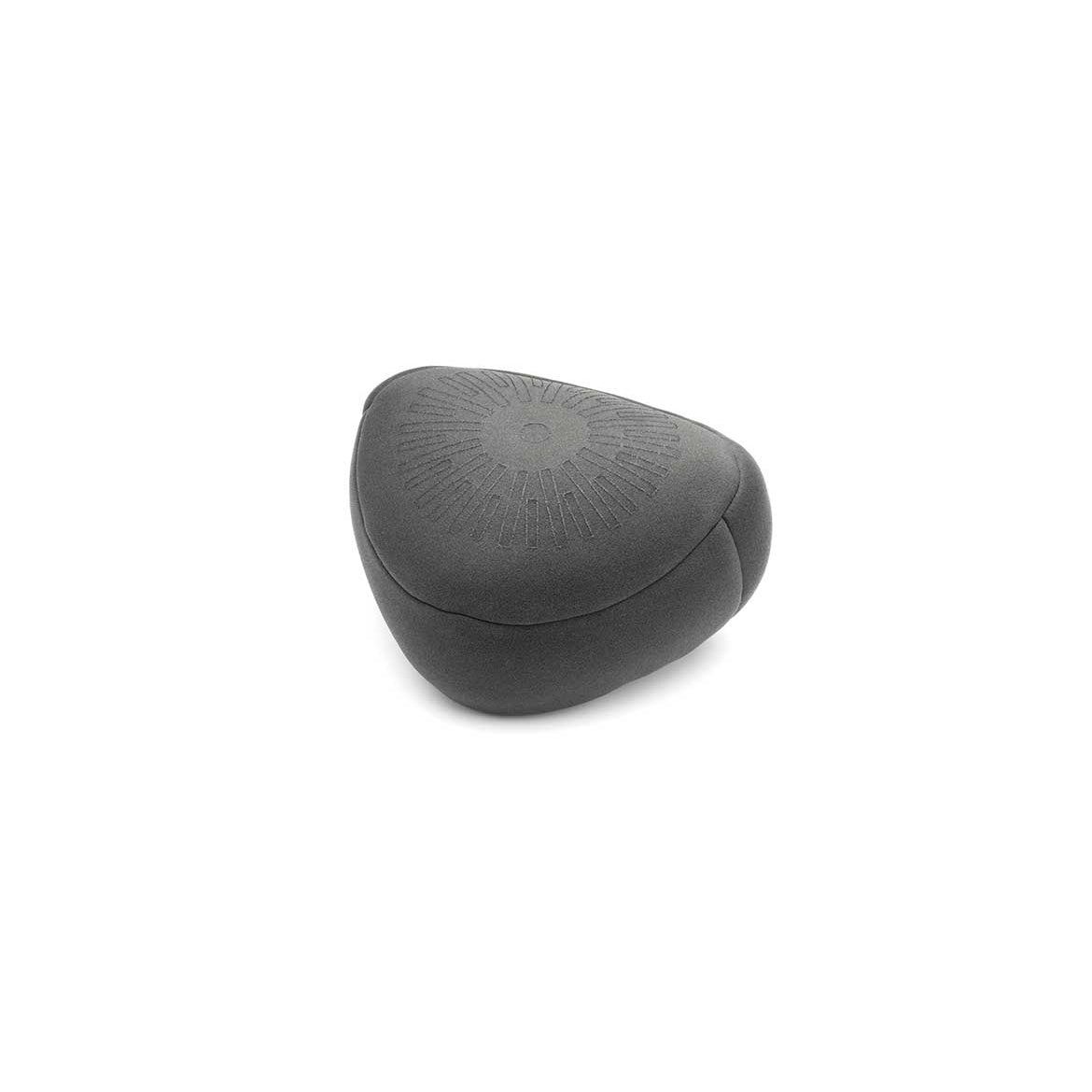

The 5100 Mobile Surround Microphone is a completely self-contained plug-and-play solution for 5.1 audio capture. It brings engaging surround ambience to sport events, documentaries and other HDTV productions.

View full details

Specifications

GENERAL SPECIFICATIONS
Directional Pattern
Directional
Principle of Operation
Pressure; interference tube; separation baffles
Cartridge Type
Pre-polarized condenser element
FREQUENCY & PERFORMANCE
Frequency Response
L; C; R; LS; RS: 20 Hz - 20 kHz; LFE: 20 Hz - 120 Hz
Effective Frequency Range (±2 dB)
L; C; R: 200 Hz - 16 kHz; LS; RS: 100 Hz - 12 kHz; LFE: 20 Hz - 120 Hz
Sensitivity (±3 dB @ 1 kHz)
L; C; R: 26 mV/Pa; LS; RS: 28 mV/Pa
Equivalent Noise Level (A-weighted)
L; C; R: Typ. 18 dB(A); max. 21 dB(A); LS; RS: Typ. 20 dB(A); max. 23 dB(A)
Equivalent Noise Level (ITU-R BS.468-4)
L; C; R: Typ. 29 dB; max. 32 dB; LS; RS: Typ. 31 dB; max. 34 dB
Distortion (THD < 1%)
120 dB SPL RMS; 123 dB SPL peak
Dynamic Range
L; C; R; LS; RS: 103 dB; LFE: 100 dB
Max SPL (THD 10%)
132 dB SPL peak
Maximum Output Voltage
L; C; R; LS; RS: 1.8 Vrms; 2.5 Vpeak; LFE: 1 Vrms; 1.4 Vpeak
ELECTRICAL SPECIFICATIONS
Rated Output Impedance
50 Ω
Cable Drive Capability
100 m (328 ft)
Output Balance Principle
Active signal balanced
Common Mode Rejection Ratio (CMRR)
60 dB; 50 Hz - 20 kHz
Power Supply
P48 (Phantom Power)
Current Consumption
Typ. 5 mA; max. 5.5 mA
Connector
Lemo multipin
Polarity
+V at pin 2 for positive sound pressure
PHYSICAL SPECIFICATIONS
Weight
500 g (17.6 oz)
Dimensions
W: 240 mm (9.4 in); H: 140 mm (5.5 in); D: 195 mm (7.7 in)
Capsule Diameter
5.4 mm (0.21 in)
Cable Length
5 m (16.4 ft)
Cable Diameter
9.3 mm (0.37 in)
ENVIRONMENTAL
Temperature Range
-40°C to 45°C (-40°F to 113°F)
Relative Humidity
Up to 90%
