DPA Microphones 6060 CORE Omni Subminiature Lavalier Mic | MicroLock | Black

DPA Microphones 6060 CORE Omni Subminiature Lavalier Mic | MicroLock | Black

SoundPro Item: 150917 | Part Number: 6060-OC-U-B90

$700.00
$700.00 $700.00
Your Price Sold out
MSRP: $700.00 | MAP: $700.00

Usually ships in 5-7 business days

  • CORE Technology Reduces Self-Noise And Expands Headroom For Clean Dialog In RF-Dense Environments
  • IP58 Environmental Sealing Protects Against Perspiration And Moisture During Extended Wear
  • Modular MicroLock Connector Enables Tool-Free Swaps Across Wireless Transmitter Platforms
  • Omnidirectional Polar Pattern Maintains Consistent Timbre Regardless Of Talent Movement
  • 102 dB Dynamic Range Captures Whispers To Peaks Without Clipping Or Noise Compromise
Log in or register for YOUR best price

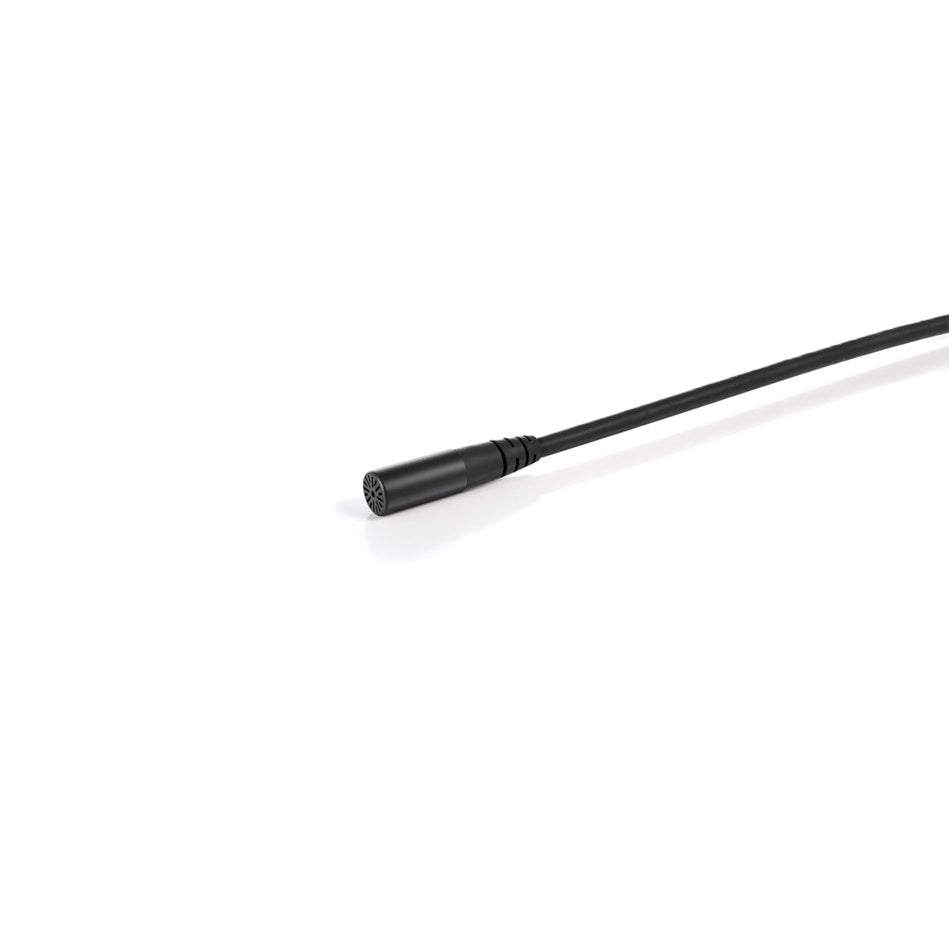

The DPA 6060 CORE series redefines what's possible in subminiature lavalier design for broadcast, theater, and film production. At just 3 mm in diameter, the capsule vanishes on camera yet delivers the sonic signature DPA is known for: flat frequency response, low self-noise, and high SPL handling that rivals larger microphones. CORE technology reduces distortion and noise floor, giving you clean dialog capture even in challenging RF environments or when concealed under wardrobe.

Built for the demands of professional production, the capsule carries an IP58 rating for sweat and moisture resistance, while the modular MicroLock connector allows fast, secure attachment to a wide range of wireless transmitters through DPA's adapter system. The 1.8 m cable provides routing flexibility without adding bulk, and the omnidirectional polar pattern ensures consistent pickup regardless of talent movement or mic placement.

Where other 3 mm capsules sacrifice headroom or introduce noise, the 6060 maintains 102 dB of usable dynamic range and handles peak SPLs up to 134 dB—ideal for live performances, reality TV, and location sound where you need reliable capture without resorting to larger, more visible solutions.

Downloads

View full details

Specifications

Audio
Directional Pattern
Omnidirectional
Principle of Operation
Pressure
Cartridge Type
Pre-polarized Condenser
Frequency Response
20 Hz - 20 kHz
Effective Frequency Range
40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz
Sensitivity
20 mV/Pa; -34 dB re. 1 V/Pa
Equivalent Noise Level
Typ. 24 dB(A) re. 20 µPa (max. 26 dB(A))
THD < 0.5%
120 dB SPL RMS, 123 dB SPL peak
THD < 1%
123 dB SPL RMS, 126 dB SPL peak
Dynamic Range
Typ. 102 dB
Max SPL (THD 10%)
134 dB SPL peak
Electrical
Rated Output Impedance
30 - 40 Ω from MicroDot; 100 Ω from DAD6001-BC
Cable Drive Capability
Up to 300 m (984 ft) with DAD9001 XLR Adapter
Output Balance Principle
Signal balanced with DAD9001 XLR Adapter
Power Supply
Min. 5 V - max. 10 V through DPA adapter for wireless; P48 with DAD9001 (will work from 12 V)
Current Consumption
Typ. 1.5 mA (microphone); 3.5 mA with DAD9001 XLR Adapter
Polarity
Positively increasing sound pressure produces positive going voltage on MicroLock pin
Construction
Connector
MicroLock
Color
Black
Capsule Diameter
3 mm (0.12")
Microphone Head Size
3.4 x 14.4 mm (0.13" x 0.57")
Cable Length
1.8 m (5.9')
Weight
8 g (0.29 oz) incl. Cable and MicroLock connector
Certifications
Capsule IP Rating
IP58
Environmental
Temperature Range
-40°C to 45°C (-40°F to 113°F)
Relative Humidity
Up to 90%
