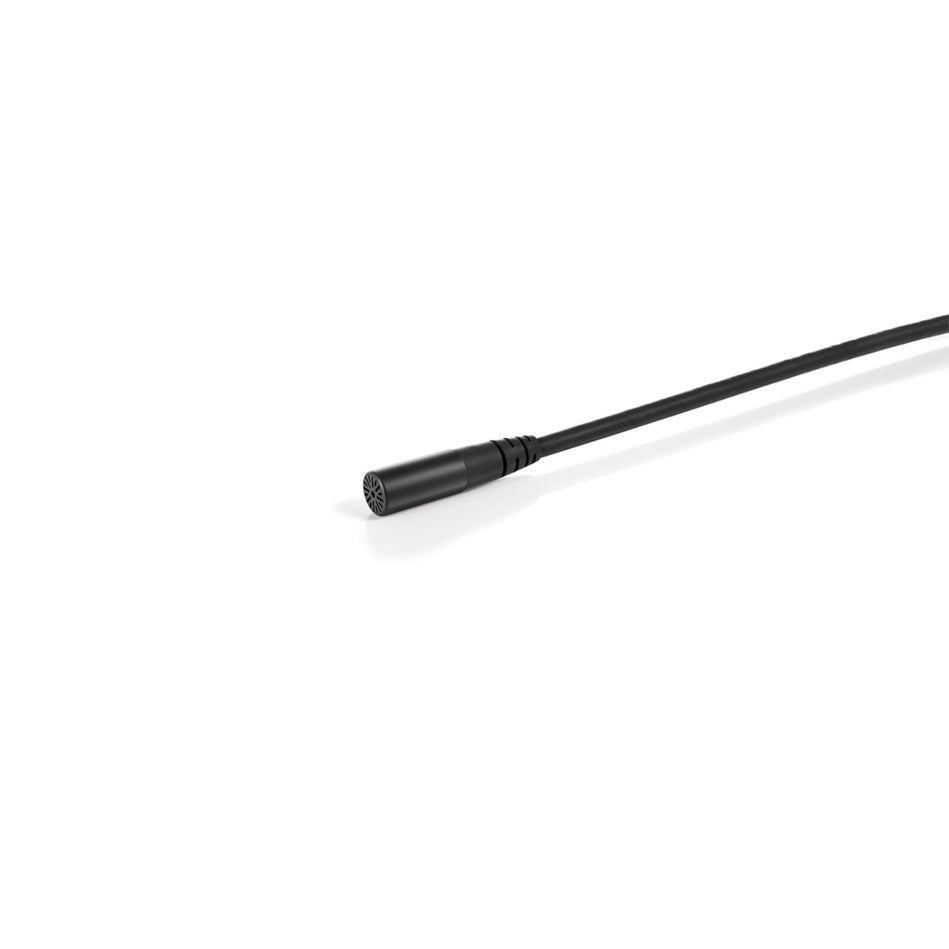

DPA Microphones 6061 CORE Loud SPL Omni Subminiature Lavalier Mic | MicroLock | Black

DPA Microphones 6061 CORE Loud SPL Omni Subminiature Lavalier Mic | MicroLock | Black

SoundPro Item: 150921 | Part Number: 6061-OC-U-B90

$700.00
$700.00 $700.00
Your Price Sold out
MSRP: $700.00 | MAP: $700.00

Usually ships in 5-7 business days

  • CORE By DPA Technology Reduces Distortion For Clean Audio In High SPL Applications
  • IP58 Environmental Rating Protects Against Moisture And Dust In Demanding Production Conditions
  • Modular Adapter System Enables Direct Integration With Professional Wireless Transmitter Platforms
  • Omnidirectional Capsule Provides Consistent Off-Axis Response For Flexible Talent Positioning
  • 3mm Capsule Diameter Allows Invisible Mounting For Broadcast And Theatrical Applications
  • Extended Dynamic Range Captures Nuanced Performance Detail From Whisper To Projection
  • Temperature Tolerant Design Operates Reliably In Outdoor And Variable Climate Environments
Log in or register for YOUR best price

The 6061 CORE subminiature lavalier brings DPA's reference-grade audio performance to applications where visibility must be minimized without sacrificing sonic integrity. At just 3mm in diameter, the capsule achieves a noise floor of 26dB(A) and 144dB peak SPL handling, matching the performance of larger DPA miniature designs while enabling completely discreet placement on talent for broadcast, theater, and corporate AV.

Built for the demands of professional production environments, the microphone features IP58-rated environmental protection and operates reliably across a -40°C to 45°C temperature range. The MicroLock connector integrates seamlessly with DPA's modular adapter system, providing direct compatibility with professional wireless transmitters while maintaining consistent sonic character across your entire microphone inventory.

The omnidirectional polar pattern and extended frequency response deliver natural, uncolored reproduction whether used for dialog capture in film production, clergy miking in houses of worship, or presenter audio in live events. This consistency allows engineers to rely on predictable performance regardless of mounting position or acoustic environment.

Downloads

View full details

Specifications

Audio
Directional Pattern
Omnidirectional
Principle of Operation
Pressure
Cartridge Type
Pre-polarized Condenser
Frequency Response
20 Hz - 20 kHz
Effective Frequency Range
40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz
Sensitivity
6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent Noise Level
Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
Dynamic Range
Typ. 102 dB
Max SPL (THD 10%)
144 dB SPL peak
Distortion (THD < 0.5%)
122 dB SPL RMS, 125 dB SPL peak
Distortion (THD < 1%)
125 dB SPL RMS, 128 dB SPL peak
Electrical
Rated Output Impedance
30 - 40 Ω from MicroDot; 100 Ω from DAD6001-BC
Power Supply
Min. 5 V - max. 10 V through DPA adapter for wireless systems; P48 with DAD9001; Will work from 12 V
Current Consumption
Typ. 1.5 mA (microphone); 3.5 mA with DAD9001 XLR Adapter
Output Balance Principle
Signal balanced with DAD9001 XLR Adapter
Cable Drive Capability
Up to 300 m (984 ft) with DAD9001 XLR Adapter
Polarity
Positively increasing sound pressure produces positive going voltage on MicroLock pin
Construction
Capsule Diameter
3 mm (0.12 in)
Microphone Head Size
3.4 x 14.4 mm (0.13 x 0.57 in)
Color
Black
Weight
8 g (0.29 oz) incl. cable and MicroLock connector
Connectivity
Connector
MicroLock
Certifications
Capsule IP Rating
IP58
Physical
Cable Length
1.8 m (5.9 ft)
Environmental
Temperature Range
-40°C to 45°C (-40°F to 113°F)
Relative Humidity
Up to 90%
