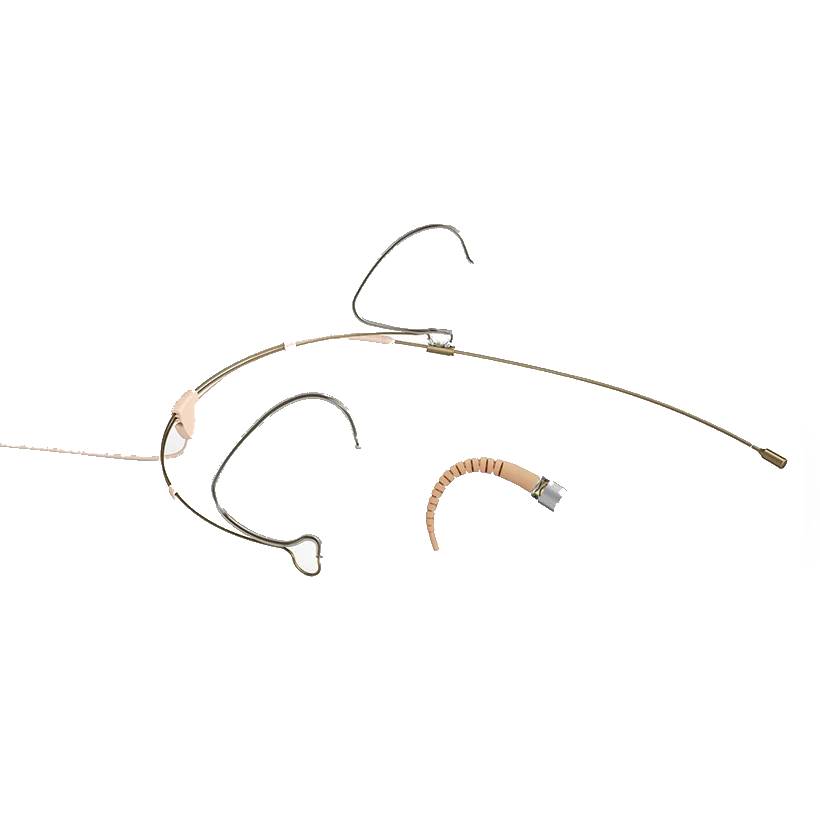

DPA 6066 d:fine CORE Omni Headset Microphone | Color: Beige, Connector: MicroLock

DPA 6066 d:fine CORE Omni Headset Microphone | Color: Beige, Connector: MicroLock

SoundPro Item: 147987 | Part Number: 6066-OC-R-F90

$1,080.00
$1,080.00 $1,080.00
Your Price Sold out
MSRP: $1,080.00 | MAP: $1,080.00

In stock and ready to ship

  • Amazing 3 mm CORE by DPA capsules technology
  • Renowned DPA sound in a 60% smaller capsule
  • One-size-fits-all, headset fits securely and comfortably
  • 2-way adjustable, non-reflective boom with locking system
  • Unique, comfortable 3-point gripping system above, below and behind the ear
  • New 90° cable management constructed to guide the cable and minimize cable breaks
Log in or register for YOUR best price

The capsule of the 6066 CORE Subminiature Headset is just 3 mm (0.12 in) in diameter, but packs the audio power of larger, award-winning DPA mics. Despite its small size, it is abundant in clarity, consistency and durability – three qualities that truly matter. By shrinking our CORE by DPA technology, we ensure you don't have to compromise on sound to focus on aesthetics.

Now available with MicroLock® – A dependable, secure locking microphone connector with limitless flexibility and reassuring reliability.

View full details

Specifications

Directional pattern
Omnidirectional
Principle of operation
Pressure
Cartridge type
Pre-polarized condenser
Frequency response
20 Hz - 20 kHz
Effective frequency range ±2 dB
40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz
Sensitivity, nominal, ±2.4 dB at 1 kHz
6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level, A-weighted
Typ. 26 dB(A) re. 20 μPa (max. 28 dB(A))
Distortion, THD < 0.5%
122 dB SPL RMS, 125 dB SPL peak
Distortion, THD < 1%
125 dB SPL RMS, 128 dB SPL peak
Dynamic range
Typ. 102 dB
Max. SPL, THD 10%
144 dB SPL peak
Rated output impedance
From MicroDot: 30 - 40 Ω. From DAD9001-BC: 100 Ω
Cable drive capability
Up to 300 m (984 ft) with DAD9001-BC XLR adapter
Power supply (for full performance)
For wireless systems Min. 5 V - max. 10 V through DPA adapter With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
Current consumption
Typ. 1.5 mA (microphone). 3.5 mA with DAD9001-BC XLR Adapter
Connector
MicroLock, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
Weight
11 g (0.40 oz) incl. Cable and MicroDot connector
Microphone head size (h x w x d)
3.4 / 8.9 mm (0.13 / 0.35 in)
Capsule diameter
3 mm (0.12 in)
Cable length
1.3 m (4.3 ft)
Polarity
Positively increasing sound pressure produces positive going voltage on MicroDot pin
Temperature range
-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)
Up to 90%
Colors
Black, Beige, Brown
