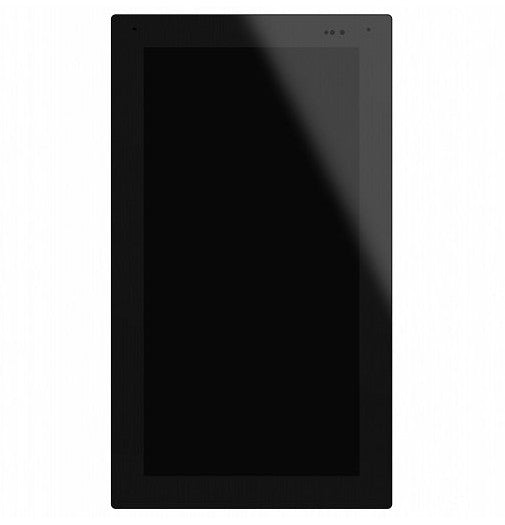

  • Dynacord TPC-1 Touch Panel Controller front

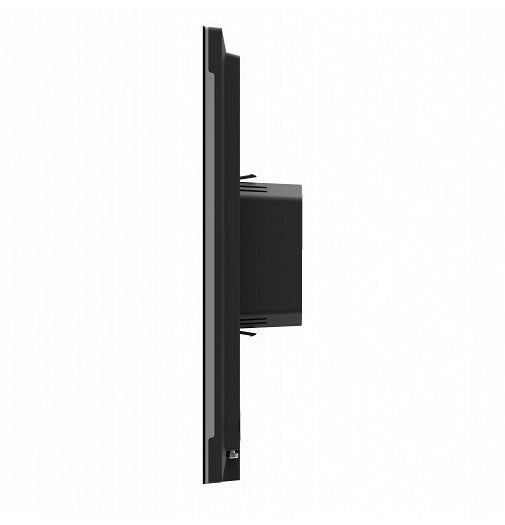

  • Dynacord TPC-1 Touch Panel Controller side
  • Dynacord TPC-1 Touch Panel Controller on
1 4

Dynacord TPC-1 Touch Panel Controller

Dynacord TPC-1 Touch Panel Controller

SoundPro Item: 108138 | Part Number: TPC-1

$1,510.00
$1,510.00 $1,510.00
Your Price Sold out
MSRP: $1,510.00 | MAP: $1,510.00

In stock and ready to ship

  • Customized user control apps with SONICUE
  • High definition (720 x 1440) IPS 5.7" display with 450 nits of brightness
  • PoE, compatible with US single gang, EU and UK wall boxes
  • Only 1 inch installation depth in wall
Log in or register for YOUR best price

The Dynacord TPC-1 touch panel controller allows the system integrator to provide customized apps to control MXE series audio matrices. Featuring a high definition 5.7” display, the super slim in wall profile and universal mounting for EU, UK, or US mounting boxes with Power over Ethernet (PoE) makes it easy to install, even in shallow wall spaces. TPC-1 features theft protection by a secured mounting plate. The TPC-1 interface is freely configurable in SONICUE sound system software, allowing custom images and text in local languages to be added to control elements.

View full details

Specifications

Dimensions
Dimensions (WxHxD inside/outside wall)
3.37" x 5.92" x 0.48"/0.81"
Electrical
Power Consumption
6W (typical), 8W (max.)
Connectivity
Wired Network
IEEE1588 Gigabit Ethernet
USB
USB 2.0 on the rear for service
Construction
Color
16.7 million
General
Resolution
720 x 1440 px
Brightness
450 nits
Processor
NXP iMX8, 64-bit Armv8-A, quad symmetric-core ARM Cortex-A53 processor @ 1.8 Ghz
Proximity Sensor (Max. Range)
120 cm
Proximity Sensor (Capture Range)
25° horizontal, 25° vertical
Aux Power
+24 V DC (connector 5.5/2.5/12 mm), power supply not included
Installation
Wall-mount, US NEMA single gang, EU 65mm (IEC/EN 60670), UK BS 4662
Recommended Cabling
CAT6
Indicators
Display
IPS 5.7"
Power
PoE
IEEE PoE 802.3af compliant via LAN port
