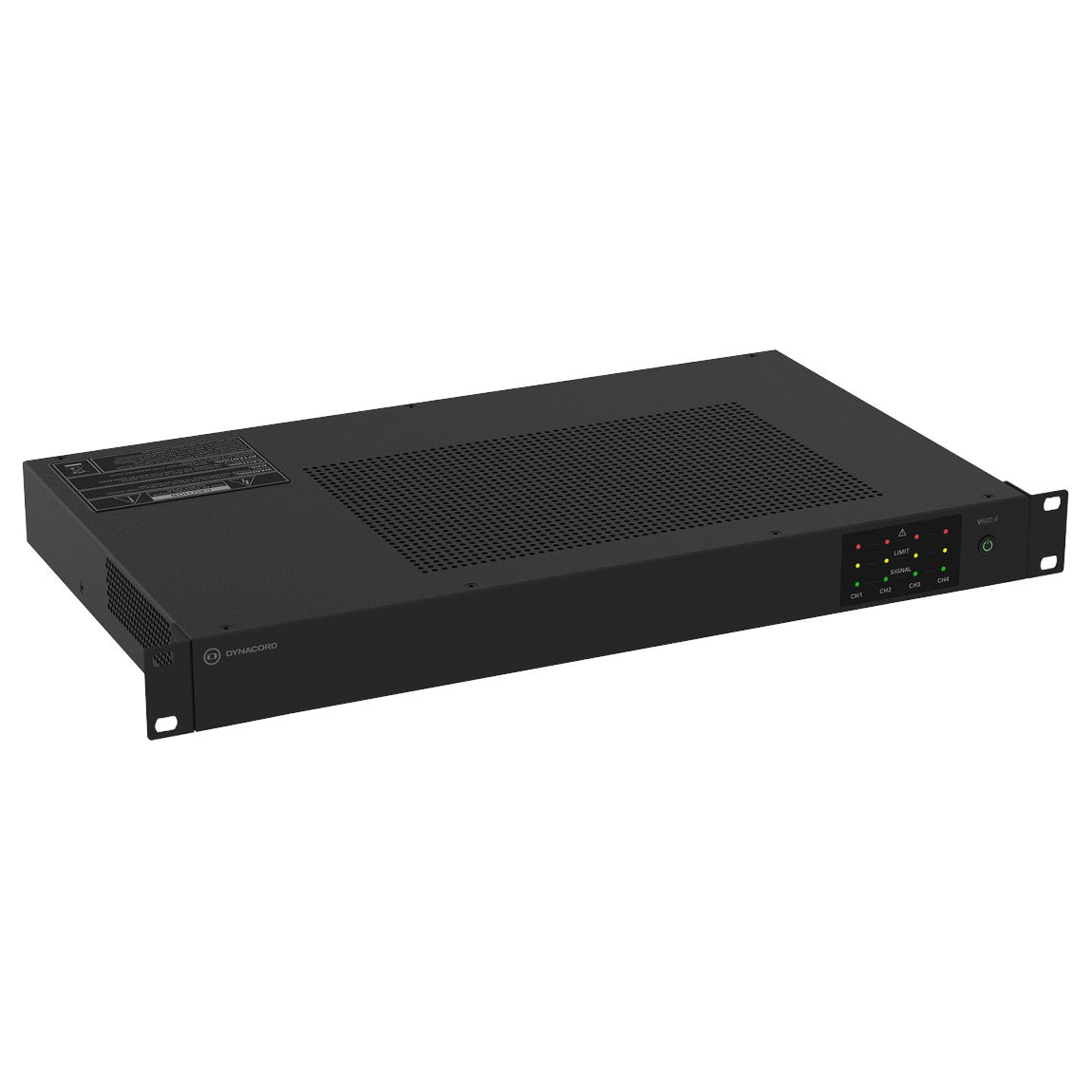

• Dynacord V600:4 600W Commercial Power Amplifier right

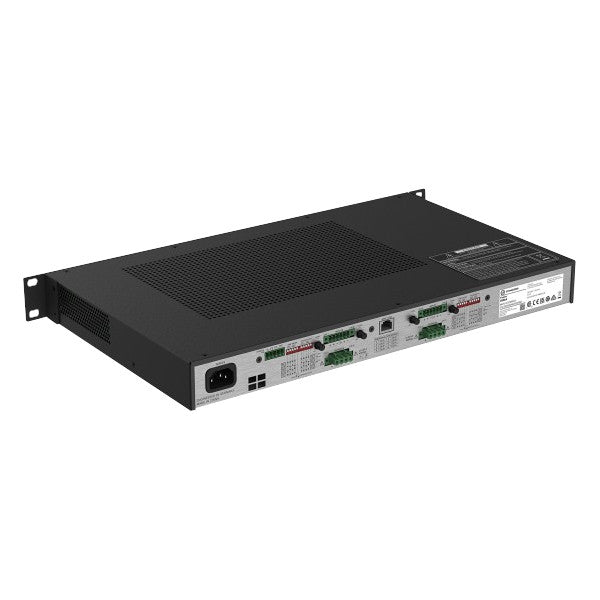

  • Dynacord V600:4 600W Commercial Power Amplifier back left

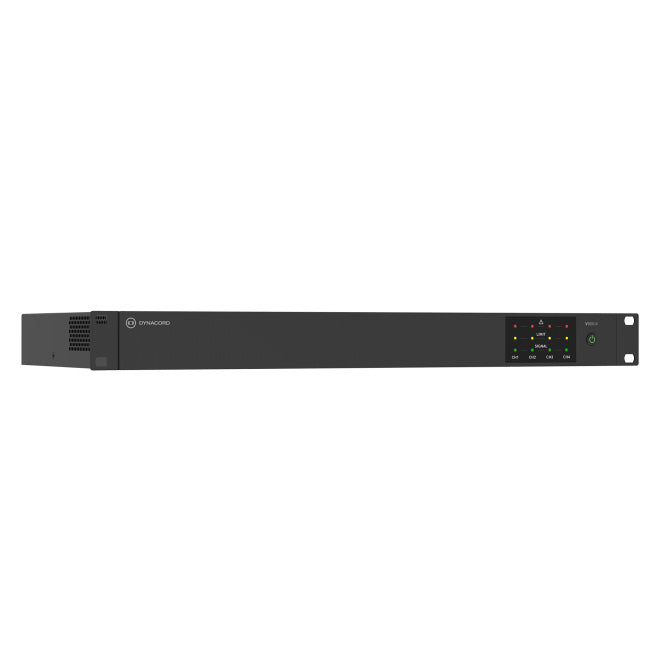

  • Dynacord V600:4 600W Commercial Power Amplifier front

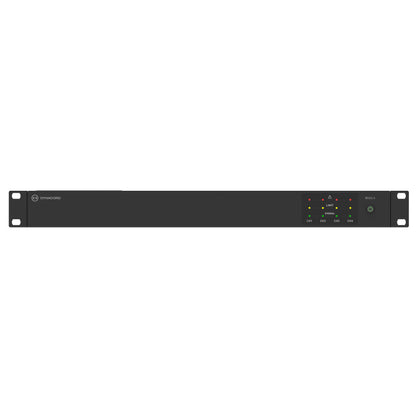

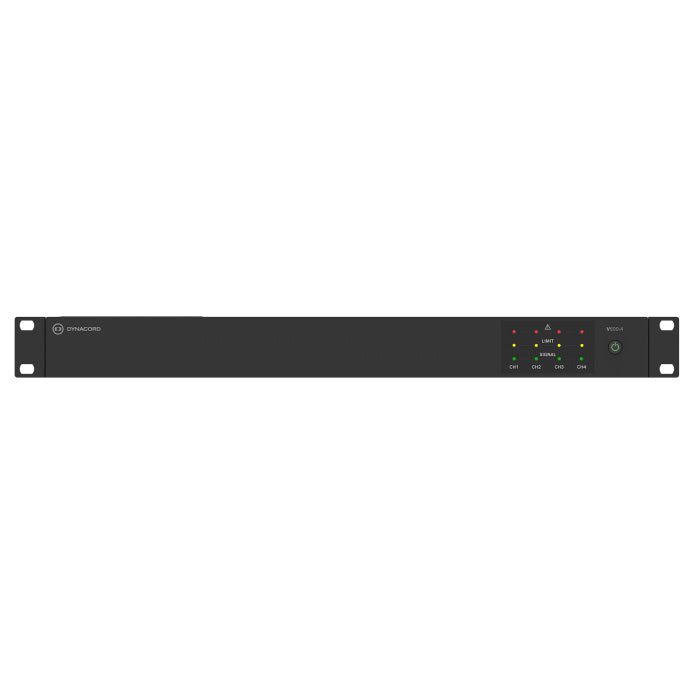

  • Dynacord V600:4 600W Commercial Power Amplifier right tilt

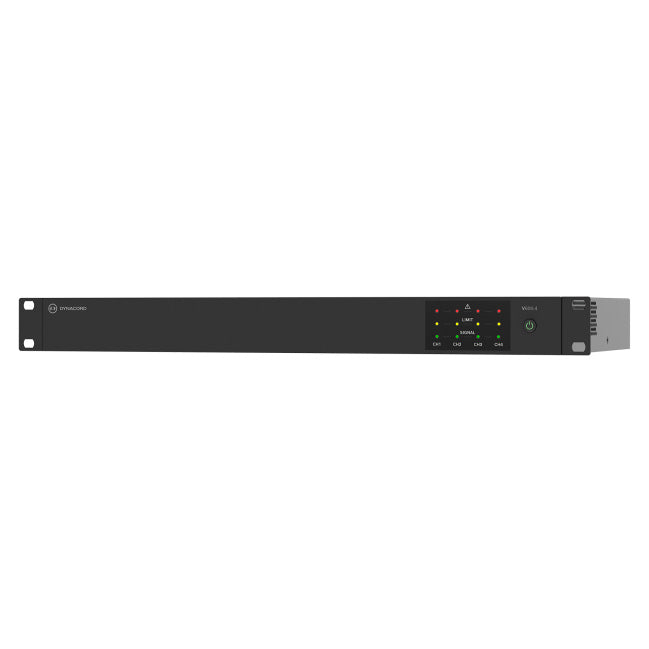

  • Dynacord V600:4 600W Commercial Power Amplifier left tilt

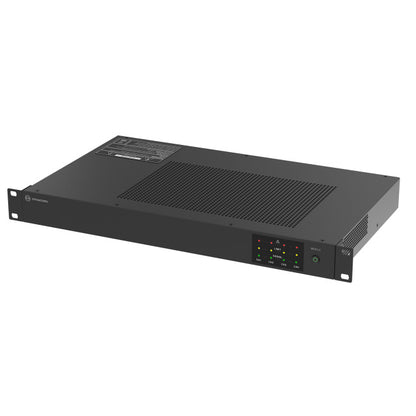

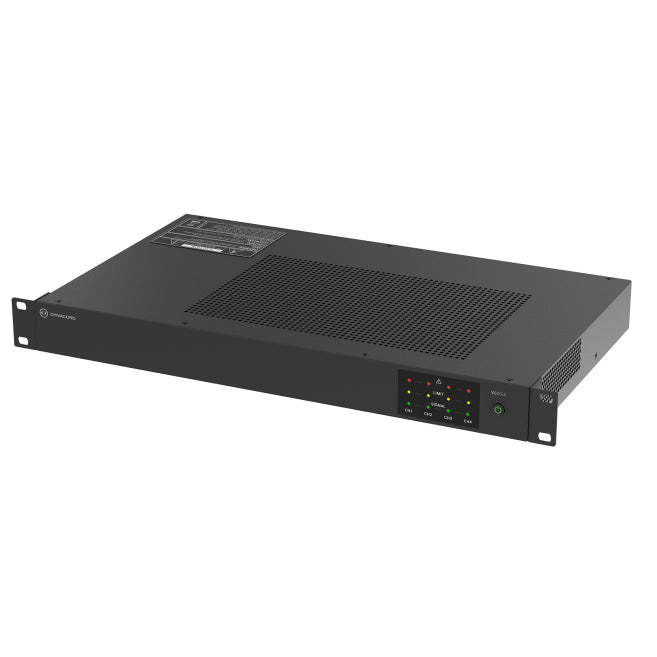

  • Dynacord V600:4 600W Commercial Power Amplifier left

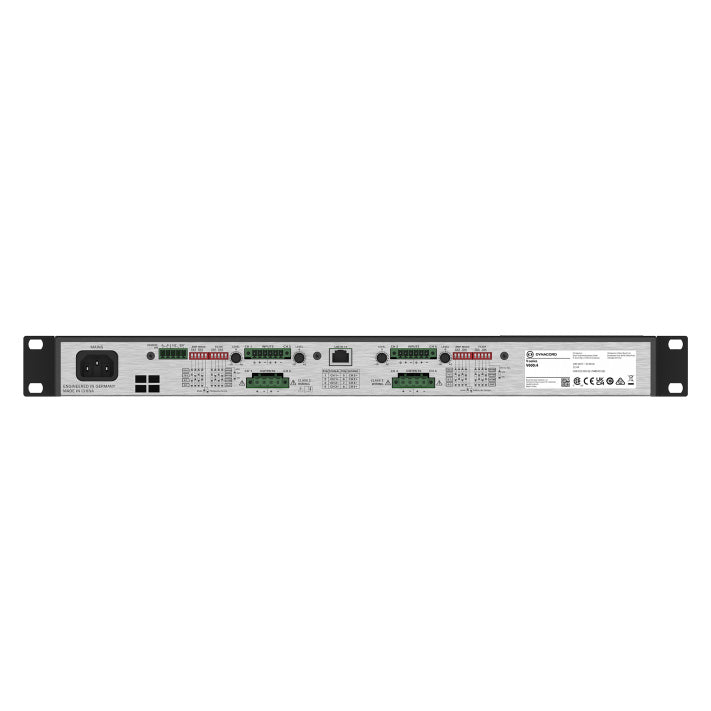

  • Dynacord V600:4 600W Commercial Power Amplifier back
1 7

Dynacord V600:4 600W Commercial Power Amplifier

Dynacord V600:4 600W Commercial Power Amplifier

SoundPro Item: 139781 | Part Number: V600:4-US

$1,229.00
$1,532.00 $1,229.00
Your Price Sold out
MSRP: $1,532.00 | MAP: $1,229.00

In stock and ready to ship

  • Versatile four-channel power amplifier at an attractive price point, recommended for BGM and announcements in small to mid-sized commercial installations
  • State-of-the-art amplifier technology for reduced cost of ownership, with low energy consumption and flexible power usage
  • Easy handling and trouble-free amplifier operation – even under demanding power conditions – in a compact 1RU form factor
Log in or register for YOUR best price

With the V600:4, Dynacord presents the first member of a new amplifier line for small to mid-sized installation scenarios such as education, hospitality, retail, houses of worship and more. The four-channel power amplifier with a total power of 600 watts is recommended as a go-to power amplifier for consultants, specifiers and installers who are looking for a robust, extremely versatile amplifier that is quick to install and runs trouble-free – even under demanding power conditions.

With a compact 1RU form factor requiring minimal rack space, the V600:4 is fully equipped with best-in-class features and innovative new Dynacord technologies. It offers building owners an optimal combination of real professional performance and resource-efficient power consumption, all at a very attractive price point. All the amplifier technologies were developed by Dynacord engineering, one of the most experienced research teams in the audio industry.

View full details

Specifications

Electrical
VRMSMaximum Output Voltage
40.0 VRMS, 56.0 VRMS, 70.7 VRMS, 100
VRMSRated Impedance per Channel
4Ω, 8Ω, 33.3Ω, 66.7ΩMinimum impedance per channel: 2.6Ω, 4Ω, 10Ω, 16.7Ω
Power Requirements
100V to 240V, 50 Hz to 60 Hz AC
Power Consumption
Consumption at 1/8 rated output power 115W, Idle mode (ecoRAIL with no input signal) < 20W, Standby mode (APD active) < 1W
Power Supply Topology
Switching power supply with power factor correction
Audio
Analog Audio Input Type
2 x 6 pin Euroblock, 3.81 mm, male, parallel 1x RJ45 AMP LINKMaximum input level (LEVEL 0 dB): +18 dBuInput impedance, active balanced: 20 kΩMains Input: IEC C14Loudspeaker output: 2 x 4-pin Euroblock, 5.08 mm, female
Connectivity
Signal Processing Input
Routing, HPF 24 dB/ Oct., LPF 24 dB/Oct., Flat, Peak Limiter
Construction
Cooling Concept
Convection cooling in tabletop application and rack application with spacing between units. Forced cooling (side to rear) in rack application without spacing between units and in extreme thermal conditions.
Environmental
Ambient Temperature Limits
-5°C to +45°C (+23 °F to +113 °F)
Enclosure IEC Protection Class
Class I (grounded)Dimensions (HxWxD): With 19” mounting brackets 44.2 x 483 x 269.5 mm (1.74 x 19.2 x 10.6 in)Weight 3.6 kg (7.9 lb)
General
HP
30/100/150 Hz to 20 kHz
LP
30 Hz to 150
HzHP
50/100/150 Hz to 20 kHz
Stage Topology
Class D, fixed frequencySignal to Noise Ratio (A weighted, ref. to rated output power, LEVEL 0 dB): > 98 dB, > 100 dB, > 101 dB, > 103 dBOutput Noise (A-weighted, LEVEL 0 dB): < -68 dBu, < -67 dBu, < -62 dBu, < -61 dBu
Connectivity
Control Port Type 1 x 5 pin Euroblock, 3.81 mm, maleREMOTE ON Remote On / Standby contact (overrides power button on front panel)READY/FAULT Galvanic isolated relay, max. 30 VDC / 500 mADC
Protections
Audio limiters, high temperature, DC, HF, short circuit, back EMF, peak current limiters, inrush current limiters, mains over/under voltage protection
Front Status
LEDs Signal, limit, fault LEDs per channel; power LED
Altitude (operating)
-500 m to +5000 m (-1614 ft to 16404 ft)
Notes
[1] Test signal for max. output power according IHF A 202 (Dynamic-Headroom, burst 1 kHz / 20 ms on / 480 ms off / low level -20 dB), [2] Selectable via Speaker EQ
