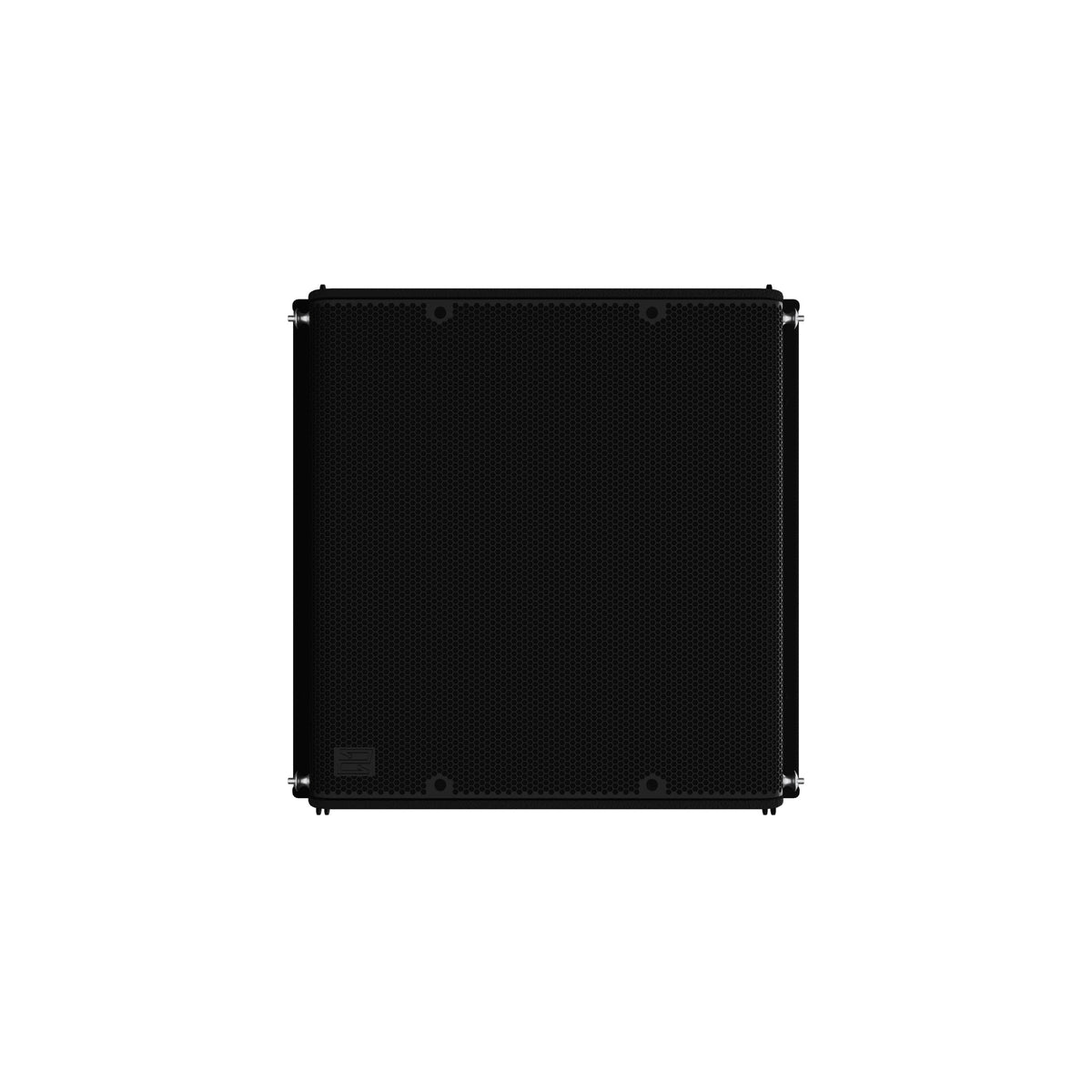

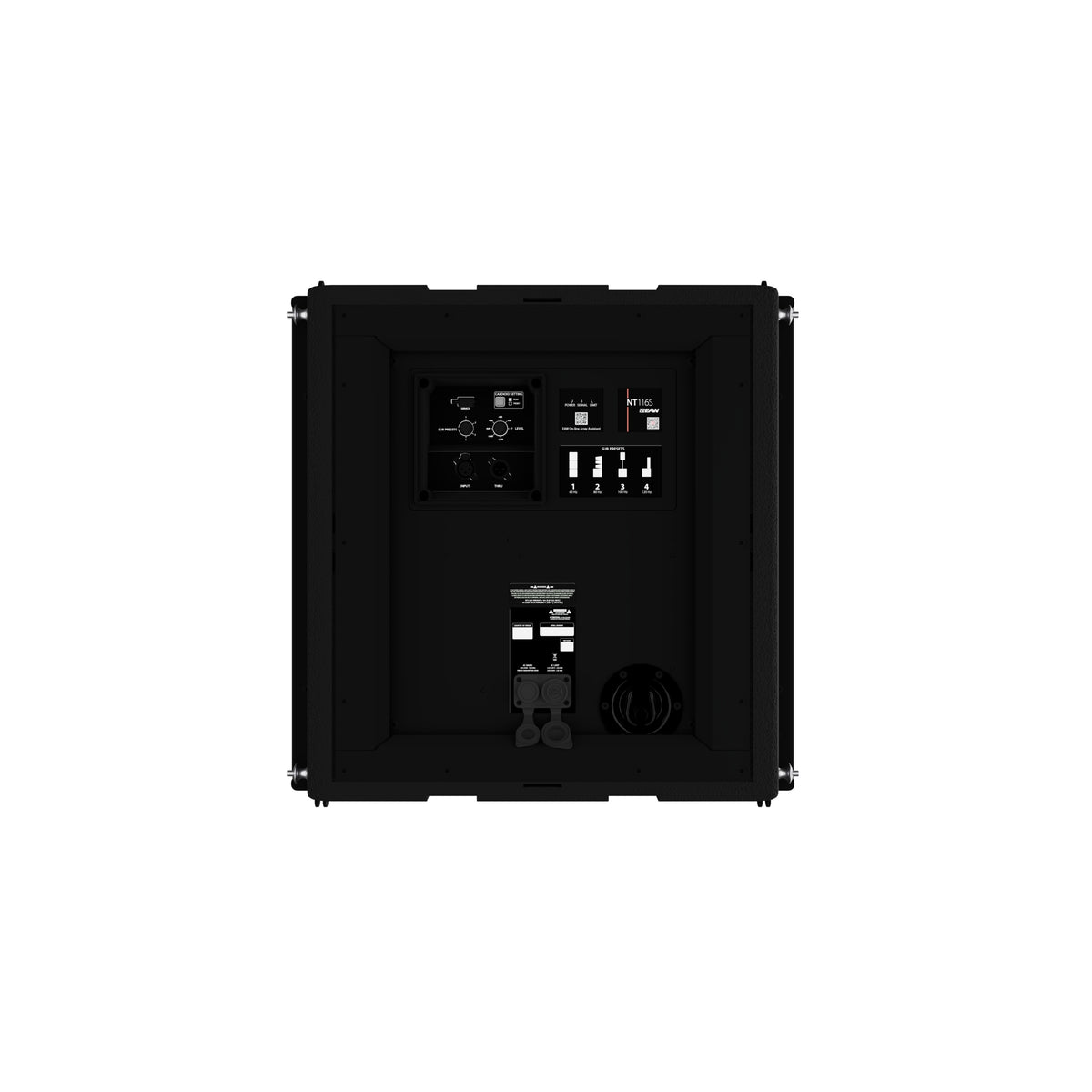

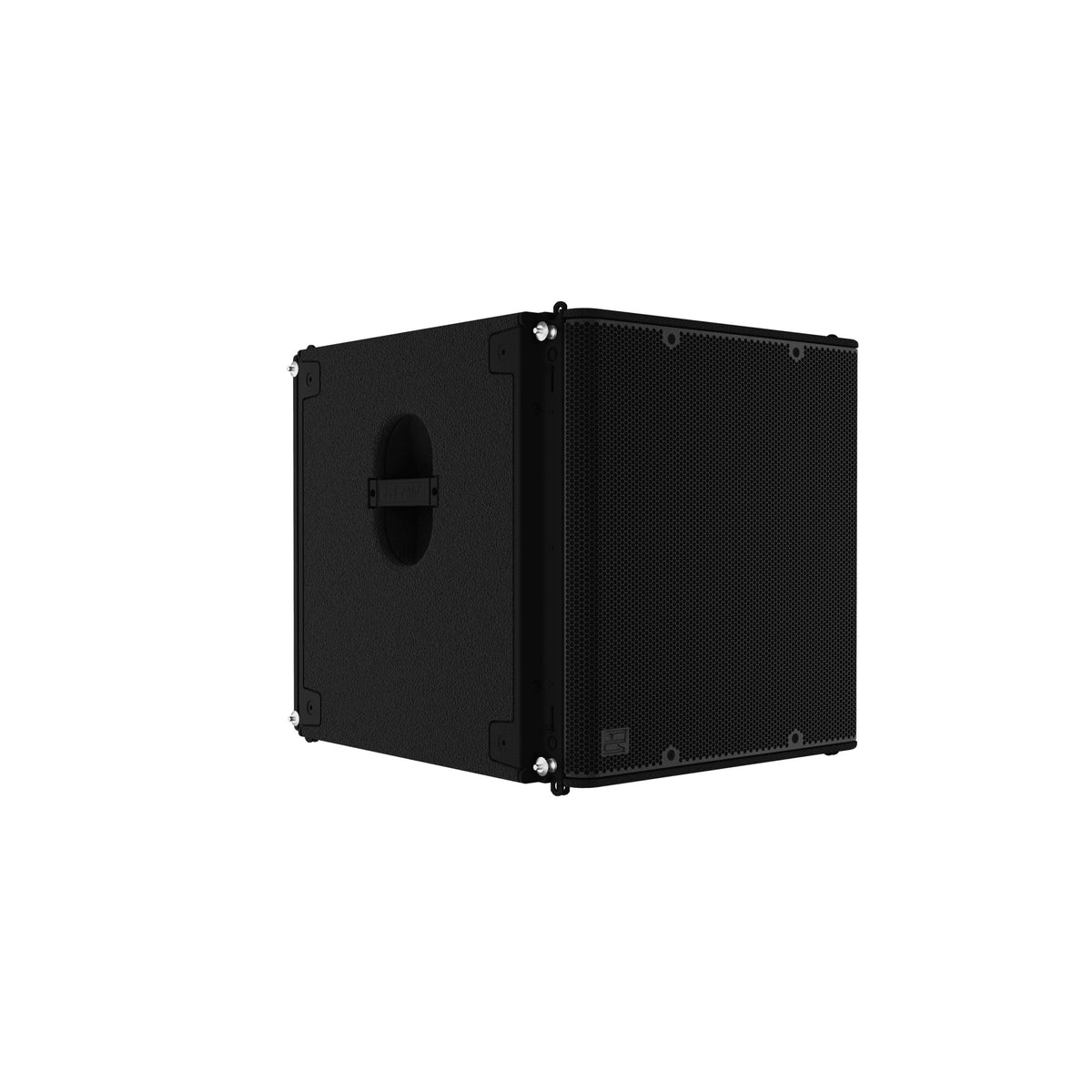

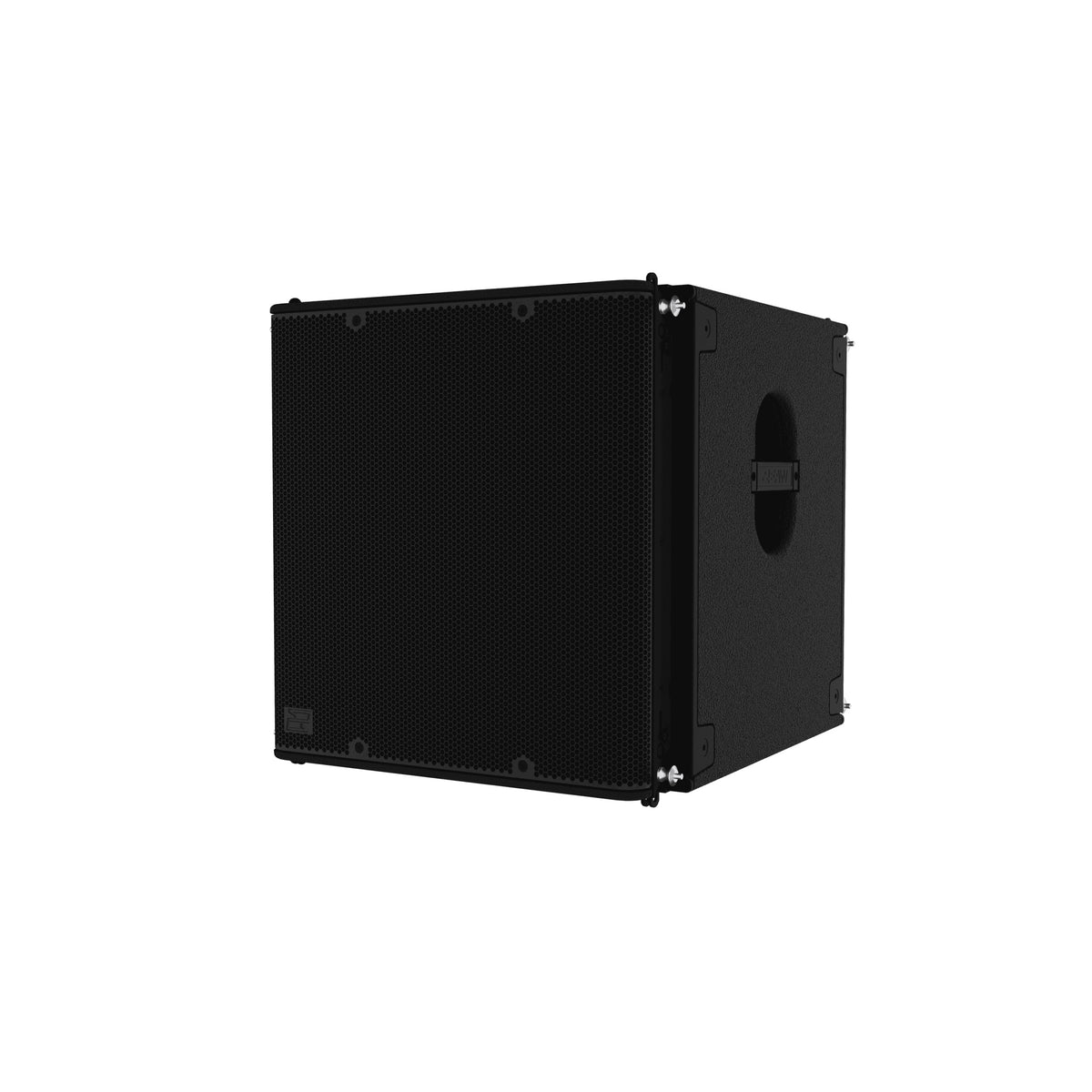

EAW 2073176-90 NT116S Flyable Powered 16" Subwoofer

EAW 2073176-90 NT116S Flyable Powered 16" Subwoofer

SoundPro Item: 208417 | Part Number: 2073176-90

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • High-Excursion 16" Woofer With 4" Voice Coil Provides Greater Air Displacement
  • Flyable Design Integrates With NT206L Arrays Or Deploys As A Standalone LF System
  • 4000W Class-D Amplification With PFC Power Supply For Consistent Output Worldwide
  • Integrated Rigging System Supports Rapid Deployment In Touring And Installed Venues
  • Pole Mount And Flybar Locating Pins Enable Flexible Ground-Stacked Configuration
  • Integral DSP Limiting Protects The Driver Without External Processing
Log in or register for YOUR best price

The EAW NT116S is a compact, self-powered subwoofer built for production teams who need serious low-frequency output without sacrificing portability or rigging flexibility. Engineered as part of the NT Series line array ecosystem, it is the LF cornerstone for engineers deploying NT206L arrays on touring, festival, and large-venue live production applications where both flown and ground-stacked configurations must be supported from a single enclosure.

The NT116S integrates directly into a flown NT206L array via the optional flybar and transition bar, or it can be rigged as a standalone flown subwoofer array. For ground-level use, integrated flybar locating pins enable safe splay-angle operation, while a pole mount adds positioning flexibility for corporate, theatrical, and installed applications. Universal voltage input and a PFC power supply make the cabinet road-ready across international touring schedules without additional power conditioning. For production companies and systems integrators evaluating compact powered subs, the NT116S delivers performance metrics that exceed many physically larger enclosures, reducing truck pack and rigging weight without compromising coverage or headroom.

Downloads

View full details

Specifications

Performance
Max SPL (Half Space)
135 dB
Operating Range
25 Hz-125 Hz
Dimensions
Height
21.6"
Width
21.5"
Depth
25.6"
Weight
Product Weight
94 lbs (42.8 kg)
Weight With Rigging Kit
120 lbs (54.4 kg)
Electrical
Amplifier Type
Class D with PFC
Maximum Output (Peak)
4000 W
AC Mains Input
100 V to 240 V
AC Mains Frequency
50 Hz to 60 Hz
Power Consumption Idle
60 W
Power Consumption 1/8th Power
150 W
Power Consumption Full Power
600 W
Max Input Level
28 dBu
Input Type
Electronically Balanced
Connectivity
Input Connector
XLRF, Pin 1 chassis, Pin 2 +, Pin 3 -
Loop-Thru Connector
Separate XLRM (analog signal only)
AC Mains Connector
Neutrik PowerCON TRUE1 TOP
Construction
Rigging
4-point integrated rigging system (optional kit)
Identifiers
Part Number
2073176-90
