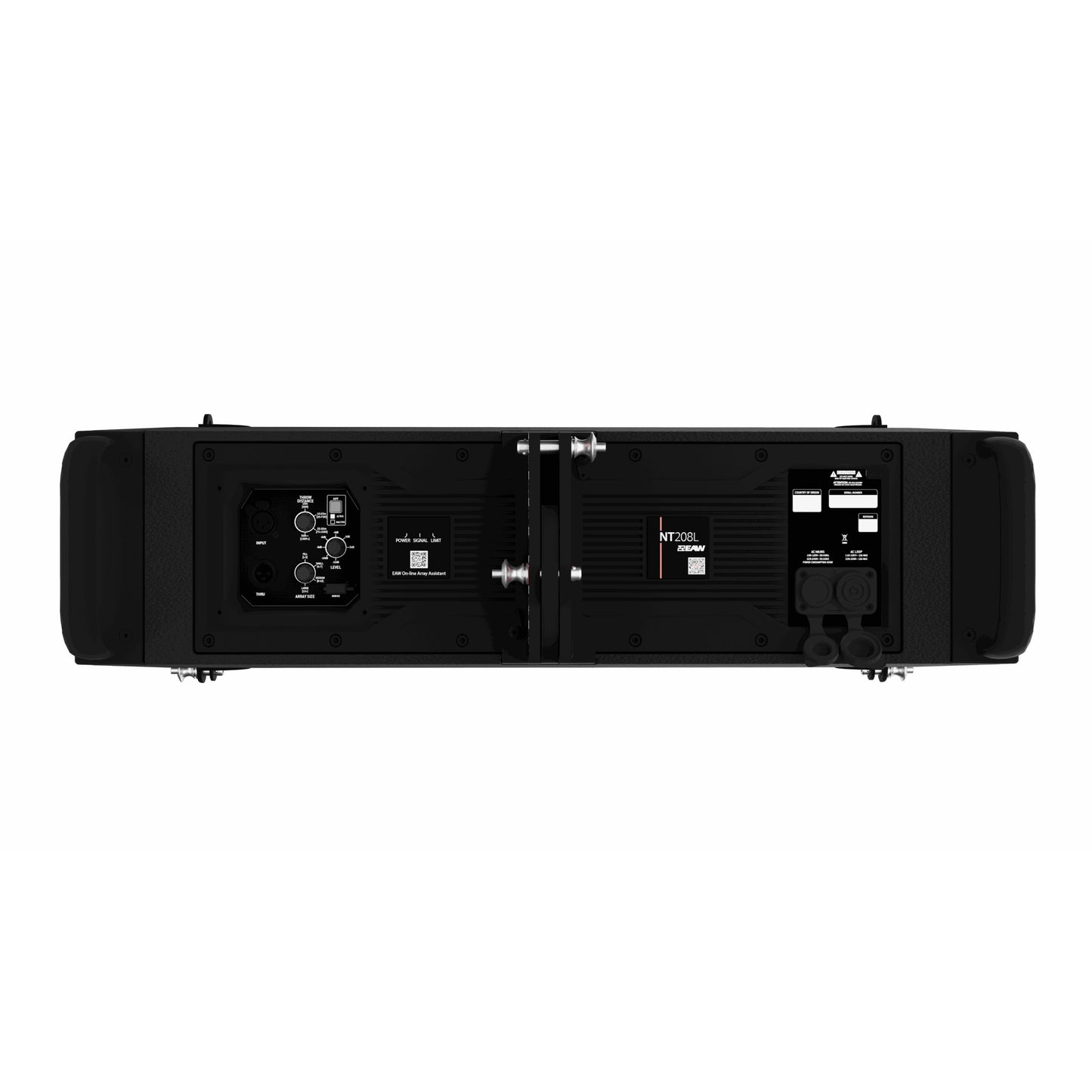

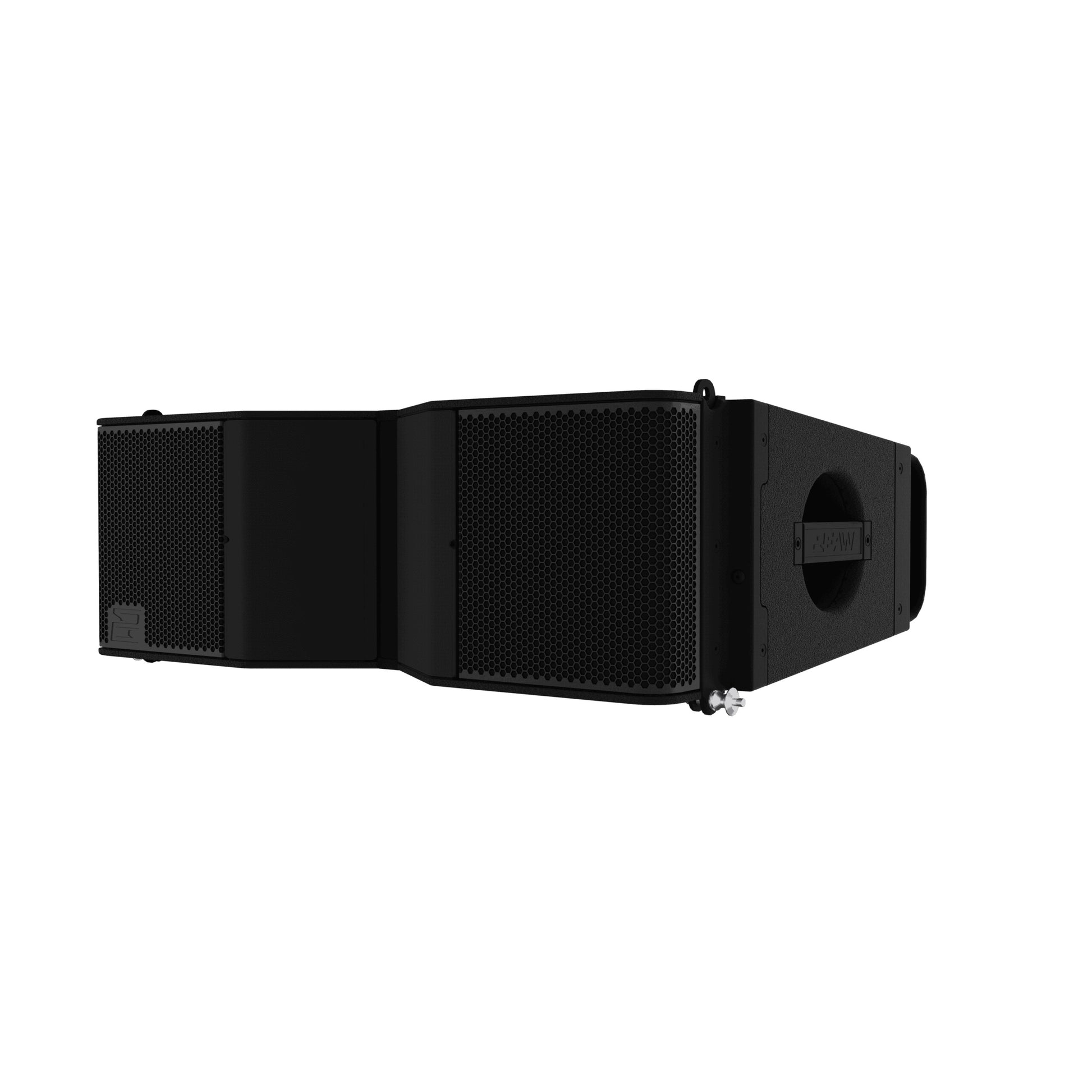

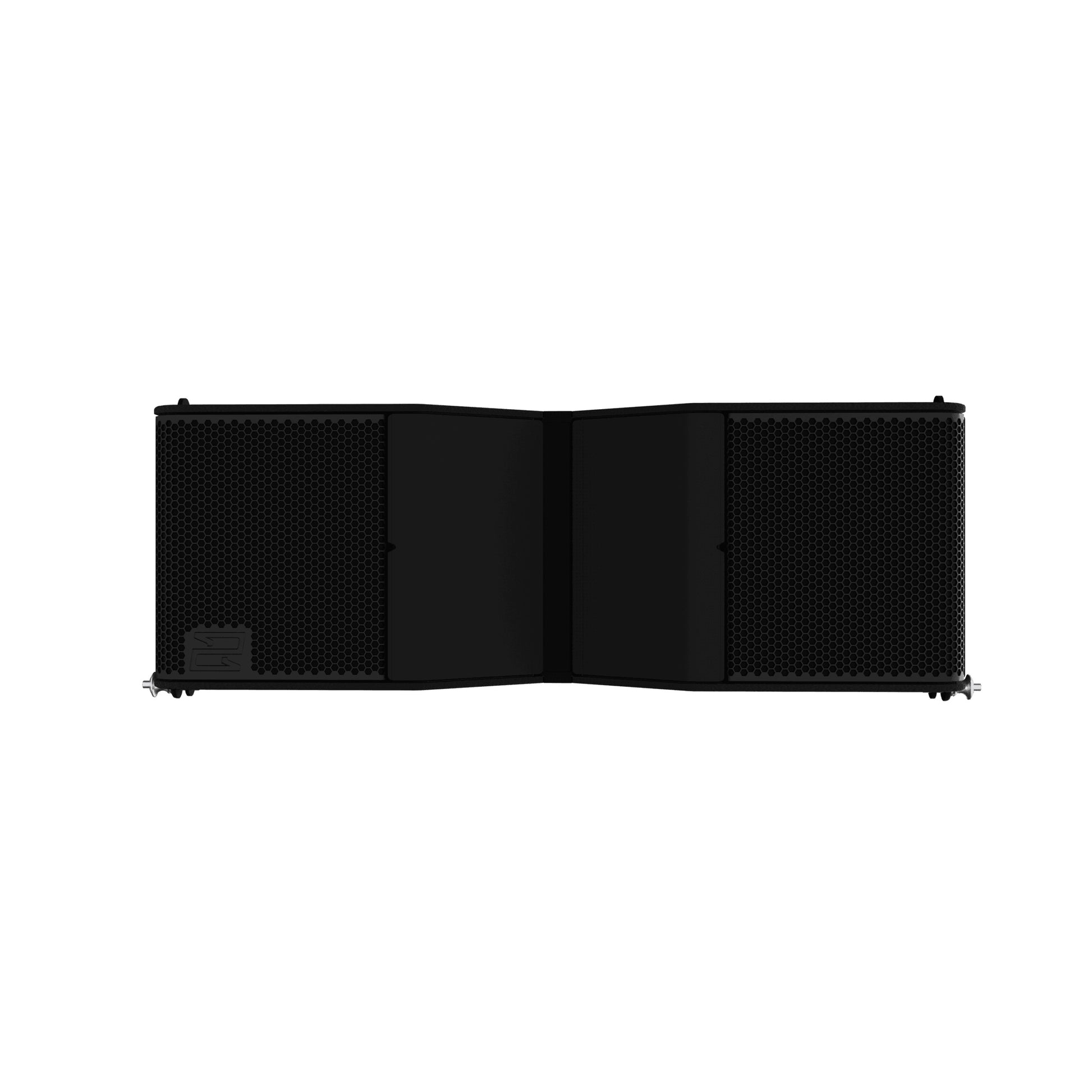

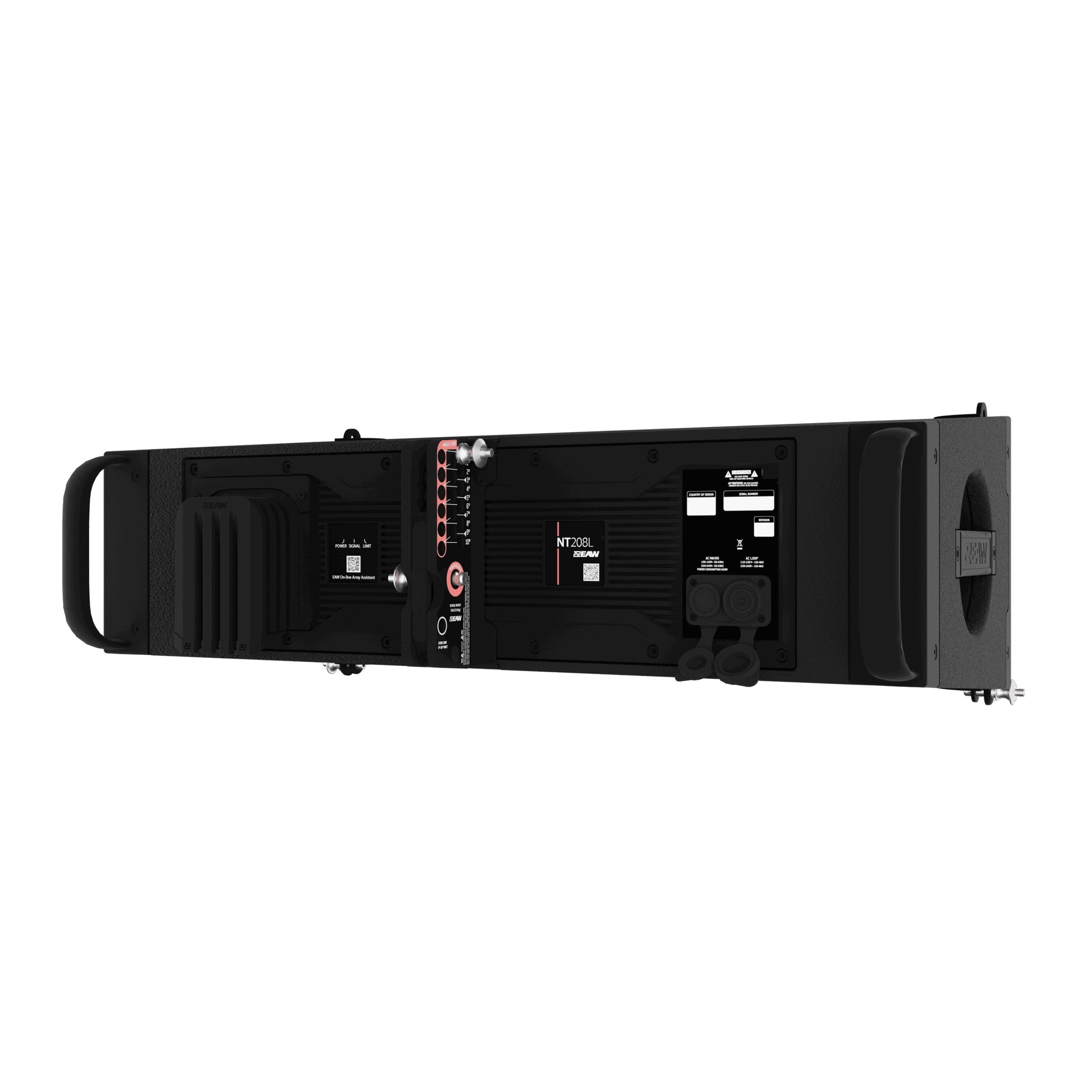

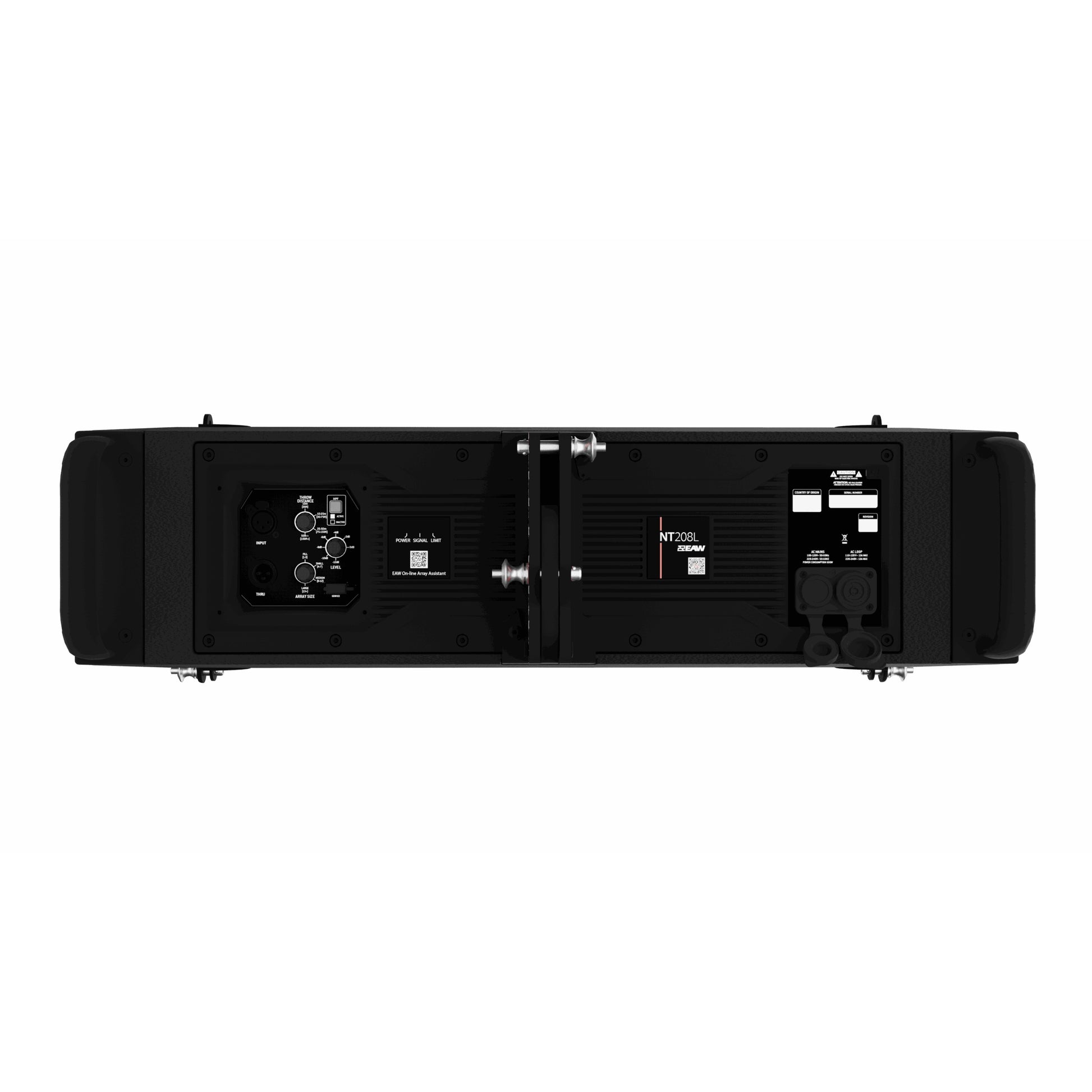

EAW 2072524-90 NT208L Compact Powered Line Array Module
EAW 2072524-90 NT208L Compact Powered Line Array Module
SoundPro Item: 206790 | Part Number: 2072524-90
Usually ships in 5-7 business days
- Adjustable Horizontal Directivity Horn Enables 80°, 110°, And Asymmetric Coverage Without Tools
- 2000W Class-D Amplification Delivers 141dB Max SPL In Compact 53 lbs Form Factor
- Beamwidth Matched Crossovers Maintain Smooth Response Across All Frequencies
- EAW Focusing™ And DynO™ DSP Optimize Output And Correct Phase Alignment
- Phase Aligned LF™ Tuning Extends Pattern Control For Consistent Coverage
- Integrated Array Presets Simplify Deployment For 1 To 13+ Unit Configurations
The EAW NT208L is a self-powered line array module engineered for fast-moving production teams and touring systems where setup speed and operational simplicity matter as much as sonic performance. Two 8-inch low-frequency drivers powered by 2000 watts of Class-D amplification deliver 141dB maximum SPL across a 50 Hz to 20 kHz operating range, making the NT208L suitable for mid-to-large format touring, festival, and installed venue applications. At 53 pounds, it weighs significantly less than comparable passive enclosures, reducing crew fatigue during load-in and repositioning.
The distinguishing feature is EAW's Adjustable Horizontal Directivity (AHD) horn, which allows field operators to switch between 80-degree narrow, 110-degree wide, and asymmetric 95-degree coverage patterns without tools or software. This capability eliminates the need for multiple SKUs or redesigned arrays to accommodate different venue geometries. Integrated DSP with Focusing™ and DynO™ technologies ensures phase-aligned output and dynamic management at performance limits. Intuitive back-panel controls and array-size presets (1–3, 4–7, 8–12, 13+ units) simplify configuration, making the NT208L accessible to crews of any experience level while maintaining the acoustic consistency and beamforming precision required in professional touring and install environments.
