- Source

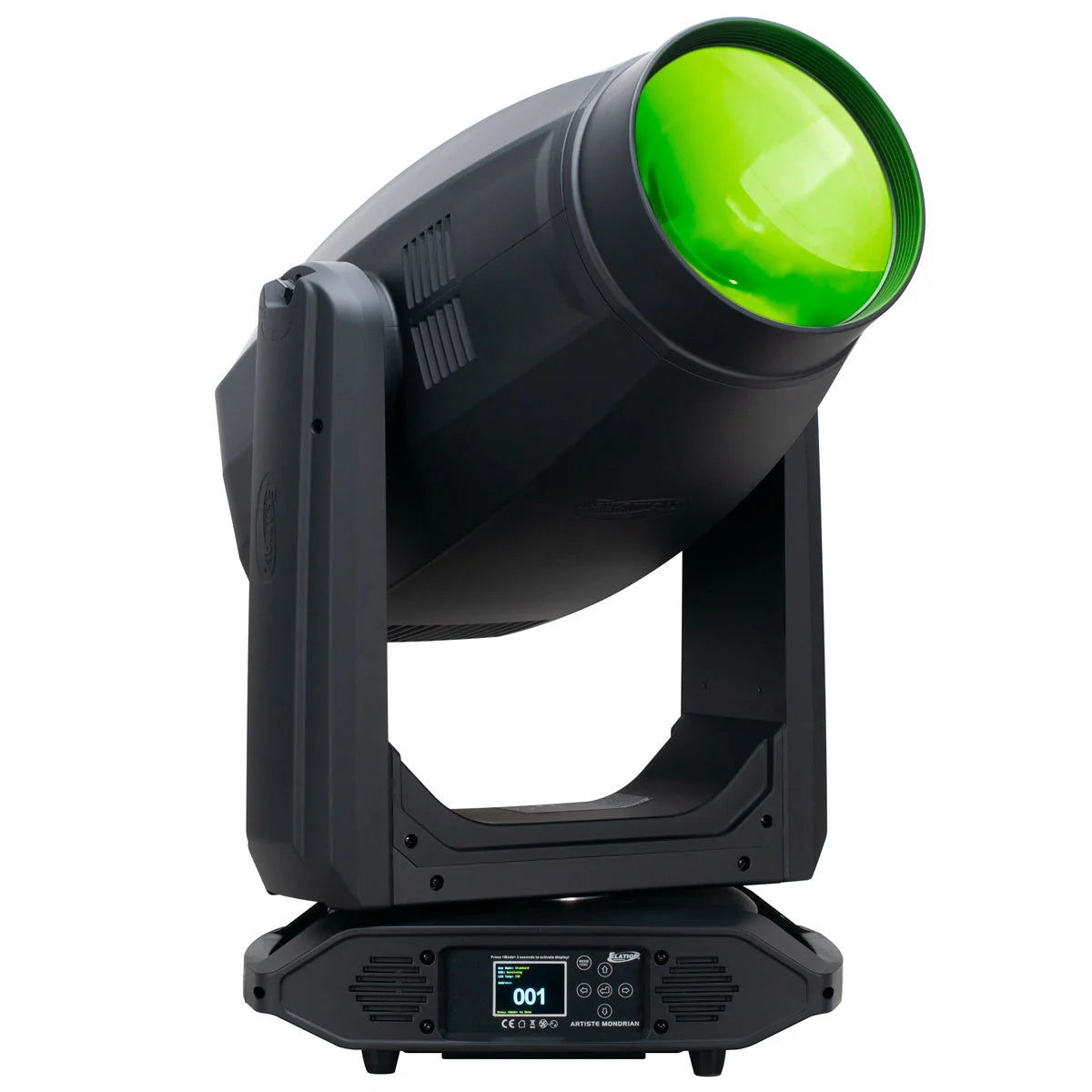

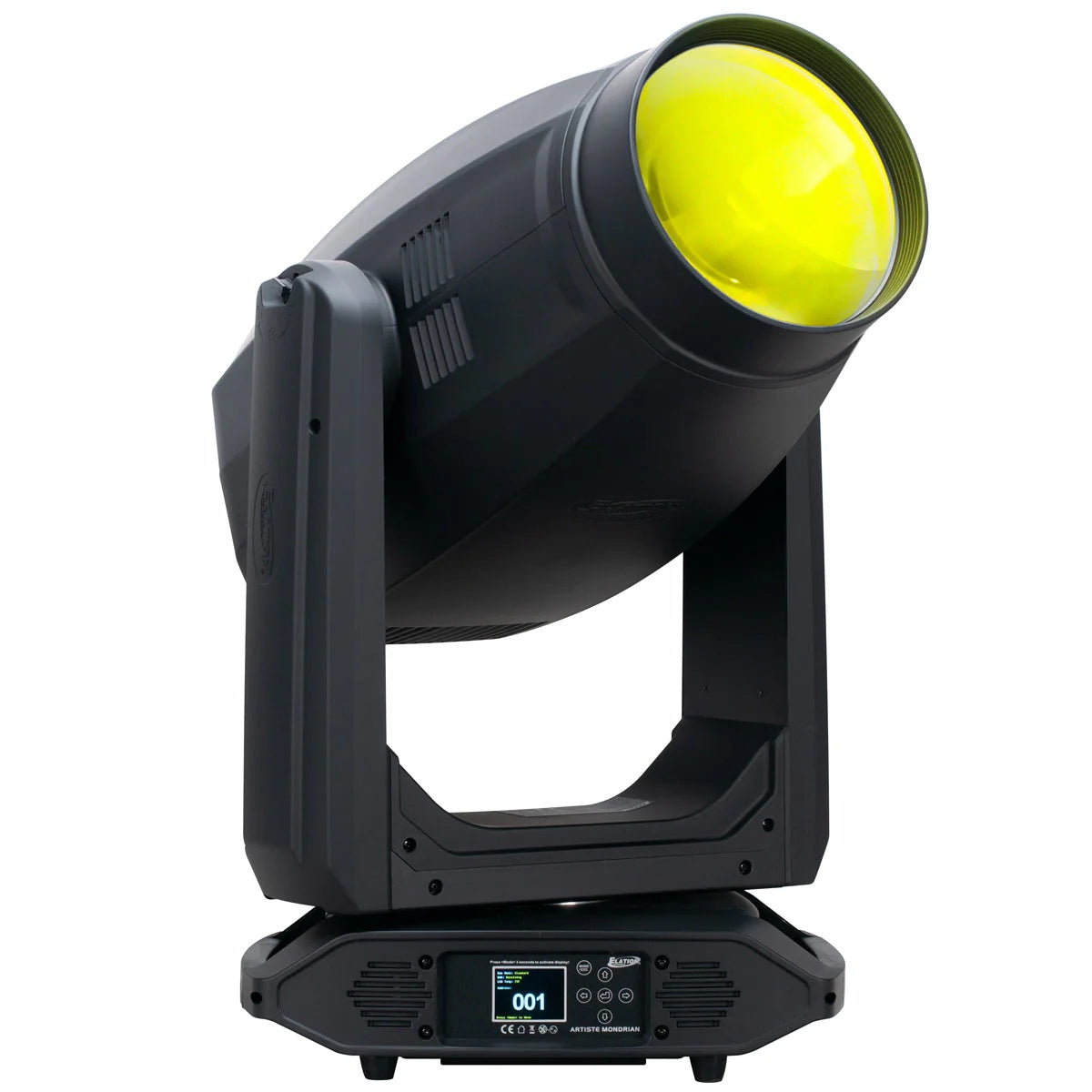

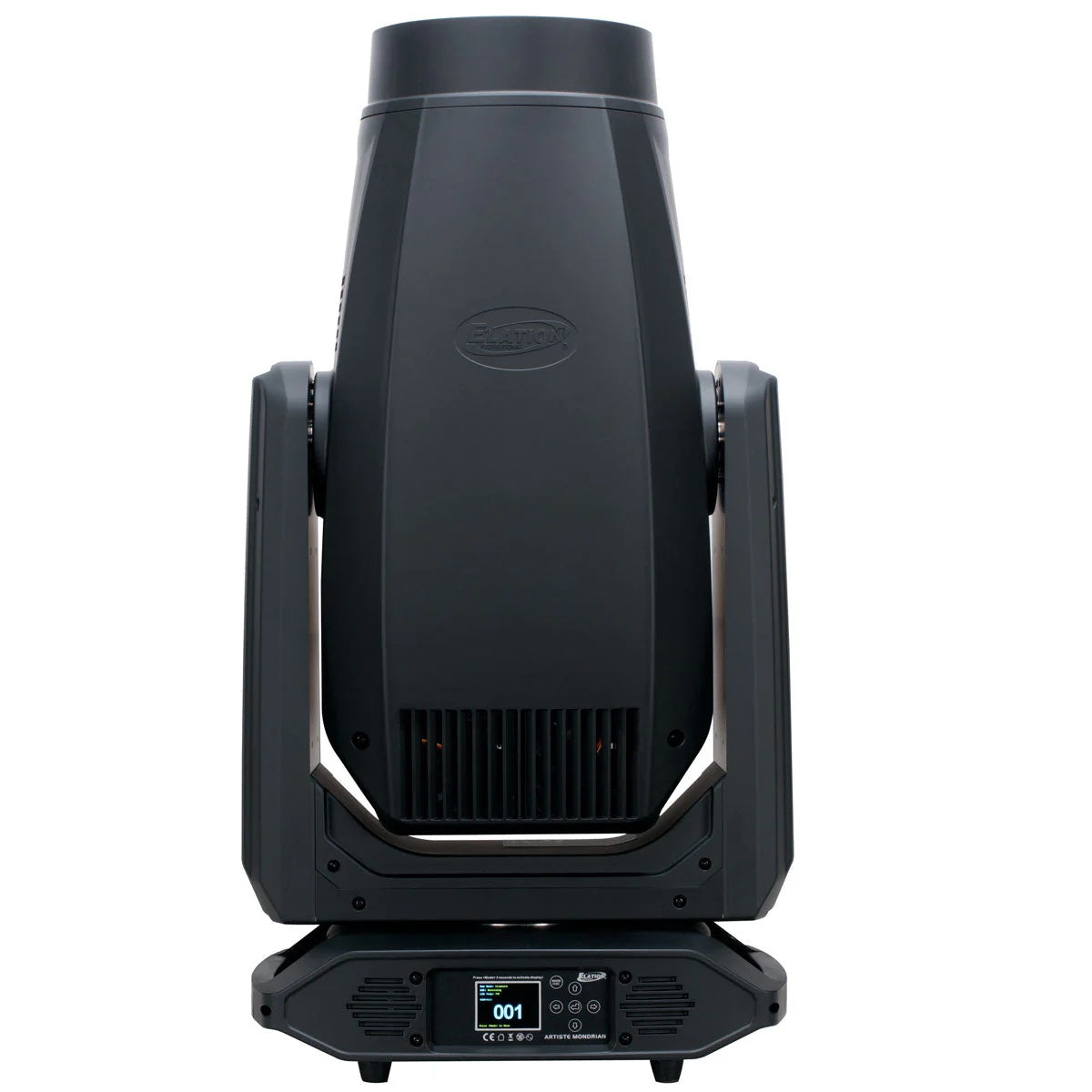

- 950W bright white LED engine
- 30,000 hour average LED life
- Photometric Data
- Total Lumen Fixture Output: 51,000
- CRI: 72+ (84+ with HCRI Filter)
- Zoom Range: 3° - 45°
- Beam Angle: 2.8° - 34.9°
- Field Angle: 4° - 46.1°
- Effects
- Motorized zoom (226mm / 8 3/4" front lens)
- 4 rotating full blackout framing blades
- 360° continuous framing index and rotation
- 2 rotating prisms
- 2 variable frost filters (light and wash)
- Internal color, framing, prism, and frost macros
- Motorized iris with variable pulse effects
- Variable 16-bit dimming curve modes
- High speed electronic shutter and strobe
- DMX controllable LED refresh rate
- Pan Angle: 540° / 630°
- Tilt Angle: 250°
- Color
- SpectraColor CMX + RGB color mixing array
- 6 dichroic colors including high CRI filter and UV
- Linear CTO color correction
- Gobos
- 2 Gobo wheels
- 12 rotating / indexing interchangeable glass gobos
- Control / Connections
- 2 DMX Channel Modes (42 / 68)
- 16-bit pan, tilt, and dimming control
- Motorized focus and auto-focus presets
- DMX, RDM, Art-NET, sACN protocol support
- (6) button touch control panel)
- Full color 180° reversible LCD menu display
- Hibernation mode (power save)

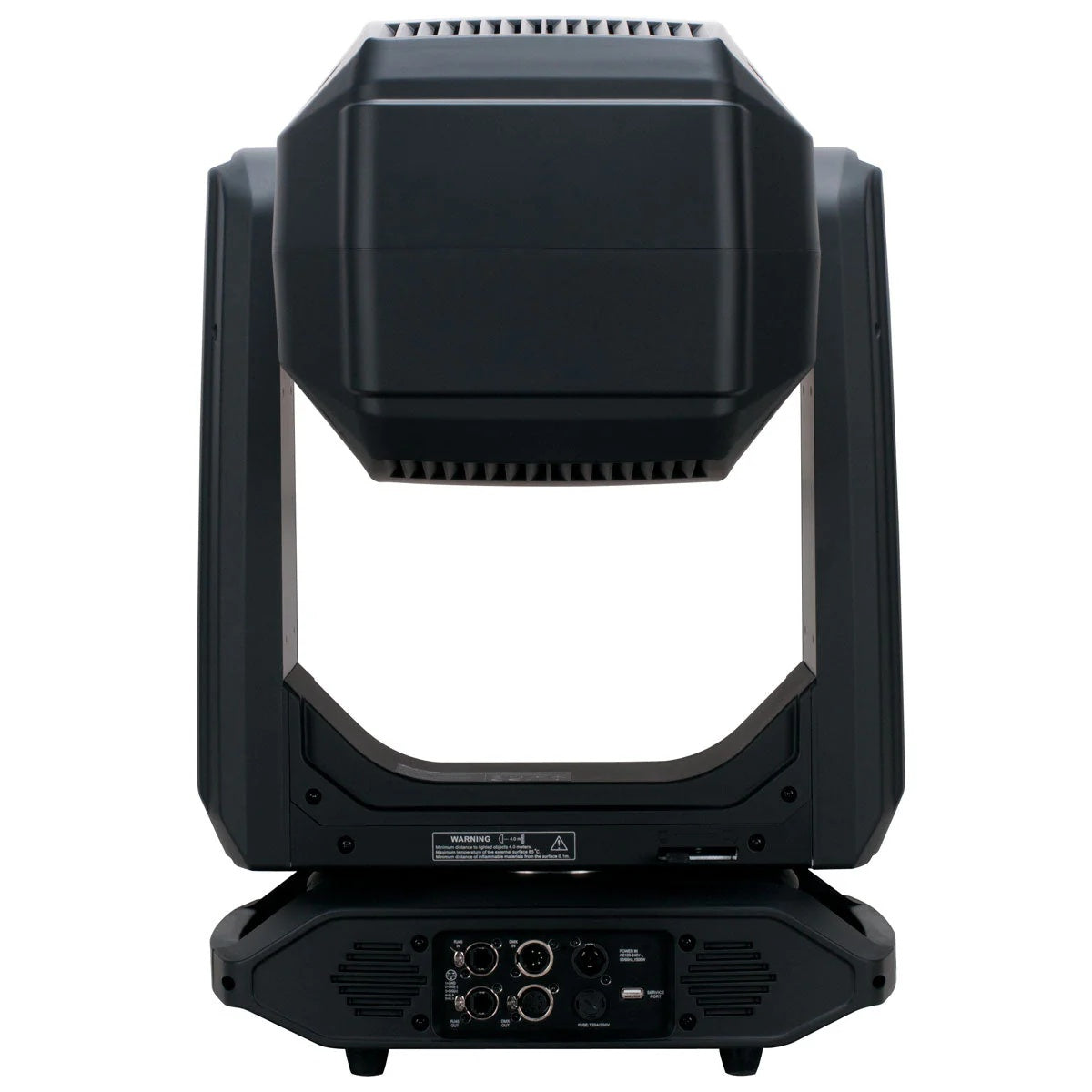

- Locking 5pin XLR DMX, RJ45 Ethernet, and power
- USB connection (firmware updates)
- With wired digital communication network
- Electrical / Thermal
- AC 120-240V 50/60Hz
- Max. Power Consumption: 1500W
- BTU/hr (+/- 10%) 5115
- Dimensions (LxWxH)18.55" x 26.5" x 34.2"
- Weight104.7 pounds
