Elation CPE520 4-Channel Dimmer Relay and MIDI Pack
Elation CPE520 4-Channel Dimmer Relay and MIDI Pack
SoundPro Item: 208944 | Part Number: CPE520
Usually ships in 5-7 business days
- Selectable Dimmer Or Relay Mode Per Channel Adapts To Mixed Fixture Rigs
- Individual DMX Address Assignment Per Channel For Precise Circuit Control
- 16 Built-In Chase Macros With Adjustable Fade Times Enable Standalone Operation
- DMX Fail Settings Protect The Rig Against Signal Loss During Live Events
- MIDI Note Reception Integrates With Keyboards And Show Control Systems
- Power Failure Memory Restores Last State After Unexpected Outages
- CE And cETLus Certified For Professional Touring And Installation Use
The Elation CPE520 Cyber Pak is designed for lighting directors, production technicians, and install engineers who need a compact, multi-mode power controller without patching together separate dimmers, relay packs, and MIDI interfaces. It handles up to four channels of incandescent dimming or hard relay switching, selectable per channel, making it practical across a wide range of fixture types within a single rig.
On stage and in studio environments, the CPE520 earns its place by consolidating DMX addressing, MIDI note triggering, and independent chase programming into one 3U-profile unit. Each channel carries its own DMX address assignment and output limiter, giving engineers precise per-circuit control without additional hardware. The 16 internal chase programs with adjustable fade times provide standalone operation when a console is not in the signal path, and the DMX fail settings, HOLD, OFF, or ON, protect the rig against signal loss during live events.

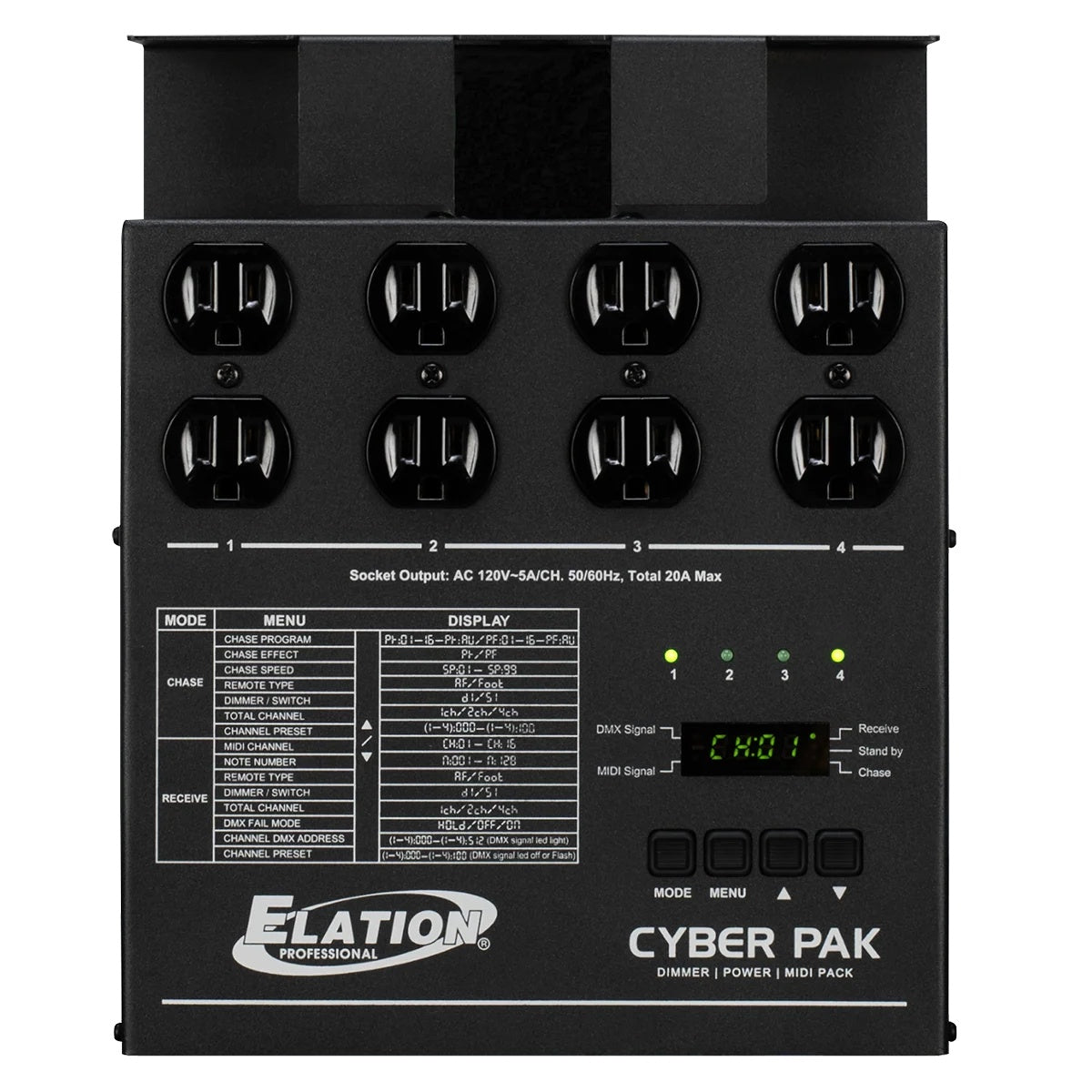

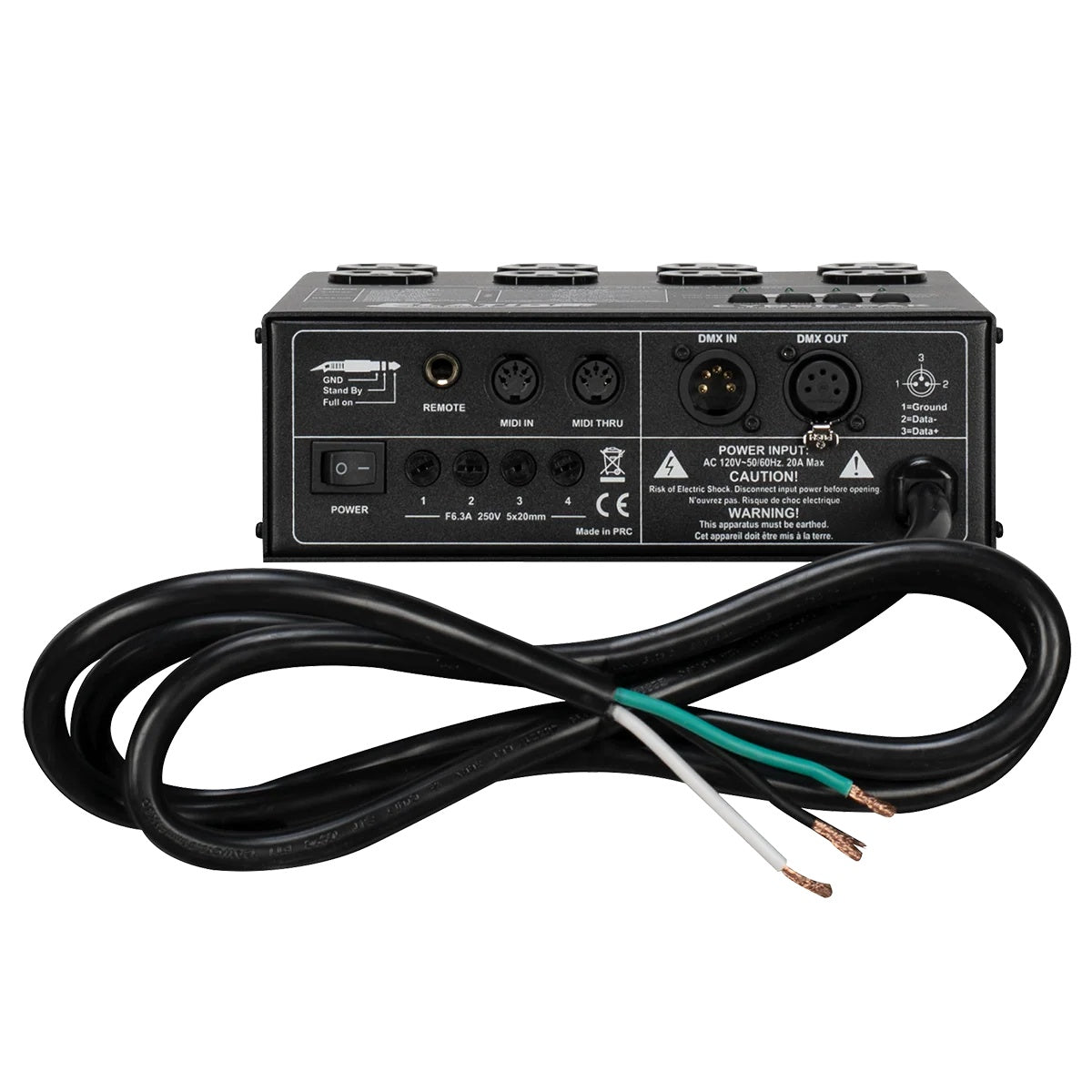

With two 3-prong Edison sockets per channel across four channels, the CPE520 delivers eight total outlets at up to 20A on a single 120V feed, rated at 600W per channel. MIDI IN and THRU ports accept notes 001-128 for patch-based control from keyboards or show control systems, while the 5-pin XLR DMX IN and OUT ports chain cleanly into existing DMX topologies. CE and cETLus certifications confirm compliance for professional installation and touring use. For integrators and rental houses looking to consolidate power control on a tight floorplan budget, the CPE520 offers a cost-effective alternative to separate dimmer racks and MIDI processors.
Specifications
