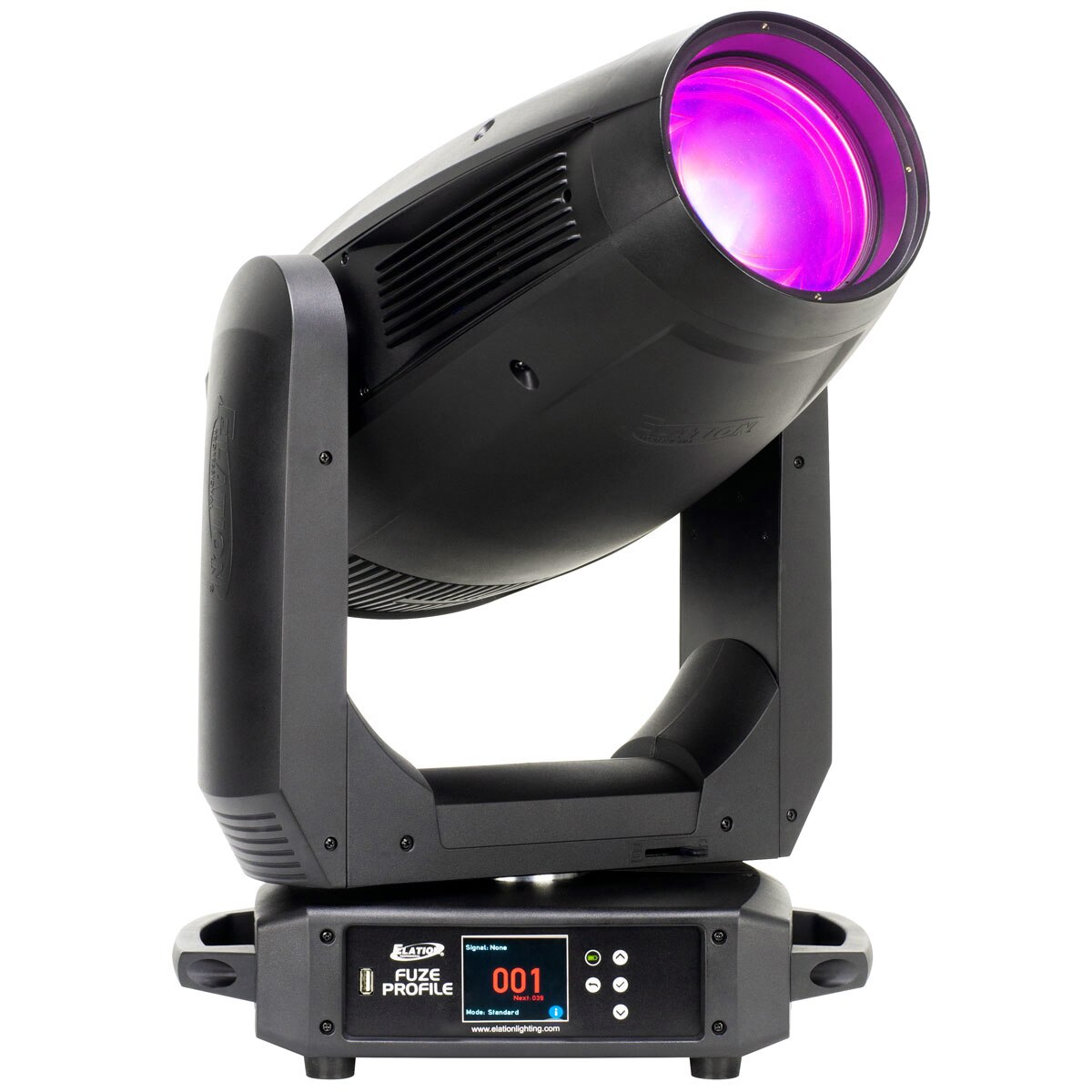

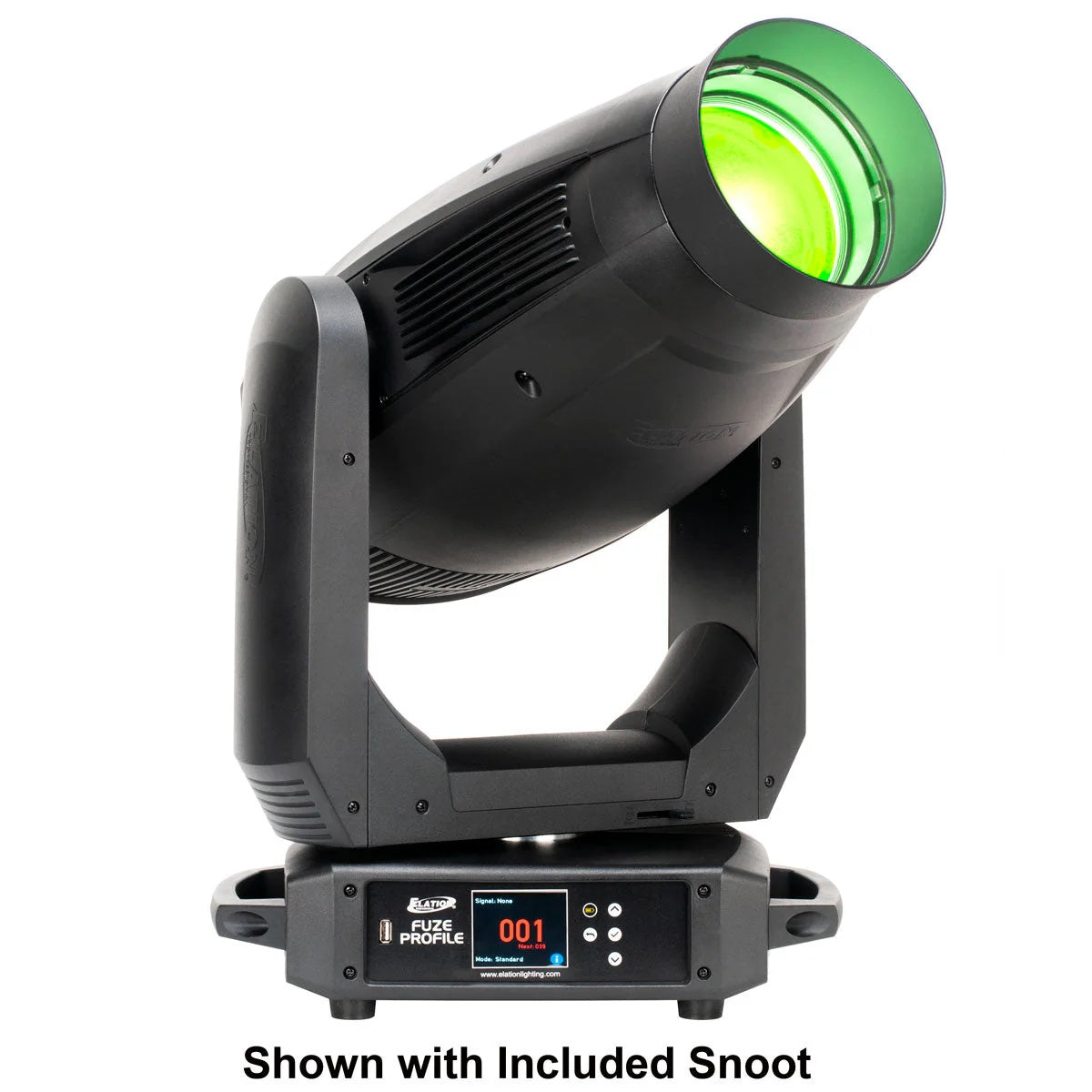

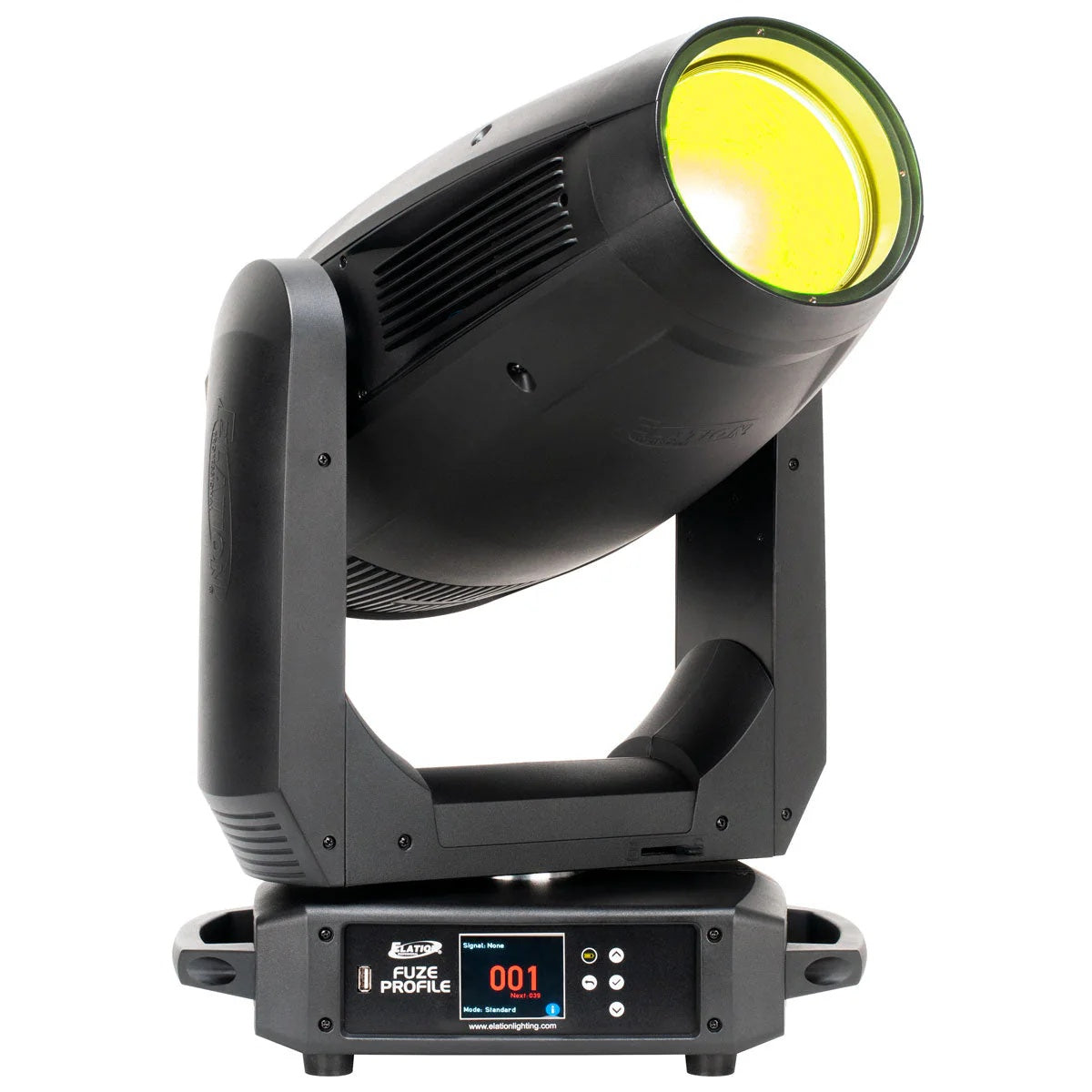

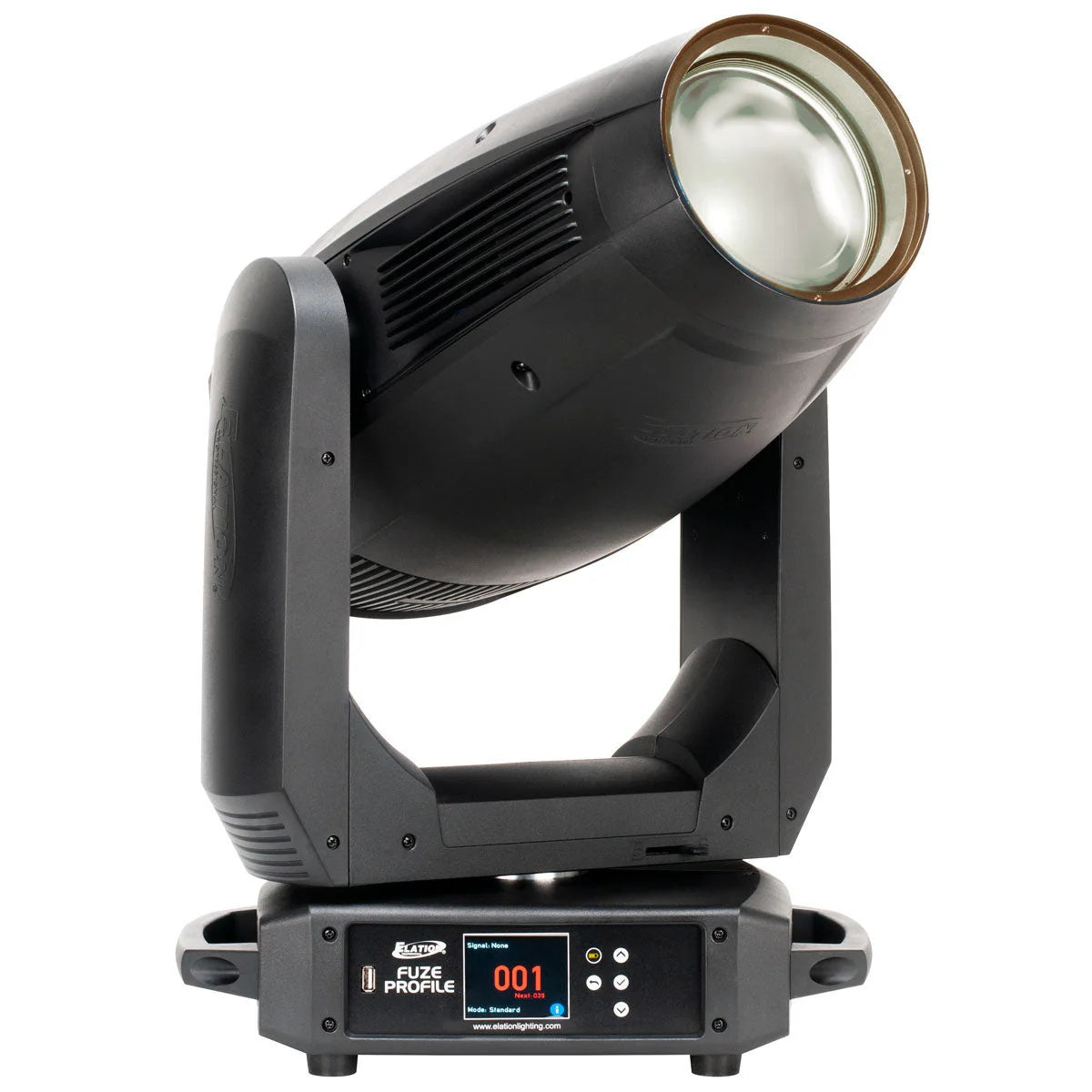

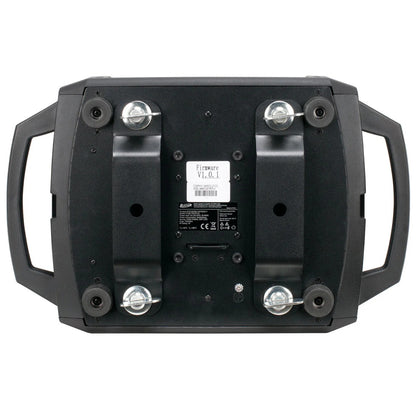

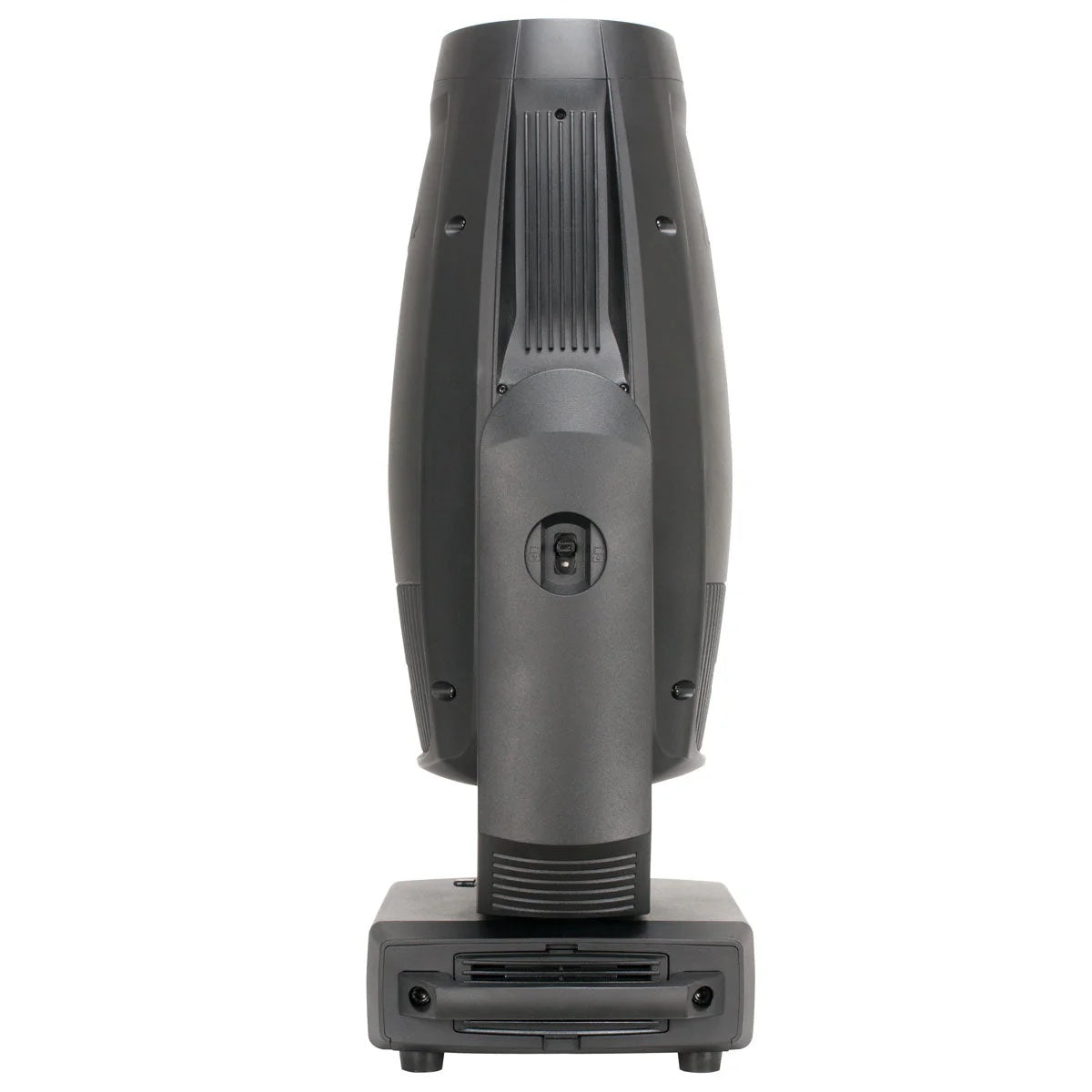

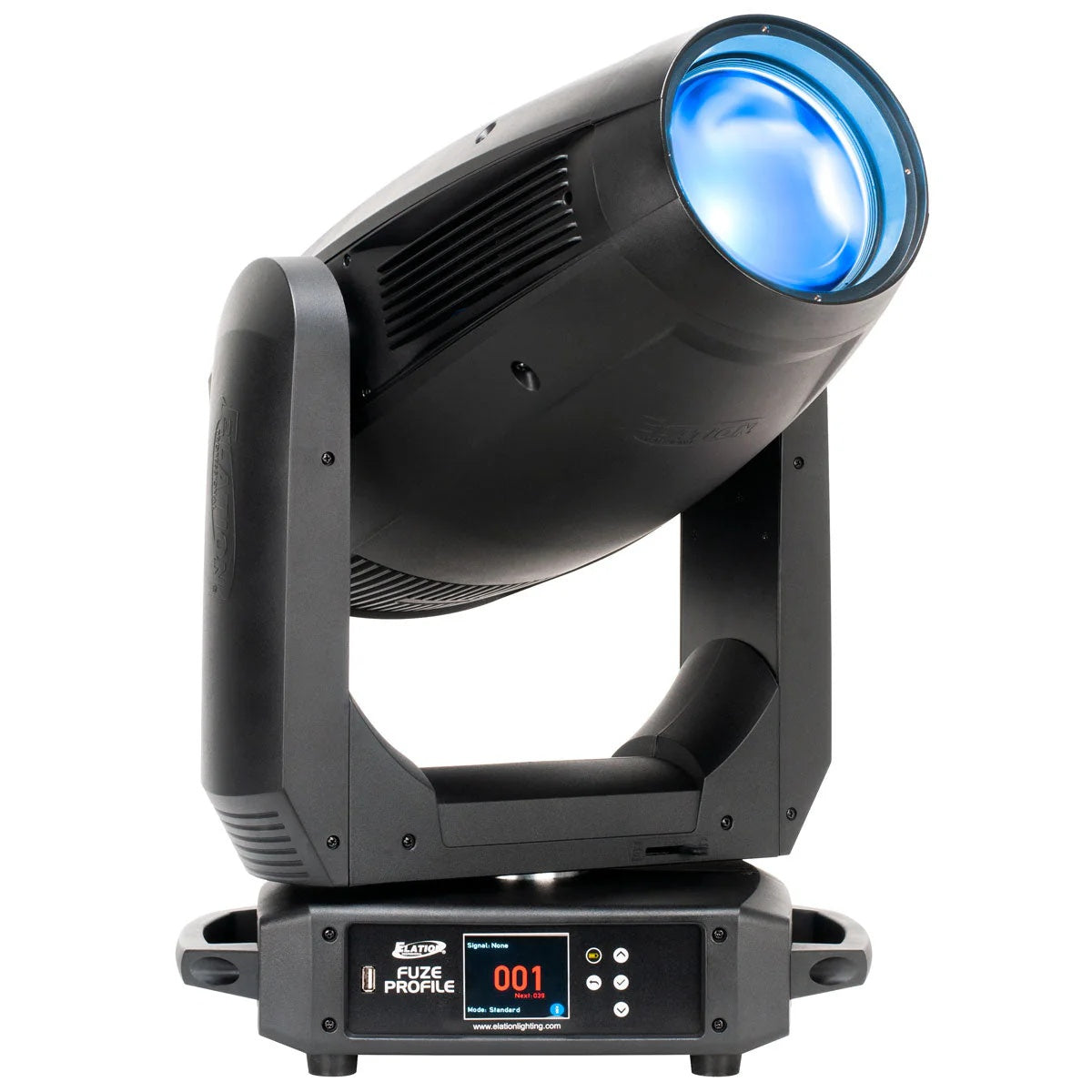

Elation Fuze Profile LED Moving Head

Elation Fuze Profile LED Moving Head

SoundPro Item: 48014 | Part Number: FUZE PROFILE

$6,595.00
$7,758.00 $6,595.00
Your Price Sold out
MSRP: $7,758.00 | MAP: $6,595.00

Usually ships in 5-7 business days

  • Extended color RGBMA LED engine, 92 CRI
  • Rotating and fixed Gobos plus animation wheel
  • Full blackout framing system
  • Iris, prism, and frost
  • Wide zoom range from 7° to 42°
Log in or register for YOUR best price

The FUZE PROFILE™ is an automated LED framing fixture designed for theater, television and a wide array of other precision lighting applications. The 92 CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate color reproduction while delivering a powerful output of over 10,000 lumens. Virtual color temperature, Magenta / Green adjustment plus CMY emulation provide the designer with immediate access to the impressive LED color array.

The FUZE PROFILE is designed for any application where fully automated ellipsoidal fixture with outstanding and impactful color range and quality is required. A rotating gobo wheel, fixed gobo wheel, animation wheel, frost, prism and iris round out its comprehensive feature set in a compact, quiet and lightweight fixture.

View full details

Specifications

Dimensions
Dimensions (LxWxH)
16" x 10.1" x 27.4"
Electrical
Electrical / Thermal
AC 100-240V - 50/60Hz, 540W Max Power Consumption, 14°F to 113°F (-10°C to 45°C), BTU/hr (+/- 10%) 1841
Optics
Gobos
1x 6 Rotating / Indexing Interchangeable Glass Gobos, 1x 7 Fixed Glass Gobo, Animation Wheel
Construction
Color
RGBMA Color Array, CMY Emulation, Virtual Color Correction, Green/Magenta Shift, Virtual Gel Swatch Book
Shipping
Weight
55.1 pounds
General
Source
305W 6,500K RGBMA LED Engine with 30,000 Hour Average LED Life
Photometric Data
10,100 Total Lumen Output, CRI 92, Zoom Range 7° - 42°, Beam Angle 7.5° - 39.9°, Field Angle 8.6° - 44.2°
Effects
Motorized Zoom, 4 Rotating Full Blackout Framing Blades, +/- 60 Index, Variable Frost Filter, 4 Facet Prism, Motorized Iris, Variable 16-bit Dimming Curve Modes, High Speed Electronic Shutter and Strobe
Pan Angle
540°/630°
Tilt Angle
270°
Control / Connections

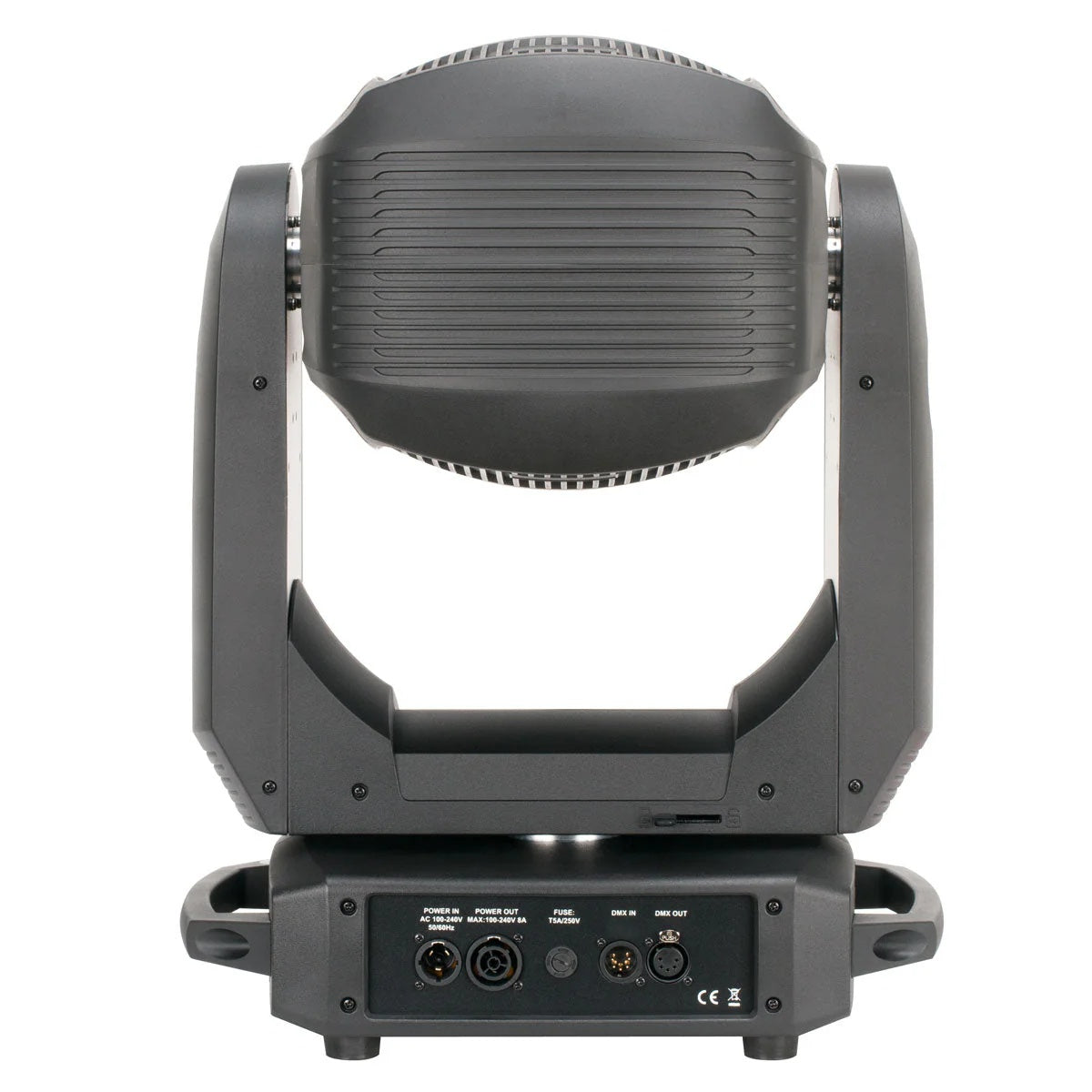

4 DMX Channel Modes (RGBMA 38 / 59) (CMY 36 / 55), 16-bit Pan, Tilt, and Dimming Control, DMX Adjustable LED Frequency, DMX, RDM Protocol Support, 4 Button Touch Control Panel, Full Color 180° Reversible LCD Menu Display, 16 Bit Resolution Adjustable Movement, 5pin DMX In/Out, IP65 Locking Power Cable In/Out, With Wired Digital Communication Network
