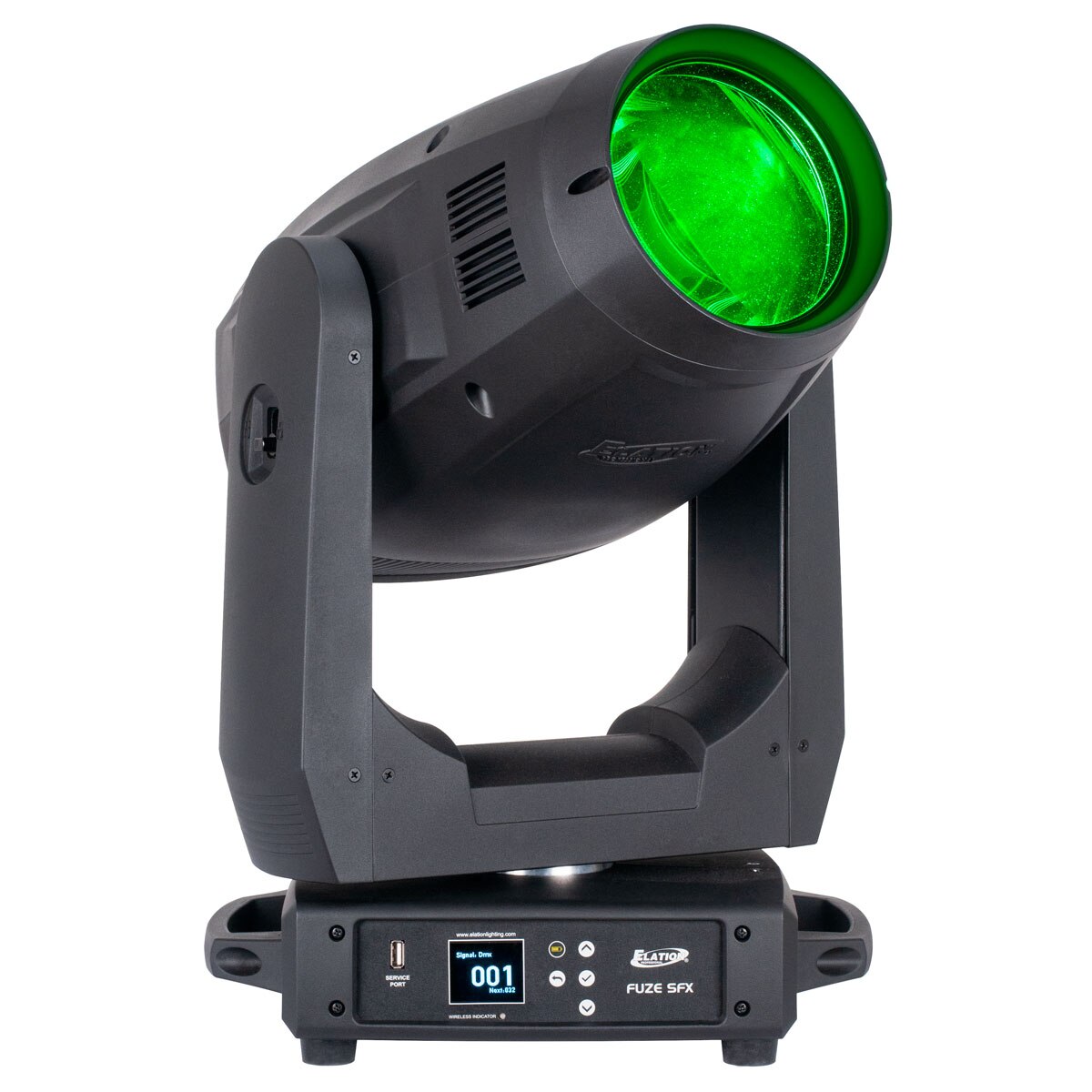

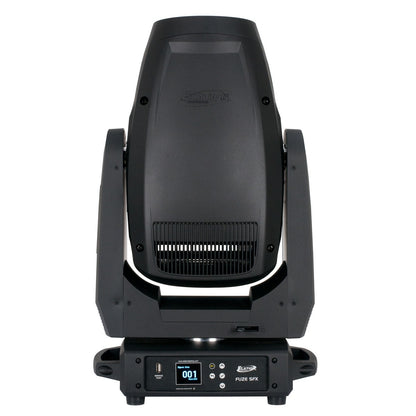

Elation Fuze SFX LED Moving Head

Elation Fuze SFX LED Moving Head

SoundPro Item: 47963 | Part Number: FUZE SFX

$4,364.00
$5,135.00 $4,364.00
Your Price Sold out
MSRP: $5,135.00 | MAP: $4,364.00

Usually ships in 5-7 business days

  • 300W LED 6,600K white LED engine
  • 12,000 total lumen fixture output
  • Spot and effects fixture
  • Zoom range from 4.5° to 38°
  • Variable CMY and 7-position color wheel
  • 8 rotating and 10 fixed gobos
  • Dual independent prisms for layering
  • Motorized iris
  • Variable wash frost filter
Log in or register for YOUR best price

The FUZE SFX™ is a new concept LED Spot FX fixture designed for a variety of applications requiring a compact and powerful multi-purpose luminaire. The SFX is capable of projecting tight beams to wide washes using a highly efficient optical design while providing over 12,000 lumens of output from its 300W white LED engine.

Housing 18 carefully designed gobos and a 4.5° to 38° zoom, the FUZE SFX can create stunning mid-air FX as easily as precise image projections. The SFX allows for even stage washes utilizing its variable frost filter while a wide array of beautiful colors is possible from a seamless CMY color-mixing system plus color wheel. Dual independent rotating and overlaying prisms plus a fast iris round out the comprehensive feature set. A truly remarkable compact powerhouse for any application, the FUZE SFX is sure to create amazing effects, outstanding projections and beautiful bright washes on any stage.

View full details

Specifications

Dimensions
Dimensions (LxWxH)
14.3" x 9.2" x 23.4"
Electrical
Electrical / Thermal
AC 100-240V - 50/60Hz, 432W Max Power Consumption, 14°F to 113°F (-10°C to 45°C), BTU/hr (+/- 10%) 1473.12
Optics
Gobos
2 Gobo Wheels, Wheel #1 with 8 Rotating / Interchangeable Glass Gobos, Wheel #2 with 10 Static Gobos
Construction
Color
CMY Variable Color Mix, 7 Position Color Wheel, High CRI Filter, CRI 84, CTO Filter, 3200K, CRI 77
Shipping
Weight
46.3 pounds
General
Source
300W 6,600K Bright White LED Engine with 20,000 Hour Average LED Life
Photometric Data
12,135 Total Lumen Output, CRI 68+, Zoom Range 4.5° - 38°, Beam Angle 4.6° - 38.2°, Field Angle 5.6° - 42.2°
Effects
Motorized Zoom, Remote Focus, Variable Frost Filter, Dual Independent Prisms (6 Facet linear & 6 Facet round), Motorized Iris, Variable 16-bit Dimming Curve Modes, High Speed Electronic Shutter and Strobe
Pan Angle
540°/630°
Tilt Angle
270°
Control / Connections

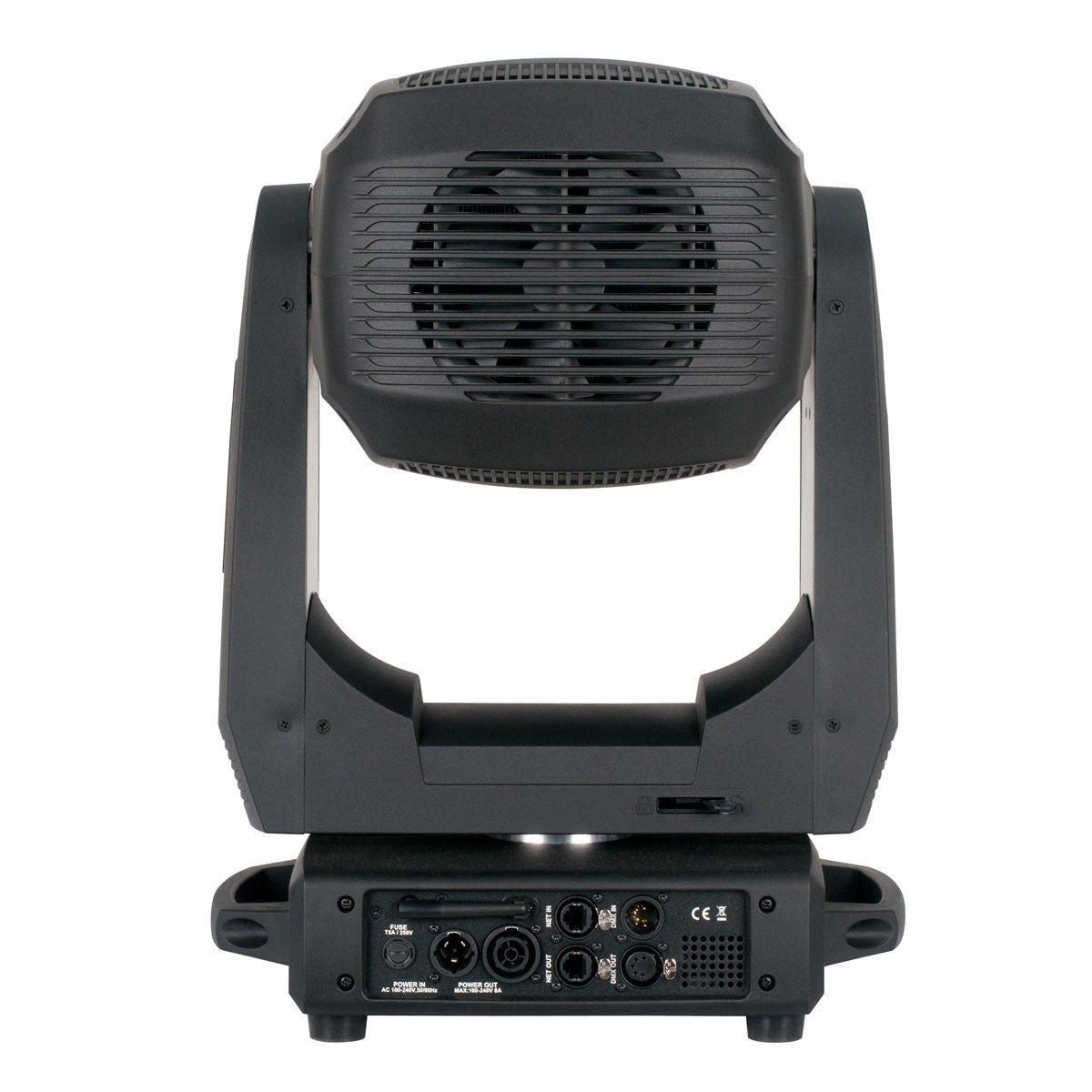

31 DMX Channels, 16-bit Pan, Tilt, and Dimming Control, DMX Adjustable LED Frequency, DMX, RDM, E-FLY Wireless, Art-Net, sACN Protocol Support, 4 Button Touch Control Panel, Full Color 180° Reversible LCD Menu Display, Locking 5pin XLR Connector In/Out, Locking RJ45 Ethernet Connector In/Out, IP65 Locking Power Connector In/Out, USB Connection (Firmware Updates), With Wired Digital Communication Network
