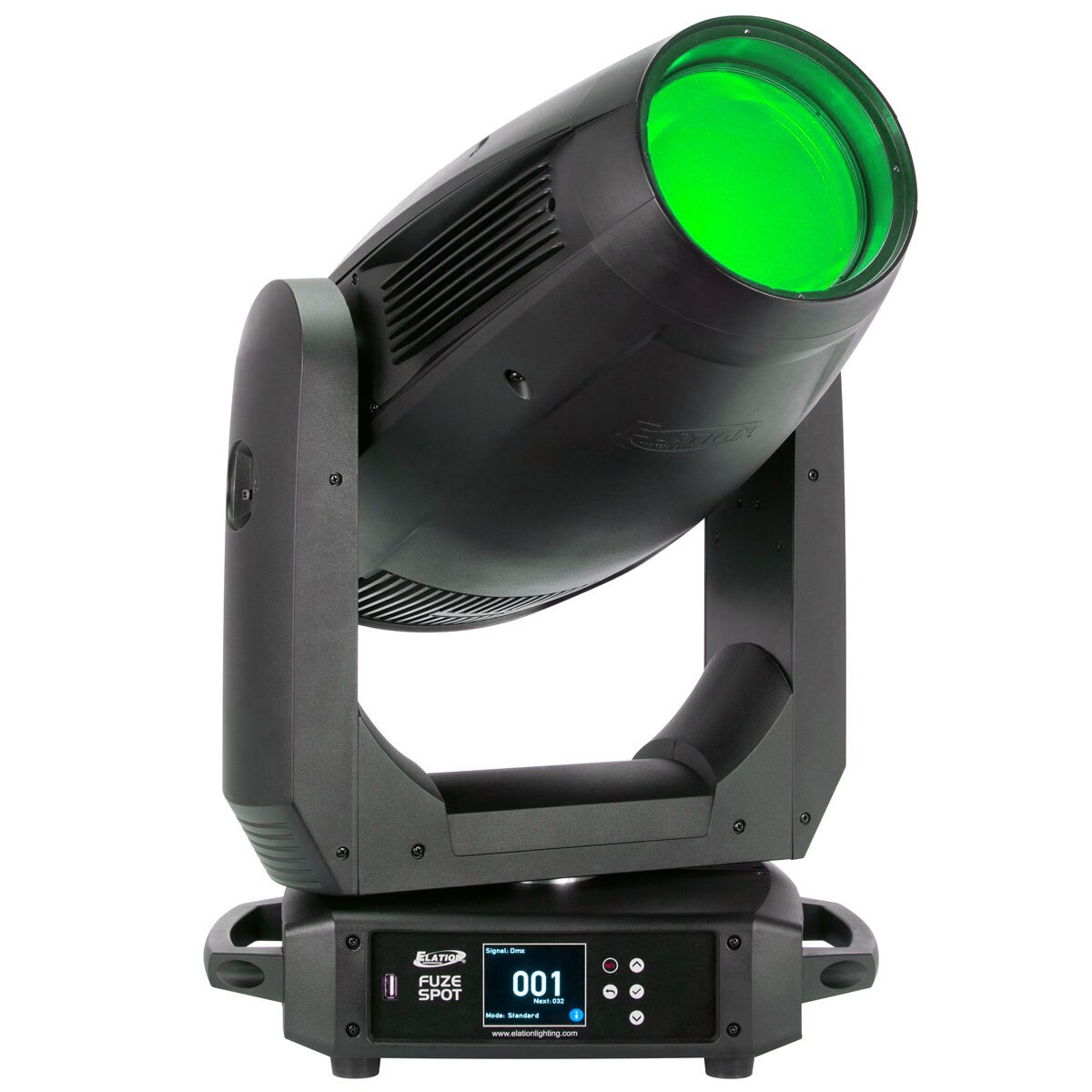

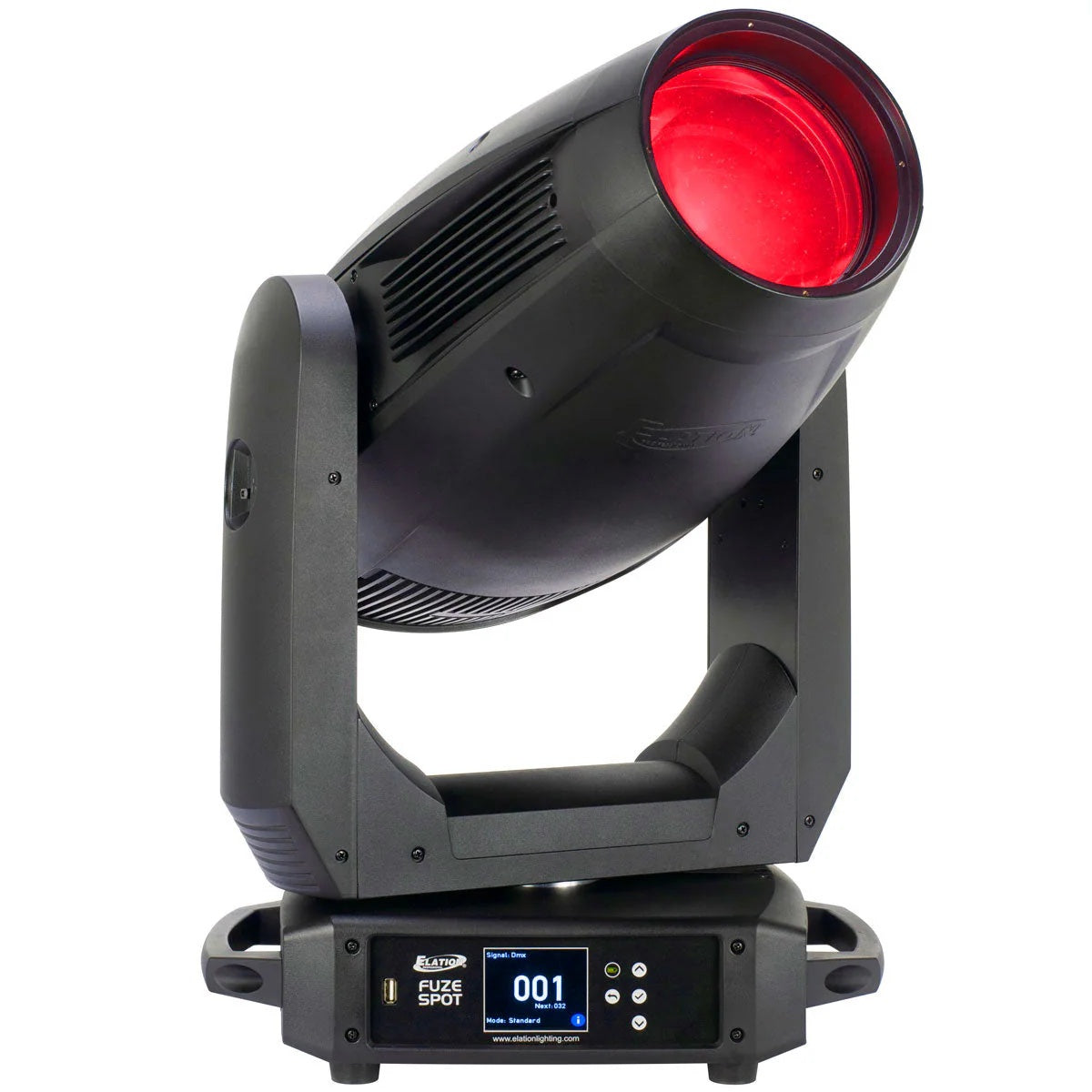

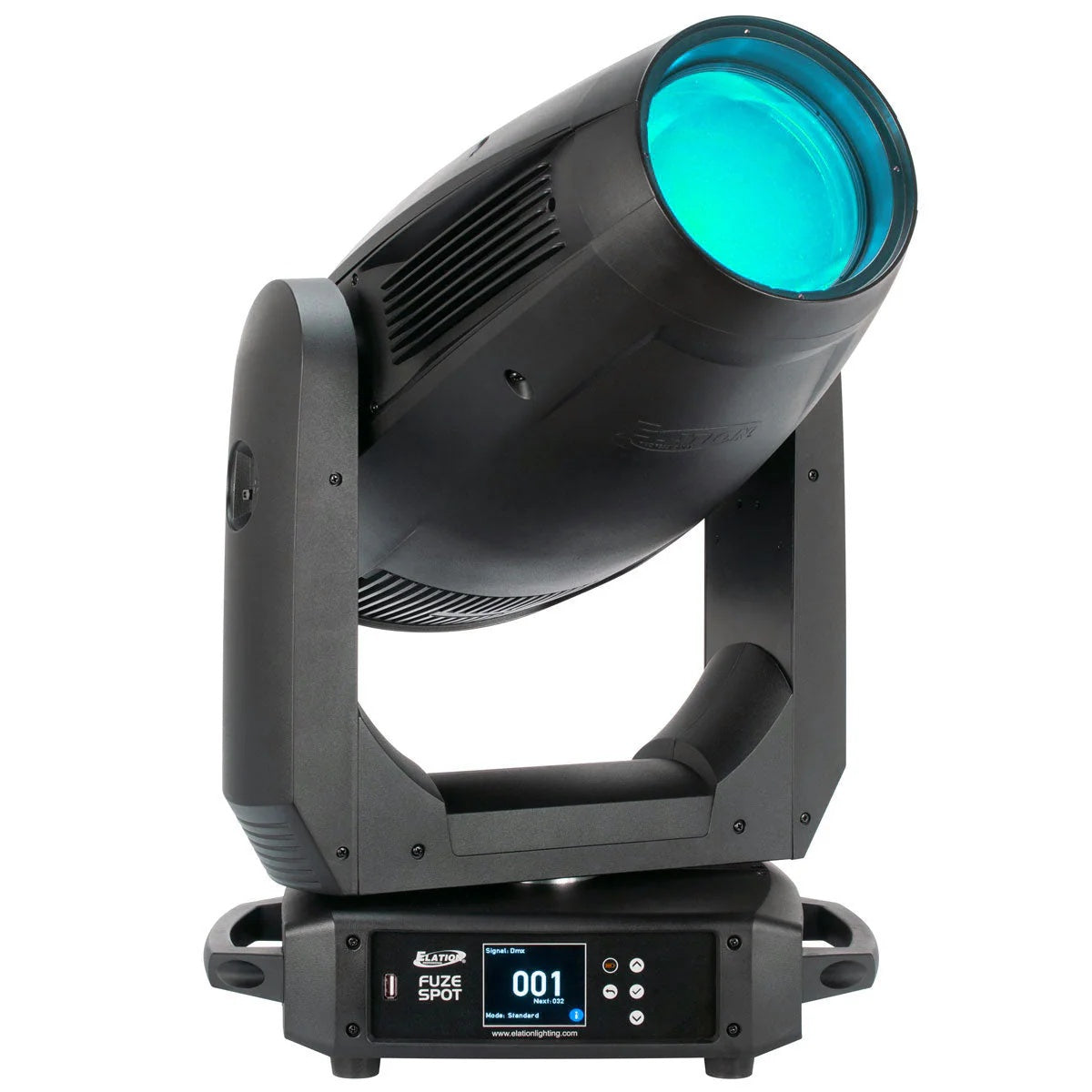

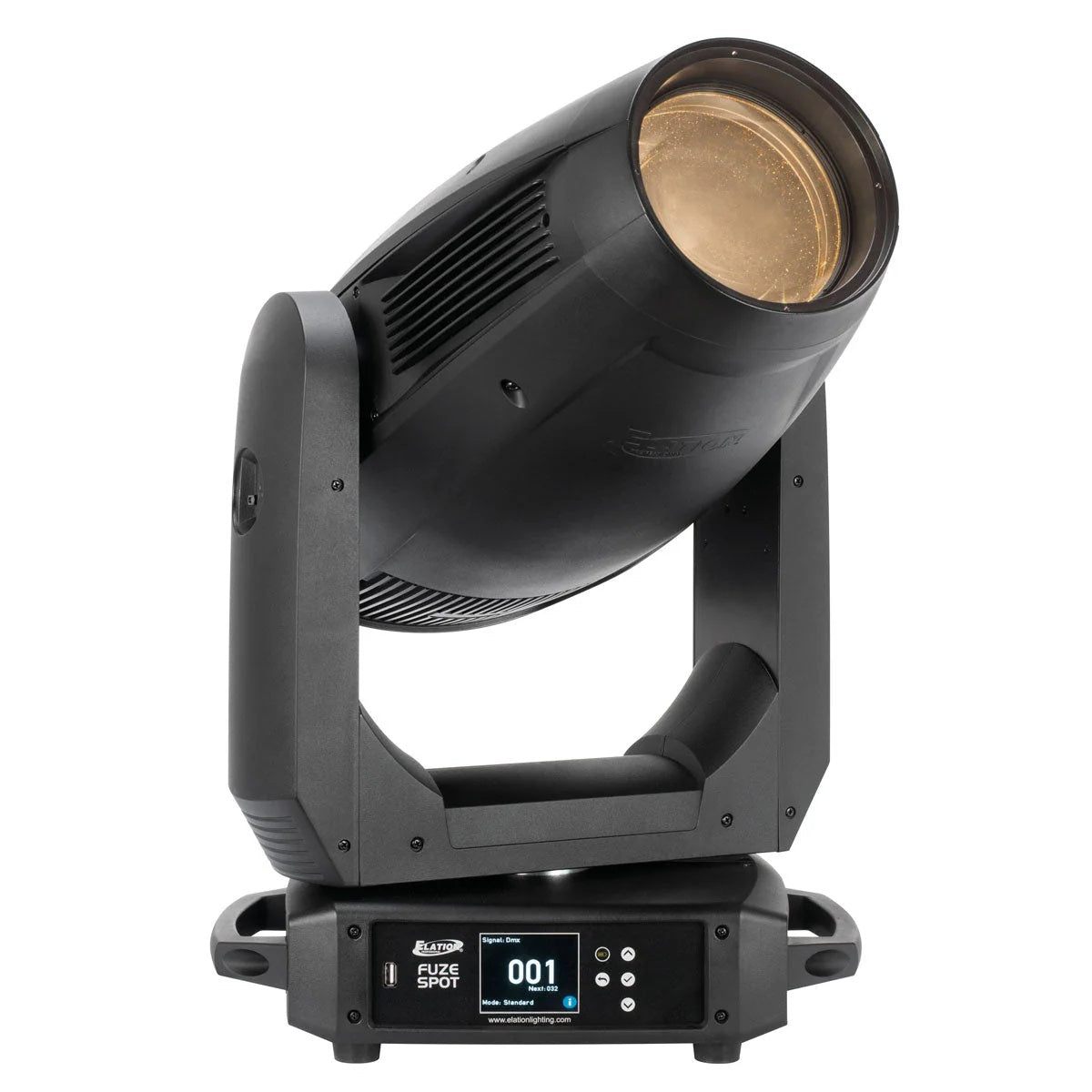

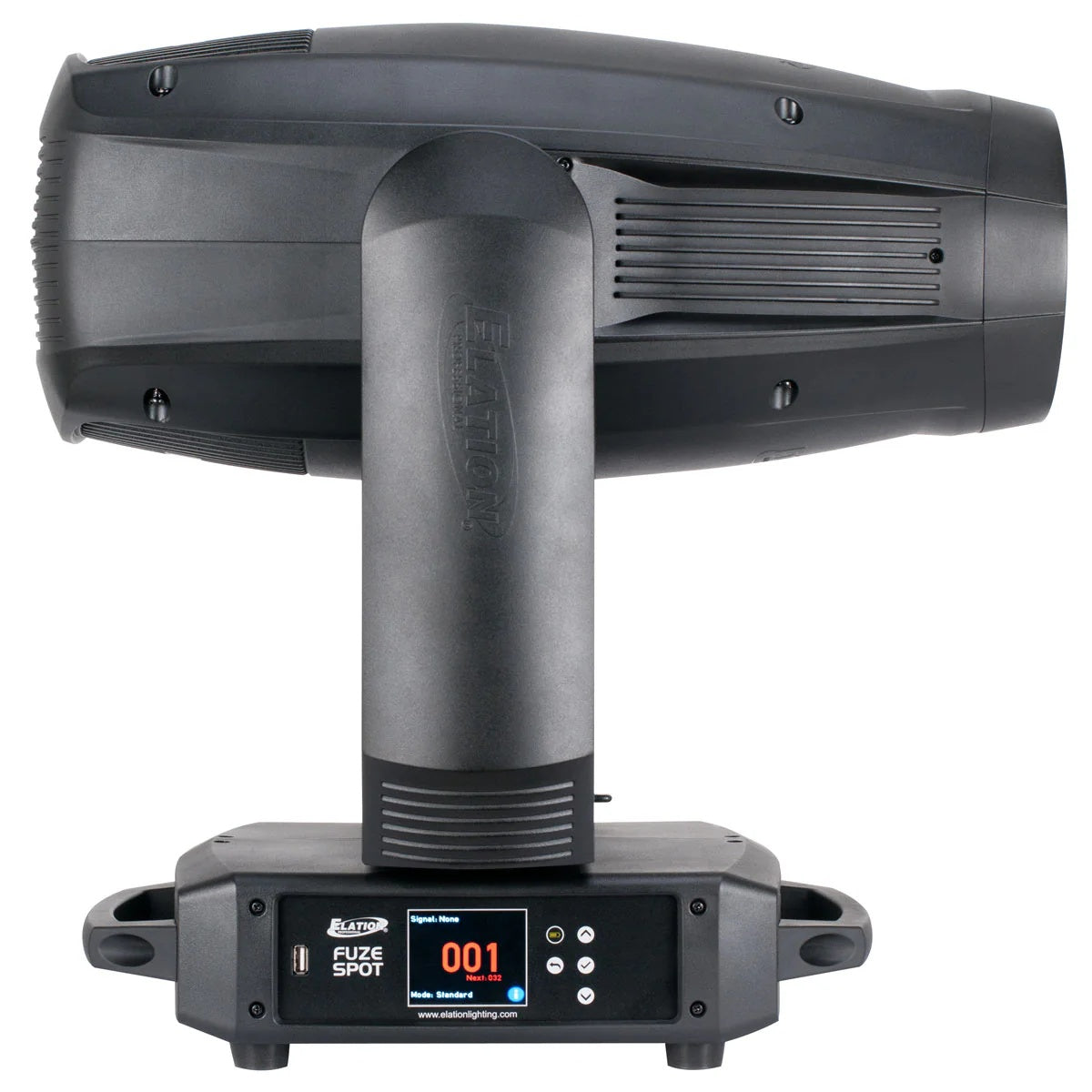

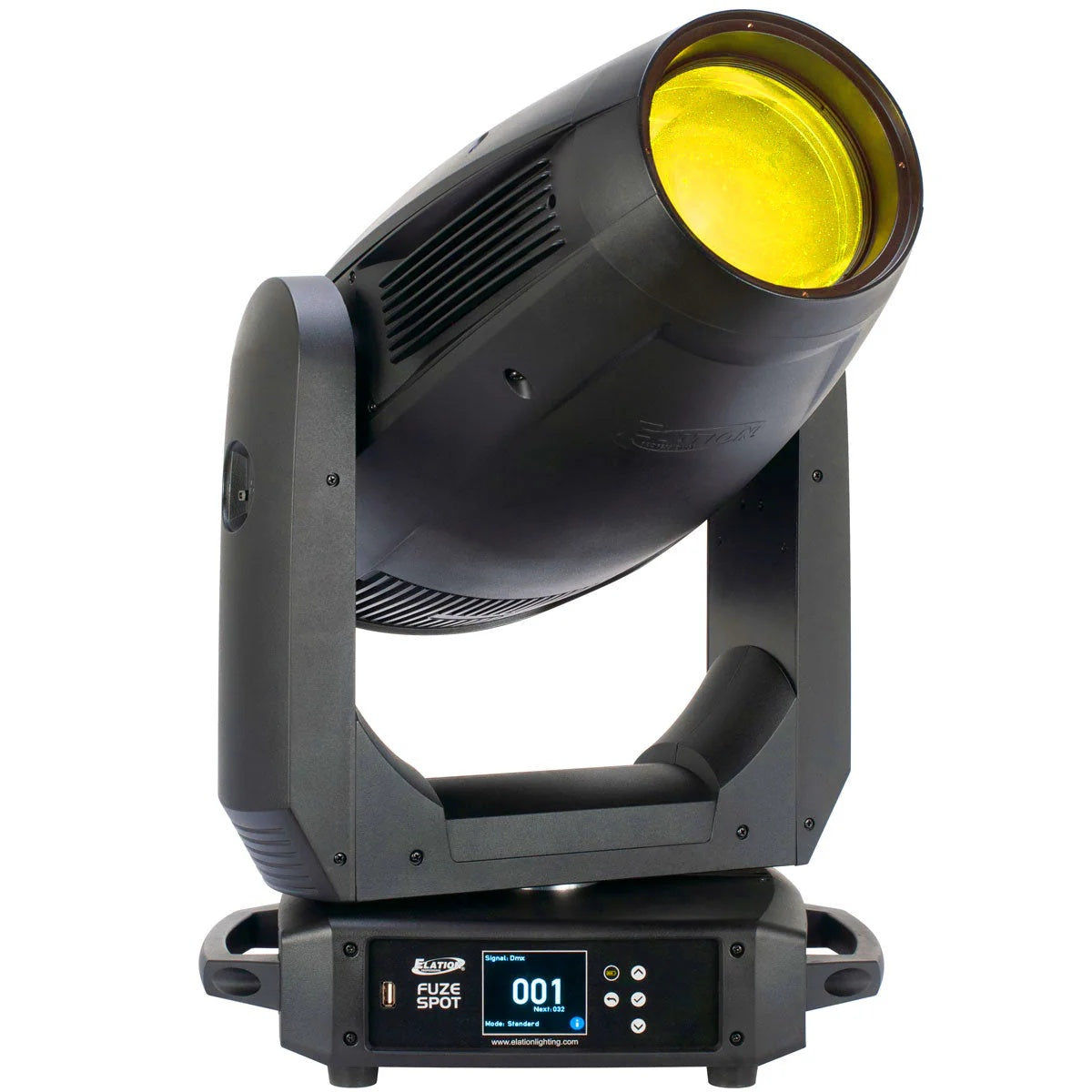

Elation Fuze Spot LED Moving Head

Elation Fuze Spot LED Moving Head

SoundPro Item: 54140 | Part Number: FUZE SPOT

$6,039.00
$7,105.00 $6,039.00
Your Price Sold out
MSRP: $7,105.00 | MAP: $6,039.00

Usually ships in 5-7 business days

  • Extended color RGBMA LED engine, 92 CRI
  • Two rotating gobo wheels plus animation wheel
  • Iris, prism, and frost
  • Wide zoom range from 7° to 42°
Log in or register for YOUR best price

The FUZE SPOT™ is an automated LED spot fixture designed for theater, television and a wide array of other precision lighting applications. The 92 CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensures accurate color reproduction while delivering a powerful output of over 10,000 lumens. Virtual color temperature, Magenta / Green adjustment plus CMY emulation provide the designer with immediate access to the impressive LED color array.

The FUZE SPOT is designed for any application where an automated ellipsoidal fixture with outstanding and impactful color range and quality is required. Dual rotating gobo wheels, animation wheel, frost, prism and iris round out its comprehensive feature set in a compact, quiet and lightweight fixture.

View full details

Specifications

Dimensions
Dimensions (LxWxH)
16" x 10.1" x 27.4"
Electrical
Electrical / Thermal
AC 100-240V - 50/60Hz, 466W Max Power Consumption, 14°F to 113°F (-10°C to 45°C), BTU/hr (+/- 10%) 1589.06
Optics
Gobos
2x 6 Rotating / Indexing Interchangeable Glass Gobos, Animation Wheel
Construction
Color
RGBMA Color Array, CMY Emulation, Virtual Color Correction, Green/Magenta Shift, Virtual Gel Swatch Book
Shipping
Weight
46.3 pounds
General
Source
305W 6,500K RGBMA LED Engine with 30,000 Hour Average LED Life
Photometric Data
10,100 Total Lumen Output, CRI 92, Zoom Range 7° - 42°, Beam Angle7.5° - 39.9°, Field Angle 8.6° - 44.2°
Effects
Motorized Zoom, Variable Frost Filter, 4 Facet Prism, Motorized Iris, Variable 16-bit Dimming Curve Modes, High Speed Electronic Shutter and Strobe
Control / Connections

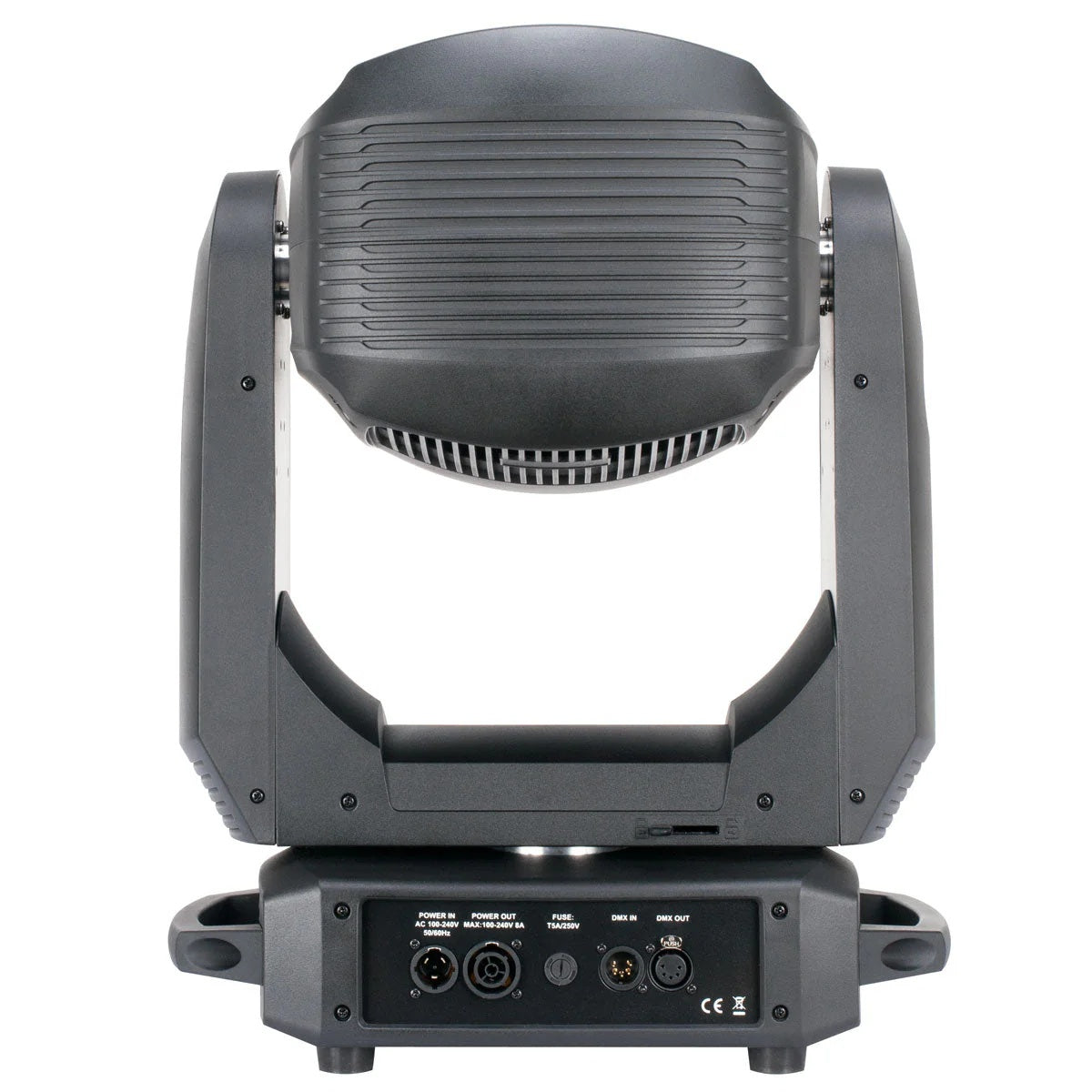

4 DMX Channel Modes (RGBMA 31 / 41) (CMY 29 / 37), 16-bit Pan, Tilt, and Dimming Control, DMX Adjustable LED Frequency, DMX, RDM Protocol Support, 4 Button Touch Control Panel, Full Color 180° Reversible LCD Menu Display, Locking 5pin XLR Connector In/Out, IP65 Locking Power Connector In/Out, With Wired Digital Communication Network
