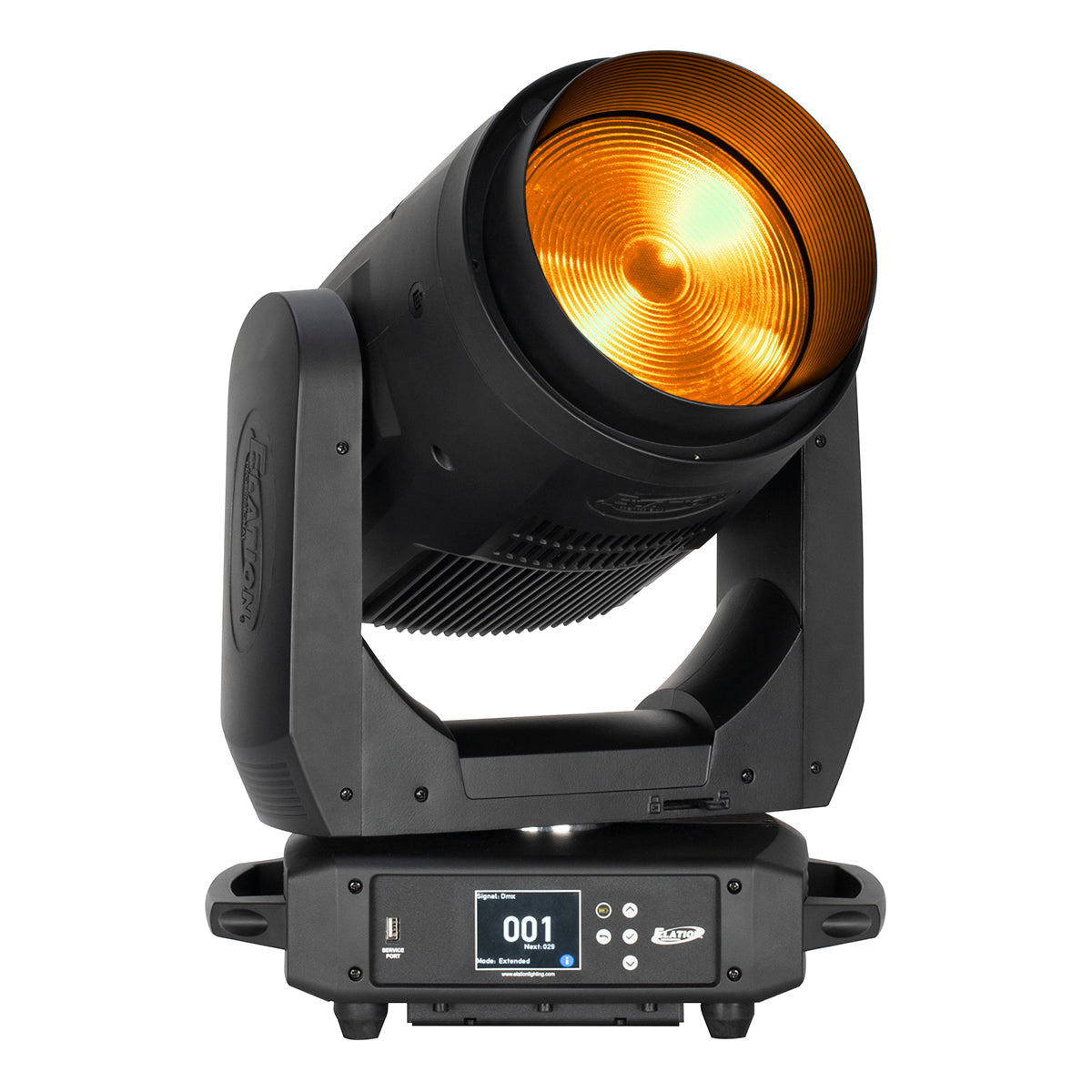

  • Elation Fuze Wash 500 RGBMA LED Moving Head amber

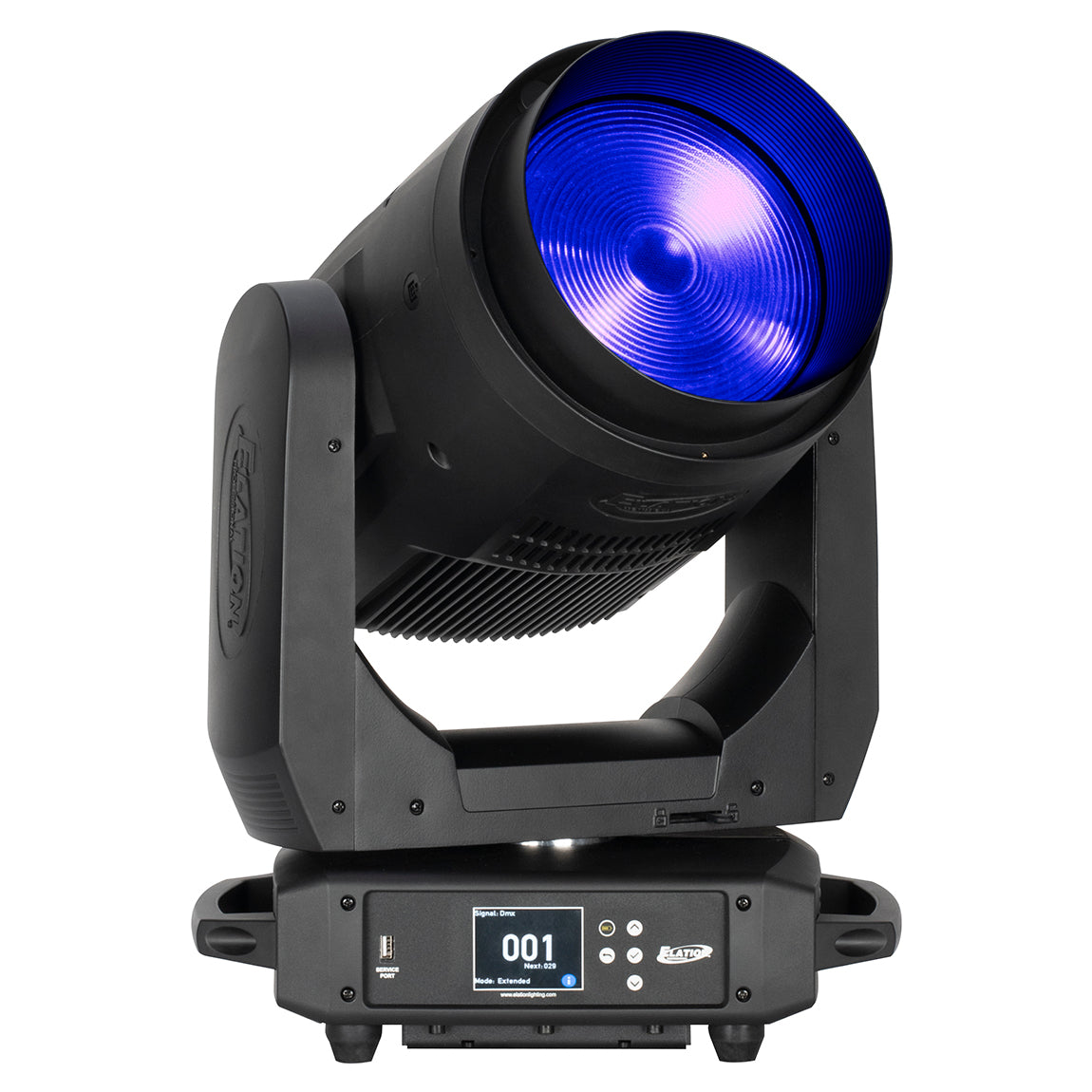

  • Elation Fuze Wash 500 RGBMA LED Moving Head blue

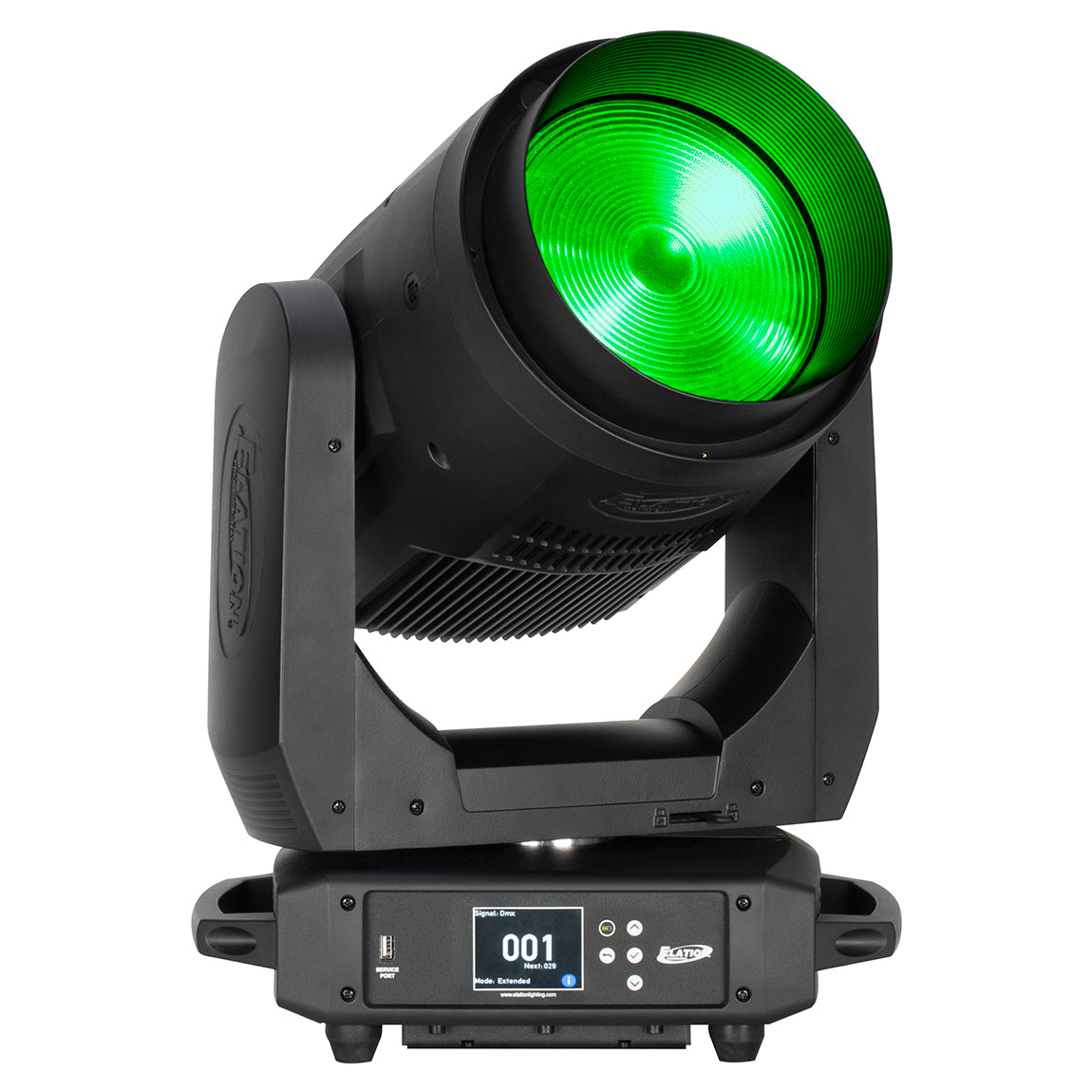

  • Elation Fuze Wash 500 RGBMA LED Moving Head green

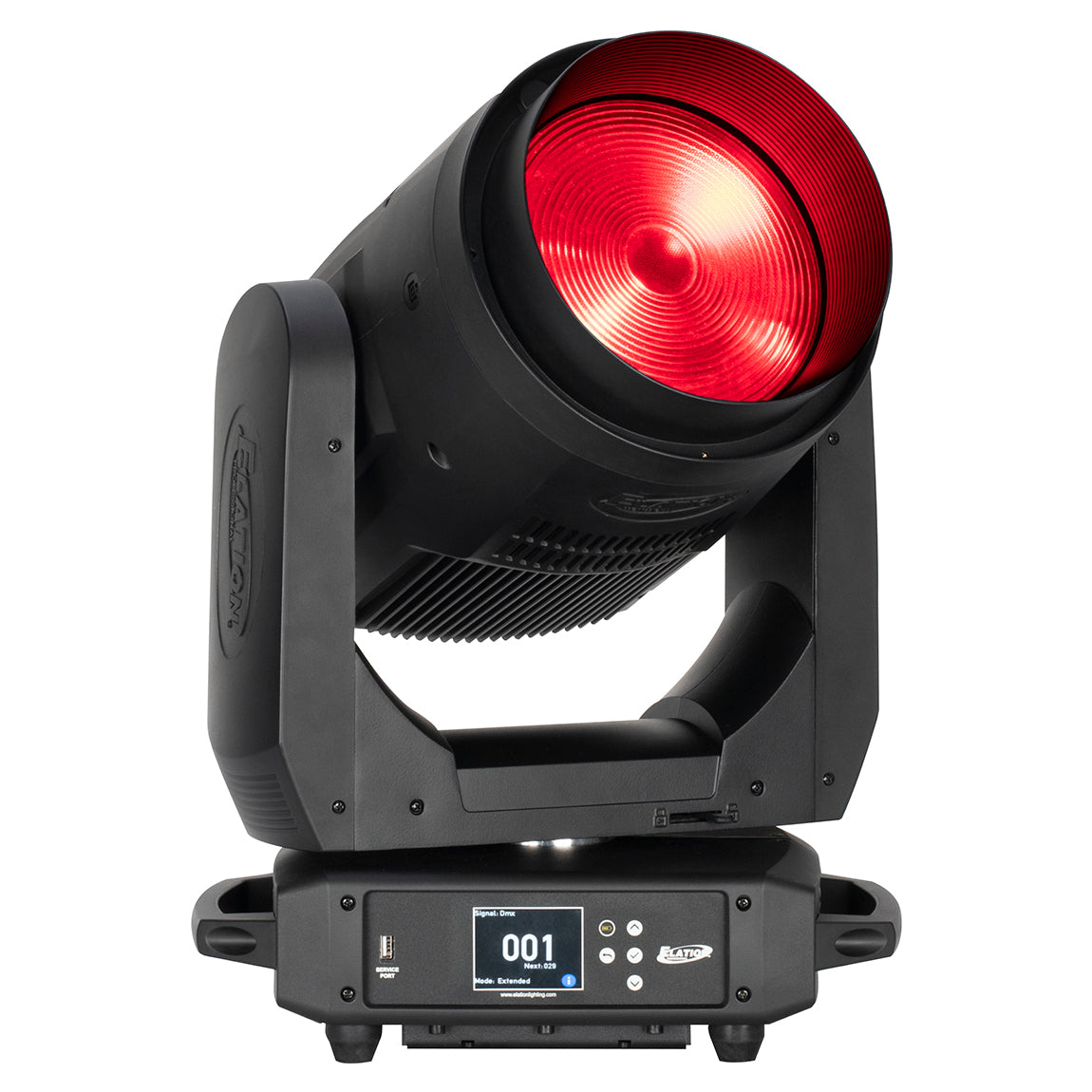

  • Elation Fuze Wash 500 RGBMA LED Moving Head red

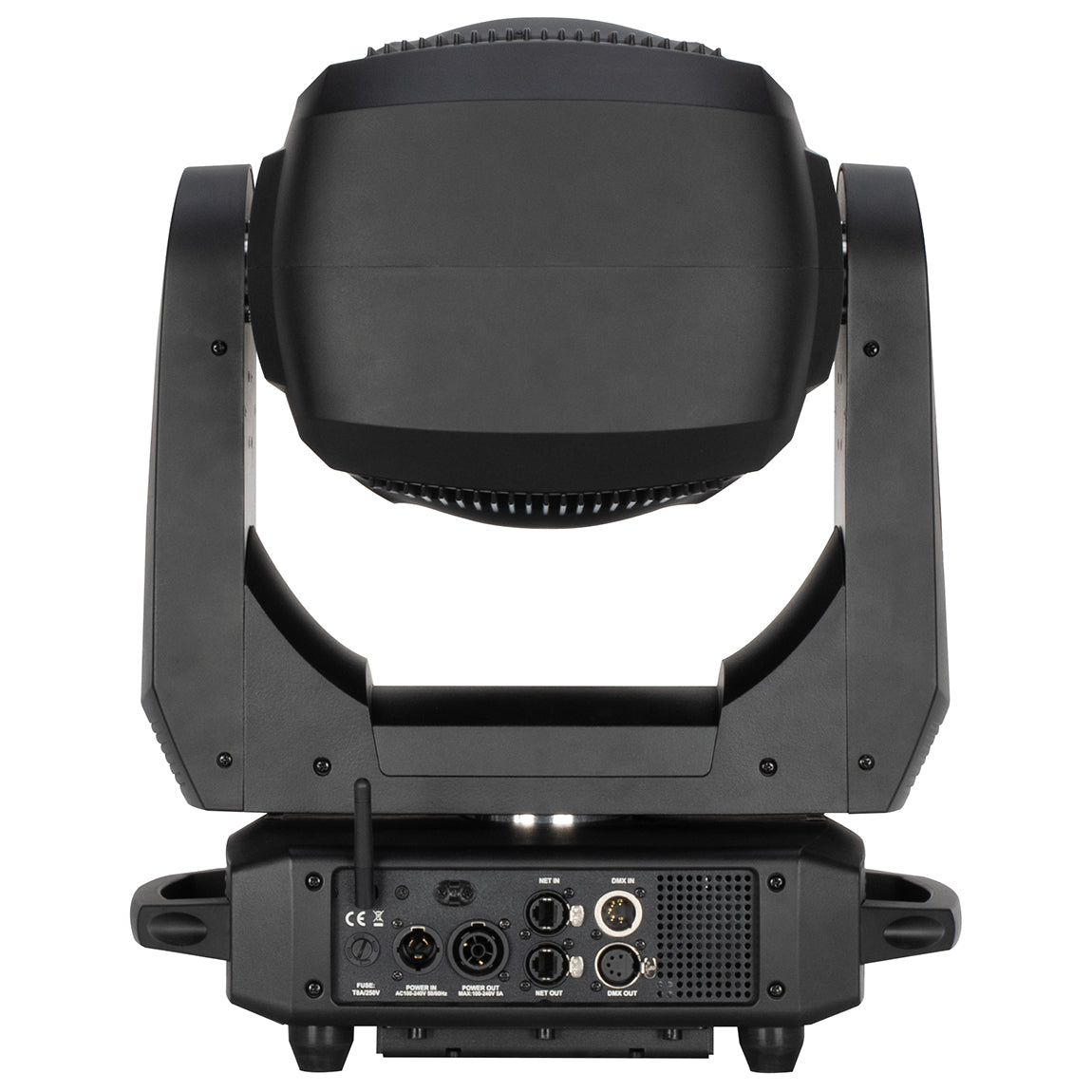

  • Elation Fuze Wash 500 RGBMA LED Moving Head back

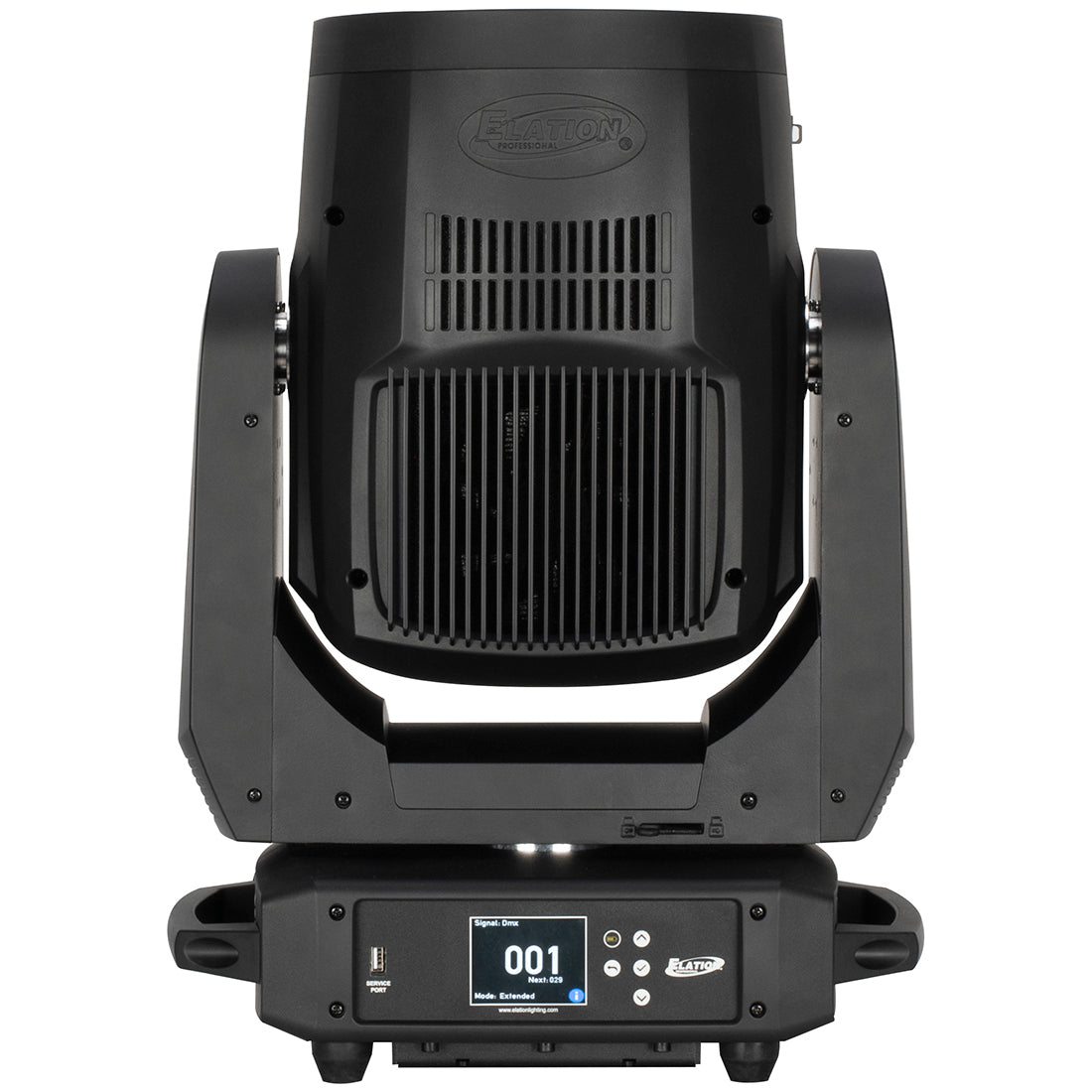

  • Elation Fuze Wash 500 RGBMA LED Moving Head top

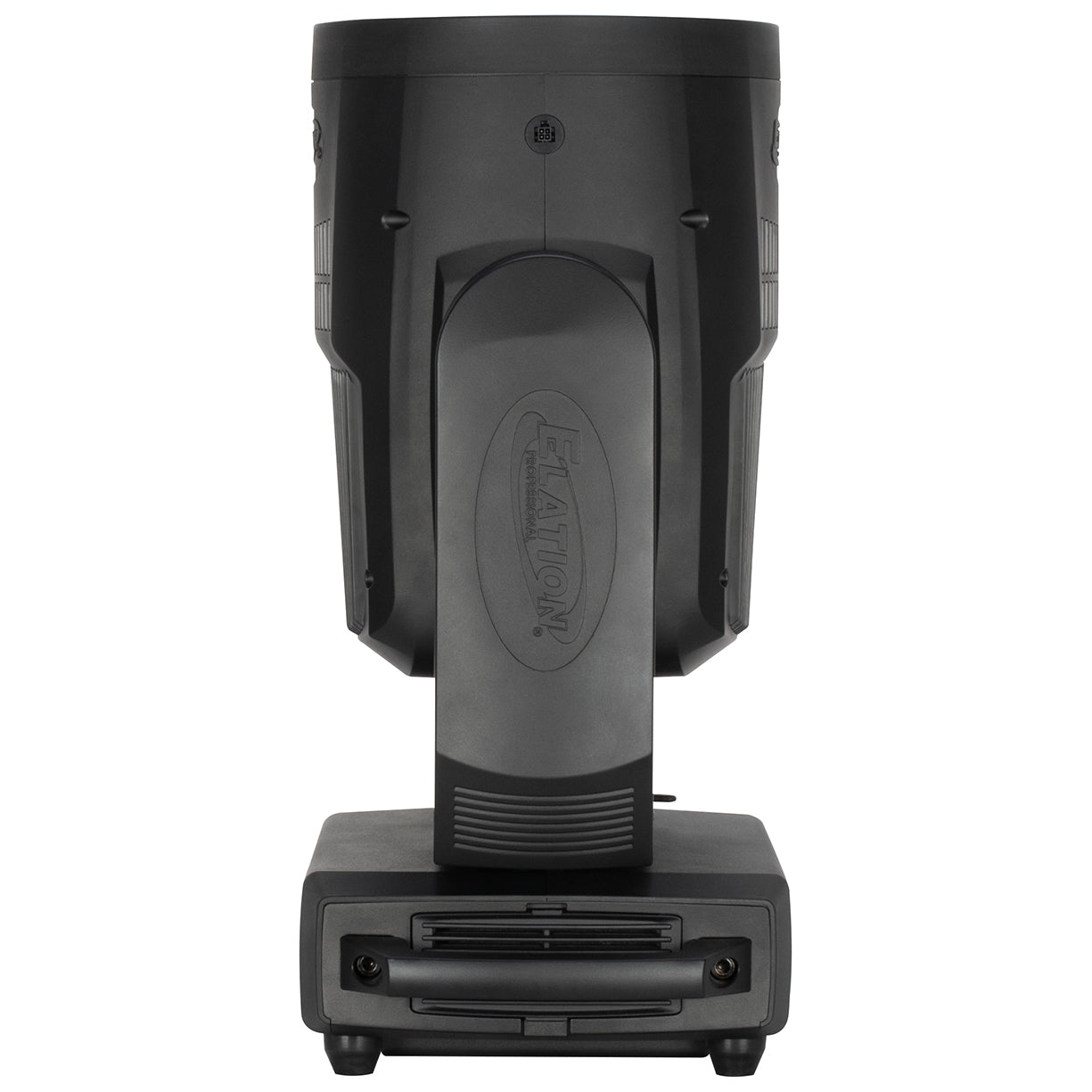

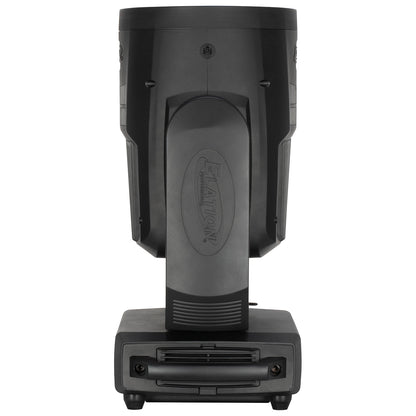

  • Elation Fuze Wash 500 RGBMA LED Moving Head side

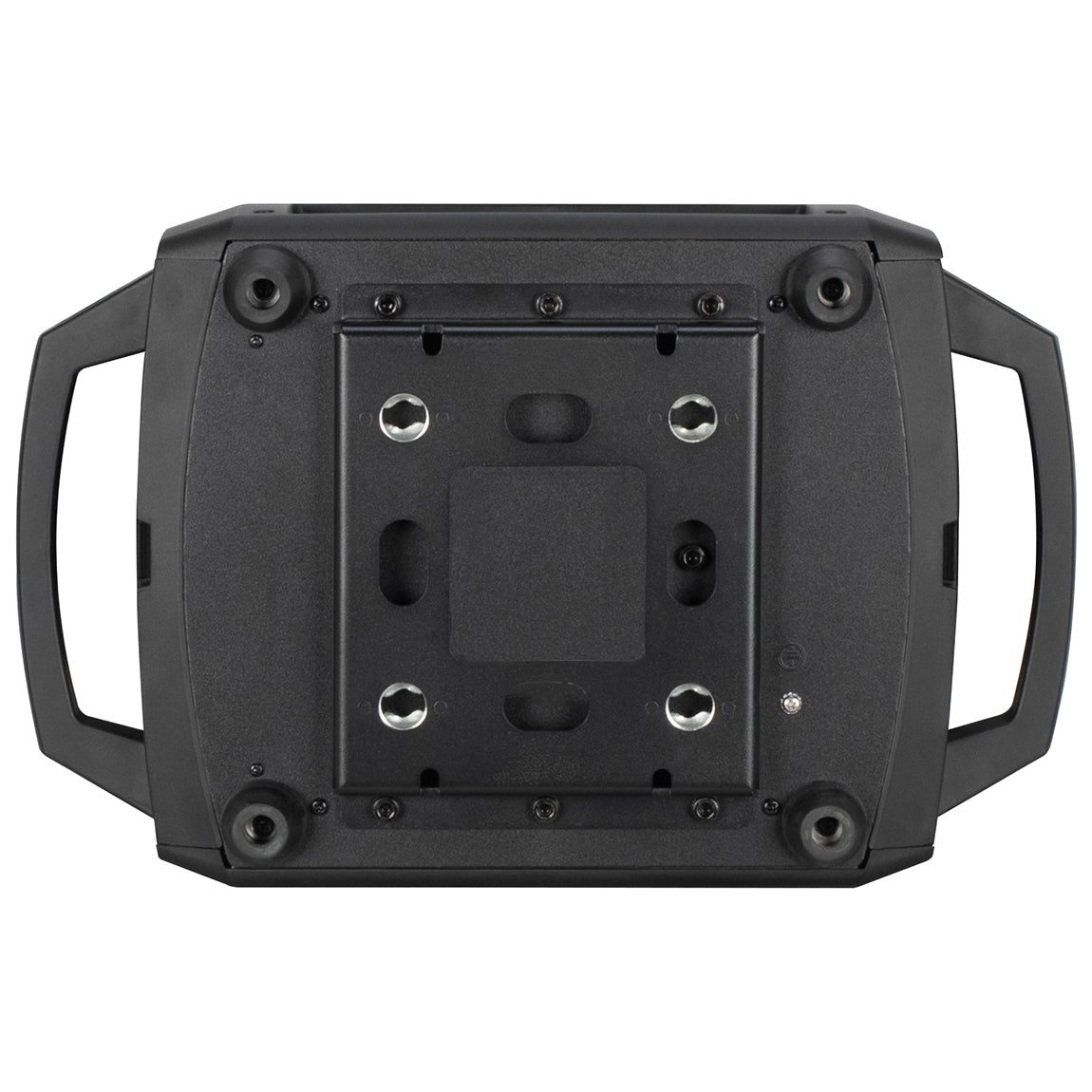

  • Elation Fuze Wash 500 RGBMA LED Moving Head bottom panel

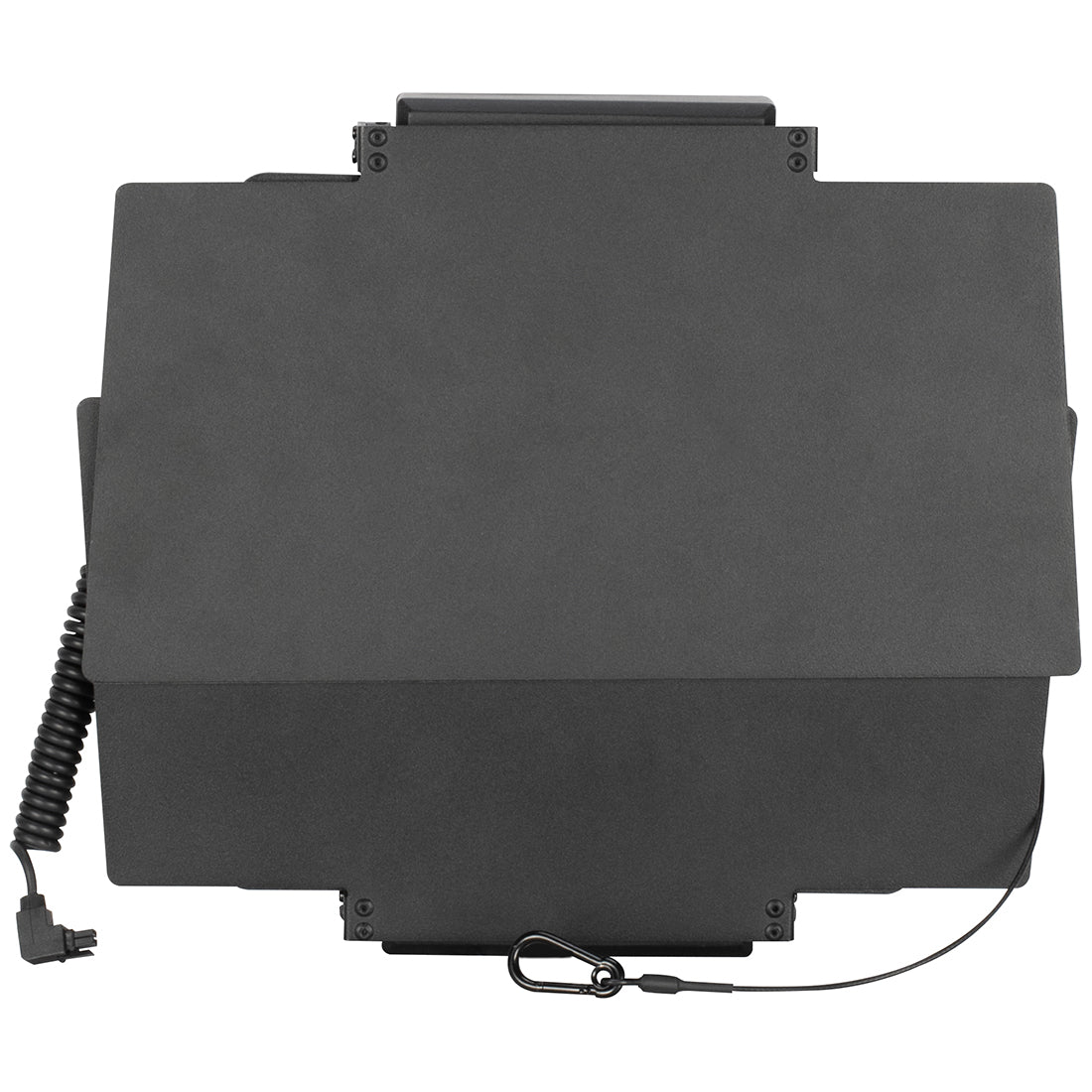

  • Elation Fuze Wash 500 RGBMA LED Moving Head bottom

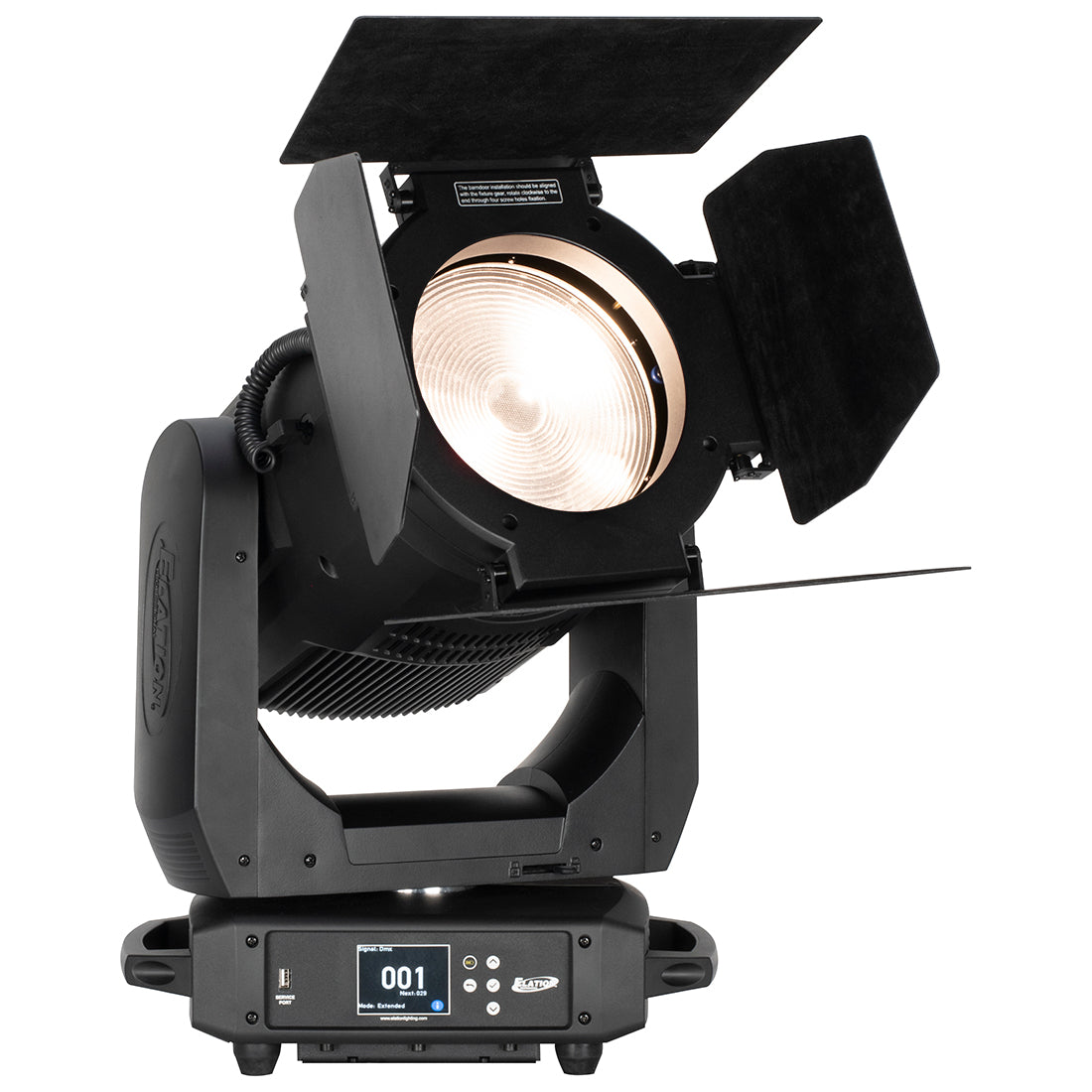

  • Elation Fuze Wash 500 RGBMA LED Moving Head with barn doors

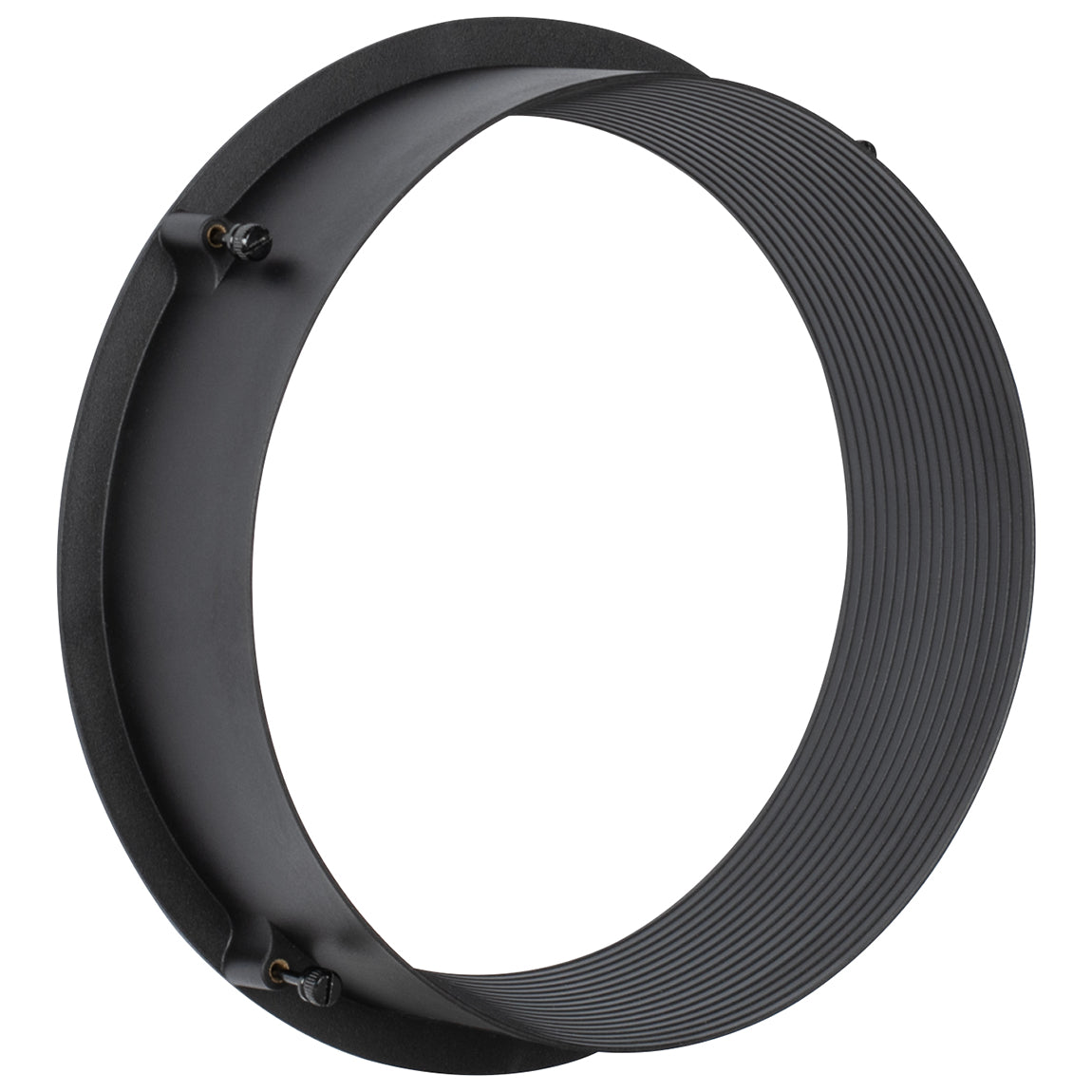

  • Elation Fuze Wash 500 RGBMA LED Moving Head snoot

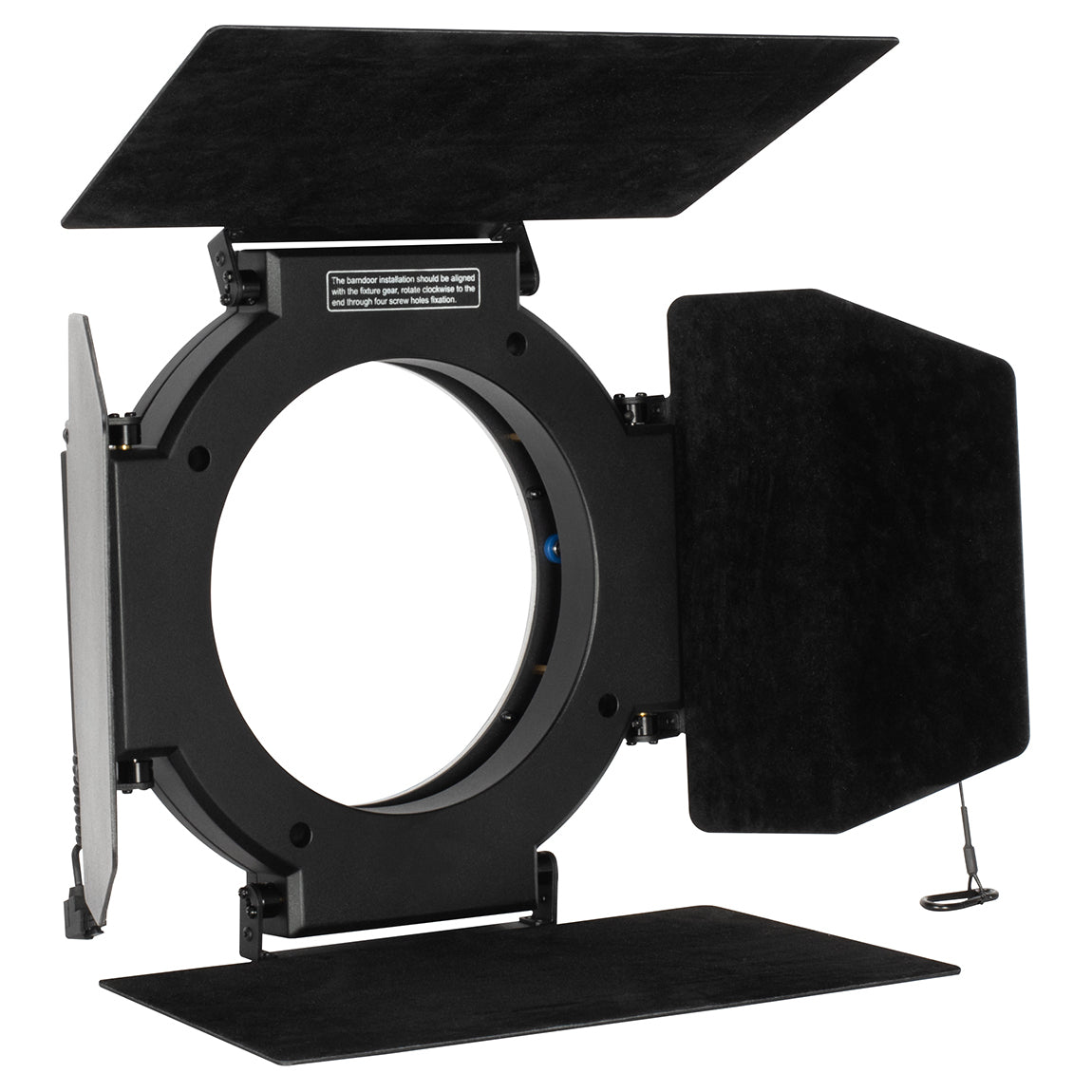

  • Elation Fuze Wash 500 RGBMA LED Moving Head barn doors
1 13

Elation Fuze Wash 500 RGBMA LED Moving Head | Color: Black

Elation Fuze Wash 500 RGBMA LED Moving Head | Color: Black

SoundPro Item: 132761 | Part Number: FUZ567

$4,364.00
$5,135.00 $4,364.00
Your Price Sold out
MSRP: $5,135.00 | MAP: $4,364.00

Usually ships in 5-7 business days

  • 500W Full Spectrum RGBMA LED Engine
  • Up to 17,000 Total Lumen Fixture Output @ 6500K
  • CRI up to 92
  • Wide Zoom Range from 6° to 53°
  • Variable 16-bit Dimming Curve Modes
  • CMY Emulation
  • Virtual Color Correction
  • Green/Magenta Shift
  • Virtual Gel Swatch Book
Log in or register for YOUR best price

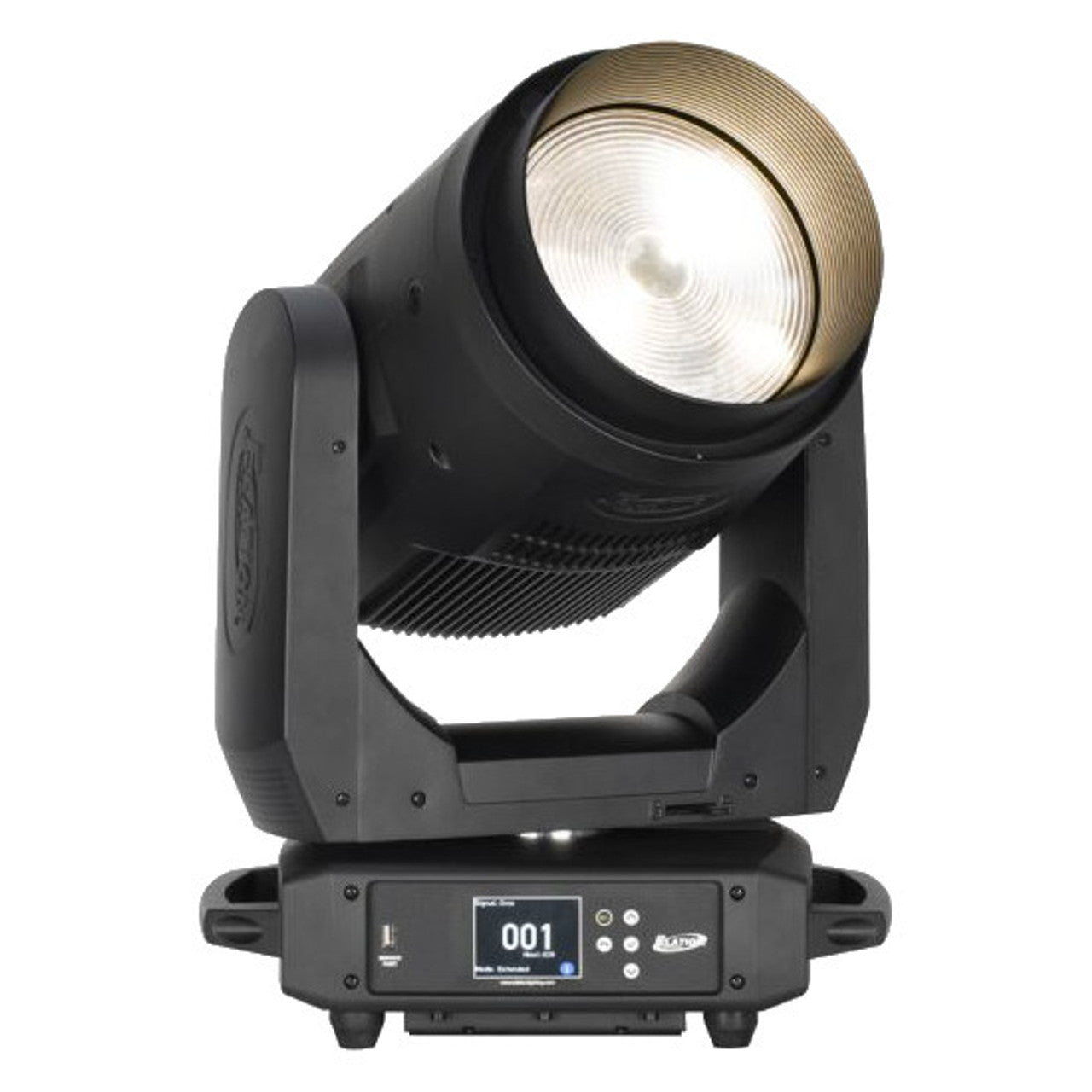

The FUZE WASH 500™ is a powerful automated LED Fresnel wash fixture designed for theater, television, events and a wide array of other precision lighting applications. A High-CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate color reproduction while delivering a powerful output of up to 17,000 lumens and maximum CRI of 92. Virtual color temperature, Magenta / Green adjustment plus CMY or RGB emulation provide the designer with immediate access to the impressive LED color array.

The FUZE WASH 500 is designed for any application where an automated Fresnel fixture with outstanding and impactful colors, a wide zoom range and a soft field is required. An optional indexable ovalizer lens and a fully automated barn door system is available for additional remote beam control.

View full details

Specifications

Dimensions
Width
16.1” (407.9mm)
Vertical Height
21.7” (590mm)
Weight
SIZE / WEIGHT
With Snoot:
Electrical
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz, Max Power Consumption 609W, 14°F to 113°F (-10°C to 45°C), BTU/hr (+/- 10%) 2151.71
Construction
COLOR
RGBMA Color Array, CMY and RGB Emulation, Variable CCT 2400K - 8500K, Green/Magenta Shift, Virtual Gel Swatch Book
Identifiers
Length
15.3” (389.5mm)
General
SOURCE
500W 6,500K RGBMA (Red, Green, Blue, Mint, Amber) LED Engine, 30,000 Hour Average LED Life*, *Test lab conditions. May vary depending on several factors including but not limited to:, Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
17,000 Total Lumen Fixture Output, CRI 92, Zoom Range 6° - 53°, Field Angle 12.1° - 63.6°, Beam Angle 6.3° - 53.7°
EFFECTS
Motorized Zoom, Optional Indexable Ovalizer Lens, Optional Motorized Barn Doors, Variable 16-bit Dimming Curve Modes, High Speed Electronic Shutter and Strobe
CONTROL / CONNECTIONS
6 DMX Channel Modes (RGBMA 21/ 30) (CMY 17 / 24) (RGB 20 / 26), 16-bit Pan, Tilt, and Dimming Control, DMX Adjustable LED Frequency, DMX, RDM, E-FLY Wireless, Art-Net, sACN Protocol Support, 4 Button Touch Control Panel, Full Color 180° Reversible LCD Menu Display, Locking 5pin XLR Connector In/Out, Locking RJ45 Ethernet Connector In/Out, Locking IP65 Power Connector In/Out, USB Connection (Firmware Updates)
Without Snoot
Length: 13.8” (350mm)Width: 16.1” (407.9mm)Vertical Height: 21.7” (550.5mm)
APPROVALS / RATINGS
CE | cETLus | IP20 | FCC
