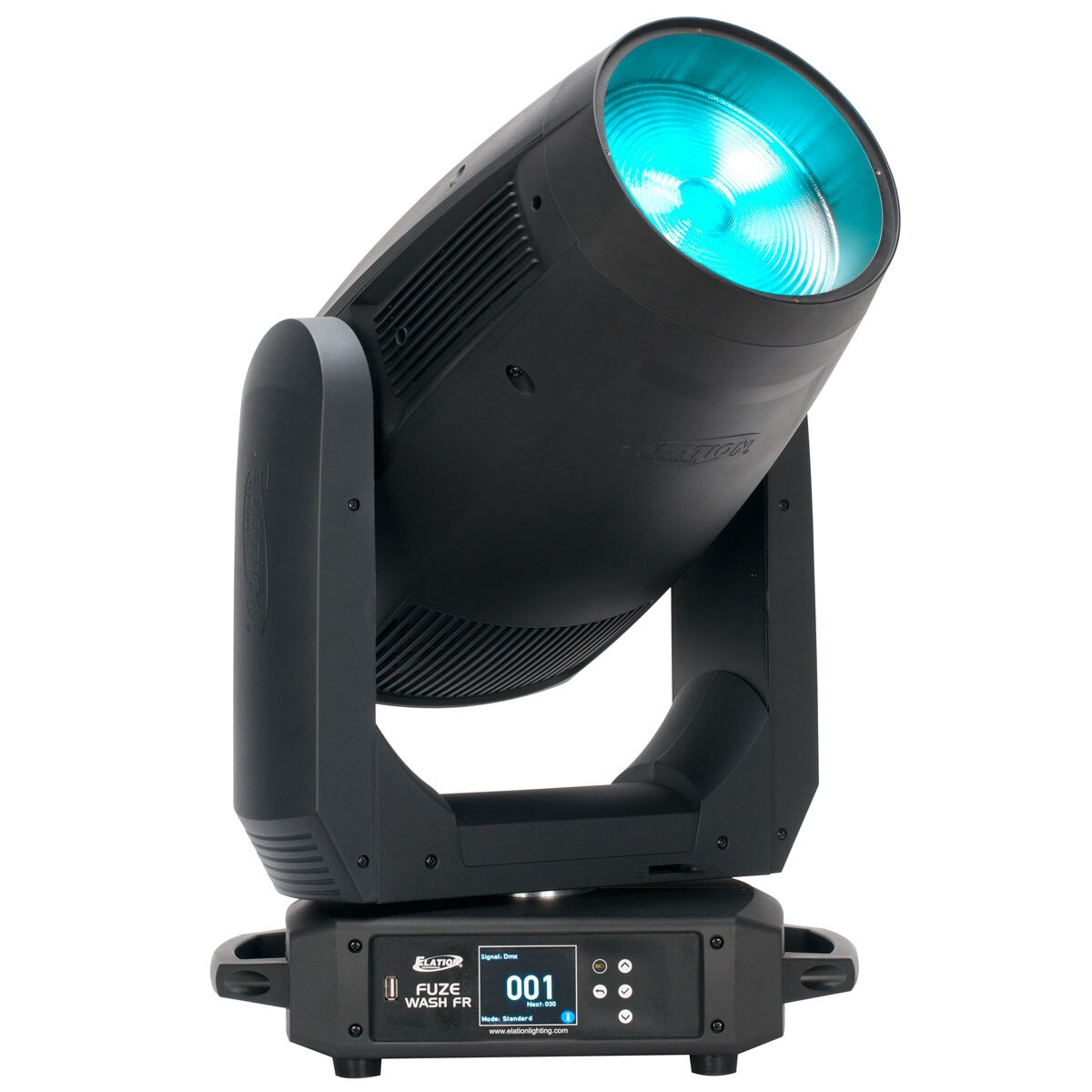

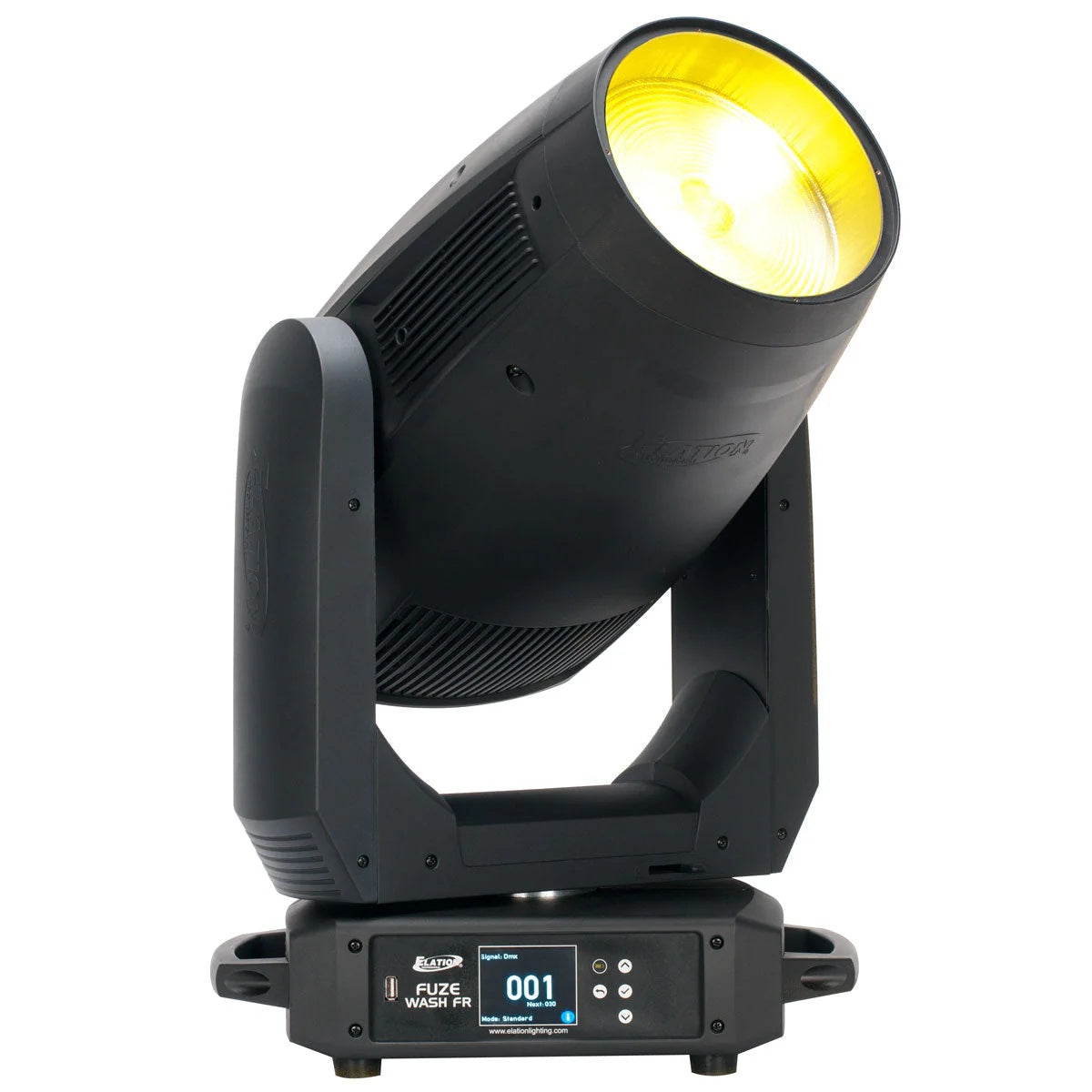

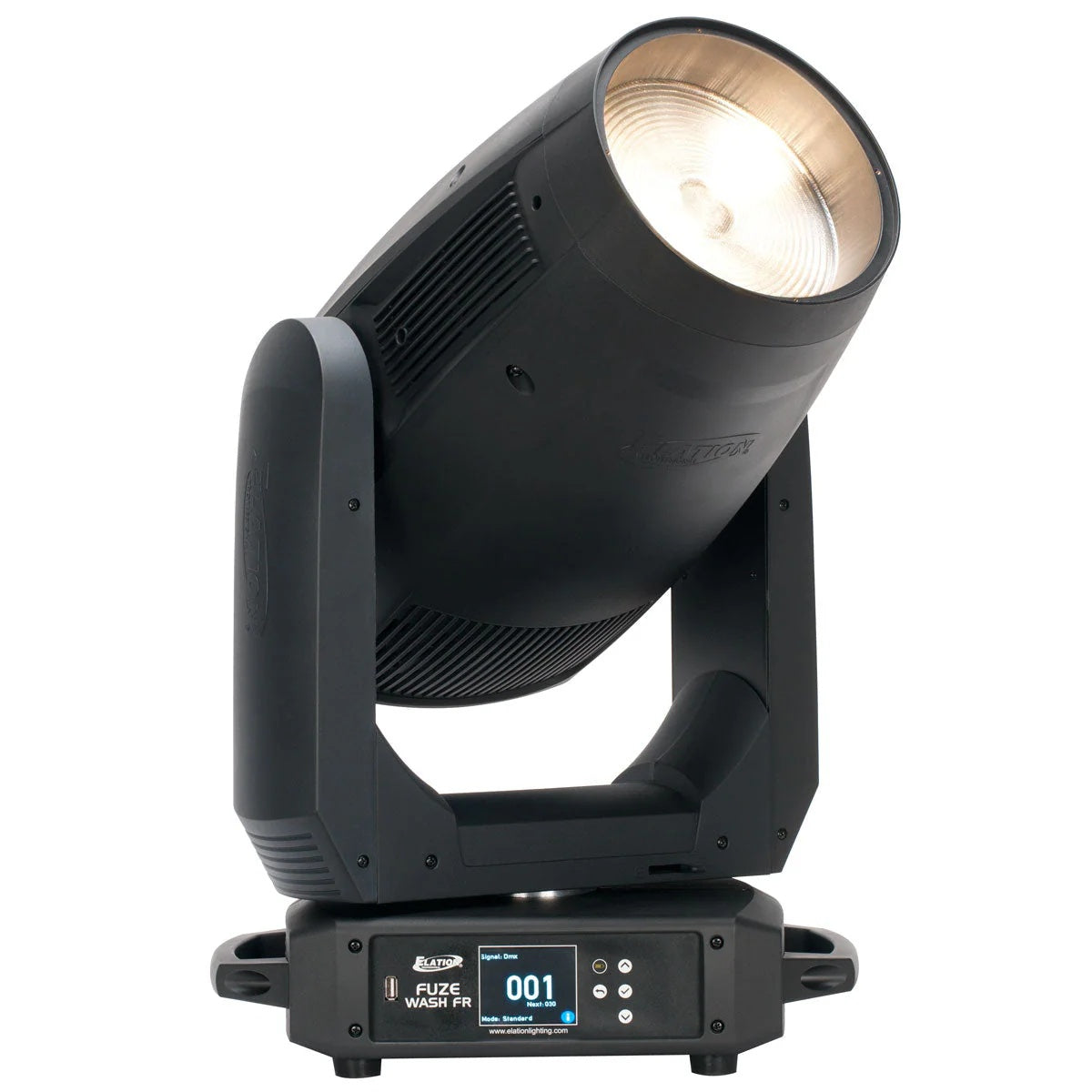

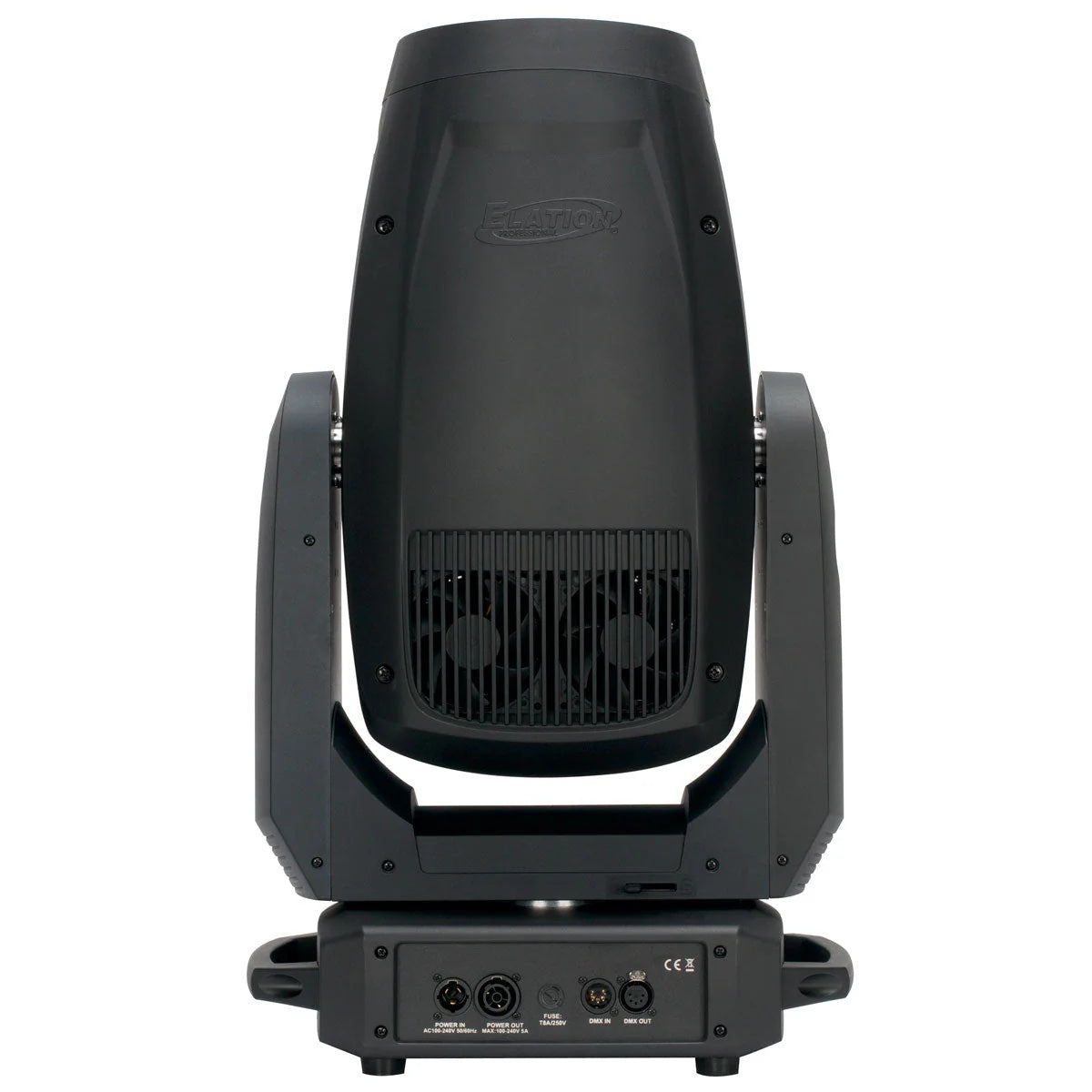

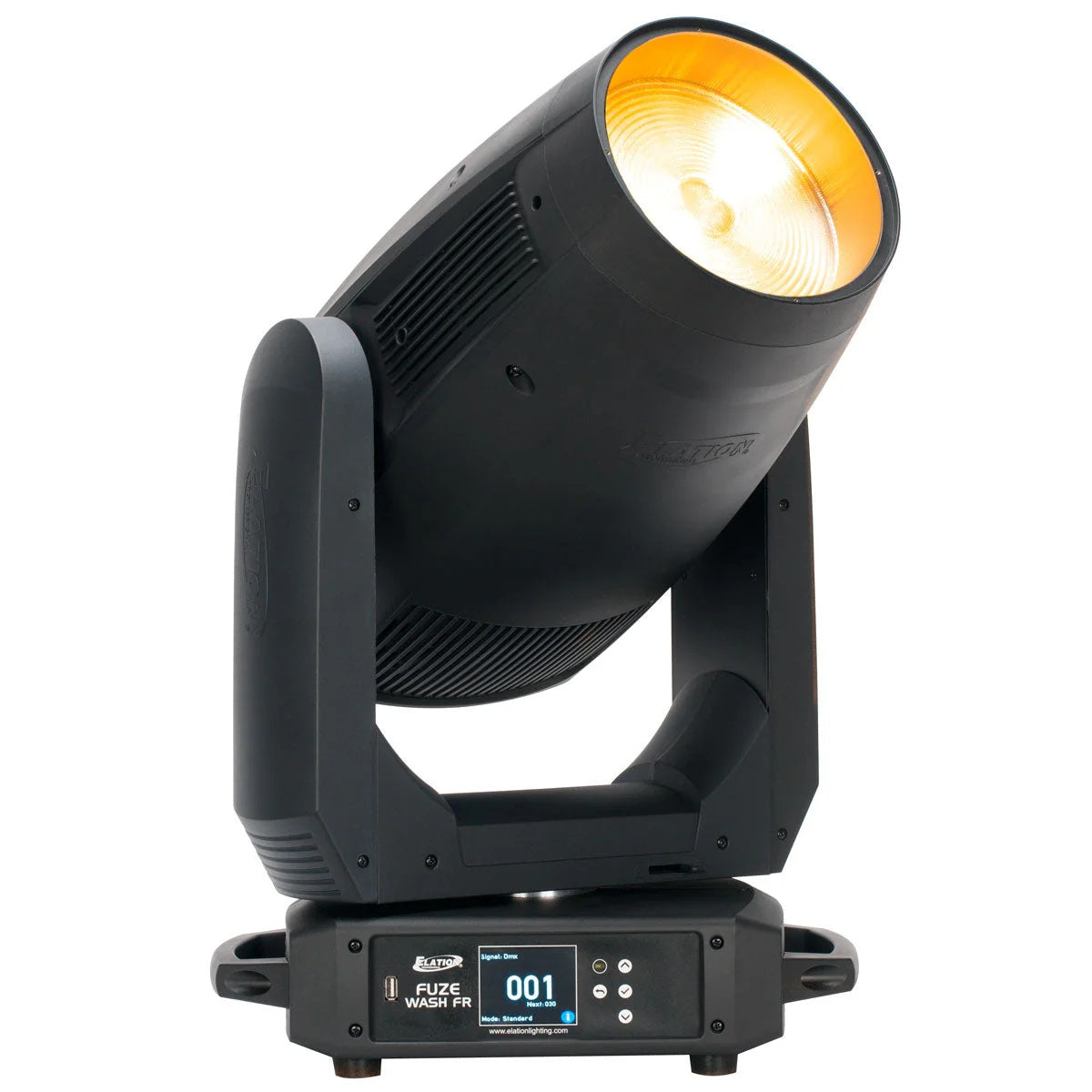

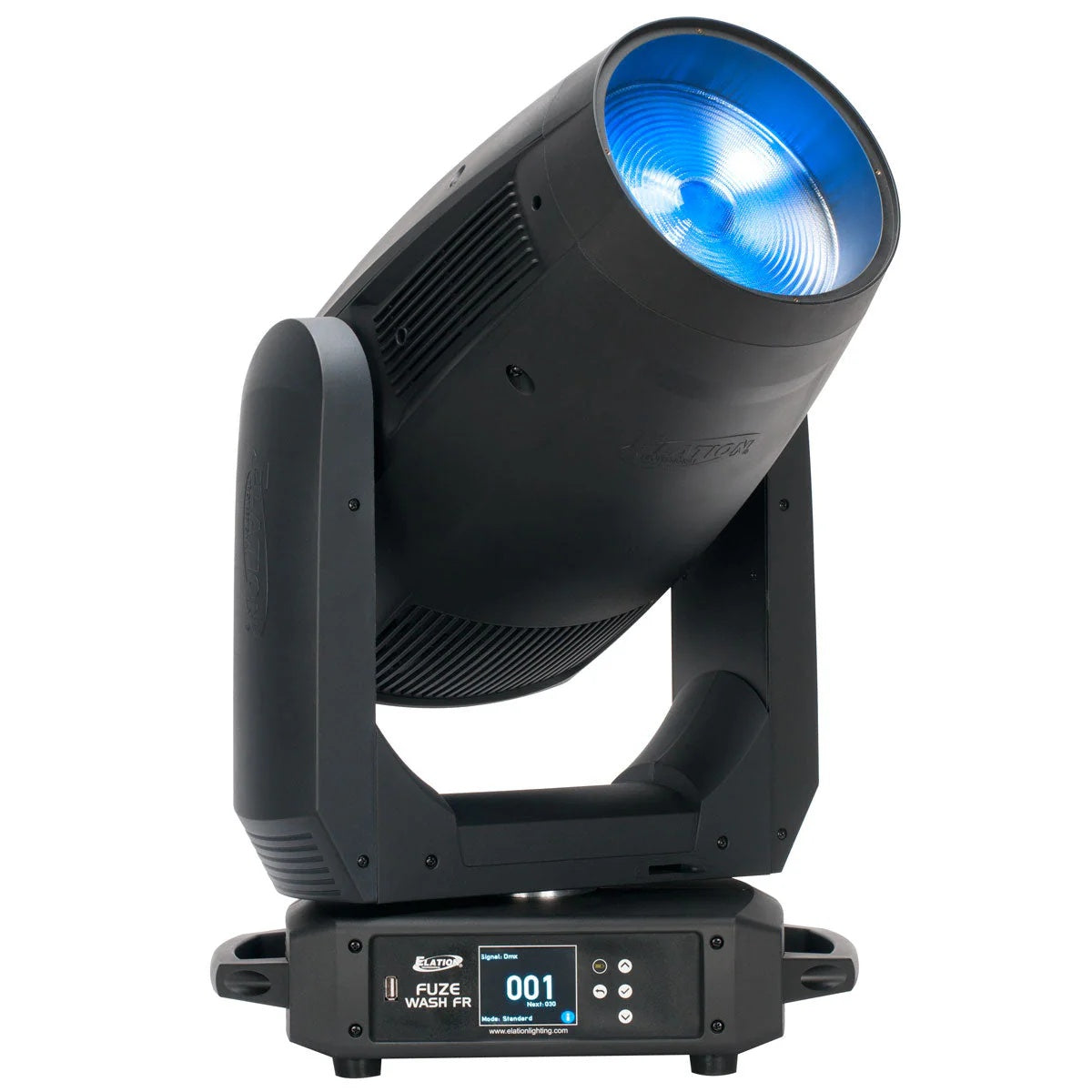

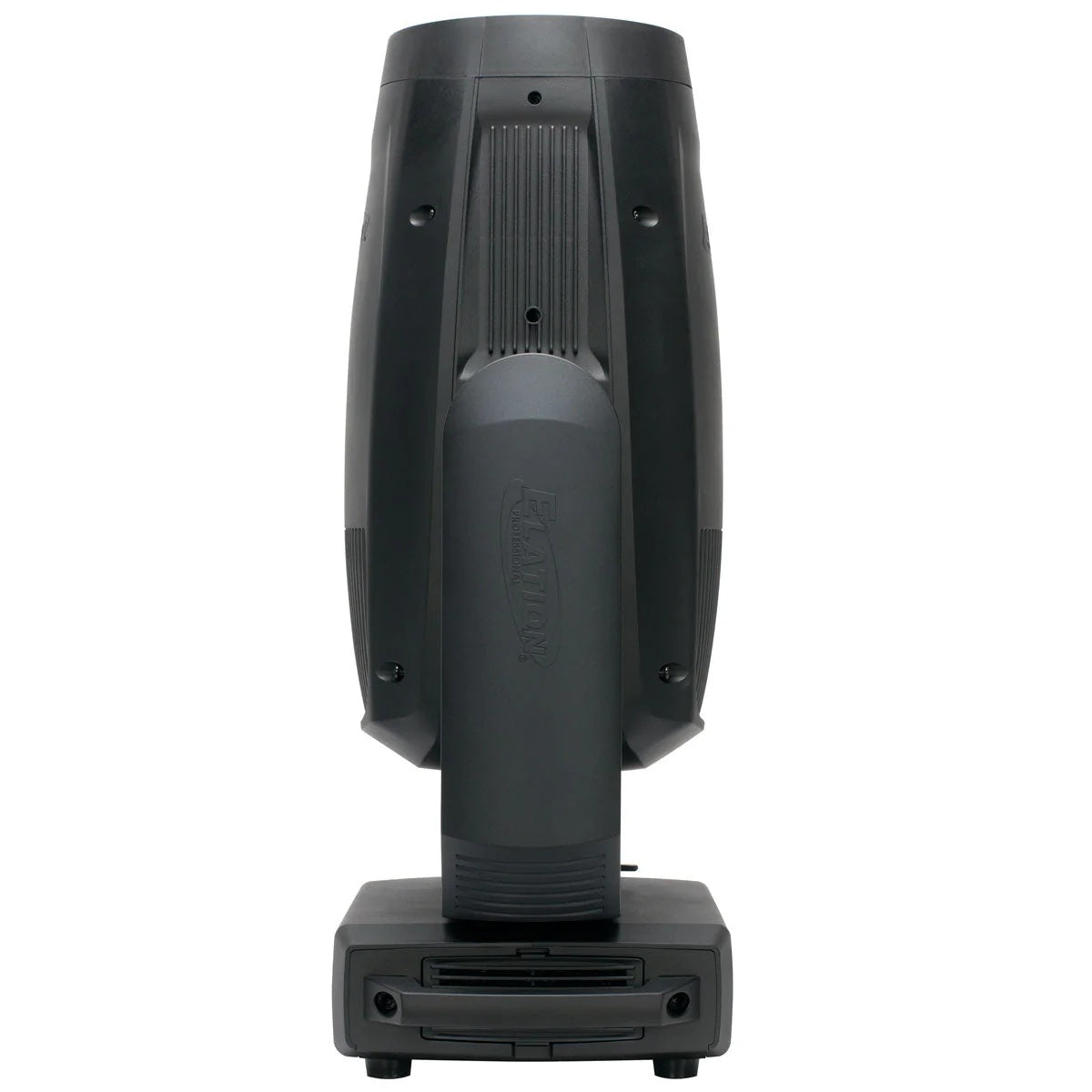

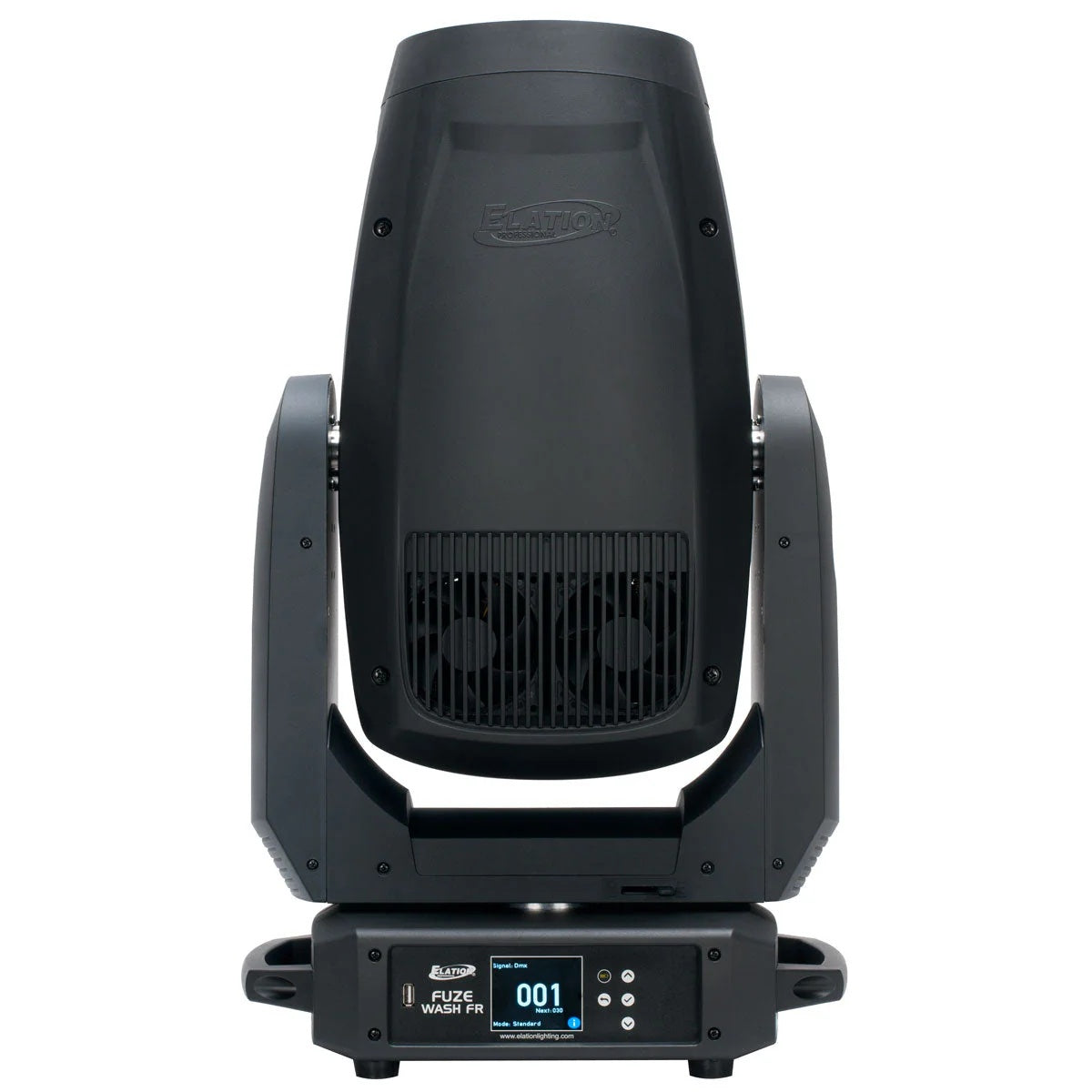

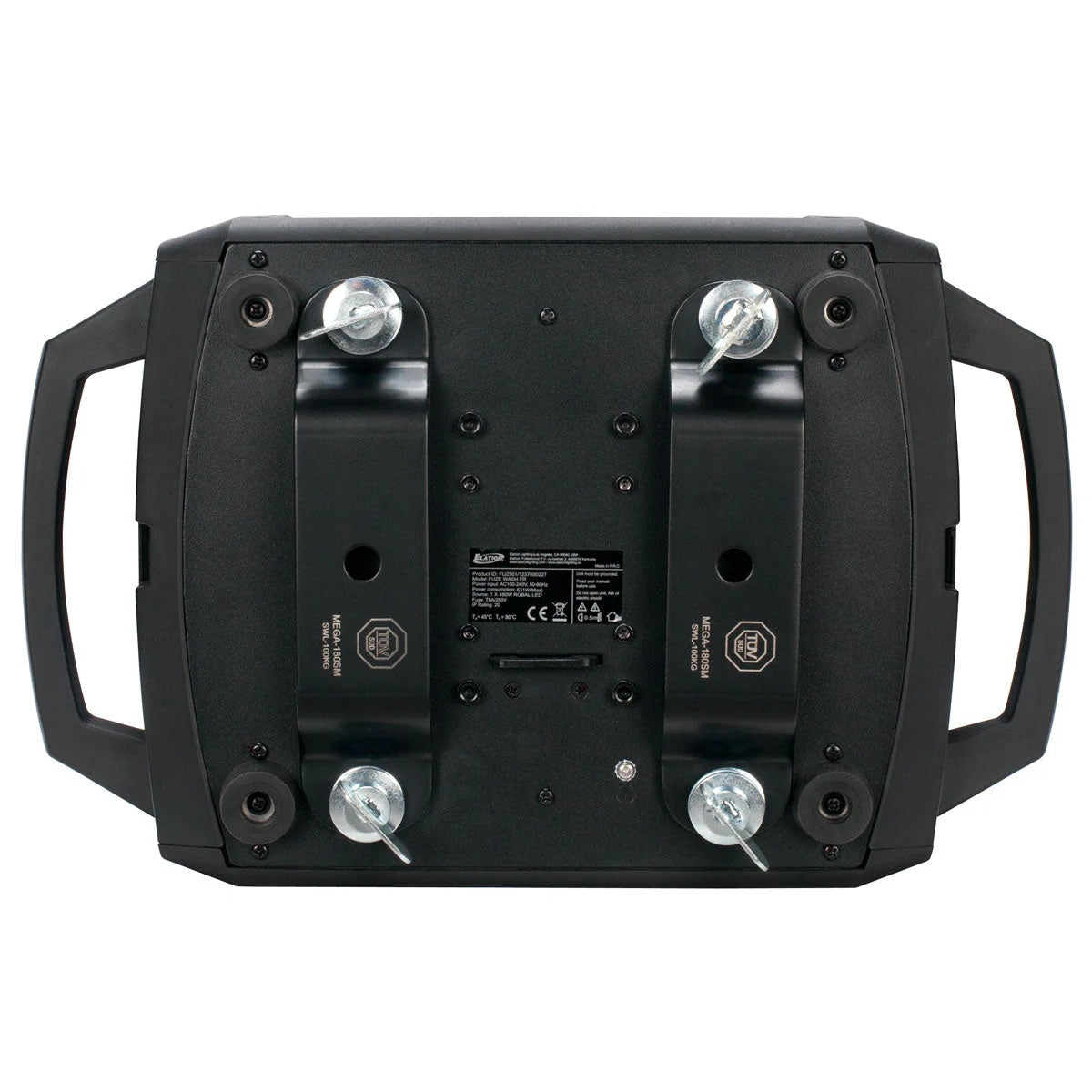

Elation Fuze Wash FR LED Moving Head
Elation Fuze Wash FR LED Moving Head
SoundPro Item: 54406 | Part Number: FUZ501
Usually ships in 5-7 business days
- 480W full spectrum RGBMA LED engine
- Up to 14,000 total lumen fixture output @ 6,500K
- CRI up to 92
- Internal 4-blade framing module
- Variable frost and iris for advanced beam control
- Wide zoom range from 8.2° to 42.1° (beam) , 12.7° to 62.1° (field)
- Variable 16-bit dimming curve modes
- CMY emulation
- Virtual color correction
- Green/magenta shift
- Virtual gel swatch book
The FUZE WASH FR™ is an automated LED Fresnel wash fixture designed for theater, television, events and a wide array of other precision lighting applications. A High-CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate color reproduction while delivering a powerful output of up to 14,000 lumens and maximum CRI of 92. Virtual color temperature, Magenta / Green adjustment plus CMY emulation provide the designer with immediate access to the impressive LED color array.
The FUZE WASH FR is designed for any application where an automated Fresnel fixture with outstanding and impactful colors, a wide zoom range and framing beam control with a soft field is required.
- Source480W 6,500K RGBMA (Red, Green, Blue, Mint, Amber) LED Engine with 30,000 Hour Average LED Life
- Photometric Data
- 15,000 Total Lumen Fixture Output
- CRI 92
- Zoom Range 9° - 60°
- Beam Angle 8.2° - 50.3°
- Field Angle 13° - 62.4°
- Effects
- Motorized Zoom
- 4 Rotating Full Blackout Framing Blades, +/- 60 Index
- Variable Frost Filter
- Iris
- Variable 16-bit Dimming Curve Modes
- High Speed Electronic Shutter and Strobe
- Pan Angle: 540° / 630°
- Tilt Angle: 270°
- Color
- RGBMA Color Array
- CMY Emulation
- Virtual Color Correction
- Green/Magenta Shift
- Virtual Gel Swatch Book
- Control / Connections
- 4 DMX Channel Modes (RGBMA 29 / 47) (CMY 27 / 43)
- 16-bit Pan, Tilt, and Dimming Control
- DMX Adjustable LED Frequency
- DMX, RDM Protocol Support
- 4 Button Touch Control Panel
- Full Color 180° Reversible LCD Menu Display

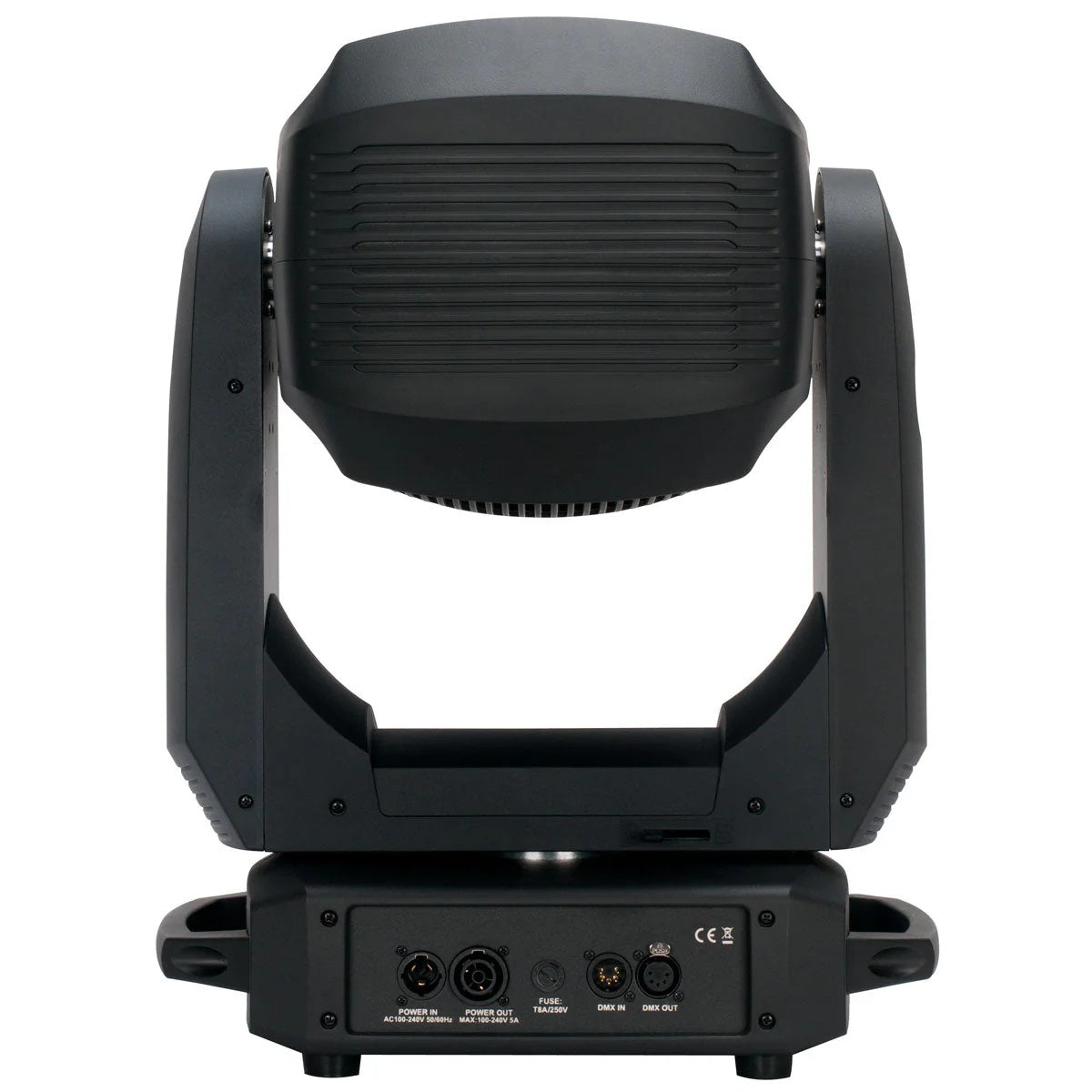

- Locking 5pin XLR Connector In/Out
- Locking IP65 Power Connector Power In/Out
- USB Connection (Firmware Updates)
- With Wired Digital Communication Network
- Electrical / Thermal
- AC 100-240V - 50/60Hz
- Max Power Consumption 631W
- 14°F to 113°F (-10°C to 45°C)
- BTU/hr (+/- 10%) 2151.71
- Dimensions (LxWxH)16.06" x 10.08" x 26.74"
- Weight62 pounds
