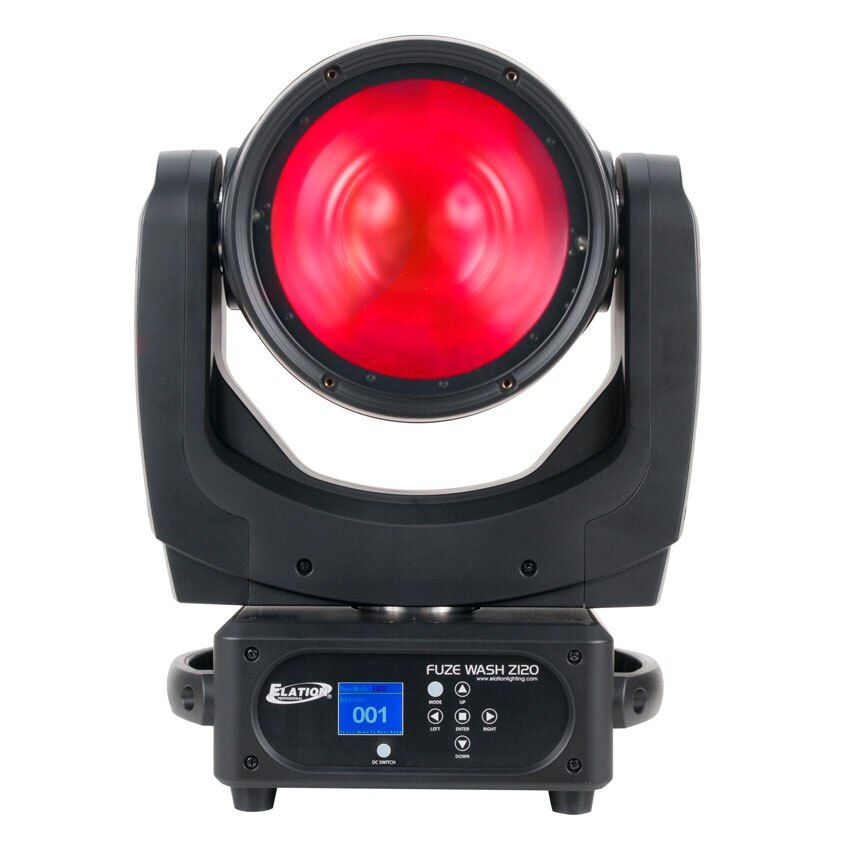

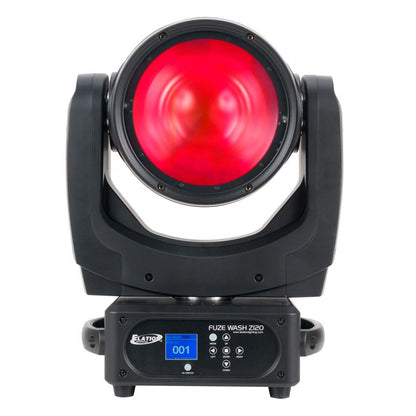

Elation Fuze Wash Z120 RGBW COB LED Moving Head

Elation Fuze Wash Z120 RGBW COB LED Moving Head

SoundPro Item: 75644 | Part Number: FUZ024

$1,584.00
$1,980.00 $1,584.00
Your Price Sold out
MSRP: $1,980.00 | MAP: $1,584.00

Usually ships in 5-7 business days

  • 120W RGBW COB LED moving head wash luminaire
  • RGBW color mixing
  • 7° to 55° wide motorized zoom range
  • Variable dimming curves
  • Multiple unit power linking
  • RDM (Remote Device Management)
  • Flicker free operation for TV and film
Log in or register for YOUR best price

The FUZE WASH Z120™ is a single source par moving head luminaire with a 120W Quad Color RGBW COB LED. Features 7° to 55° motorized zoom, pan and tilt, RGBW color mixing, electronic strobe and selectable dimming curve effects, DMX and RDM (remote device management) protocol support, DMX and power in/out connections, LCD menu display with 7 button control panel, multiple unit power linking, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-240v).

View full details

Specifications

Dimensions
Dimensions (LxWxH)
13.3" x 9" x 18.2"
Electrical
Electrical / Thermal
AC 110-240V - 50/60Hz, 157W Max Power Consumption, Multiple Unit Power Linking, 5°F to 113°F (-15°C to 45°C), BTU/hr (+/- 10%) 535.37
Construction
Color
RGBW
Shipping
Weight
22 pounds
General
Source
120W RGBW COB LED with 100,000 Hour Average LED Life
Photometric Data
10,640 LUX 988 FC @9.8’ (3m) (7° Full ON), 692 LUX 64 FC @9.8’ (3m) (55° Full ON)
Effects
RGBW Color Mixing, 7° - 55° Beam Zoom Range, Electronic Strobe, Dimming and Variable Dimming Curves, 64 Color Presets and 14 Unique Color Macros
Pan Angle
540/630
Tilt Angle
250
Control / Connections
4 DMX Channel Modes (19 Total Channels), 7 Button Control Panel and LCD Menu Display, RDM (Remote Device Management), 3pin/5pin DMX and Locking Power Cable In/Out, With Wired Digital Communication Network
