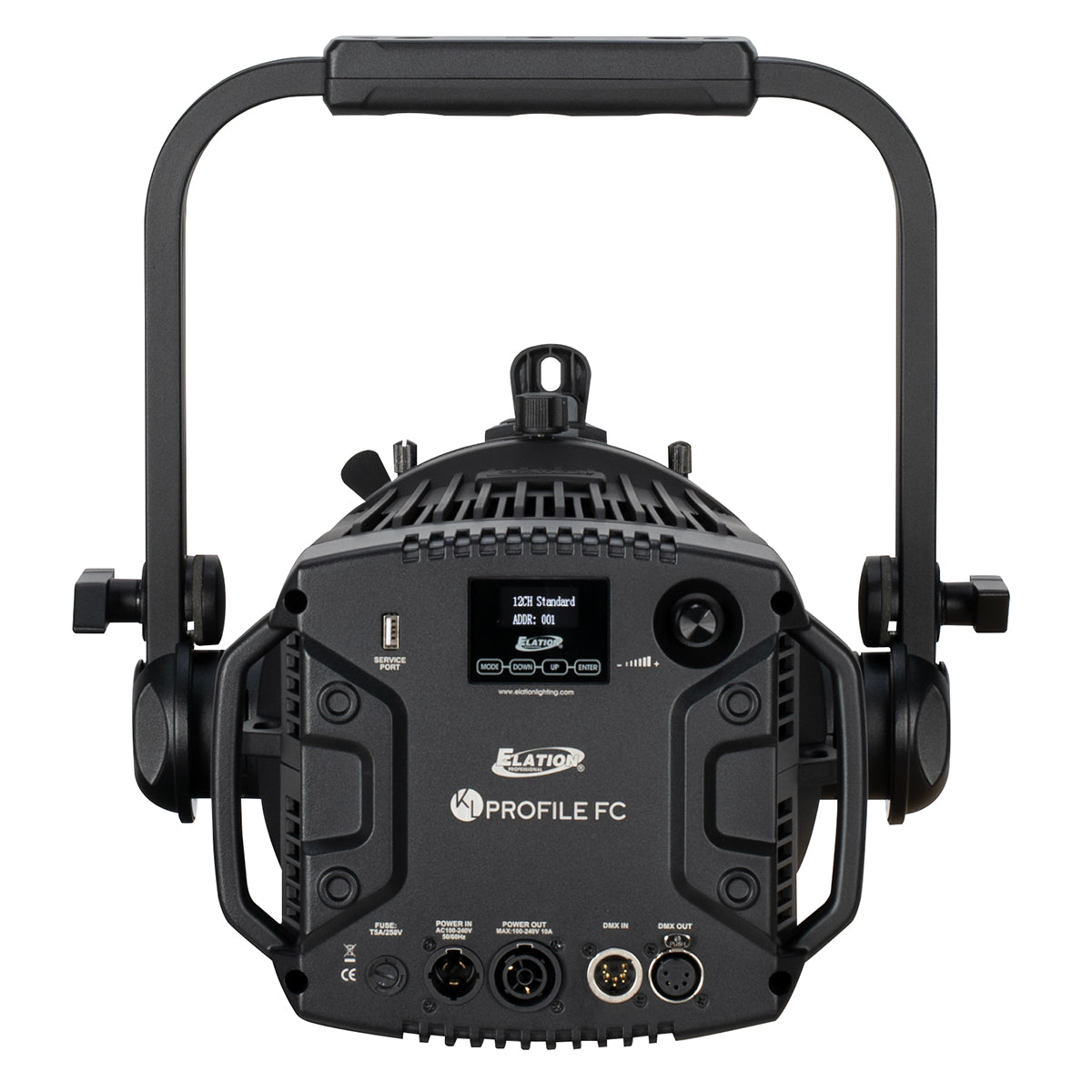

  • Elation KL PROFILE FC RGBMA LED Zooming Ellipsoidal back

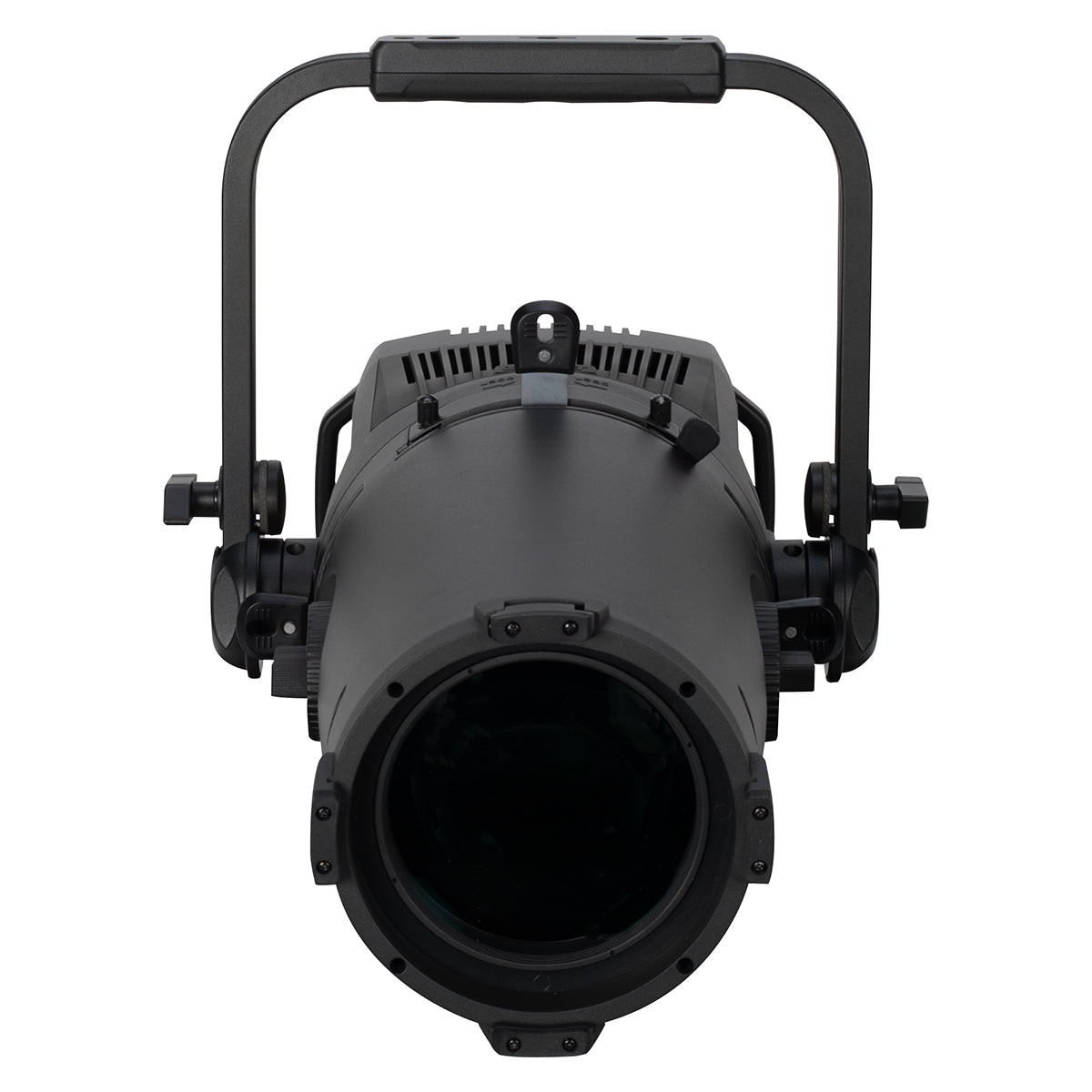

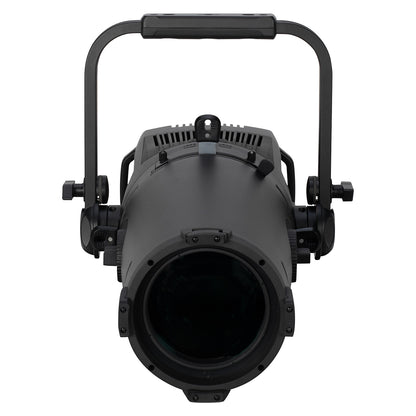

  • Elation KL PROFILE FC RGBMA LED Zooming Ellipsoidal front

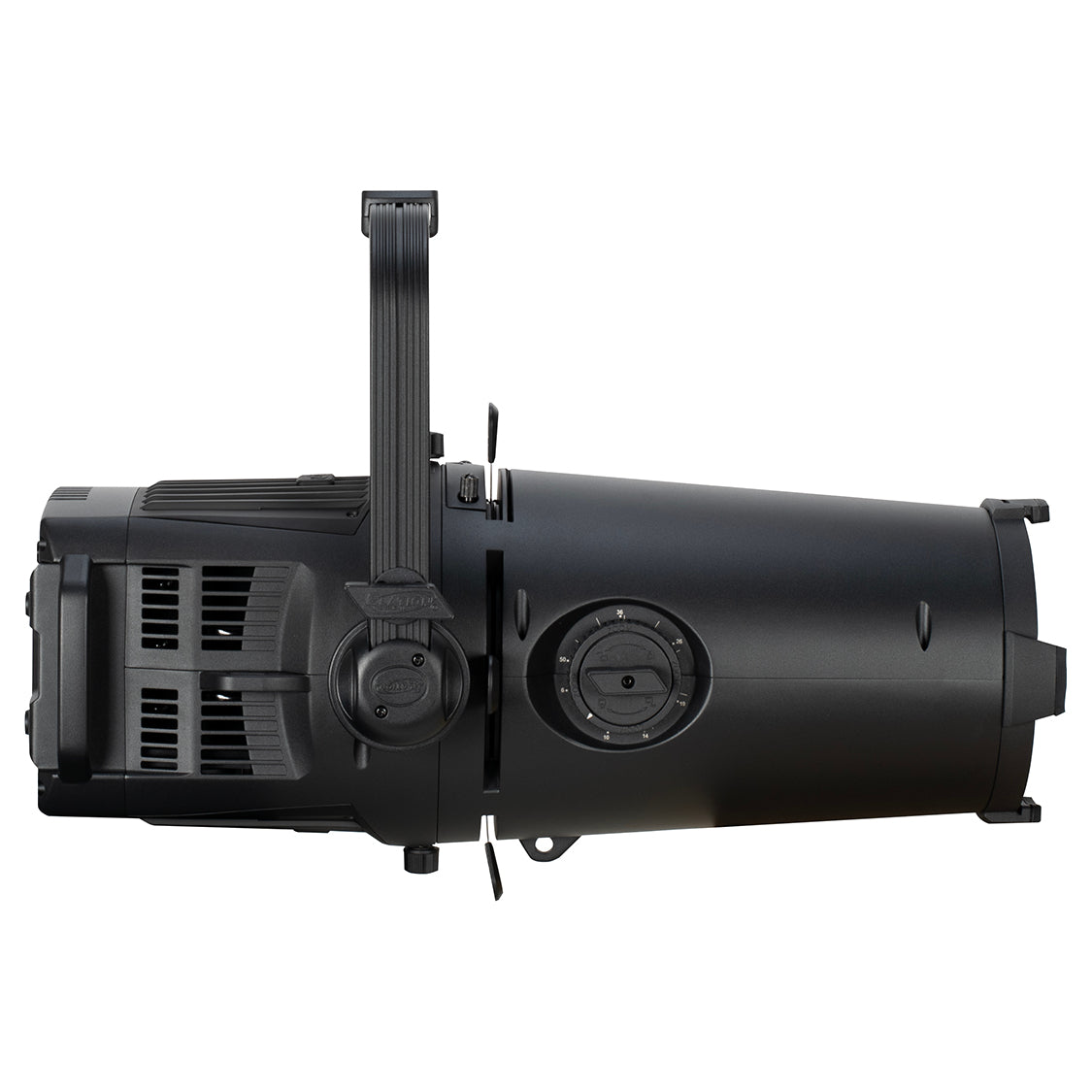

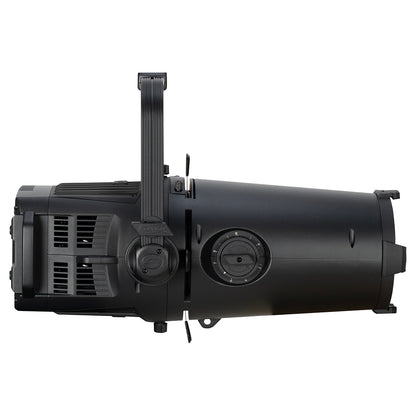

  • Elation KL PROFILE FC RGBMA LED Zooming Ellipsoidal right

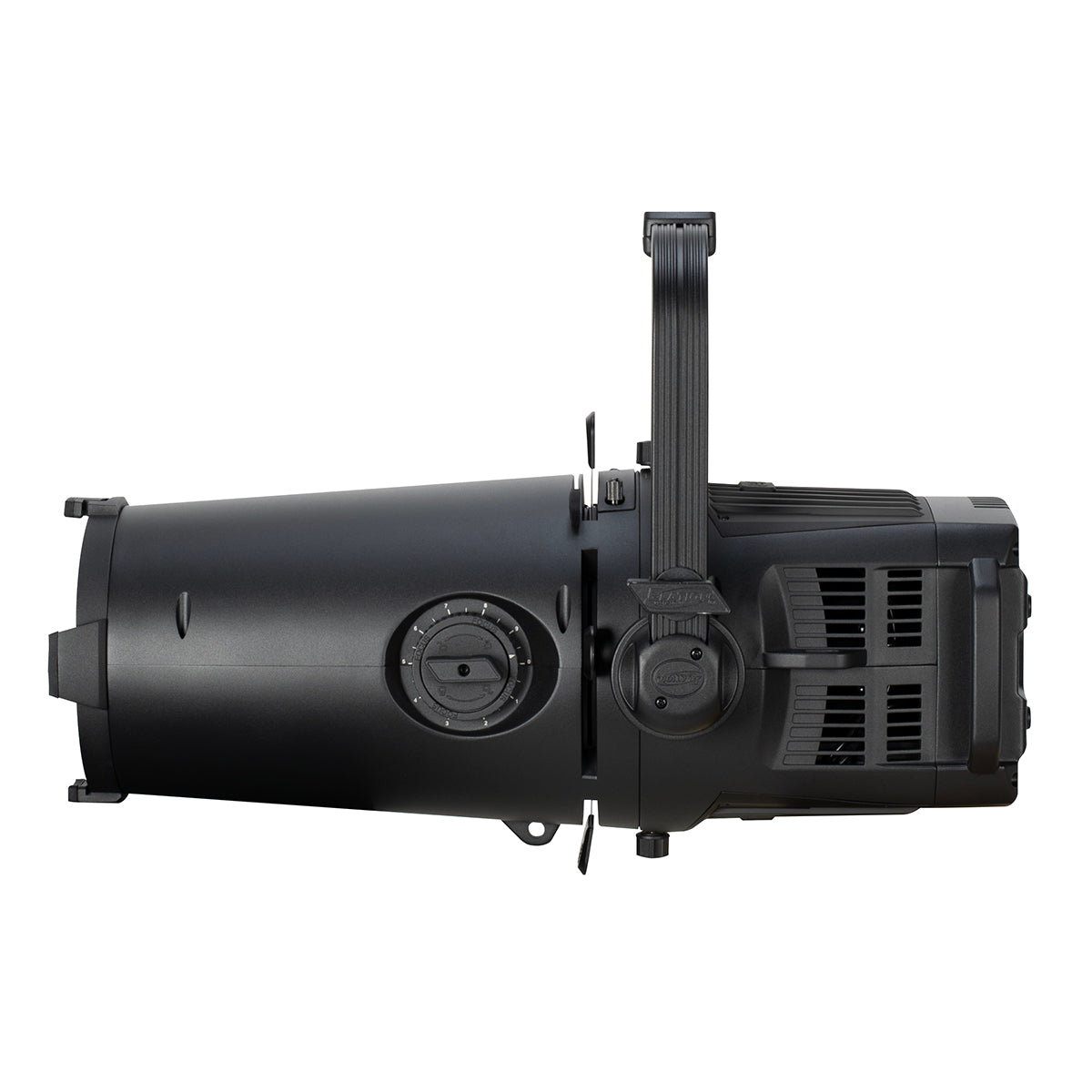

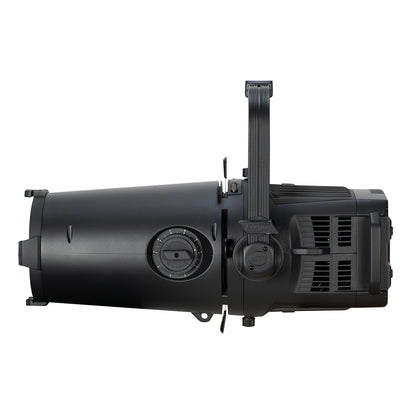

  • Elation KL PROFILE FC RGBMA LED Zooming Ellipsoidal left

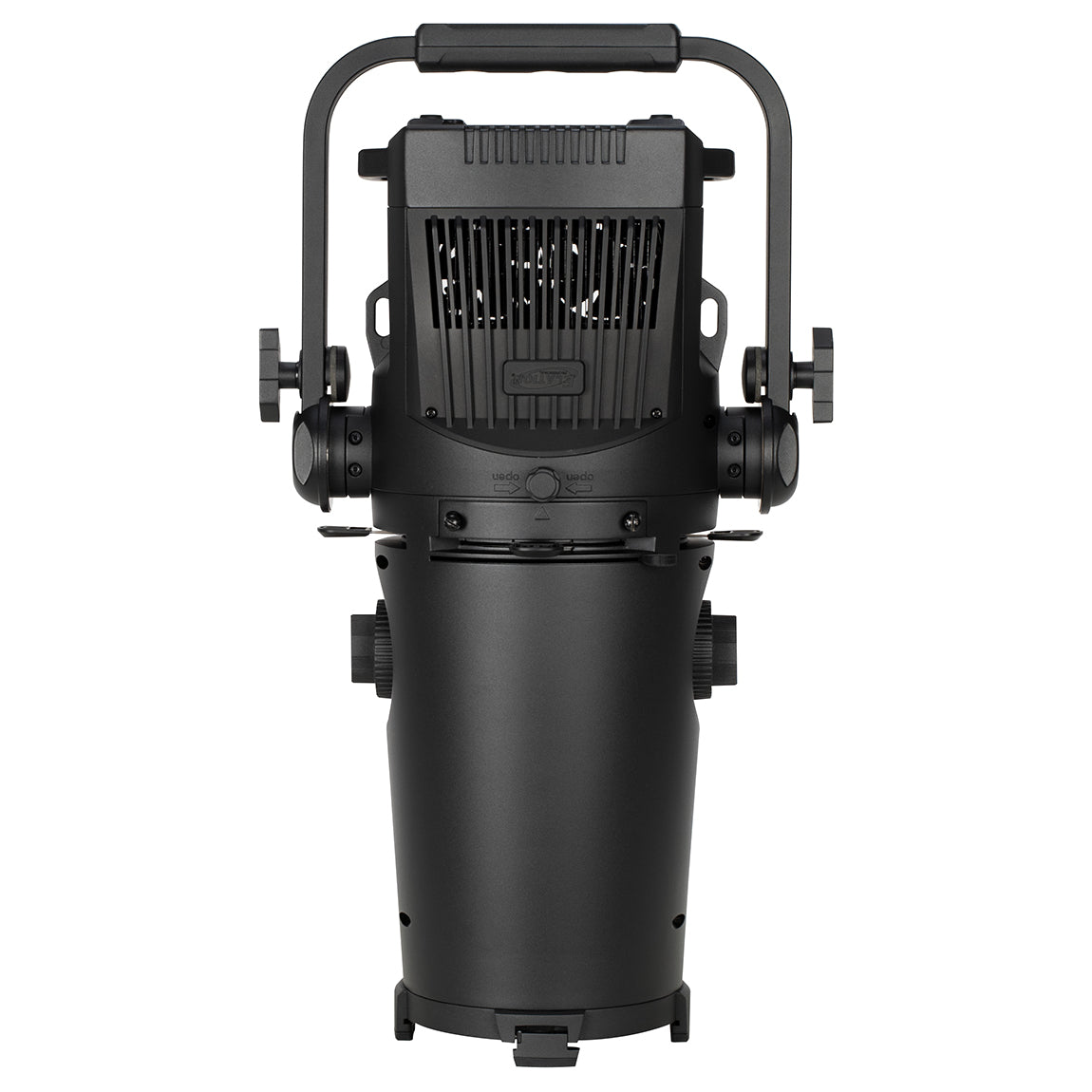

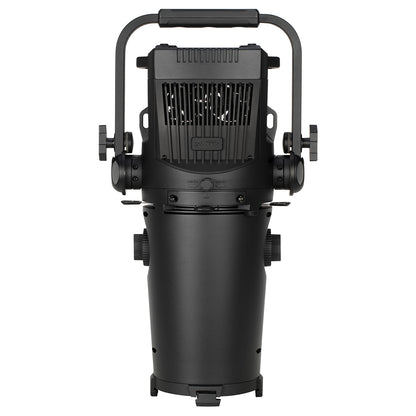

  • Elation KL PROFILE FC RGBMA LED Zooming Ellipsoidal top

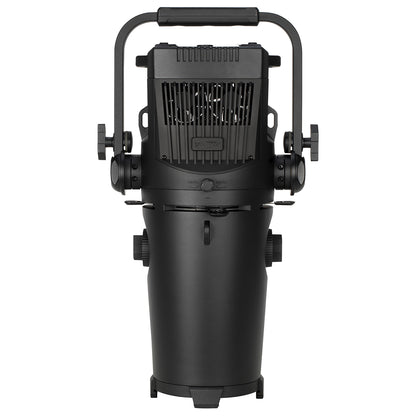

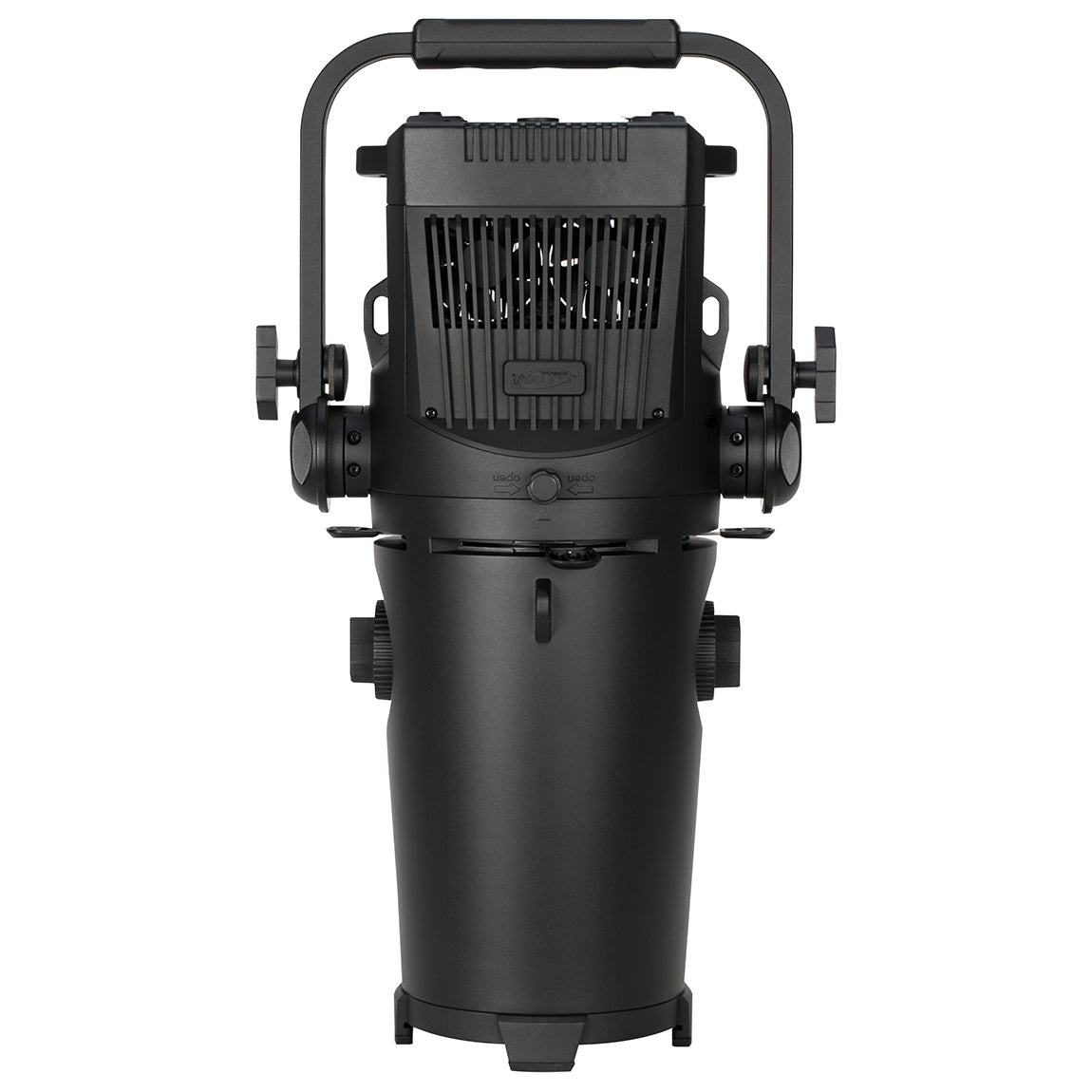

  • Elation KL PROFILE FC RGBMA LED Zooming Ellipsoidal bottom
  • Elation KL PROFILE FC RGBMA LED Zooming Ellipsoidal yellow
  • Elation KL PROFILE FC RGBMA LED Zooming Ellipsoidal pink

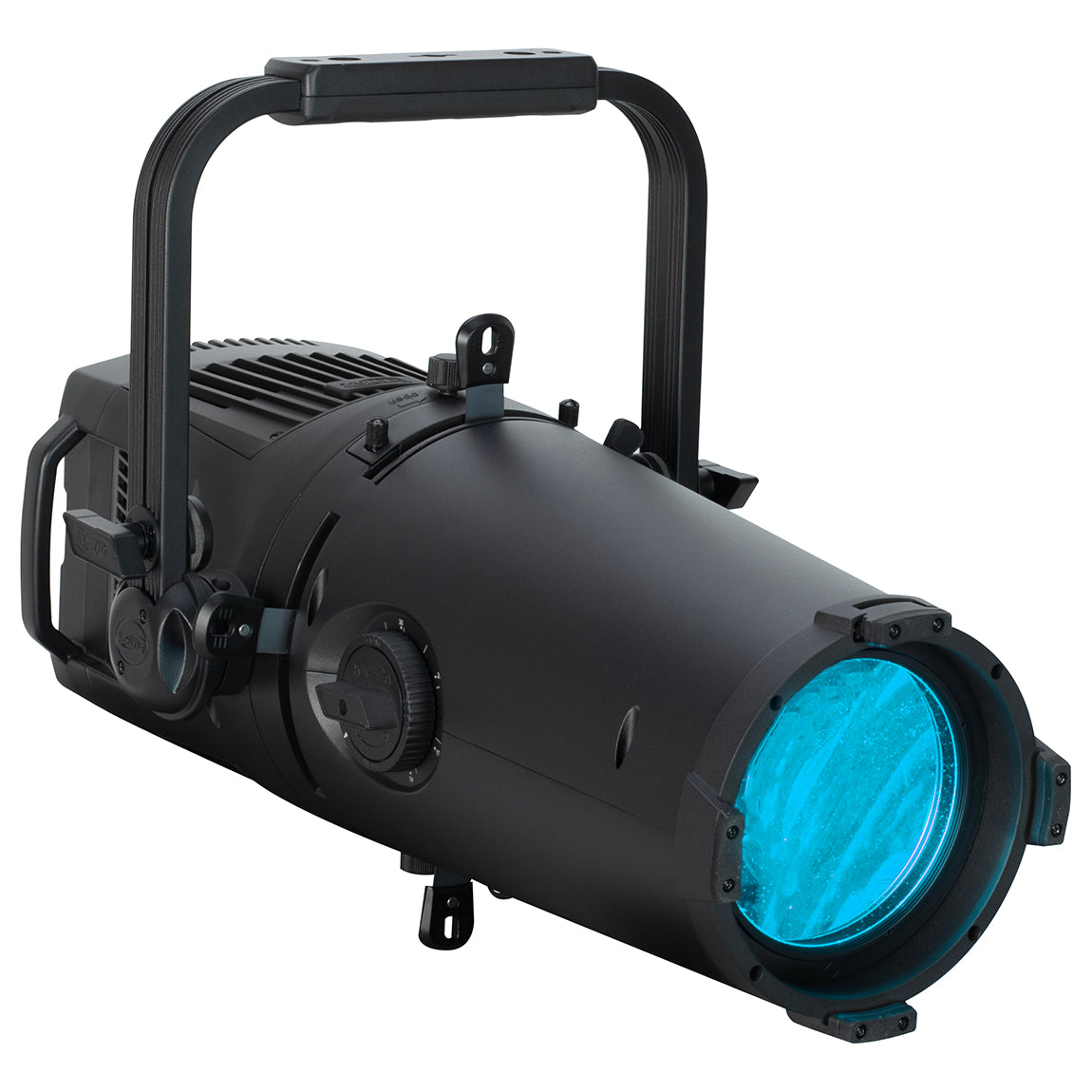

  • Elation KL PROFILE FC RGBMA LED Zooming Ellipsoidal ice blue
  • Elation KL PROFILE FC RGBMA LED Zooming Ellipsoidal orange

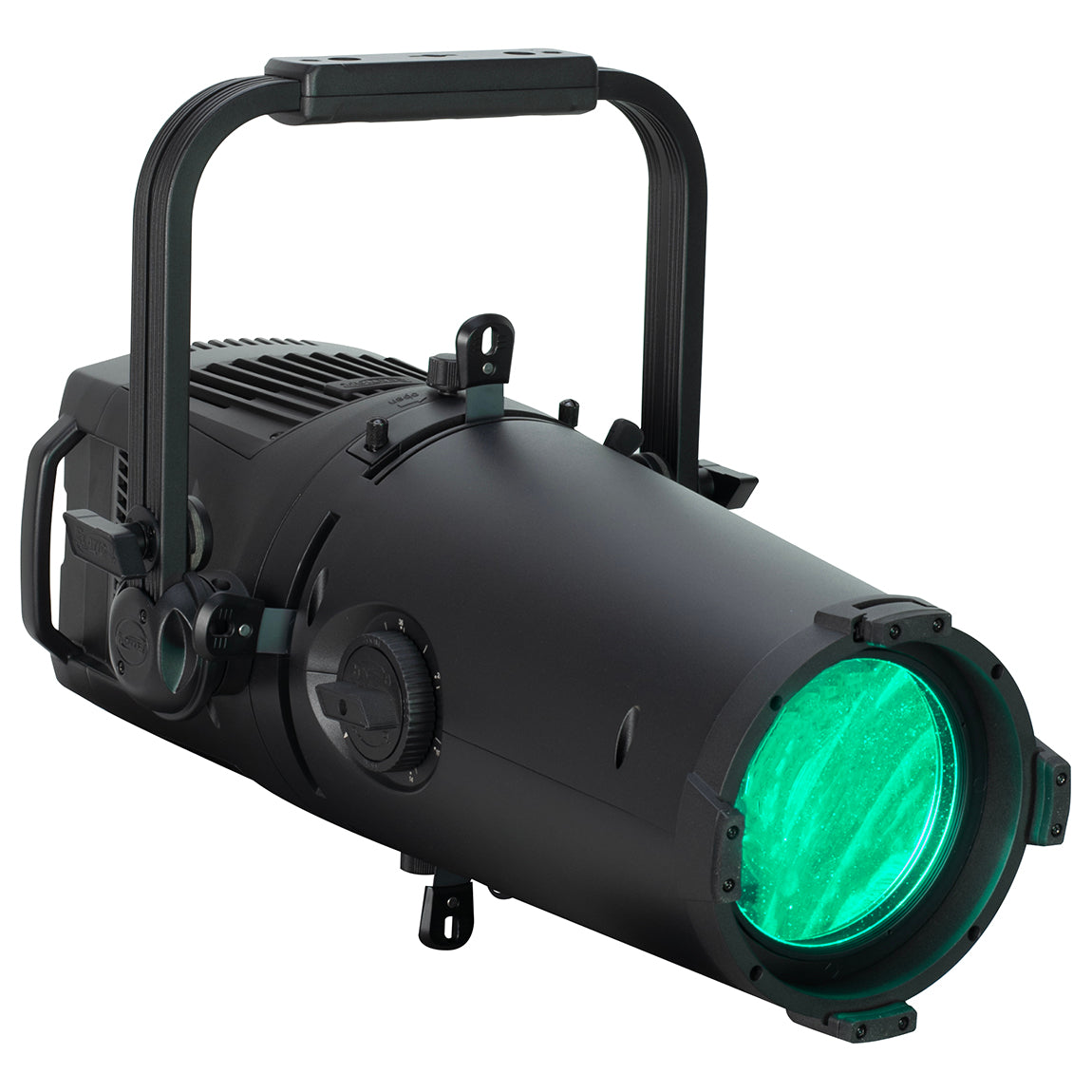

  • Elation KL PROFILE FC RGBMA LED Zooming Ellipsoidal teal

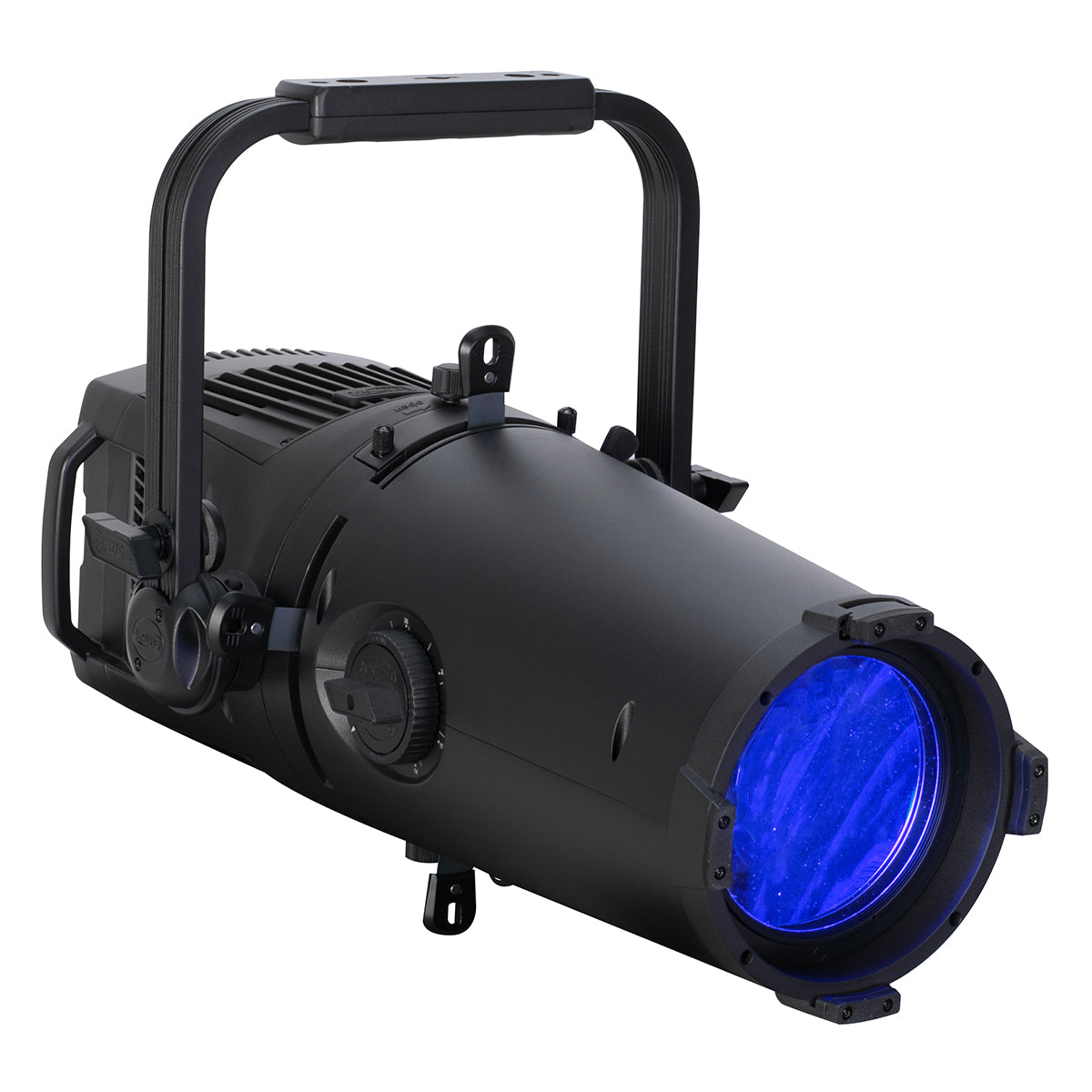

  • Elation KL PROFILE FC RGBMA LED Zooming Ellipsoidal blue

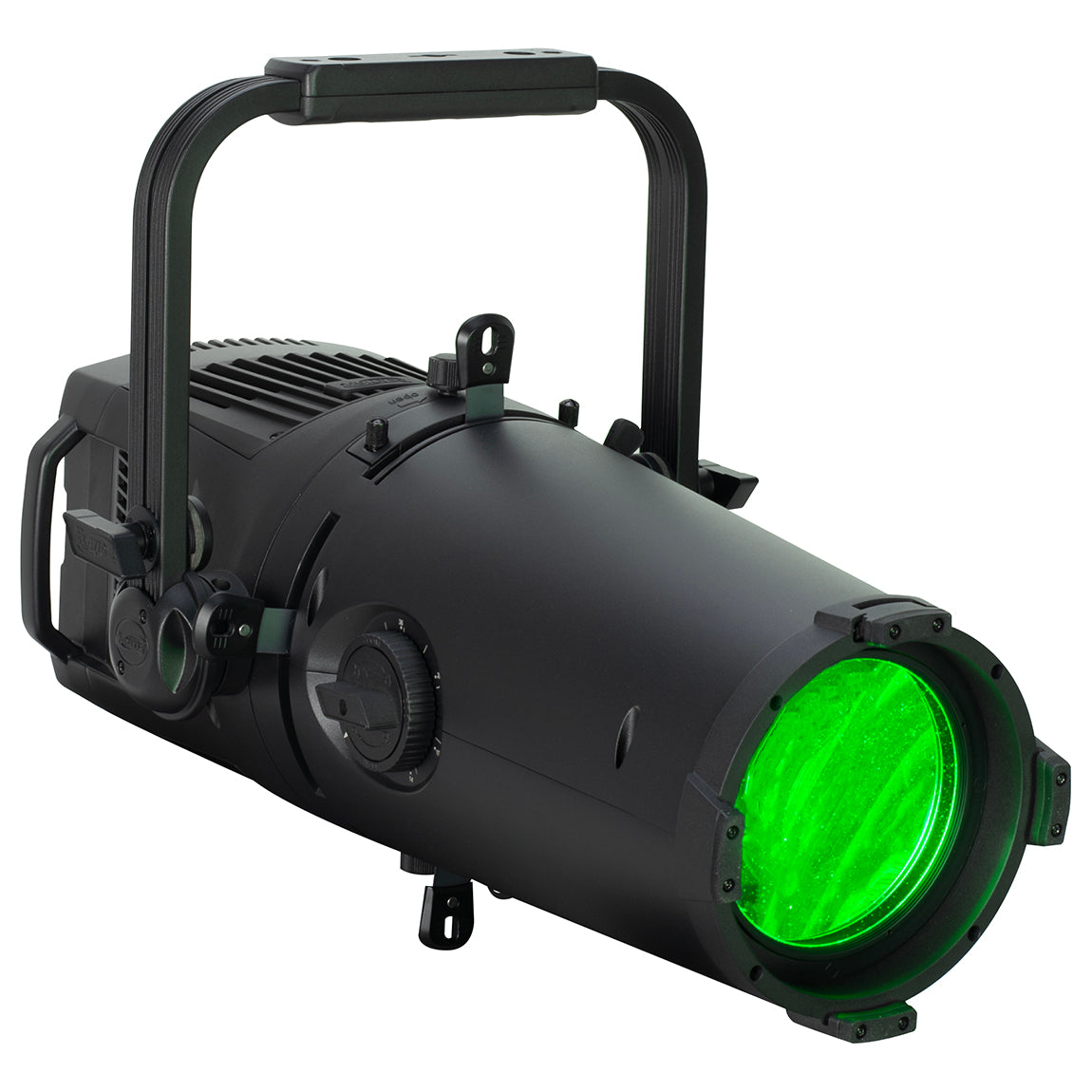

  • Elation KL PROFILE FC RGBMA LED Zooming Ellipsoidal green

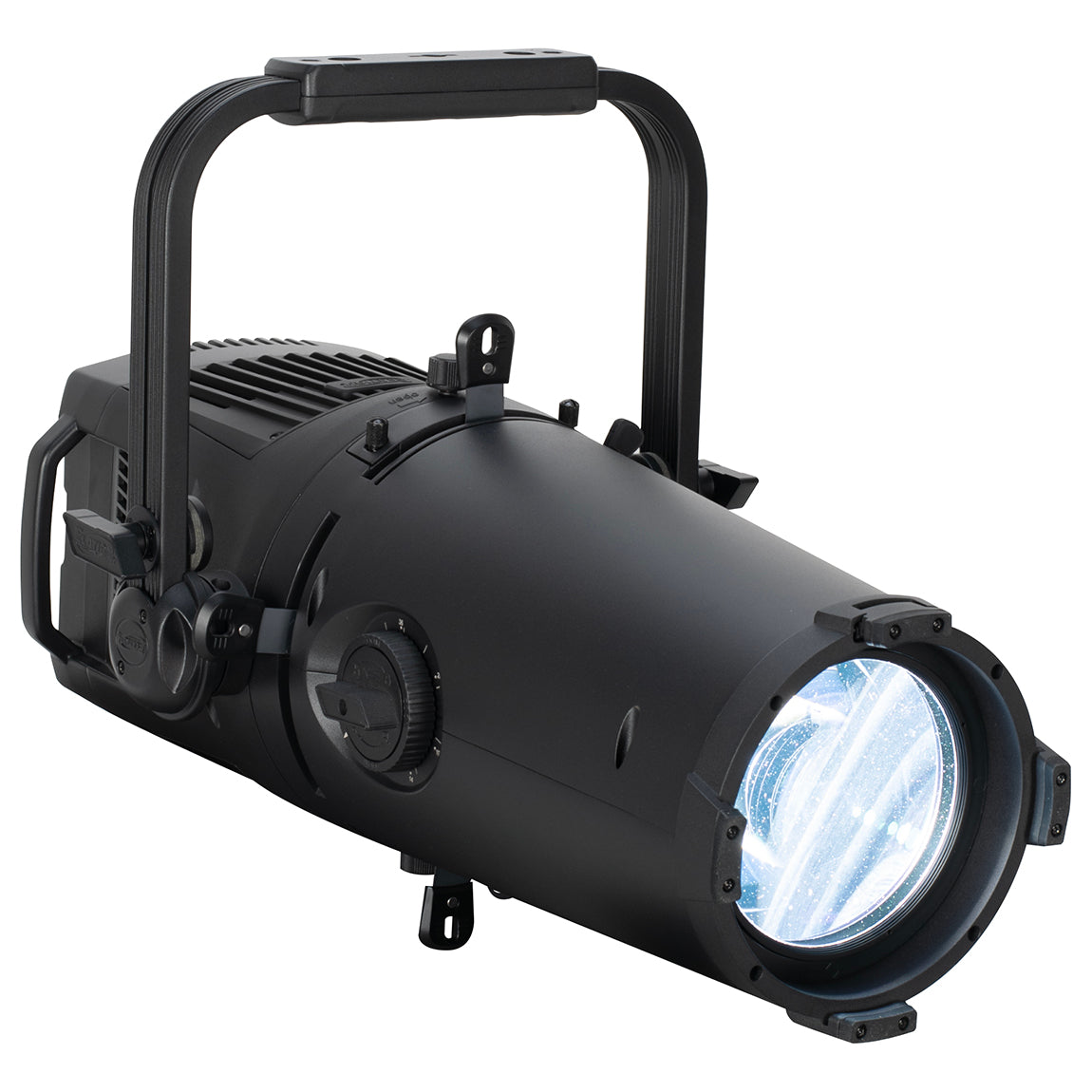

  • Elation KL PROFILE FC RGBMA LED Zooming Ellipsoidal cool white

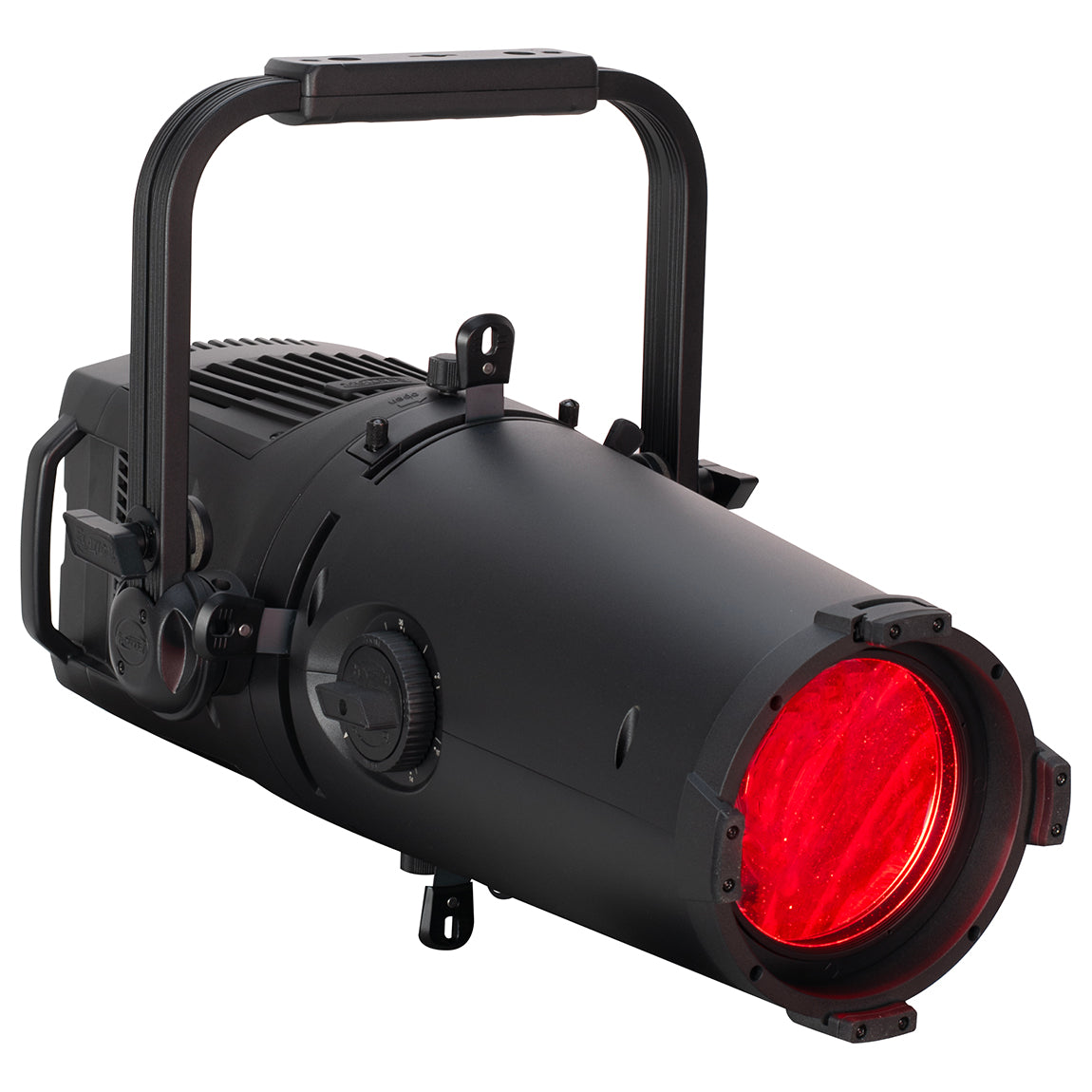

  • Elation KL PROFILE FC RGBMA LED Zooming Ellipsoidal red
1 16

Elation KL PROFILE FC RGBMA LED Zooming Ellipsoidal

Elation KL PROFILE FC RGBMA LED Zooming Ellipsoidal

SoundPro Item: 133857 | Part Number: KLP412

$3,196.00
$3,995.00 $3,196.00
Your Price Sold out
MSRP: $3,995.00 | MAP: $3,196.00

Usually ships in 5-7 business days

  • Compact Zooming Ellipsoidal
  • Extended Color RGBMA LED Engine, 93.5 CRI
  • Exceeding 10.000 lumens
  • Integrated Rotating Gobo Slot
  • Full Blackout Manual Framing System
  • Wide Zoom Range from 6° to 50°
  • 7.5” Front Accessory Holder
  • Includes 7.5" Gel Frame
  • Designer Gobo set with 10 high-resolution glass gobos
  • Optional Fresnel Wash Lens Conversion Kit
Log in or register for YOUR best price

The KL PROFILE FC™ is a manual LED framing fixture designed for a wide array of precision lighting applications. With an integrated manual zoom range of 6 to 50 degrees, the fixture requires no additional lens tubes, reducing cost, complexity and providing excellent flexibility for any theater, performance venue, or show. The integrated manual Iris allows further beam control.

The 93.5 CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources with a power of 305W. The carefully tuned LEDs ensure accurate color reproduction while delivering a powerful output of over 10,000 lumens. Virtual color temperature, Magenta / Green adjustment provides the designer with immediate access to the impressive LED color array. Exceptionally quiet, the fixture offers enhanced fan controls down to Elation’s Mute Mode which disables the internal cooling fan. For ease of use, the fixture contains a 16-bit rotating/indexing gobo slot and is shipped with the KL Profile Designer Gobo Set, containing 10 high-resolution glass gobos. The gobo slot is easily accessible from the top of the fixture. The optional Fresnel Lens Conversion Kit allows to utilize the fixture as a framing wash fixture while providing a uniform appearance and fixture spacing.

The KL PROFILE FC is designed for any application where an ellipsoidal or wash fixture with an outstanding and impactful color range and quality and a flexible zoom range is required. The fixtures enhanced optical design and lens coatings ensure precise and razor-sharp projections, removing all unwanted color shifting and aberrations in all zoom, focus, or framing positions.

View full details

Specifications

Dimensions
Length (Yoke 0°)
27.6” (701.0mm)
Width
15.4” (390mm)
Height
13.6” (345.0mm)
Height (Fixture Body)
11.0” (279.0mm)
Height (Yoke 90°)
18.4” (466.5mm)
Weight
SIZE / WEIGHT
7.5” Front Accessory Slot
Electrical
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz, 358W Max Power Consumption, 14°F to 113°F (-10°C to 45°C), BTU/hr (+/- 10%) 1124.1
Optics
GOBOS
1x 16bit Rotating / Indexing Interchangeable Glass Gobo
Construction
COLOR
RGBMA Color Array, CMY and RGB Emulation Modes, Variable CCT 2400K - 8500K, Green/Magenta Shift, Virtual Gel Swatch Book
Shipping
Weight
35.2lbs (15.9kg)
Identifiers
Length
25.1” (637.6mm)
General
SOURCE
305W 6,500K RGBMA LED Engine, 30,000 Hour Average LED Life*, *Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.
PHOTOMETRIC DATA
10,600 Total Lumen Output, CRI 93.5, Zoom Range 6° - 50°, Beam Angle 5.9° - 45.6°, Field Angle 6.6° - 50°
EFFECTS
Manual Locking Zoom, Focus, 4 Manual Rotating Full Blackout Framing Blades, Manual Barrel Rotation, Integrated Manual Iris, Variable 16-bit Dimming Curves
CONTROL / CONNECTIONS
8 DMX Channel Modes (1/5/12/21) CMY(10/17) RGB(10/17), DMX Adjustable LED Frequency, DMX, RDM Protocol Support, 4 Button Touch Control Panel, Encoder Control for Standalone Operation, Full Color 180° Reversible LCD Menu Display, 5pin DMX In/Out, IP65 Locking Power In/Out, Elation’s E-FLY™ Internal Wireless DMX Transceiver
APPROVALS / RATINGS
CE | cETLus | IP20
