Elation KLB112 KL Series RGBMA IP65 Static Batten Wash Fixture
Elation KLB112 KL Series RGBMA IP65 Static Batten Wash Fixture
SoundPro Item: 208952 | Part Number: KLB112
Usually ships in 5-7 business days
- RGBMA LED Engine With CRI 94.9 And TLCI 95 For Broadcast-Accurate Color

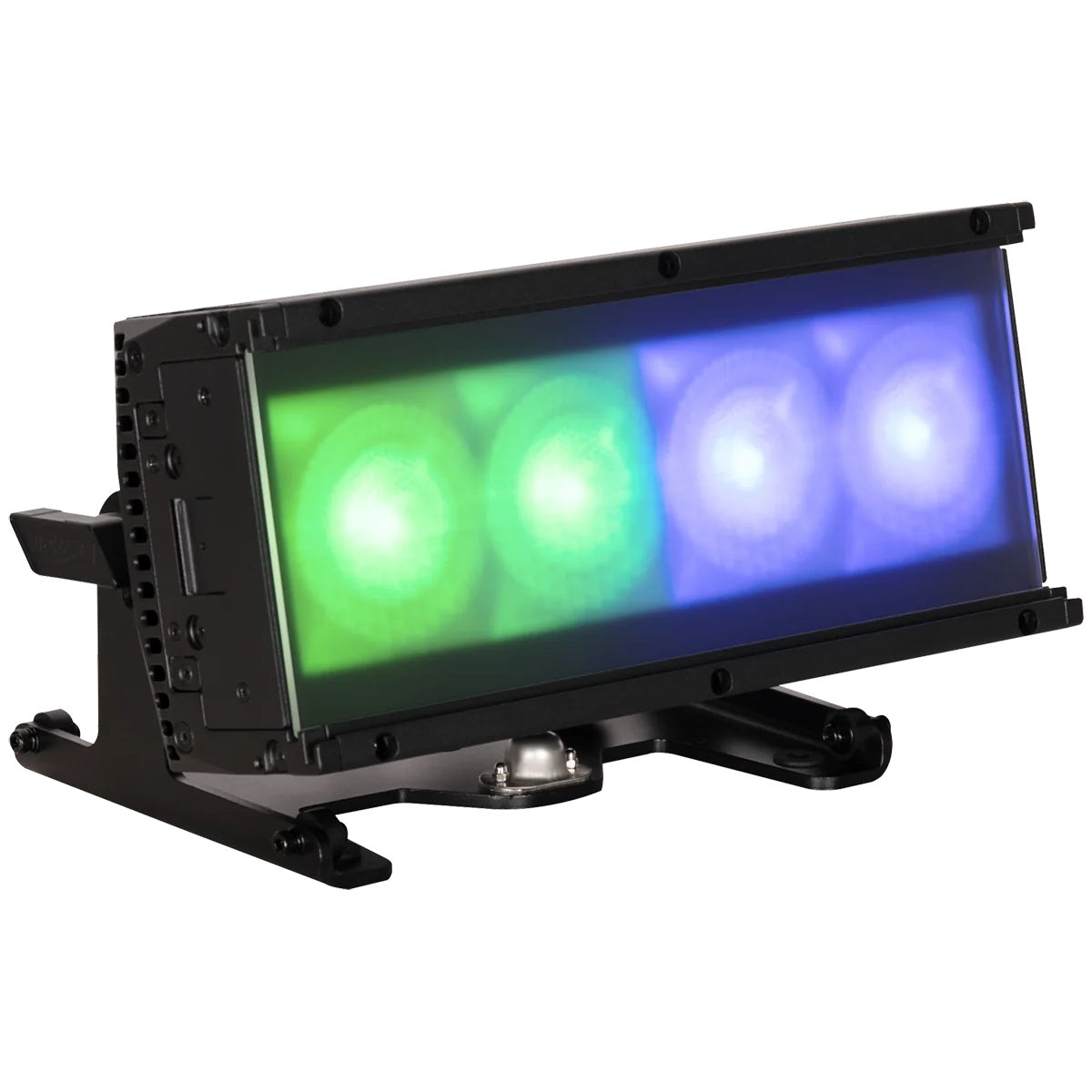

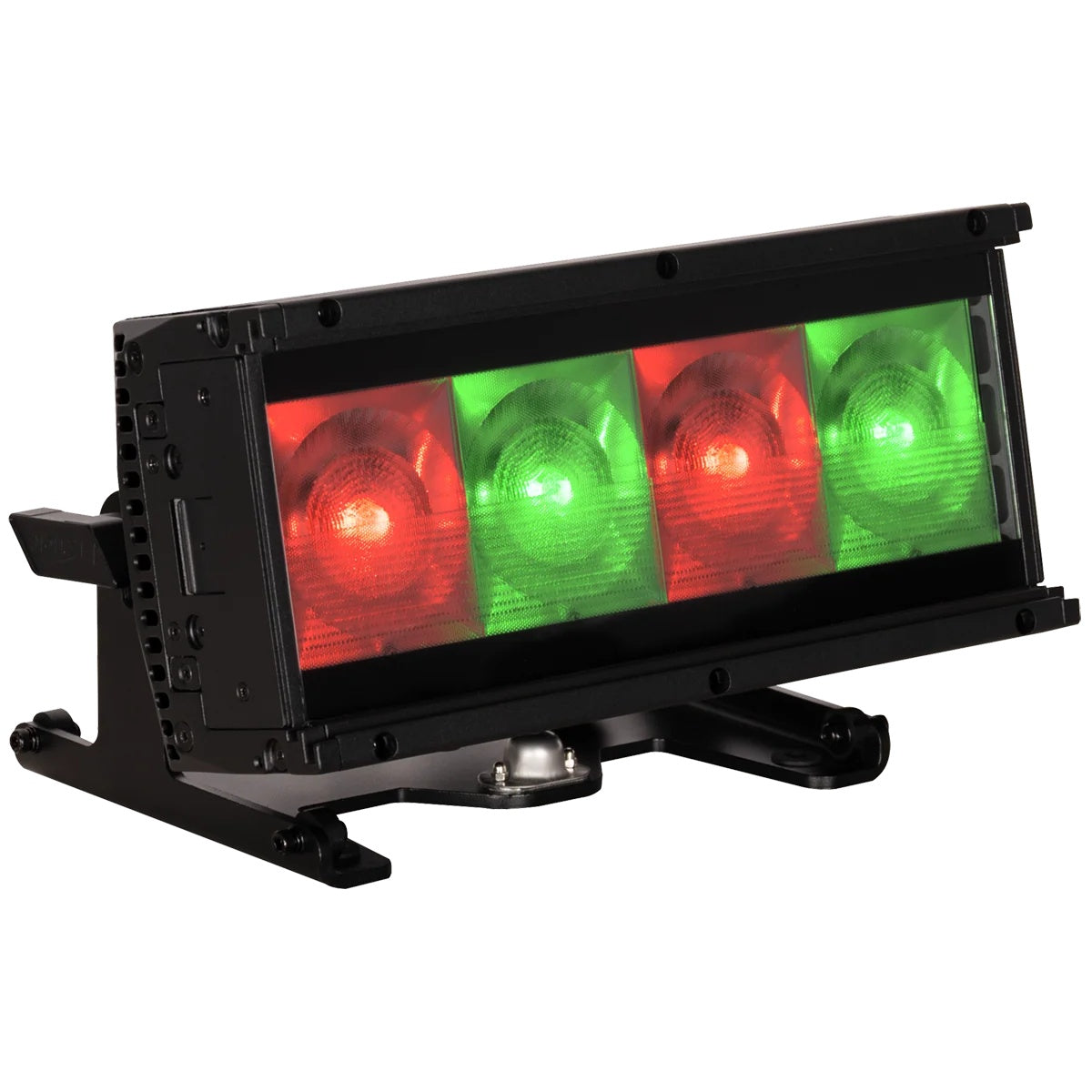

- Full Pixel Control Enables Precise Pixel Mapping Across The Fixture
- 16-Bit Variable CCT From 2400K To 8500K With Green/Magenta Shift
- Dim-To-Warm Fade And Virtual Gel Swatch Book For Theatrical Flexibility
- IP65-Rated Connectors Support Outdoor And Wash-Down Environments
- Art-Net, sACN, RDM, Aria x2 Wireless, And NFC For Modern Control Integration
- Power-Thru Design Reduces Infrastructure In Multi-Fixture Installations

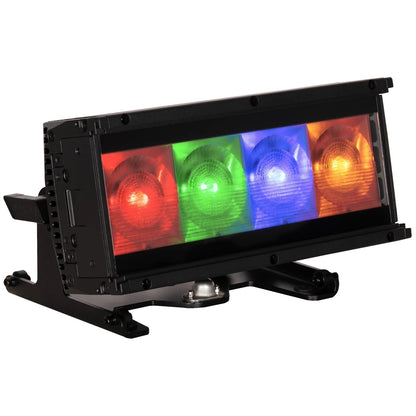

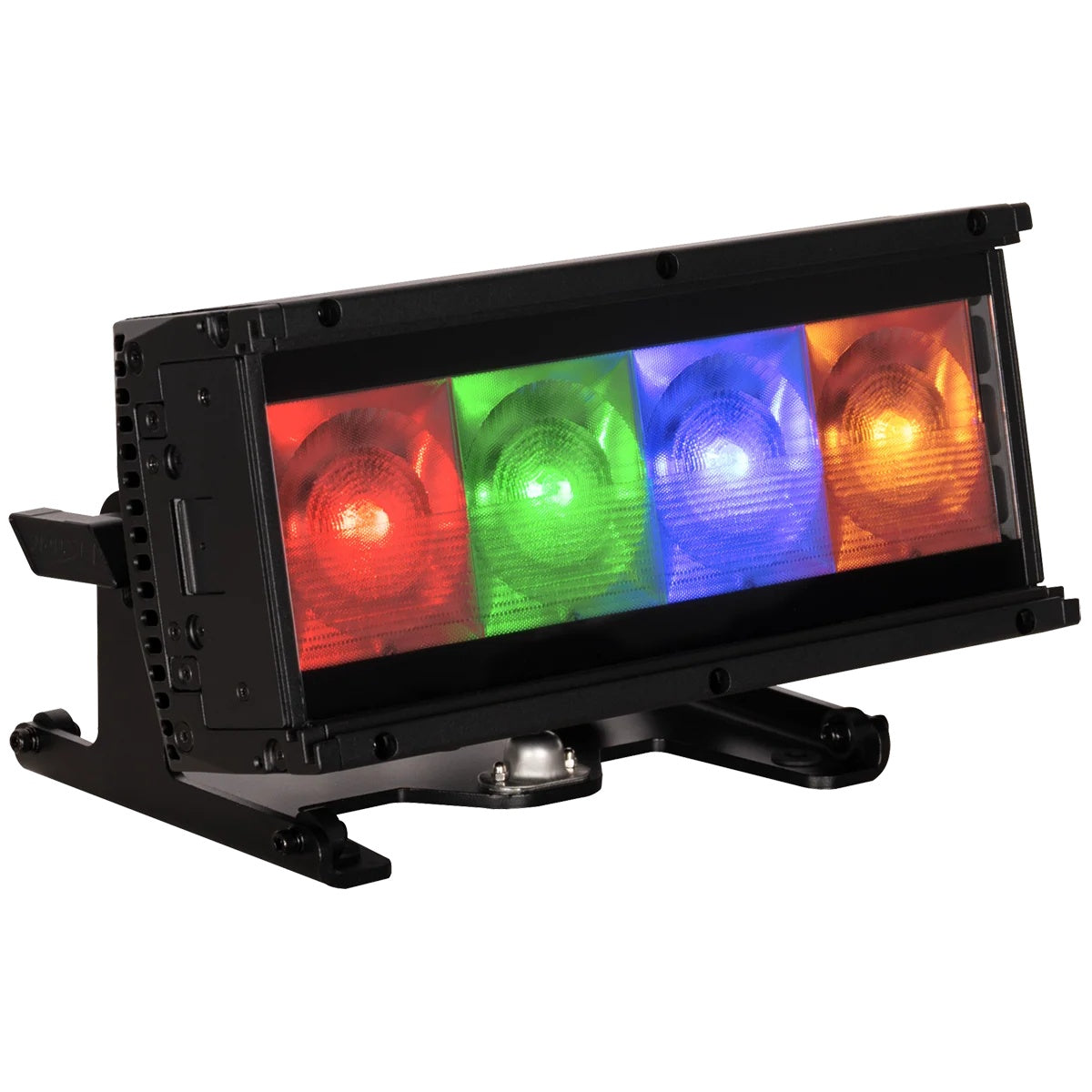

The Elation KLB112 KL Batten 12 is engineered for lighting designers and production teams who require precise, broadcast-quality color from a compact linear fixture. Four 100W RGBMA LEDs deliver 10,300 lumens of homogeneous output across a smooth, even field, with a CRI of 94.9 and TLCI of 95 making it equally suited for live camera environments and direct audience viewing. The 16-bit fully variable CCT range from 2400K to 8500K, combined with green/magenta shift and dim-to-warm fade, gives designers the color control depth expected from premium theatrical and broadcast fixtures without relying on external gels.
The KLB112 is built for permanent installation and touring alike. IP65 protection on all connectors, including the 5-pin XLR DMX ports, RJ45 Ethernet ports, and locking power connectors, means the fixture operates reliably in outdoor festivals, architectural facades, and wash-down-risk environments. Power-thru capacity supports up to 14 units at 240V, reducing infrastructure runs in large-scale installs. The fixture integrates with modern network workflows through Art-Net and sACN Ethernet control, RDM device management, Aria x2 wireless management, and NFC configuration, covering both traditional DMX rigs and IP-based control systems.

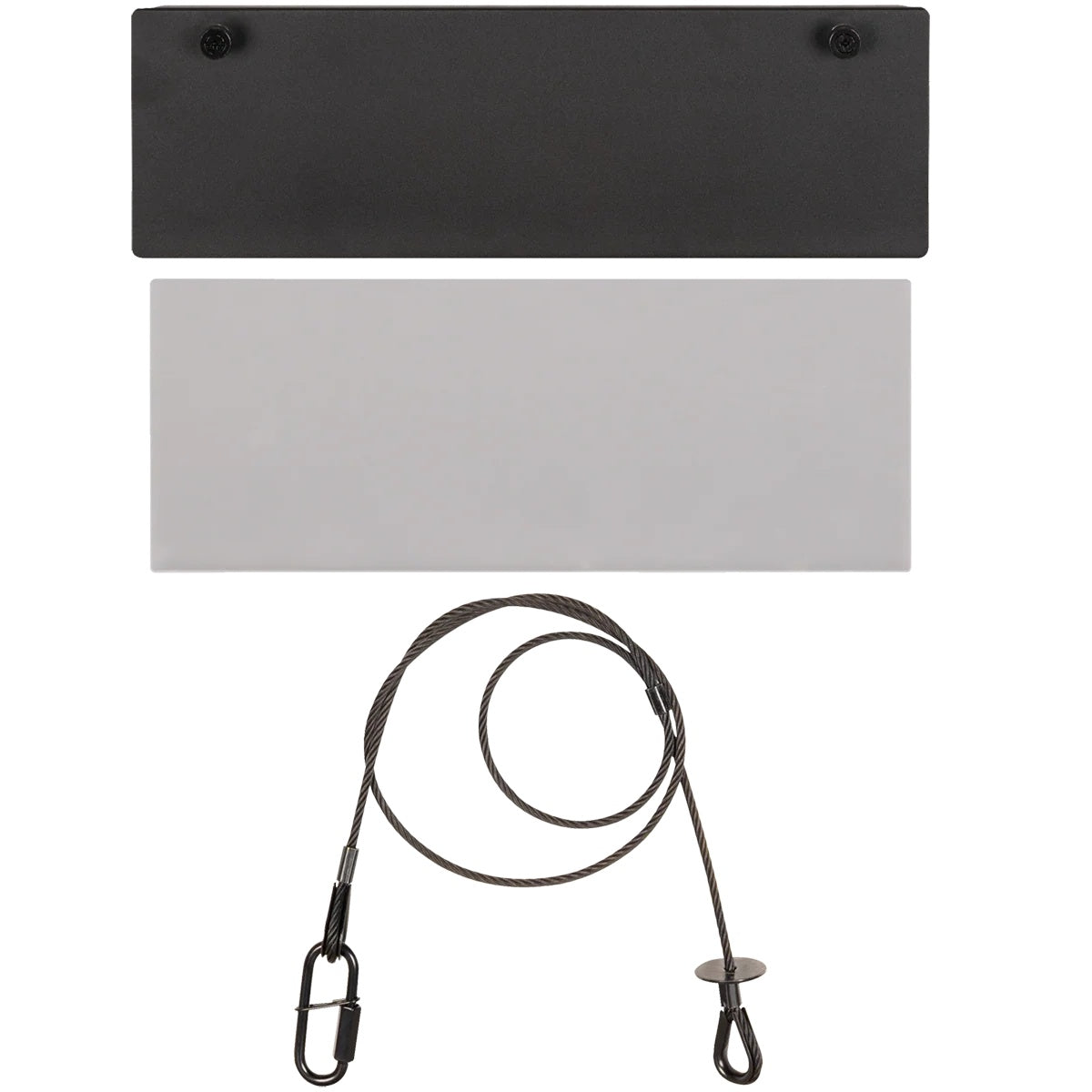

With 22 DMX channel modes ranging from single-channel to 61-channel, the KLB112 scales from simple color-wash rigs to full pixel-mapped installations requiring per-pixel precision. The included glare shield, border light filter, safety cable, and IP65 locking power cable mean the fixture ships ready for most rigging scenarios, with optional omega and L-track mounting accessories available for specialized grid and track systems.
Specifications
