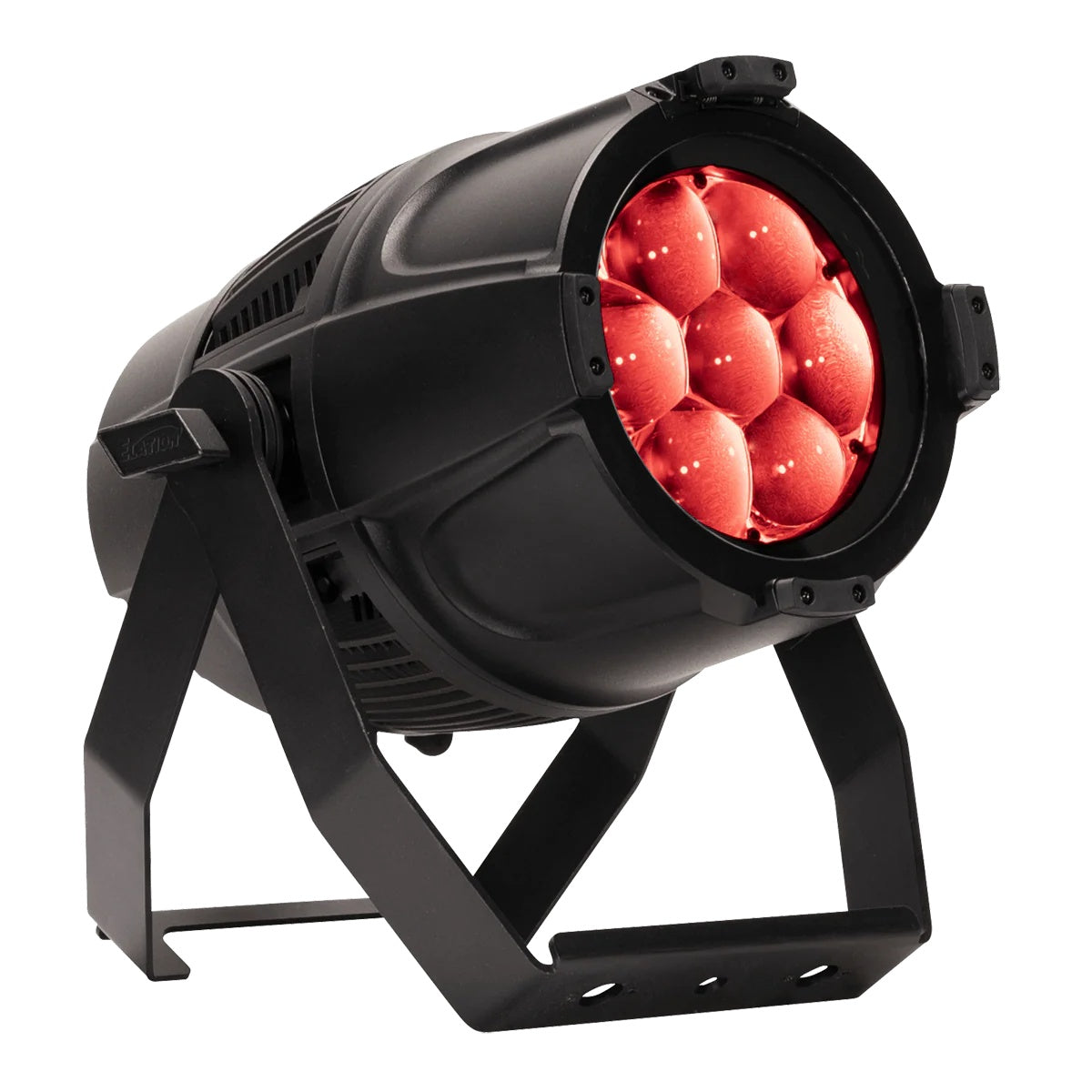

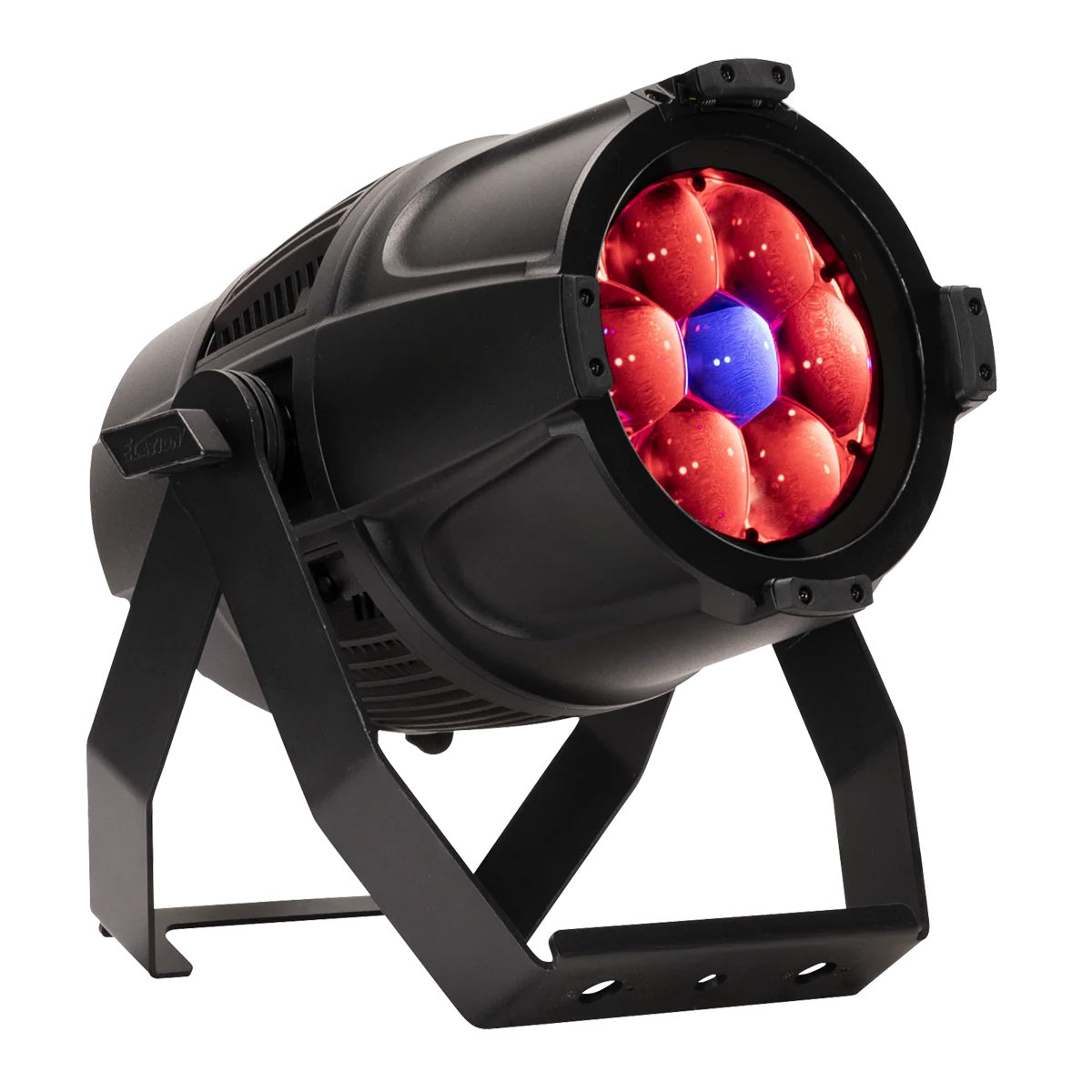

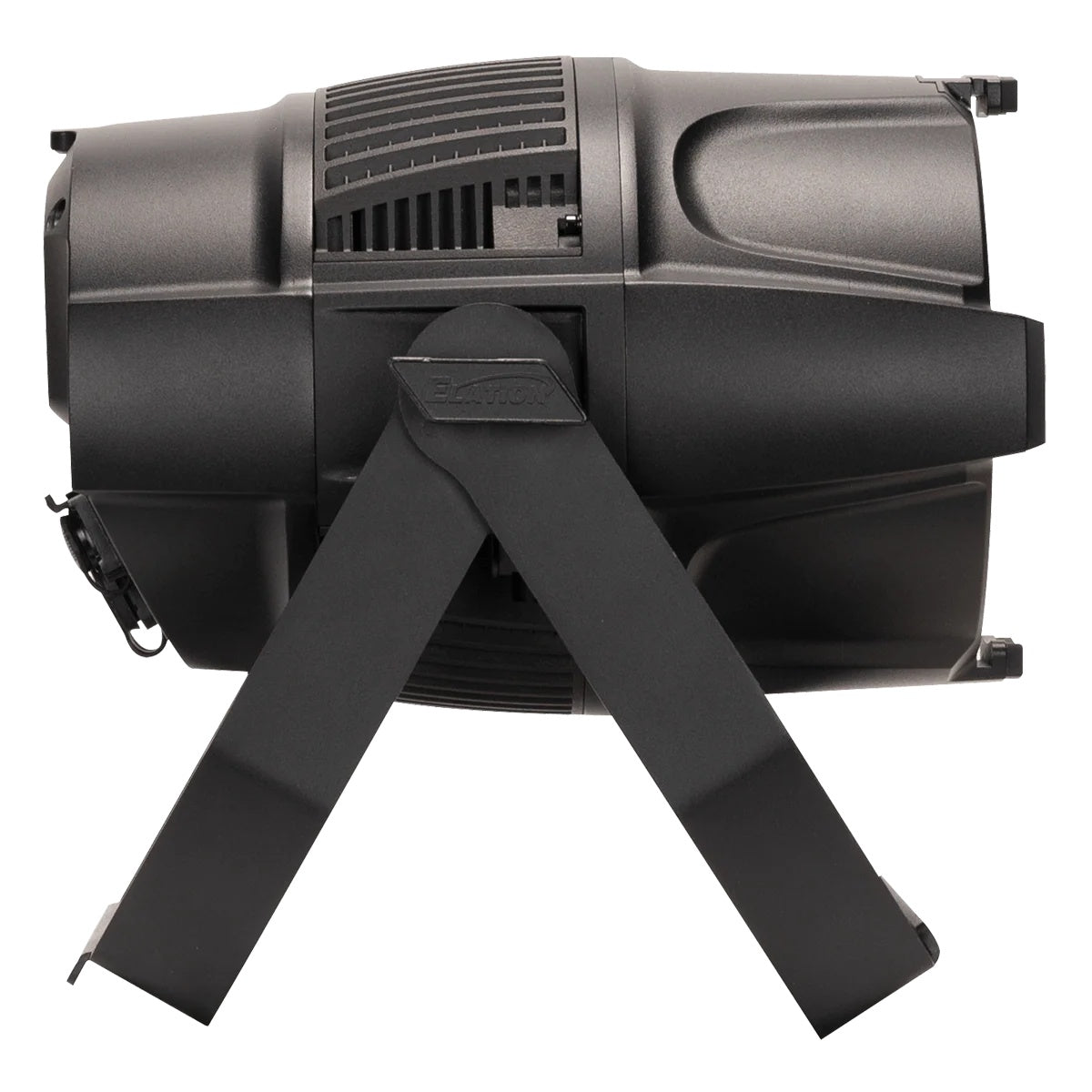

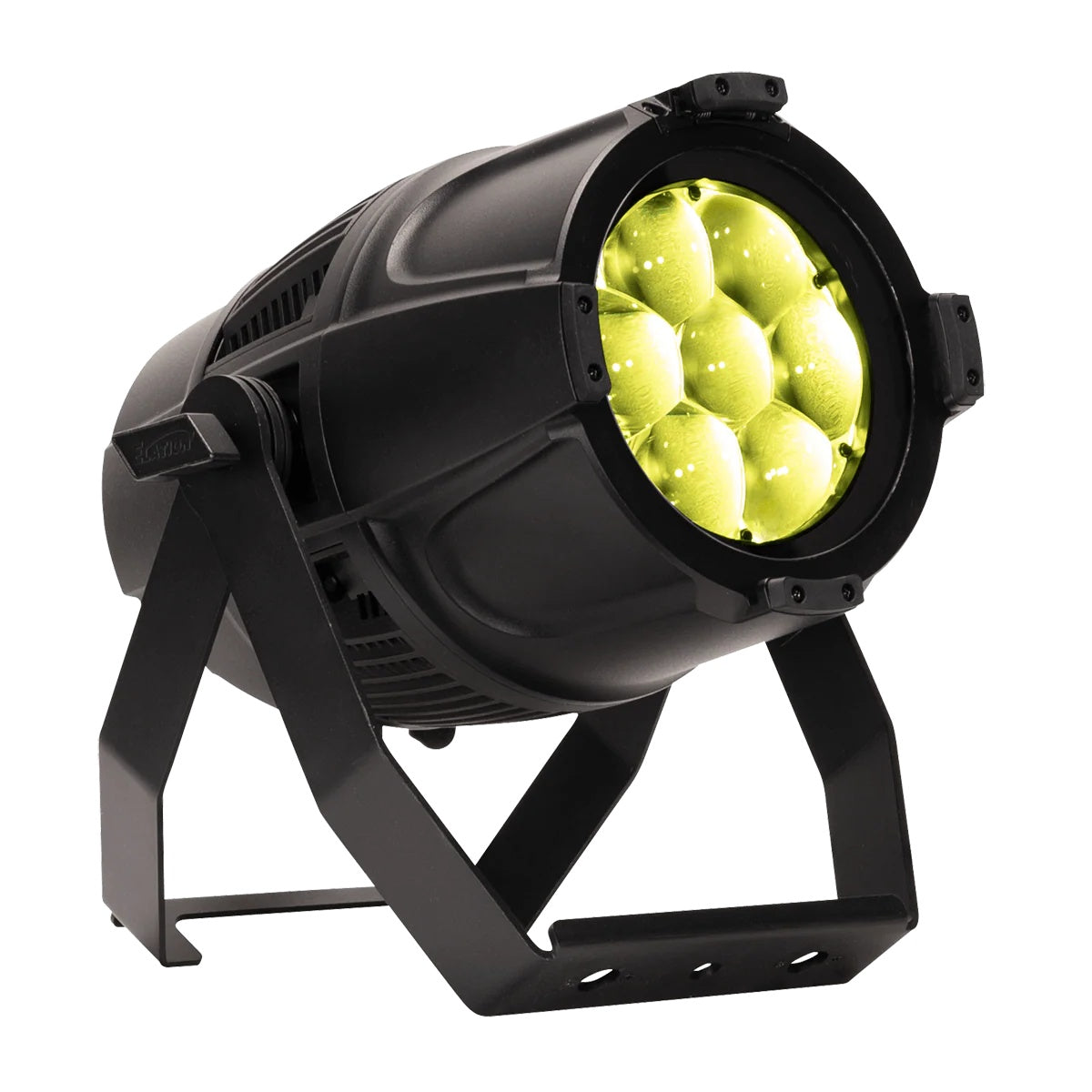

Elation LLP301 LIMELIGHT PAR S 7 x 60W RGBL LED PAR with Zoom

Elation LLP301 LIMELIGHT PAR S 7 x 60W RGBL LED PAR with Zoom

SoundPro Item: 142028 | Part Number: LLP301

$1,449.00
$1,707.00 $1,449.00
Your Price Sold out
MSRP: $1,707.00 | MAP: $1,449.00

Usually ships in 5-7 business days

  • Motorized 5° to 42° Zoom Enables Tight Spots and Smooth Washes
  • Flicker-Free LED Refresh Rate for Television and Film Capture
  • Dual-Zone LED Control Allows Independent Beam Shaping Within Fixture
  • Variable 2400K to 8500K Color Temperature and CMY Emulation
  • IP65 Rated Construction for Touring, Install, and Outdoor Use
  • 7 DMX Channel Modes with RDM Support for Flexible Integration
Log in or register for YOUR best price

The Elation LIMELIGHT PAR S is purpose-built for touring productions, installed venues, and broadcast environments where compact footprint, vivid color fidelity, and reliable performance matter. Seven 60W RGBL LEDs deliver 5,345 lumens with 82.8 CRI and 74 TLCI—meeting strict television and cinema color standards. Motorized zoom from 5° to 42° enables seamless transitions from tight accent spots to broad washes, while dual-zone control lets operators shape light across two independent regions within the same fixture.

CMY emulation and variable correlated color temperature from 2400K to 8500K provide gel-matched presets and smooth color transitions without the complexity of traditional color changers. Flicker-free operation at variable refresh rates ensures clean capture on HD and UHD cameras. Rugged IP65 sealing, 30,000-hour LED life, and compact dimensions make it ideal for both portable rigs and permanent installations. Multiple DMX modes (4ch through 25ch) and RDM support integrate seamlessly into existing control systems.

View full details

Specifications

Source
LED Array|(7) 60W RGBL
Average LED Life|30,000 hours
Photometric Data
Total Lumen Output (Integrating Sphere)|5,345
Total Lumen Output (Goniometer)|4,844
Color Rendering Index (CRI)|82.8
Television Lighting Consistency Index (TLCI)|74
Zoom Range|5° - 42°
Beam Angle|5° - 42°
Field Angle|8° - 60°
Effects and Control
Dual Zone LED Control|Yes
Electronic Dimmer and Strobe|Yes
Dimming Modes|16-bit Variable
DMX Channel Modes|4ch, 12ch, 13ch, 15ch, 17ch, 25ch
Control Panel|4 Button with LED Display
Wireless Device Management|Aria x2
Remote Device Management|RDM Supported
Color
Color Array|RGBL
CMY Emulation|Yes
Correlated Color Temperature Range|2400K - 8500K
Virtual Gel Swatch Book|Yes

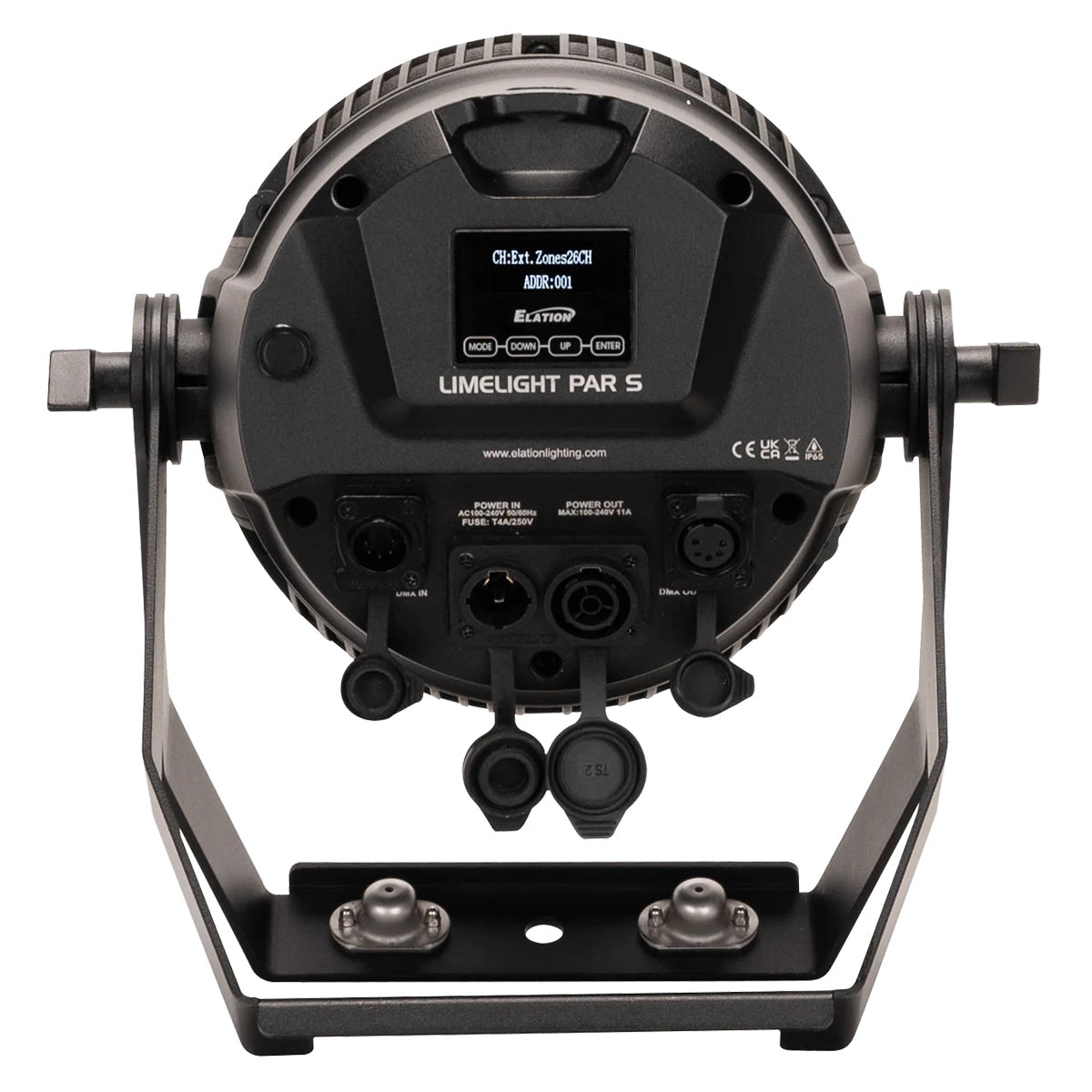

Connectivity
DMX Connector|5-pin DMX
Power Connector|IP65 Locking Power Cable
Power Through Capacity|11A (3 units @ 110V; 7 units @ 240V)
Dimensions
Length|12.5"
Width|8.8"
Height|16.7"
Weight
Product Weight|20.1 lbs
Electrical
Input Voltage|AC 100-240V, 50-60Hz
Max Power Consumption|332W
Operating Temperature Range|5°F to 113°F
Heat Output|1132.8 BTU/hr (+/- 10%)
Certifications
IP Rating|IP65
Approvals|CE, cETLus, FCC, UKCA
Included Items
IP65 Locking Power Cable|Yes
Safety Cable|Yes
Identifiers
UPC|810008264546
