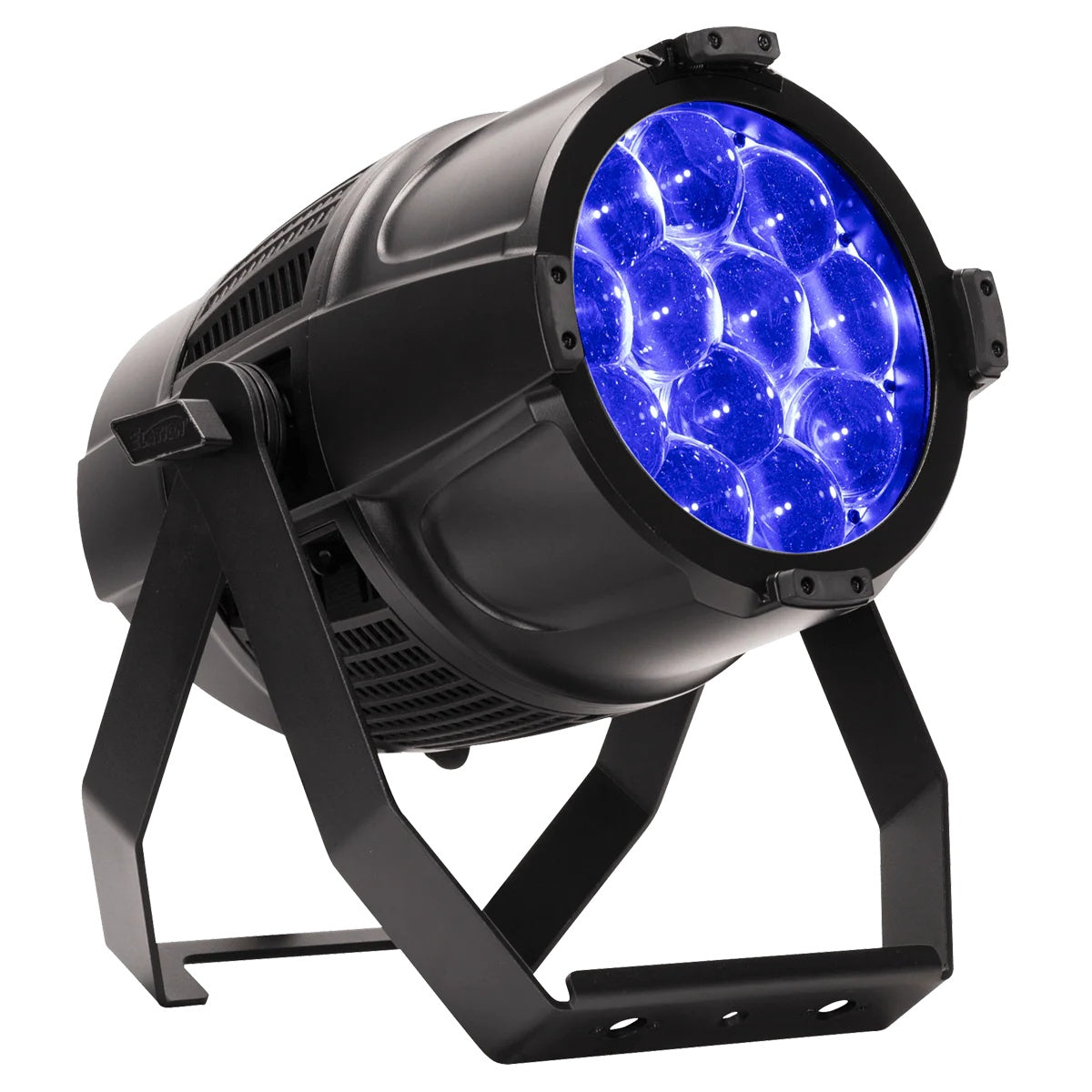

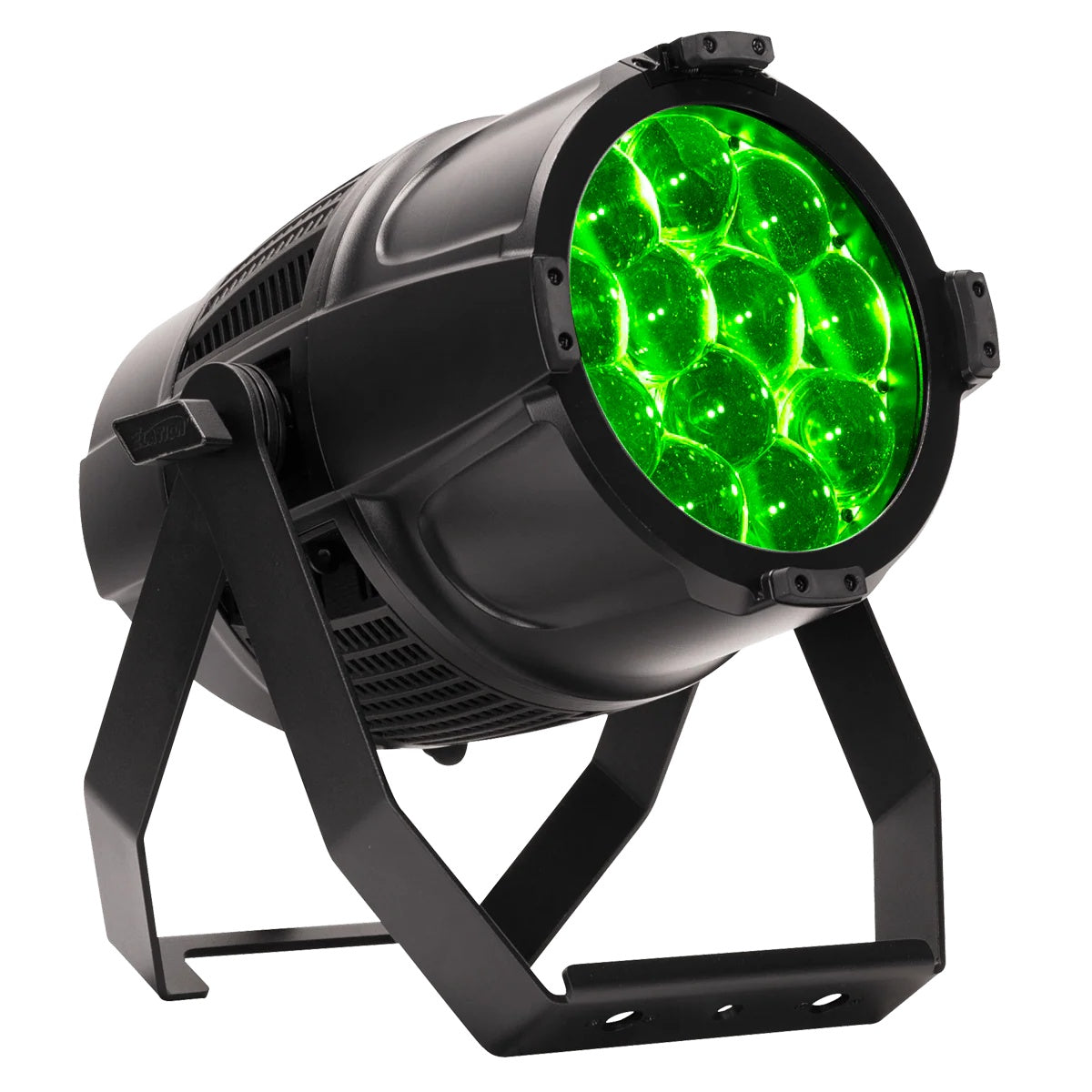

Elation LLP312 LIMELIGHT PAR L 12x 60W RGBL LED PAR with Zoom

Elation LLP312 LIMELIGHT PAR L 12x 60W RGBL LED PAR with Zoom

SoundPro Item: 142029 | Part Number: LLP312

$1,799.00
$2,119.00 $1,799.00
Your Price Sold out
MSRP: $2,119.00 | MAP: $1,799.00

Usually ships in 5-7 business days

  • 12x 60W RGBL LED Array Produces 8,213 Lumens For Brilliant Output
  • Motorized 5°–40° Zoom Enables Rapid Beam-To-Wash Transitions
  • Flicker-Free Operation With IP65 Protection For TV, Film, And Touring
  • Dual-Zone LED Control And 16-Bit Dimming For Creative Flexibility
  • CMY Color Emulation And Virtual Gel Library Reduce Physical Accessories
  • RDM And Aria x2 Wireless Management For Seamless Network Integration
  • 7 DMX Channel Modes Adapt To Any Console Architecture
Log in or register for YOUR best price

The Elation LLP312 LIMELIGHT PAR L is a professional-grade static wash fixture engineered for touring, theater, broadcast, and live event production. Featuring 12 x 60W RGBL LEDs, it produces 8,213 lumens of true-to-life color with a CRI of 83.4, meeting the demands of TV and film work where color accuracy and flicker-free operation are non-negotiable. The motorized zoom range from 5° to 40° enables rapid transitions from tight spotting to wide-coverage washes without fixture replacement or repositioning.

Dual-zone LED control grants designers granular creative freedom across the fixture's output, while variable 16-bit dimming modes, CMY color emulation, and a virtual gel swatch library eliminate the need for physical gel frames in many scenarios. IP65 construction ensures reliable operation in demanding touring and outdoor environments. Built-in RDM and wireless device management via Aria x2 streamline rig integration and real-time monitoring, while multiple DMX channel modes (4, 12, 13, 15, 17, or 25 channels) fit any console architecture.

At 21.8 lbs with efficient thermal management and 570W maximum power draw, the LLP312 balances high output with practical load-in and rigging logistics for mid-to-large touring and installed systems.

View full details

Specifications

Certifications
IP Rating
IP65
Approvals
CE, cETLus, FCC, UKCA
Photometric
Total Lumen Output (Integrating Sphere)
8,213
Total Lumen Output (Goniometer)
7,922
CRI
83.4
TLCI
67
Zoom Range
5°–40°
Beam Angle
5°–40°
Field Angle
8.5°–56.5°
Light Source
LED Count
12 x 60W RGBL
Average LED Life
30,000 hours
Color Control
Color Array
RGBL
Color Temperature Range
2400K–8500K
Effects
Dimming Bit Depth
16-Bit
Strobe
Electronic
Zone Control
Dual Zone

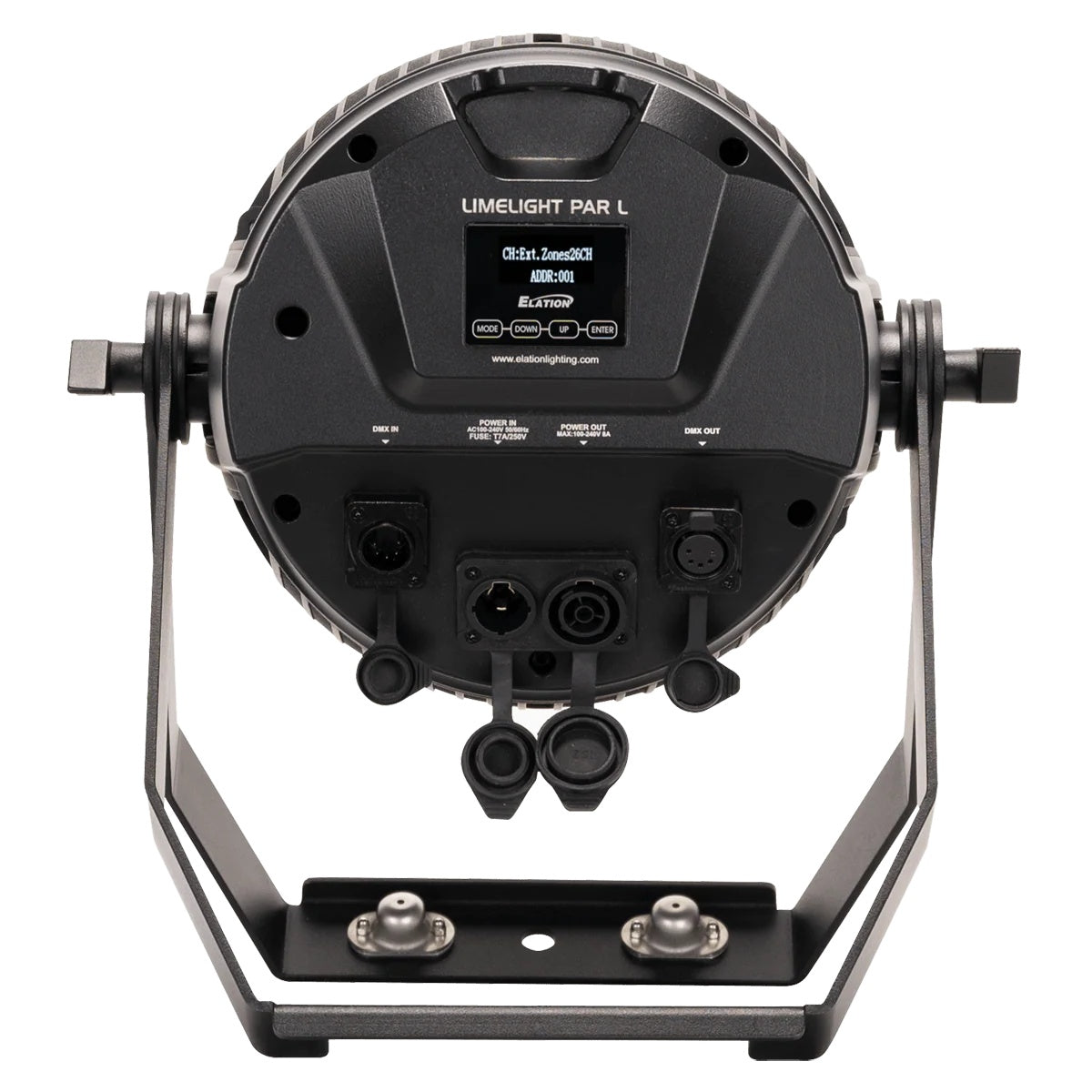

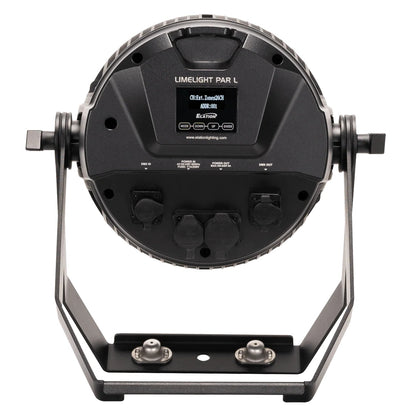

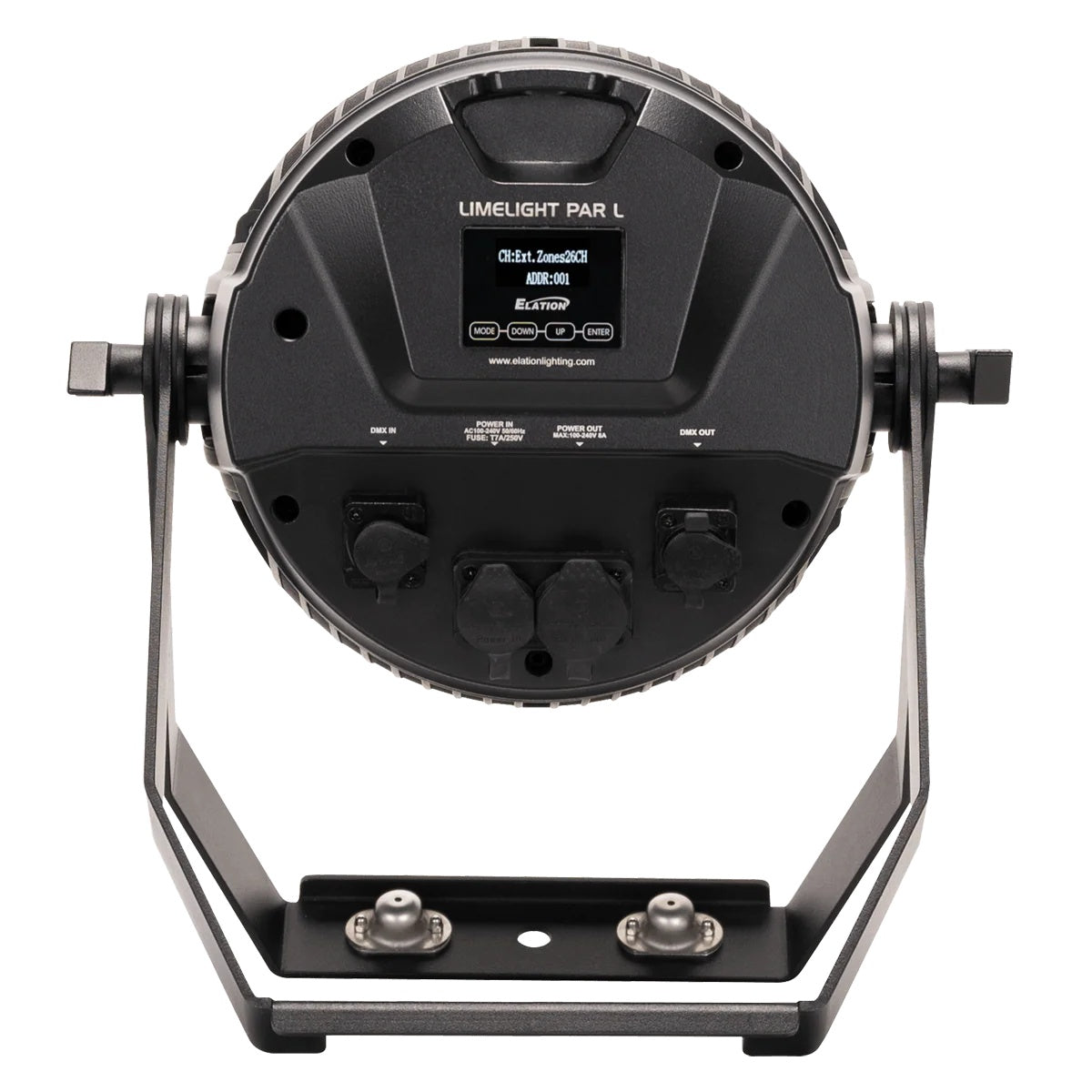

Connectivity
DMX Channel Modes
4, 12, 13, 15, 17, 25
Control Input
5-Pin DMX
Wireless Management
Aria x2
Remote Device Management
RDM
Power Input/Output
IP65 Locking Power Cable In/Out
Dimensions
Length
13.4"
Width
9.8"
Height
17.8"
Weight
Product Weight
21.8 lbs
Electrical
Voltage
AC 100–240V, 50/60 Hz
Maximum Power Consumption
570W
Power Through Capacity
8A (1 unit @ 110V; 3 units @ 240V)
Operating Temperature Range
5°F–113°F
Thermal Output
1,943.7 BTU/hr
Included Items
IP65 Locking Power Cable
Yes
Safety Cable
Yes
