Elation NBS110 10-Button Backlit Remote Wall Station
Elation NBS110 10-Button Backlit Remote Wall Station
SoundPro Item: 144272 | Part Number: NBS110
Usually ships in 5-7 business days

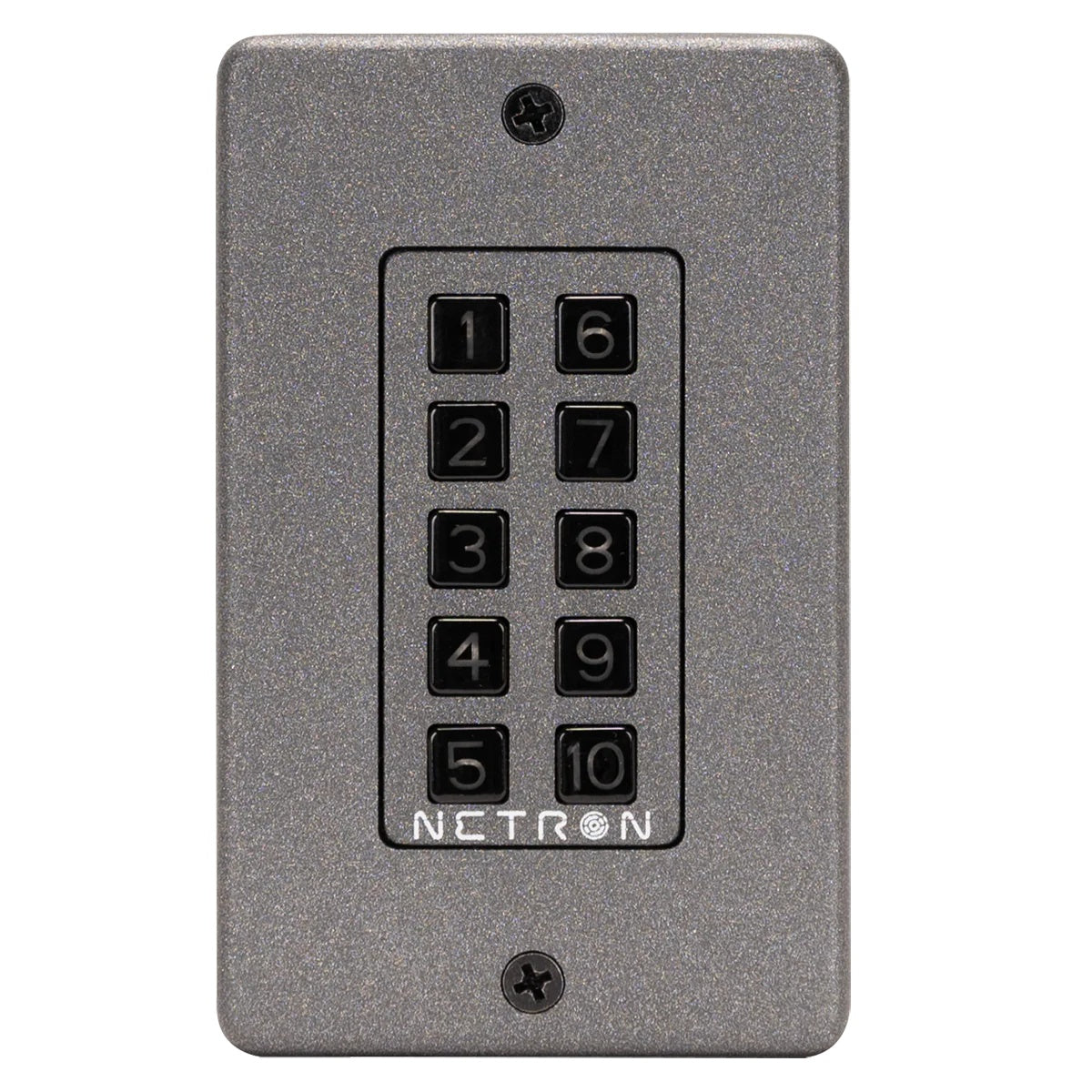

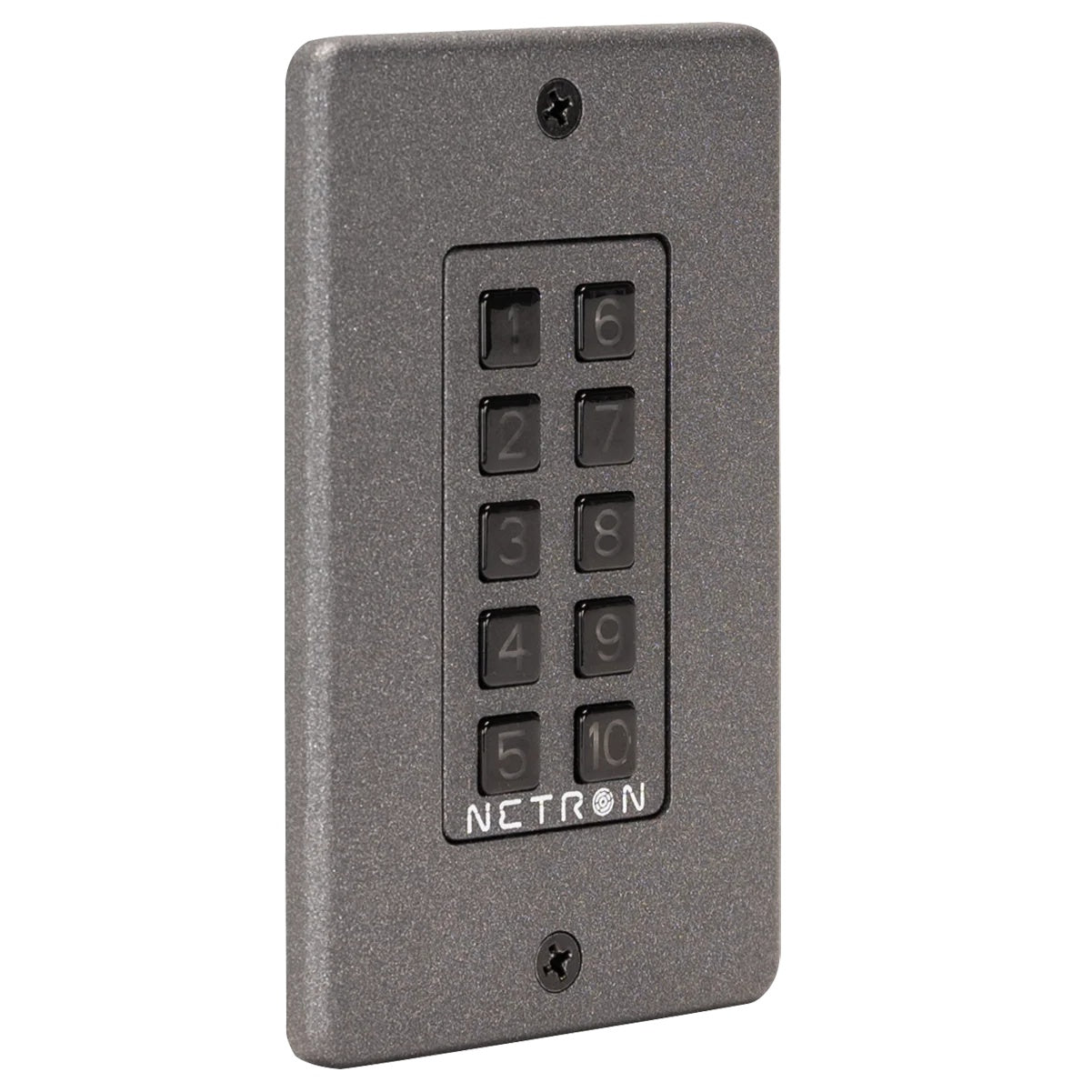

- 10 Red and Blue Backlit Buttons Enable Precise Cue Selection In Any Lighting Condition
- Integrated RJ45 Connection Combines Power and Data On One Standard CAT5e Cable
- Compact Decora Wall Plate Design Integrates Into Standard Building Infrastructure
- Up To 300 Feet Of Cable Run Distance Supports Remote Recall From Distant Locations
- Direct EN12i Node Compatibility Eliminates External Hardware Or Interface Modules
The Elation NBS110 is a purpose-built wall-mounted control interface for lighting technicians and installers managing the NETRON EN12i EtherDMX node. Instead of running back to a central console, users can mount this station at the stage, rehearsal space, or any remote location on the network and recall cues or presets on demand. The 10 red and blue backlit buttons provide clear visual feedback in low-light environments, eliminating guesswork during cueing and allowing operators to confirm commands instantly.
Installation is straightforward: the unit mounts in a standard US or EU Decora 1-gang wall plate, and a single RJ45 connection to any CAT5e run (up to 300 feet from the node) supplies both power and data from the EN12i. This single-cable approach reduces installation complexity and labor compared to traditional remote controls that require separate power and control lines. The compact form factor fits flush into existing building infrastructure without modification, making it ideal for theaters, churches, rental houses, and permanent installations where equipment aesthetics matter.
Specifications
