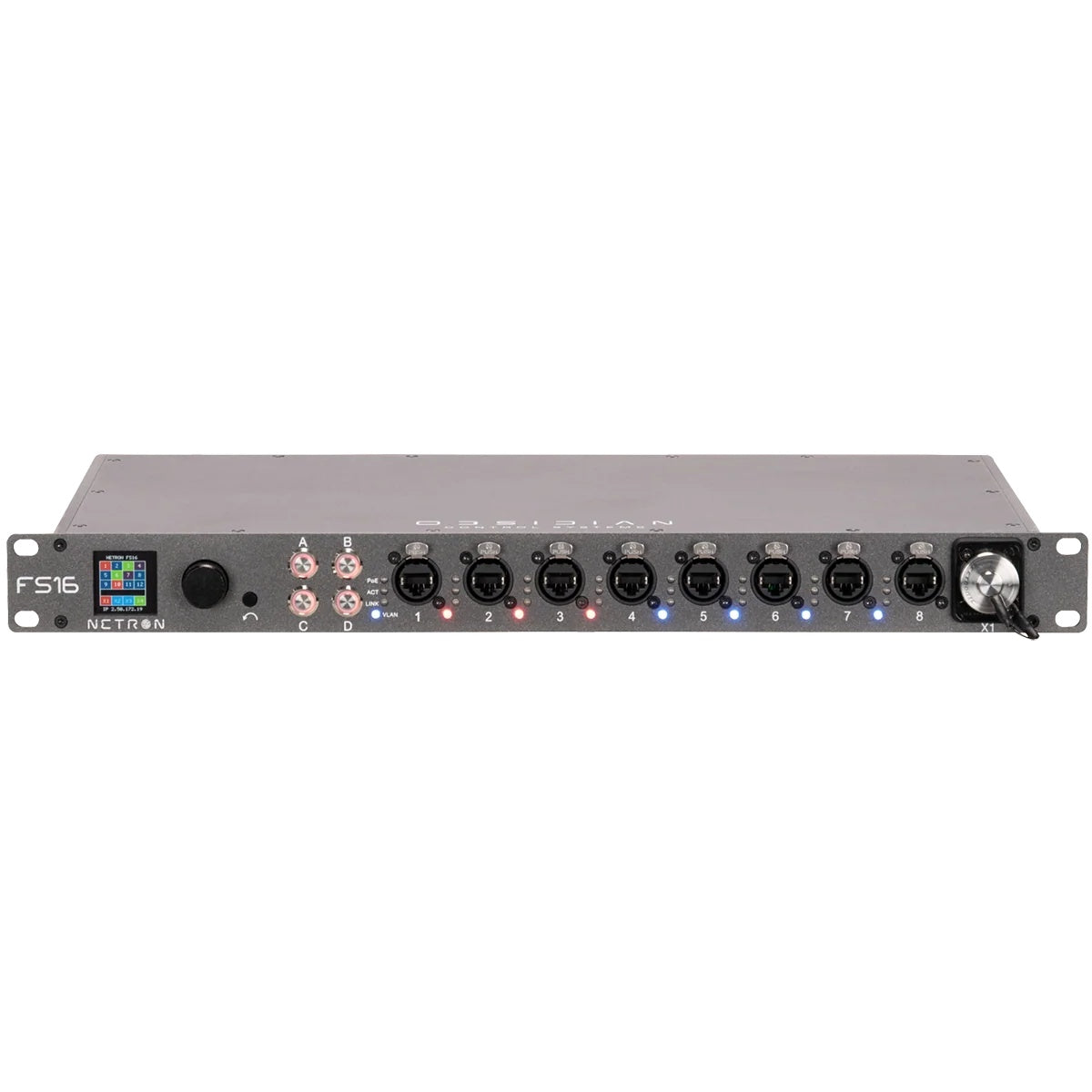

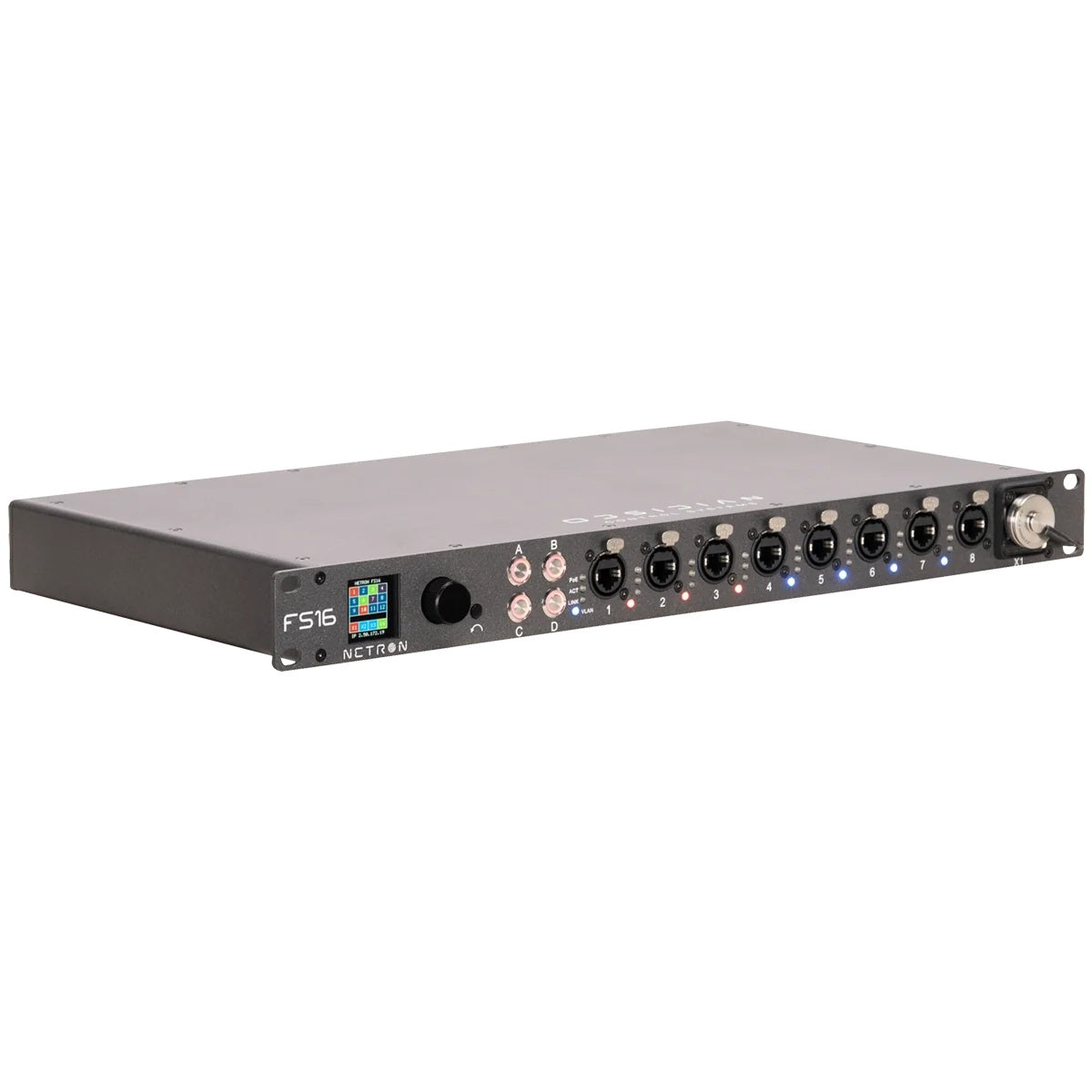

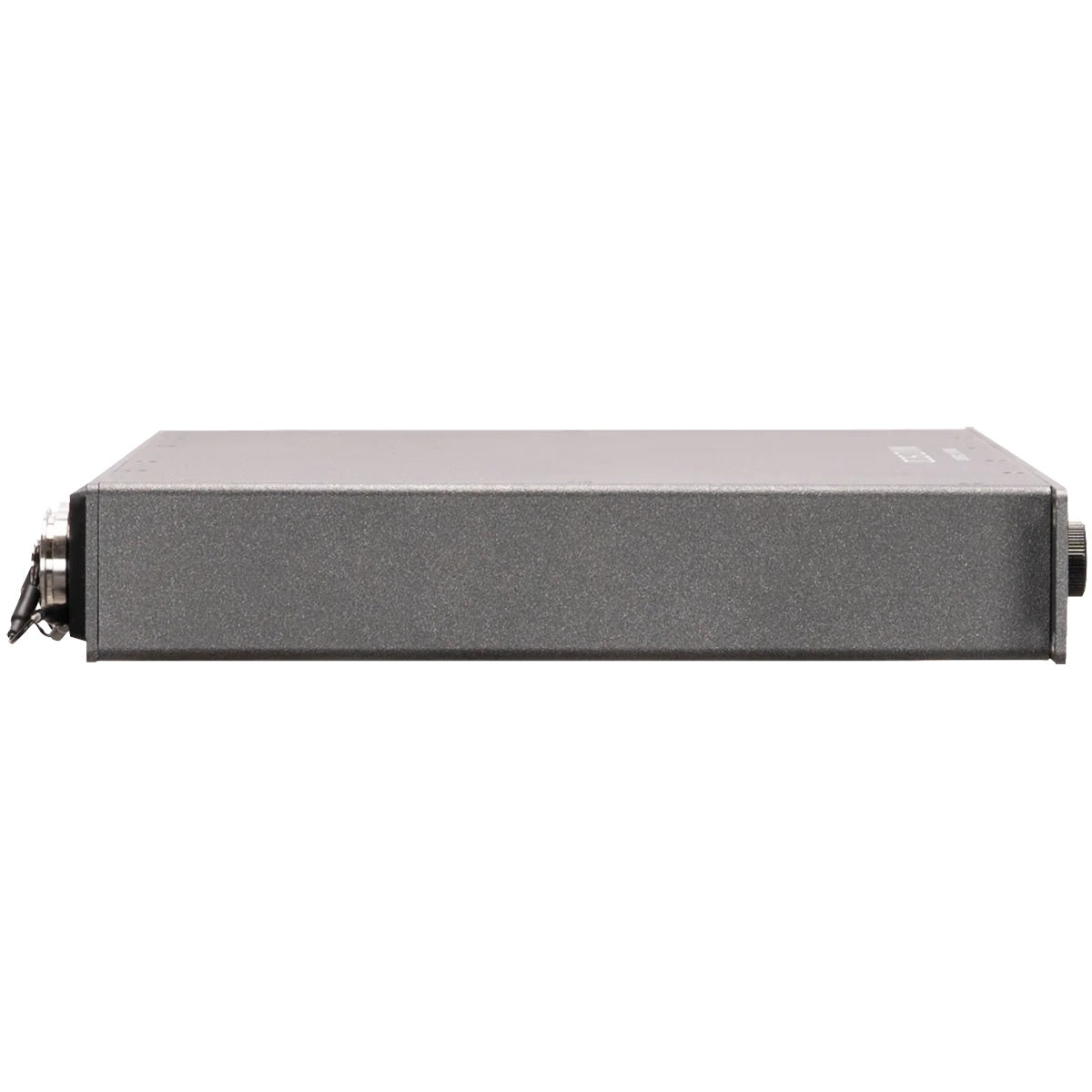

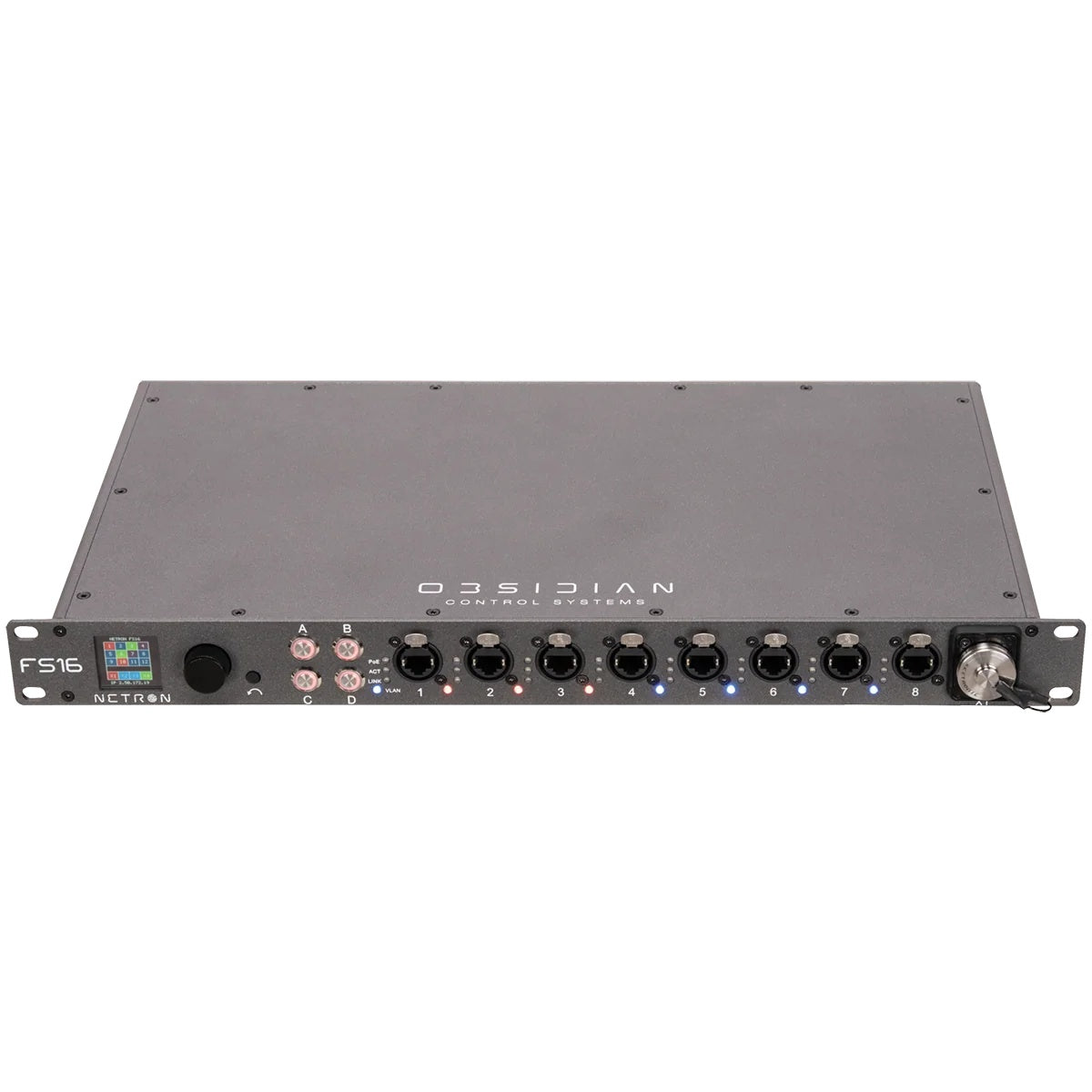

Elation NFS116 Rackmount 12+4 Port Fiber Network Switch With PoE

Elation NFS116 Rackmount 12+4 Port Fiber Network Switch With PoE

SoundPro Item: 208968 | Part Number: NFS116

$1,840.00
$2,300.00 $1,840.00
Your Price Sold out
MSRP: $2,300.00 | MAP: $1,840.00

Usually ships in 5-7 business days

  • Purpose-Built Entertainment Protocol Support Covers sACN, Art-Net, Dante, And Major Console Networks
  • Per-Port LED Feedback Displays Activity, PoE Status, And VLAN Assignment Simultaneously
  • Locking RJ45 And Power Connectors Prevent Accidental Disconnection During Live Operation
  • Full-Color OLED Display With Front-Panel Encoder Enables On-Site Configuration Without A Laptop
  • VLAN Support With Per-Group DHCP Server Isolates Traffic Across Up To Six Network Segments
  • IP65-Rated Power Inlet Protects The Power Entry Point In Stage And Install Environments
  • Dante-Compliant QoS Preset Eliminates Manual Configuration For Audio-Over-IP Deployments
Log in or register for YOUR best price

The Elation NETRON NFS116 is built for lighting network engineers and production technicians who need a single switch capable of handling the data density of modern entertainment systems. Its 12 Gigabit RJ45 ports and 4 fiber uplinks provide the infrastructure to connect large fixture counts, media servers, and PoE-powered nodes without creating bottlenecks. A total switching capacity of 48 Gbps ensures that high-volume protocols like Dante, sACN, and Art-Net move without latency, making it equally viable for touring rigs, permanent installs, and broadcast studios.

Where generic managed switches require workarounds to support entertainment protocols, the NFS116 ships with prebuilt support for ONYX X-Net, MANet2, MA-Net3, HogNet, and ETC Net3 alongside a Dante-compliant QoS preset. VLAN management across six groups with per-group DHCP servers allows technicians to isolate lighting, audio, and control traffic on a single physical infrastructure. Per-port LED feedback for activity, PoE status, and VLAN assignment gives operators visual confirmation at a glance, while the full-color OLED display and front-panel encoder allow configuration without a laptop on the floor.

Locking connectors on both RJ45 and power connections reduce the risk of accidental disconnection during load-in or show operation. The IP65-rated power inlet provides environmental protection at the power entry point. The NFS116 is a purpose-designed solution that replaces consumer-grade hardware with a switch that understands how production networks actually operate.

View full details

Specifications

Certifications
Approvals
CE, cETLus, FCC, UKCA, IP20
Dimensions
Depth
10.33"
Width
19"
Height
1.4"
Weight
Product Weight
7.05 lbs
Electrical
Input Voltage
100-240 V nominal, 50/60 Hz
Max Power Consumption
180W
PoE Standard
PoE 802.3af (15W per port), PoE+ 802.3at (30W per port)
Connectivity
Front RJ45 Ports
8 locking RJ45 Gigabit Ethernet

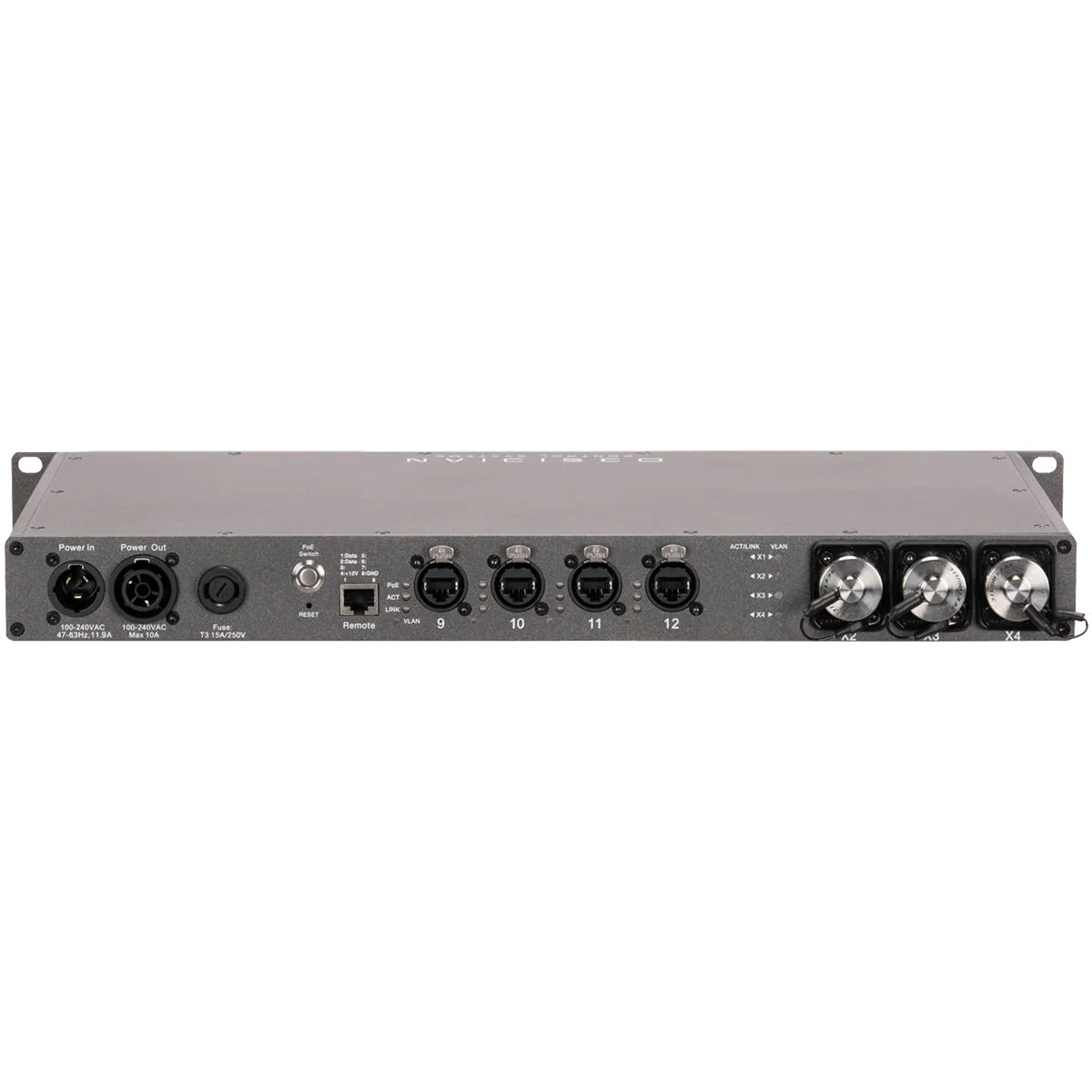

Rear RJ45 Ports
4 locking RJ45 Gigabit Ethernet
Front Fiber Port
1x SEETRONIC SO2DF (LC and DUO compatible), 10 Gbps Multimode, 850nm, 300m
Rear Fiber Ports
3x SEETRONIC SO2DF (LC and DUO compatible), 1.25 Gbps Multimode, 850nm, 300m
Remote Port
RJ45 Remote Port for optional Button Station
Power Connection
IP65 Locking Power In/Thru
Performance
Total Switching Capacity
48 Gbps
Protocols
Entertainment Protocols
sACN, Art-Net, ONYX X-Net, MANet2, MA-Net3, HogNet, ETC Net3, Dante
Transmission Modes
Broadcast, Unicast, Multicast
IEEE Standards
802.3, 802.3ab, 802.3x, 802.1p, 802.3at, 802.3af, 802.1Q, IGMPv2, IGMPv3
Ethernet Features
IGMP Querier, IGMP Snooping, VLAN (6 Groups, Trunk, Color Coding), DHCP Server per VLAN, Dante compliant QoS Preset
Construction
Mounting
1U Rackmount
Controls
Front Panel
Full color OLED display, Encoder with Push to Select/Exit, 4 Network Selector/Preset Recall Buttons, Per Port LED Feedback
Rear Panel
PoE Power Switch, Reset Button, Per Port LED Feedback
Included Items
Power Cable
5 ft (1.5m) locking IP65 power cable (EU or US version)
Identifiers
UPC
810008266526
US SKU
NFS116
EU SKU
1330000017
