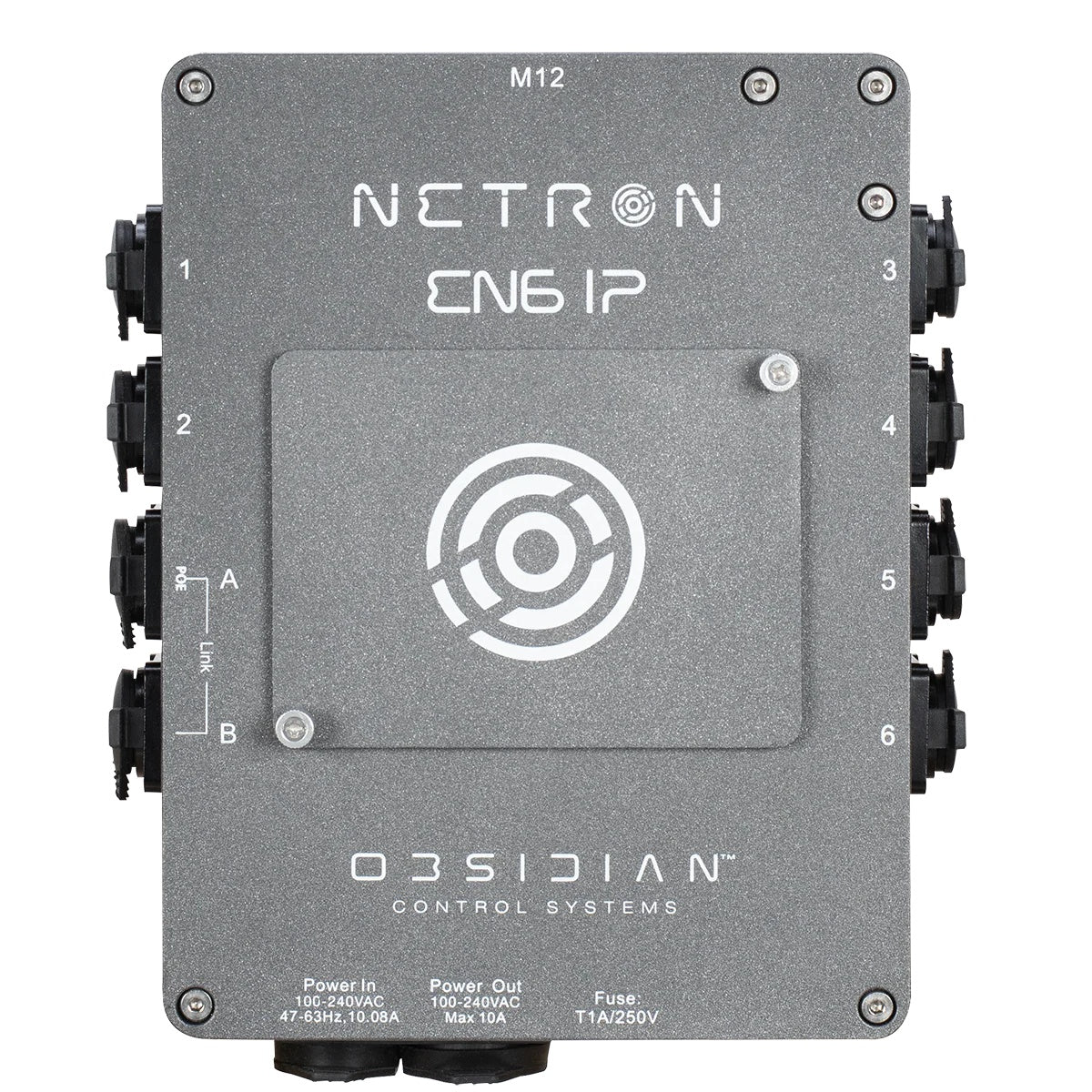

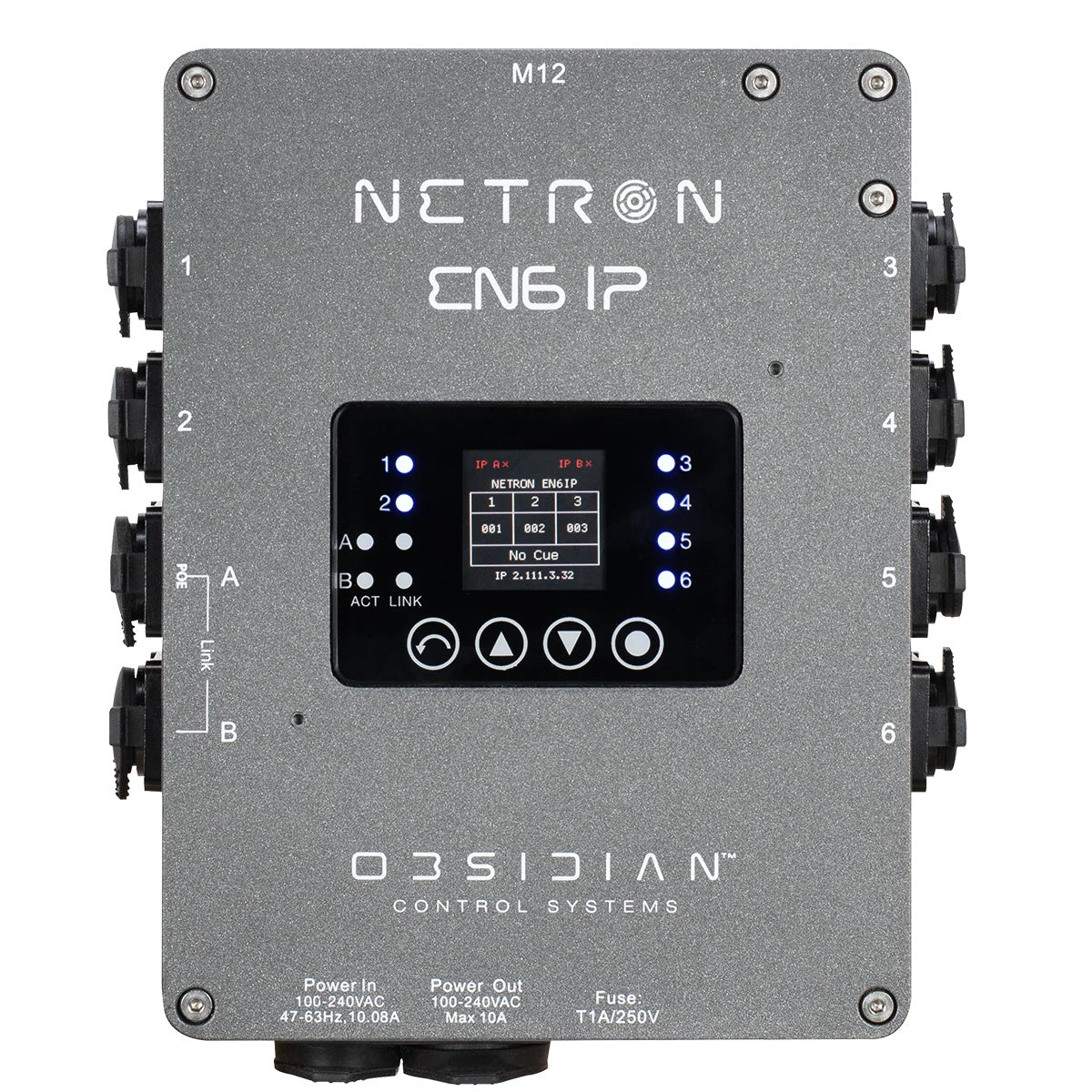

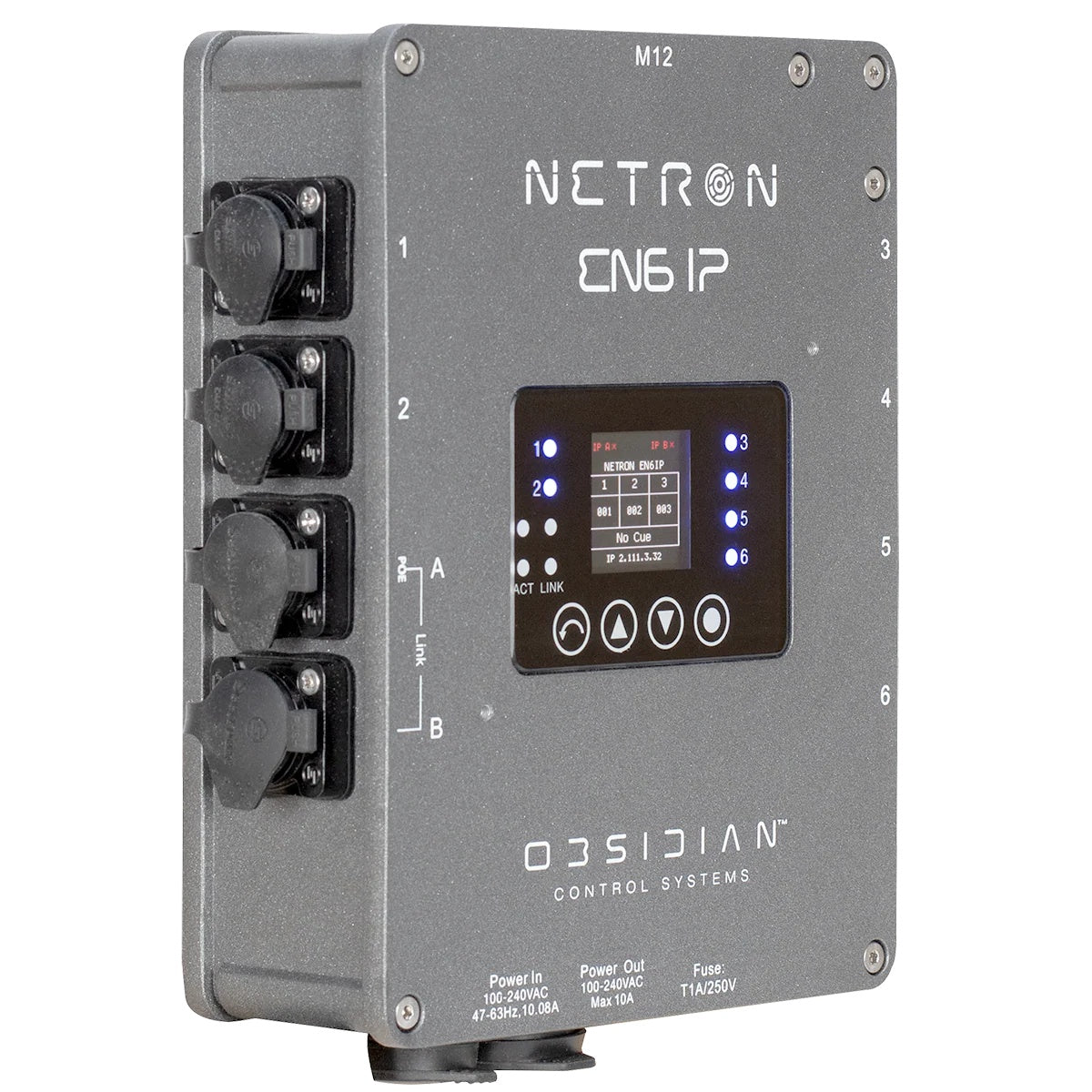

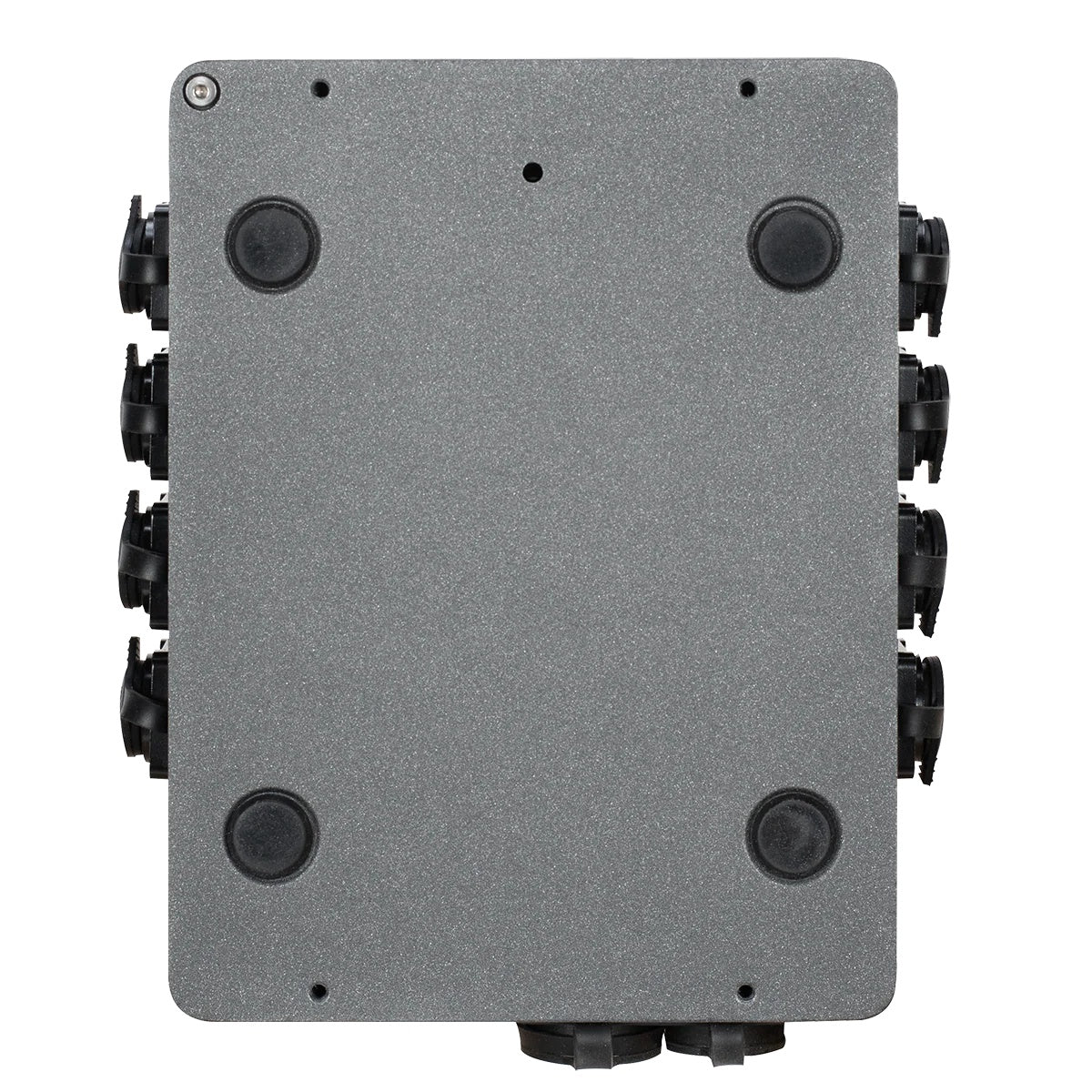

Elation NIP013 EN6 IP DMX Relay Node Six Universe

Elation NIP013 EN6 IP DMX Relay Node Six Universe

SoundPro Item: 141728 | Part Number: NIP013

$820.00
$990.00 $820.00
Your Price Sold out
MSRP: $990.00 | MAP: $820.00

Usually ships in 5-7 business days

  • Six Bidirectional DMX Ports Enable Flexible Universe Routing Without Separate In/Out Breakouts
  • IP66 Environmental Sealing Operates In Wet And Dusty Outdoor Live Production Venues
  • Optically Isolated DMX Connections Prevent Ground Loop Interference Across Networked Rigs
  • Dual Locking Ethernet Connections With PoE Support For Simplified Network Infrastructure
  • Multiple Mount Options Including Truss M10/M12 And Wall Brackets For Flexible System Integration
  • cETLus, CE, And UKCA Approvals Support Global Touring And Installation Requirements
Log in or register for YOUR best price

The Elation NIP013 EN6 IP is a rugged networking node built for touring and installed lighting systems that demand multi-universe DMX distribution in challenging environments. Designed for integration with ONYX NOVA Edition consoles and NETRON networks, it provides six optically isolated 5-pin DMX/RDM ports that operate bidirectionally, eliminating the need for separate input and output breakouts on complex rigs.

Built to IP66 specification, the EN6 IP operates reliably in wet outdoor venues, temporary structures, and high-dust production environments. Dual locking Ethernet connections—one with Power over Ethernet support—enable daisy-chain networking across multiple nodes while reducing cable runs. Mounting flexibility includes standalone, truss, and wall configurations, making it equally suited to festival touring rigs, permanent installations, and arena deployments.

AV professionals choose the EN6 IP when universe expansion must not sacrifice protection or introduce single points of failure. Its compact form factor and field-proven NETRON architecture have supported large-scale synchronized light shows across entertainment venues worldwide.

View full details

Specifications

Identifiers
UPC
810008264249
Model Number
NIP013
Dimensions
Length
7.10"
Width
9.50"
Height
3.20"
Weight
Unit Weight
4.00 lbs
Electrical
Input Voltage
100-240V nominal, 50/60 Hz
Power Consumption
6W
PoE Standard
802.3af
Connectivity
DMX Ports

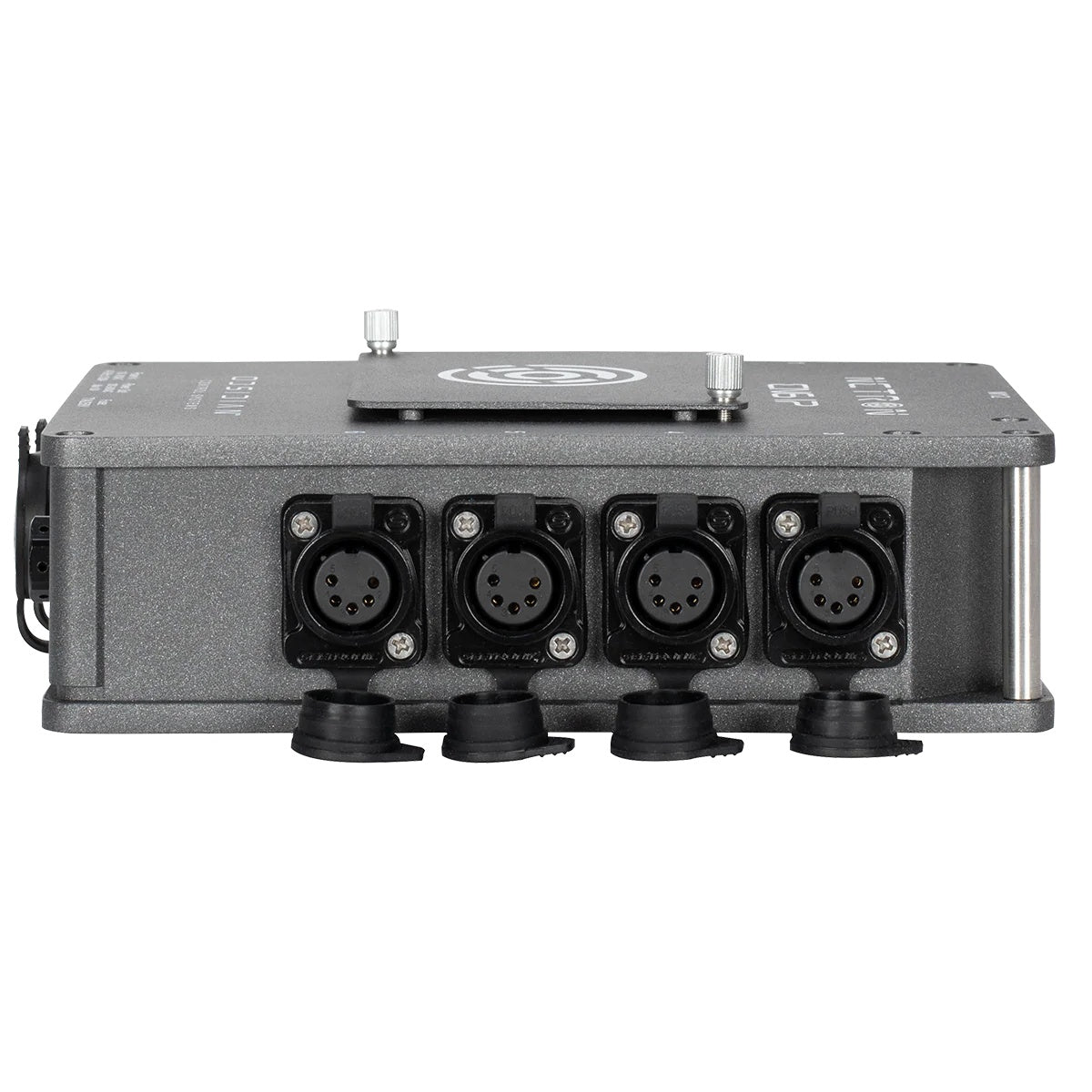

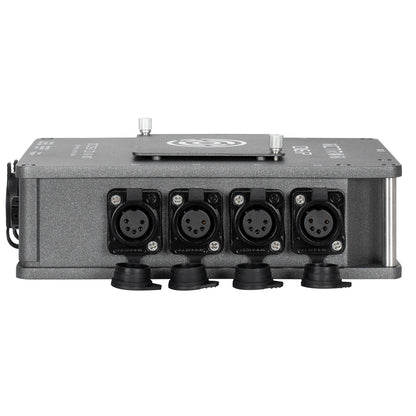

6 x 5-pin IP66, bidirectional, optically isolated
Ethernet Connections

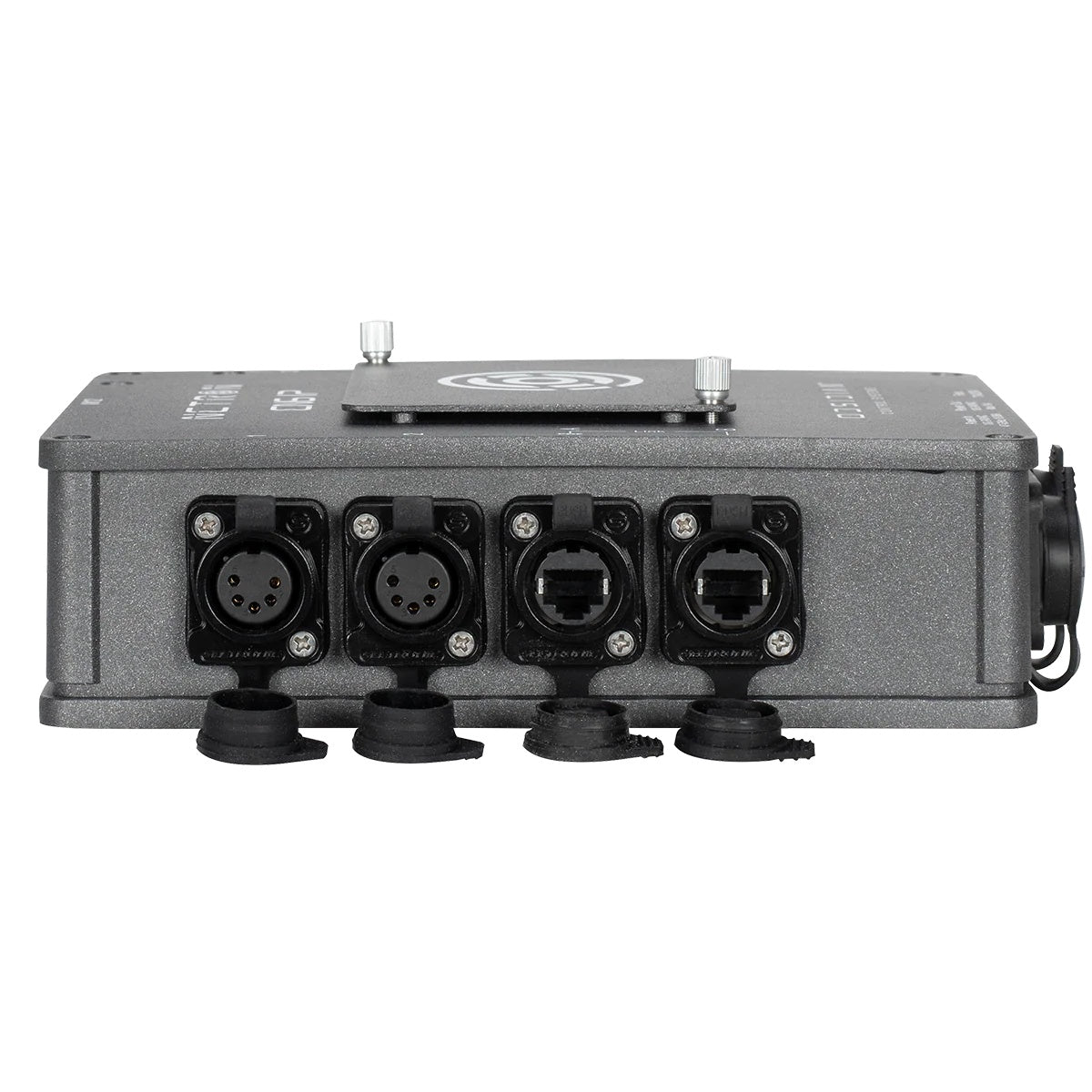

2 x locking IP66 RJ45, 1x PoE
Power Connection

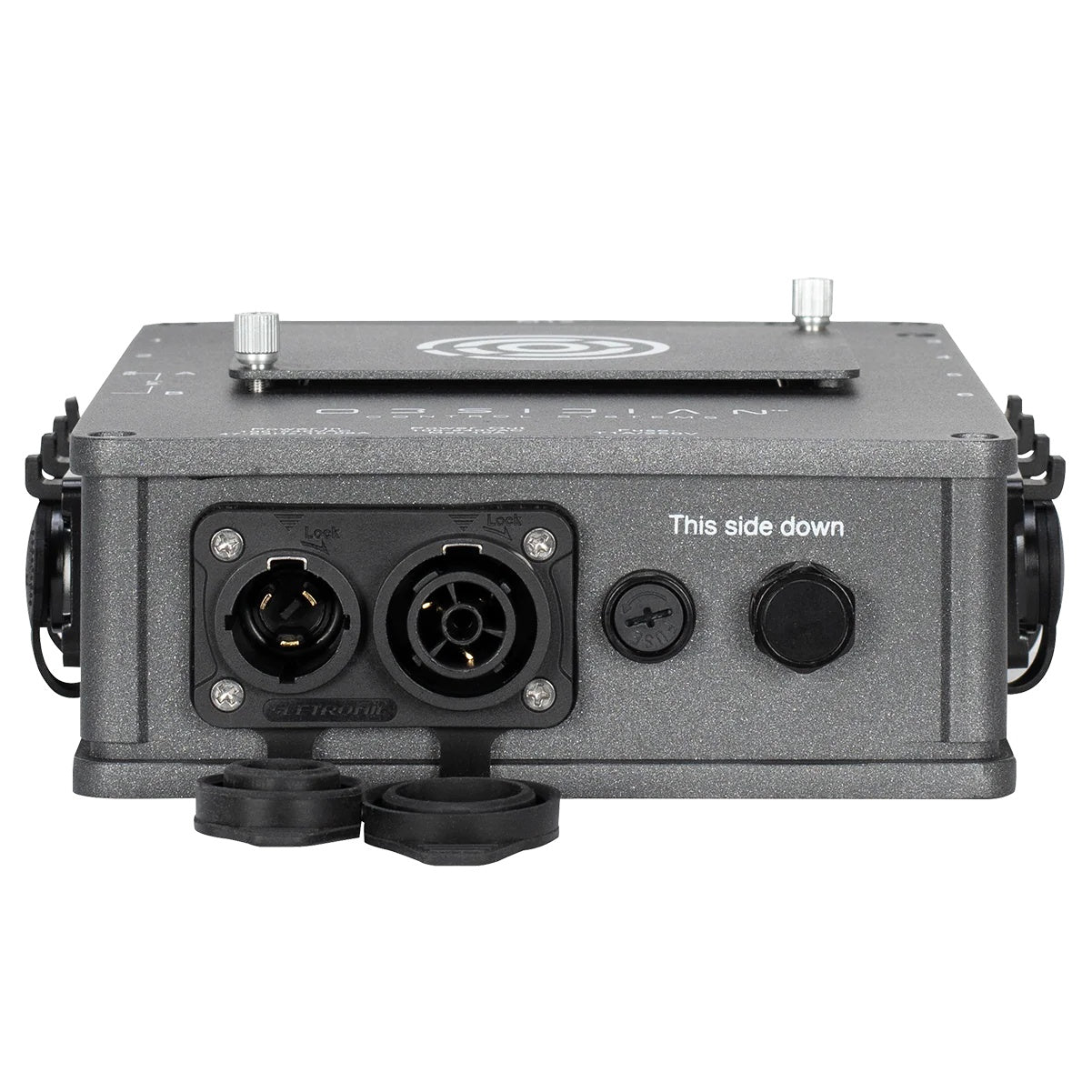

1 x locking IP66 Power In/Thru
Certifications
IP Rating
IP66
Regulatory Approvals
cETLus, CE, UKCA
Mounting
Mounting Options

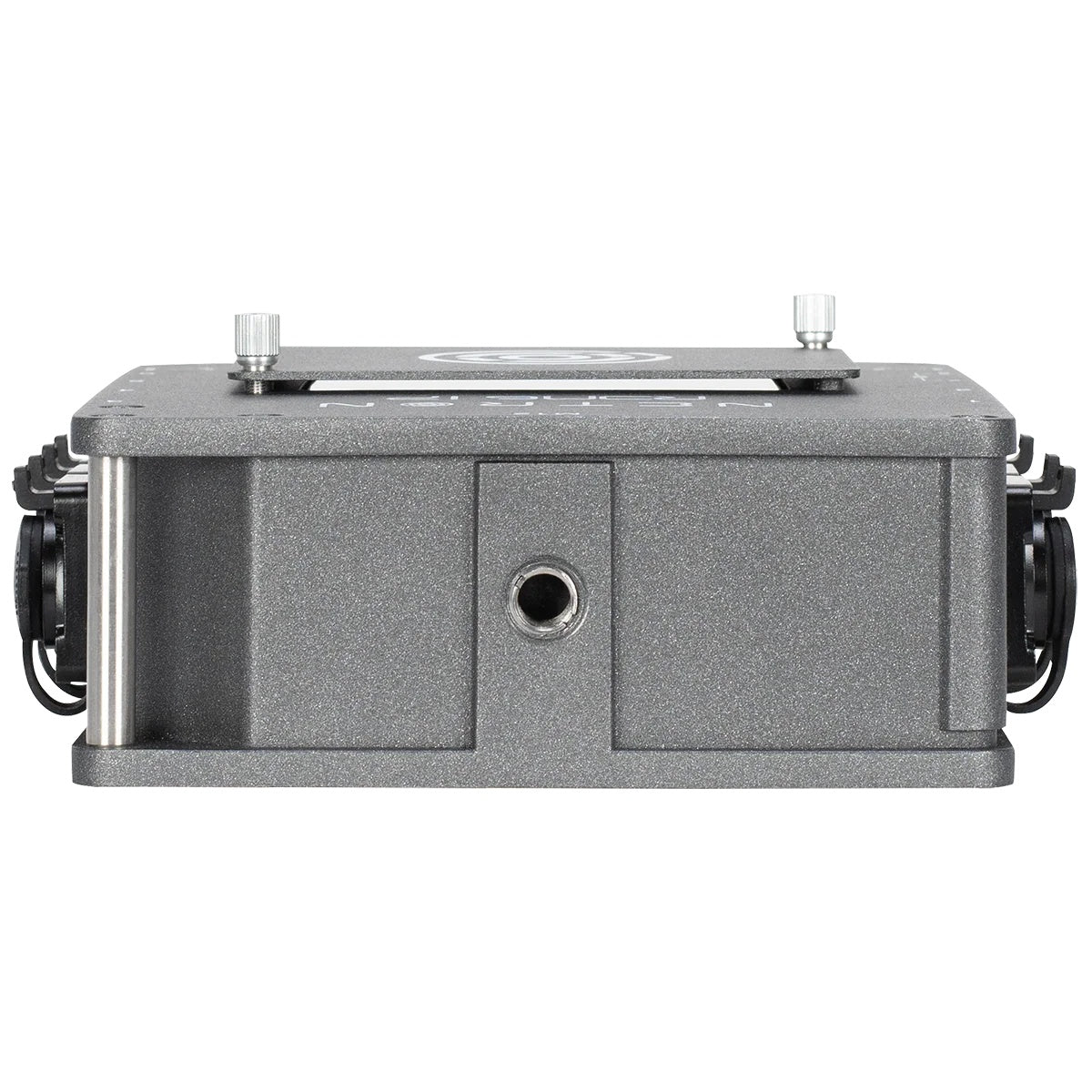

Standalone, Truss M10/M12, Wall-mount
Included Items
Power Cable
1.5m IP66 locking cable (EU or US)
Brackets
2x wall-mount brackets
Adapters
M10 to M12 adapter
Accessories
Metal display protection cover
