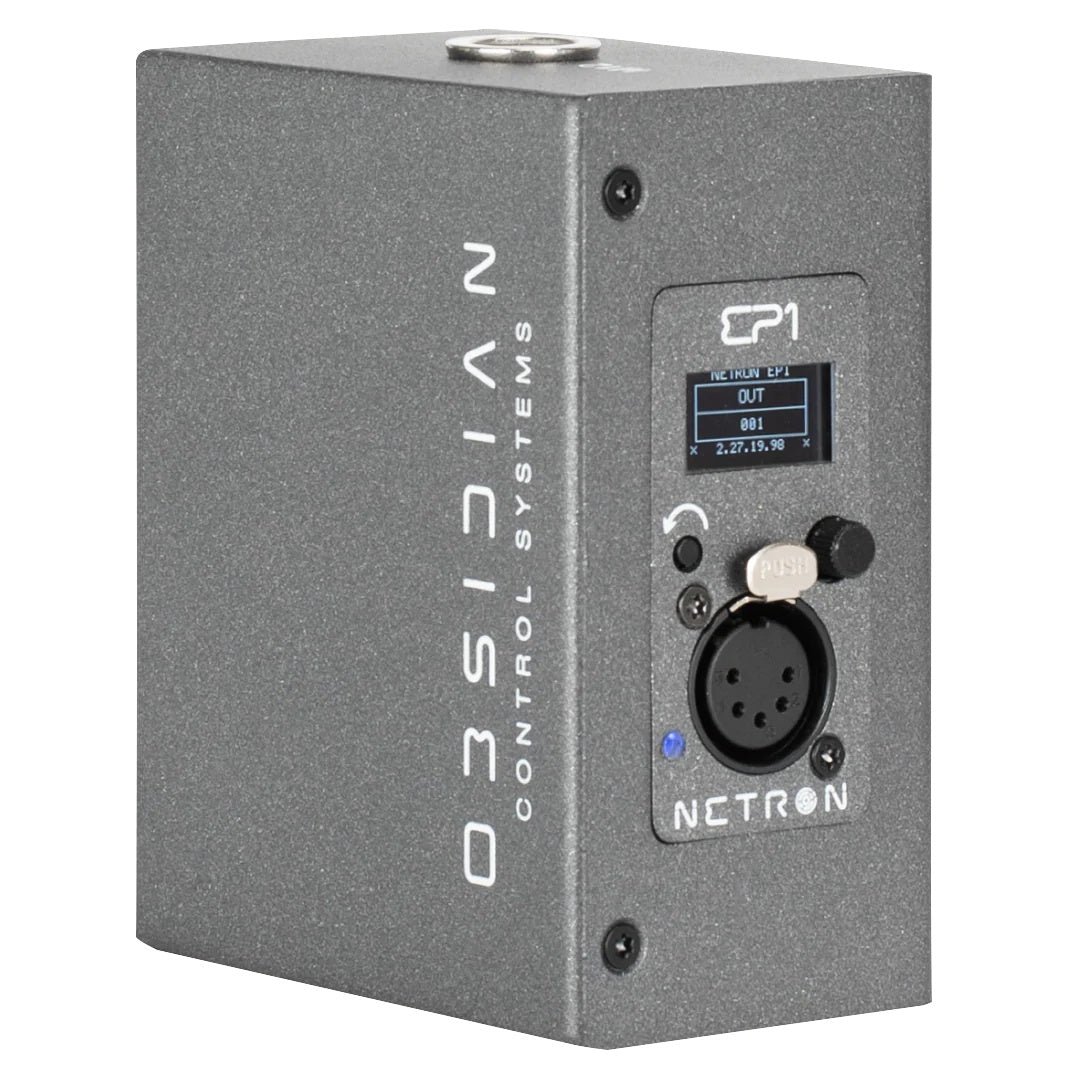

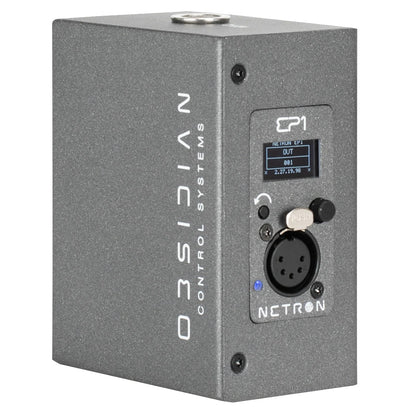

Elation NRE125 EP1 Single Port DMX Ethernet Node

Elation NRE125 EP1 Single Port DMX Ethernet Node

SoundPro Item: 142037 | Part Number: NRE125

$430.00
$500.00 $430.00
Your Price Sold out
MSRP: $500.00 | MAP: $430.00

Usually ships in 5-7 business days

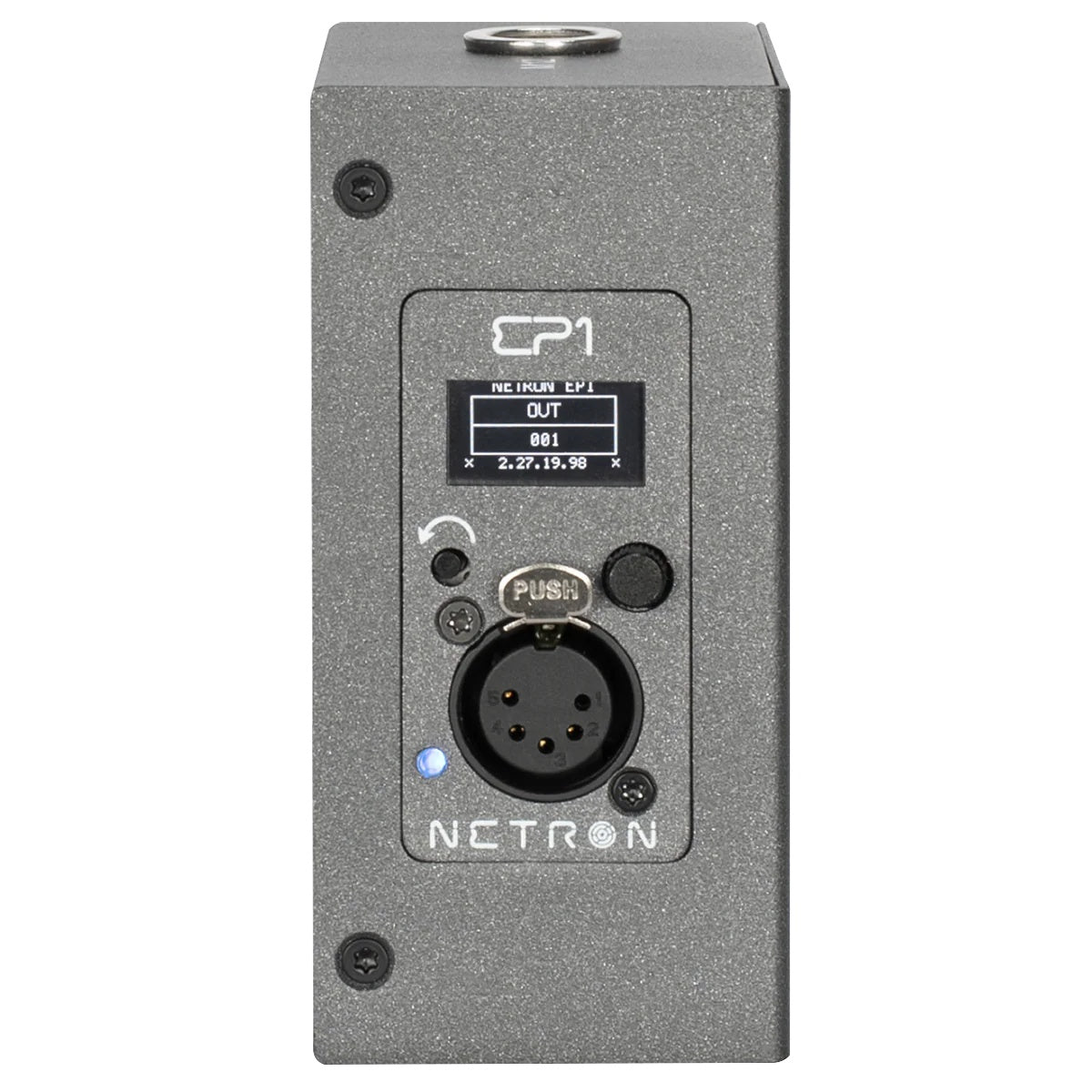

  • OLED Display And Encoder Enable On-Site Configuration Without External Software
  • Bidirectional 5-pin DMX Port With Optical Isolation For RDM Support

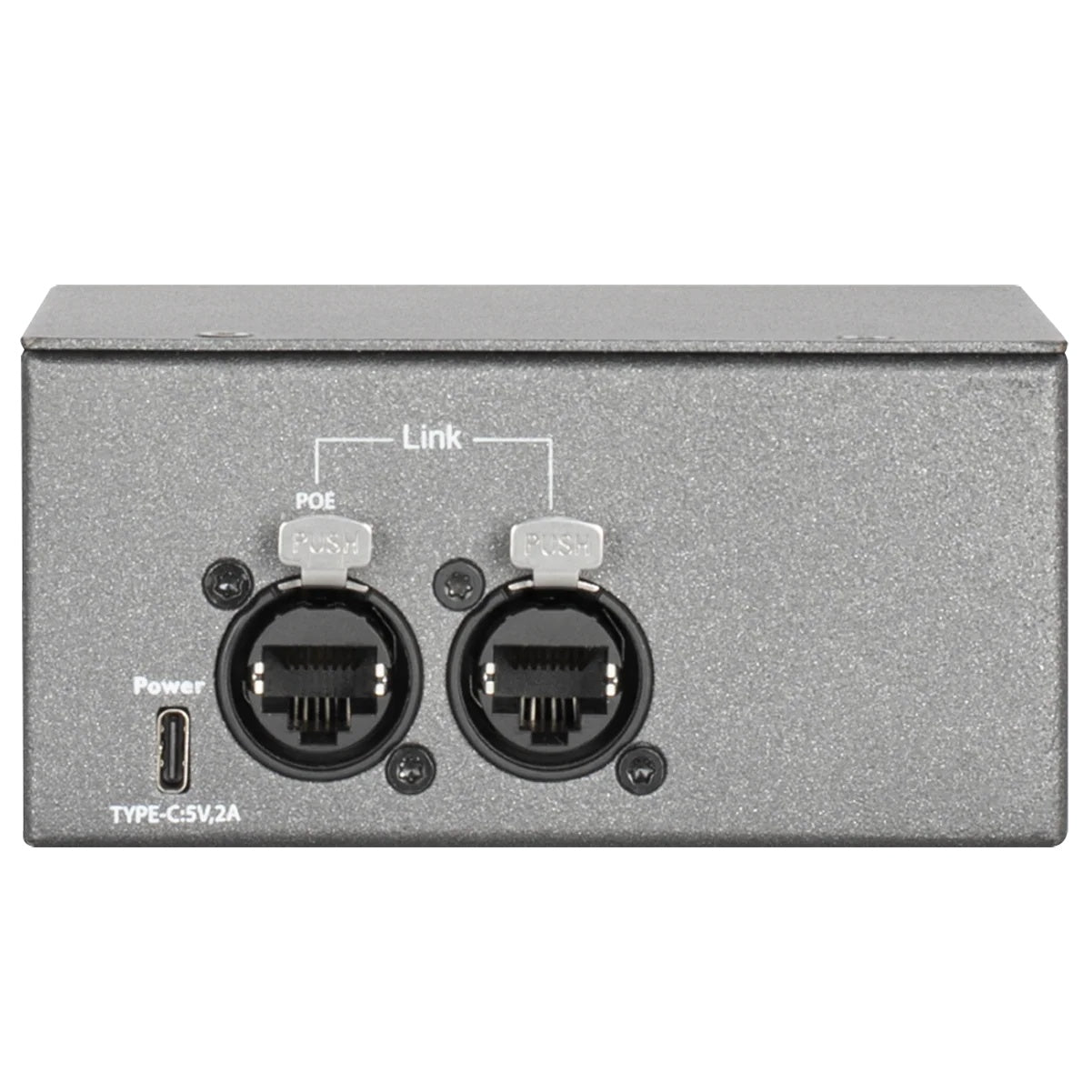

  • Dual Locking Gigabit Ethernet Ports With Integrated Network Switch For Cascaded Devices
  • Power Over Ethernet And USB-C Options Deliver Flexible Deployment In Any Venue
  • Standalone And 1-Gang Wall-Mount Designs Fit Floor Pockets, Trusses, And Permanent Installations
Log in or register for YOUR best price

The Elation NRE125 EP1 is a compact, versatile single-port node designed for lighting professionals who need to distribute DMX, sACN, and Art-Net throughout complex venue layouts. Whether you're working from floor pockets to lighting trusses or coordinating between multiple stage areas, the EP1 simplifies network topology by passing incoming network traffic to adjacent devices while converting protocols in real time. Its integrated network switch eliminates the need for external infrastructure, making it ideal for touring rigs, permanent installs, and temporary productions where rapid deployment is critical.

Configure via the onboard OLED display and encoder, or manage remotely through the internal web interface. The EP1 supports two mounting styles—standalone with included backbox, or flush-mount to US 1-gang wall outlets—giving you installation flexibility across touring, rental, and permanent-install scenarios. Dual Gigabit Ethernet ports with one PoE input mean you can run the entire node from a single network drop, while the USB-C backup option ensures operation even in venues with limited power infrastructure.

View full details

Specifications

Identifiers
UPC
810008264126
Model
NRE125
Dimensions
Standalone Length
3.50"
Standalone Width
2.20"
Standalone Height
4.50"
1-Gang Length
3.96"
1-Gang Width
2.20"
1-Gang Height
4.63"
Weight
Standalone Weight
1.54 lbs
1-Gang Weight
1.30 lbs
Electrical
Power Input
USB-C 5V or PoE 802.3af
Power Consumption
2.8W
Connectivity
DMX Ports
1x 5-pin Optically Isolated Bidirectional
Ethernet Ports
2x Locking RJ45 Gigabit
Certifications
IP Rating
IP20
Certifications
CE, CETLUS, UKCA
Included Items
USB-C Cable
1.5m Obsidian
Enclosure

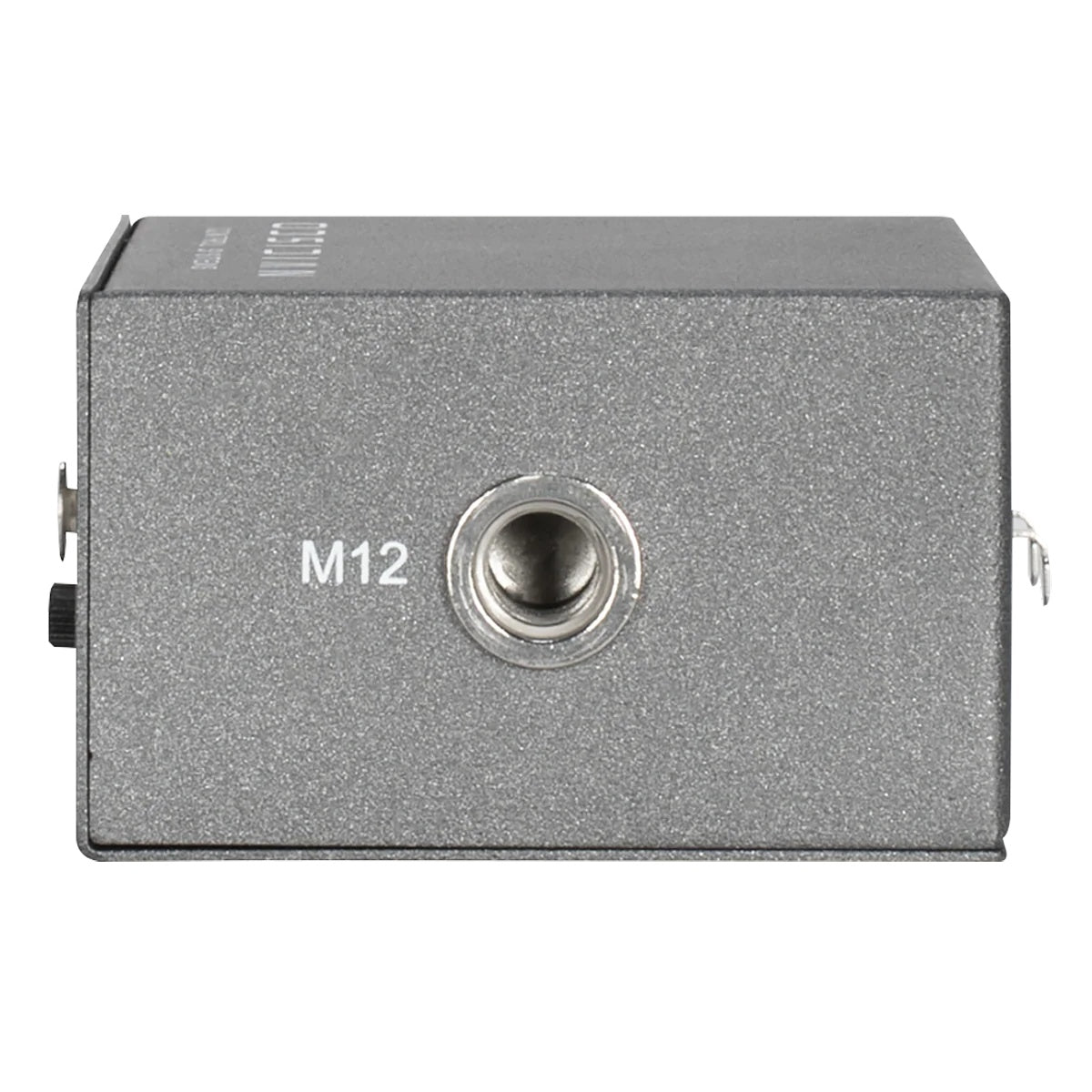

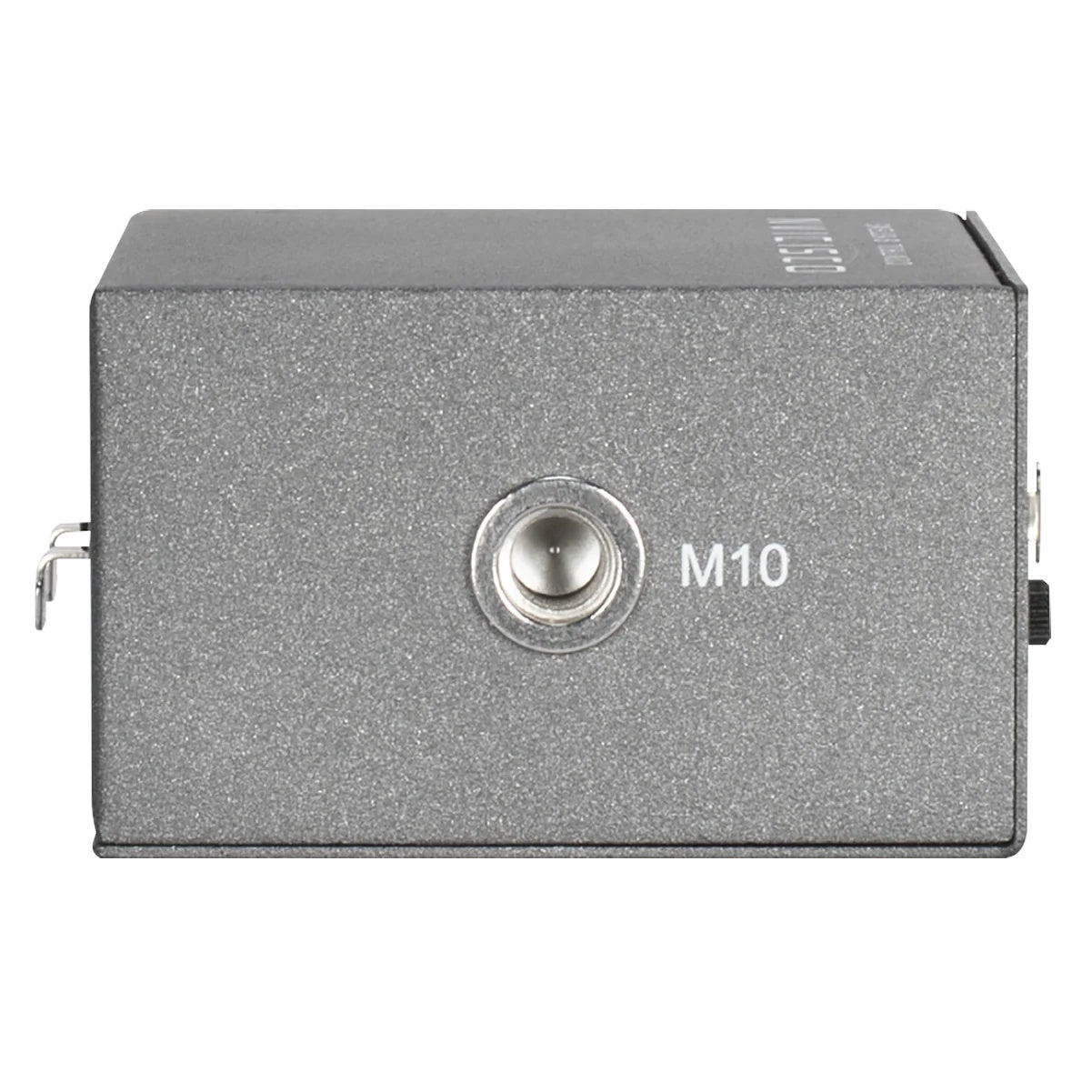

Standalone With M10 or M12 Bolt Hole
Wall Plate
Netron Decora 1-Gang
