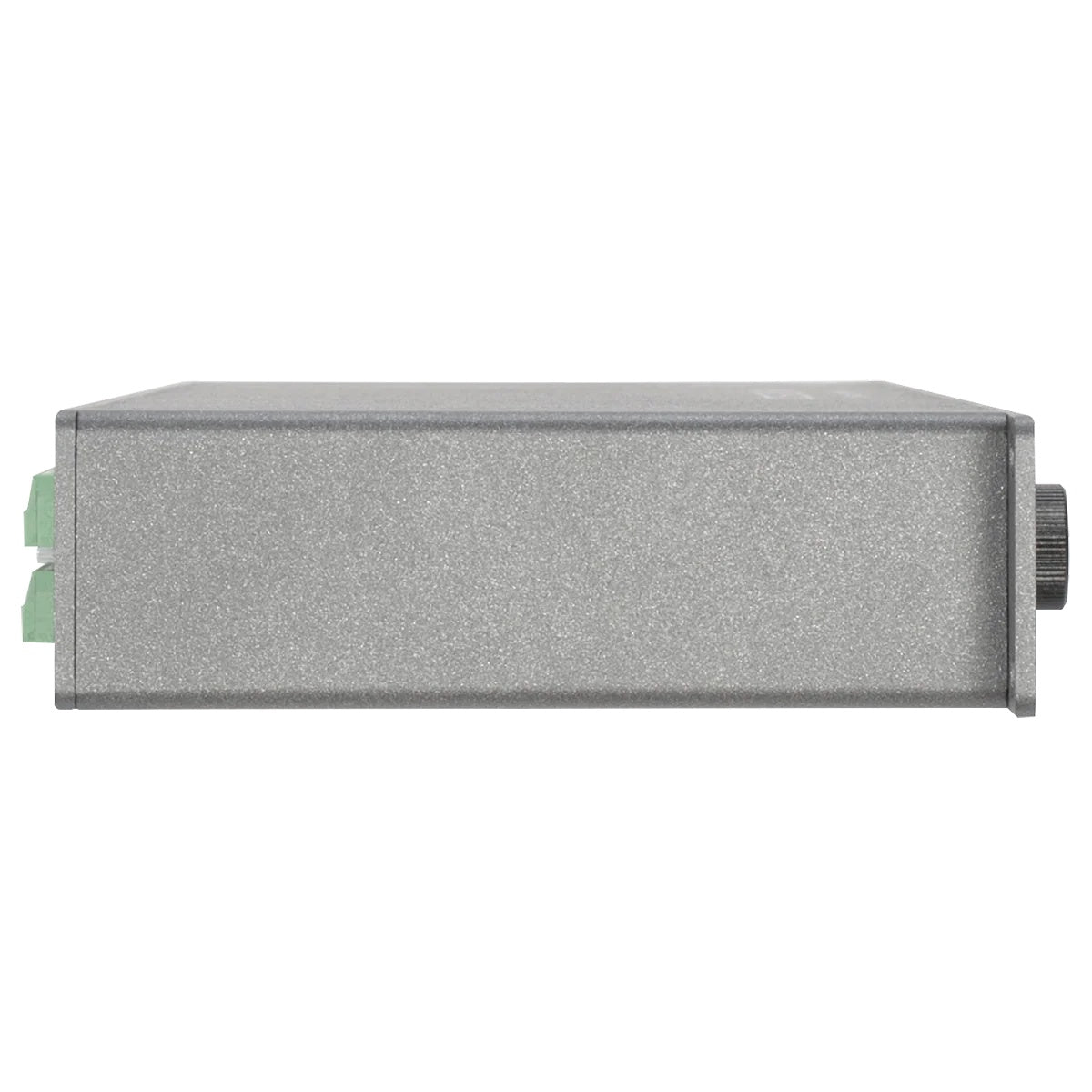

Elation NRE234 Twelve-Output Art-Net sACN DMX Gateway

Elation NRE234 Twelve-Output Art-Net sACN DMX Gateway

SoundPro Item: 142038 | Part Number: NRE234

$1,290.00
$1,490.00 $1,290.00
Your Price Sold out
MSRP: $1,490.00 | MAP: $1,290.00

Usually ships in 5-7 business days

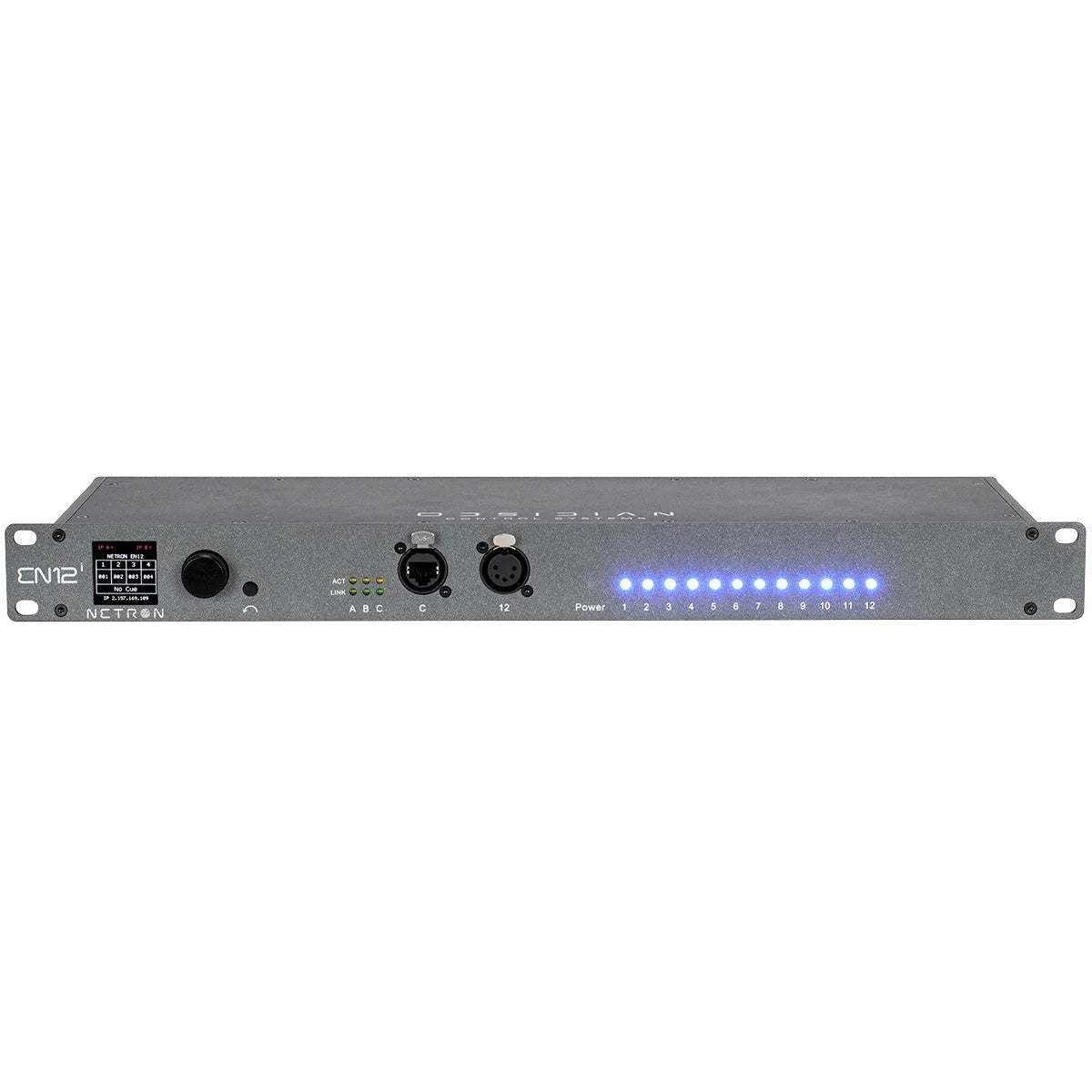

  • ,front-facing 5-pin XLR DMX port serves as a convenient diagnostic or temporary output port during setup or troubleshooting.

Log in or register for YOUR best price

The Elation NRE234 is a professional-grade protocol gateway designed for permanent installation environments requiring multiple independent DMX outputs from centralized Art-Net or sACN control systems. Venue integrators and lighting designers specify this device to distribute networked lighting data across dozens of conventional DMX devices—moving lights, dimmers, LED fixtures, and effects units—without requiring standalone converters at each fixture location. The unit supports both standards simultaneously, allowing mixed-protocol networks to operate transparently.

The EN12i architecture enables flexible wiring configurations through exchangeable backplates: RJ45 ESTA connectors, screw terminals, or IDC insulation-displacement connectors. This modularity accommodates retrofit installations in legacy infrastructures and new builds requiring specific terminal types. RDM bidirectionality on all twelve ports allows firmware updates and fixture diagnostics to flow back to the console, enabling true device intelligence across the entire rig. Internal cue storage and fade-time programming create simple playback scenes for pre-programmed sequences or emergency lighting scenarios without requiring a full lighting control system.

Dual Ethernet ports integrate a low-latency gigabit switch, reducing complexity in cabinets where network bandwidth and redundancy matter. PoE power capability simplifies installation in distributed racks, while the integrated 1.8

View full details

Specifications

Dimensions
Exterior Length
6.5"
Exterior Width
19"
Exterior Height
1.7"
Weight
Product Weight
4.00 lbs
Electrical
Input Voltage
AC 100-240V, 50/60 Hz
PoE Standard
802.3af
Power Consumption
9W
Connectivity
Front DMX Outputs
1 x 5-pin XLR DMX/RDM
Front Ethernet
1 x Locking RJ45 Gigabit (Low Latency Switch)
Rear Ethernet
2 x Locking RJ45 Network (Low Latency Switch)

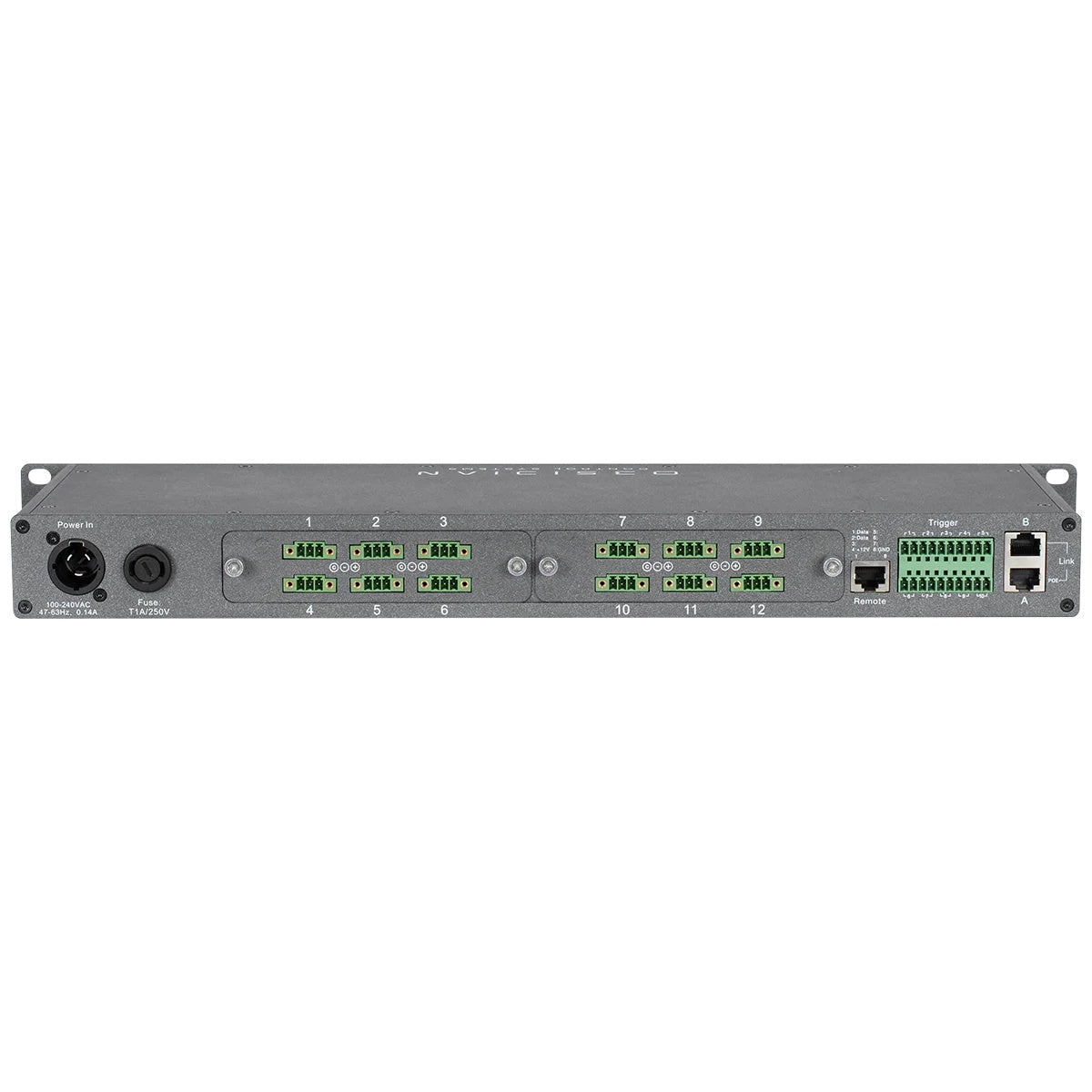

Rear DMX Connections
2 x 6-port plates (RJ45 ESTA or Terminal Block)
Contact Closures
2 x 10-pin Terminal Block
Remote Port
1 x RJ45 for BS10 Button Station
Power Connector
IP65 Locking Power In/Thru
Protocols
DMX Standard
DMX512-A E1.11 (In/Out)
Remote Monitoring
RDM E1.20
Streaming Protocols
Art-Net, sACN E1.31
Network Features
10/100/1000 Mbps, MDI/MDIX Auto-Sensing, HTTP Commands, Web Interface
Construction
Wire Gauge Support
20-22 AWG
Connector Types
IDC with Locking Screws, Terminal Block with Locking Screws
Housing
Powder-Coated Aluminum Rackmount
Display
1.8" OLED with Rotary Encoder
Certifications
Ratings
cETLus, CE, FCC, IP20
Included Items
Power Cable
1.5m IP65 Locking (EU or US)

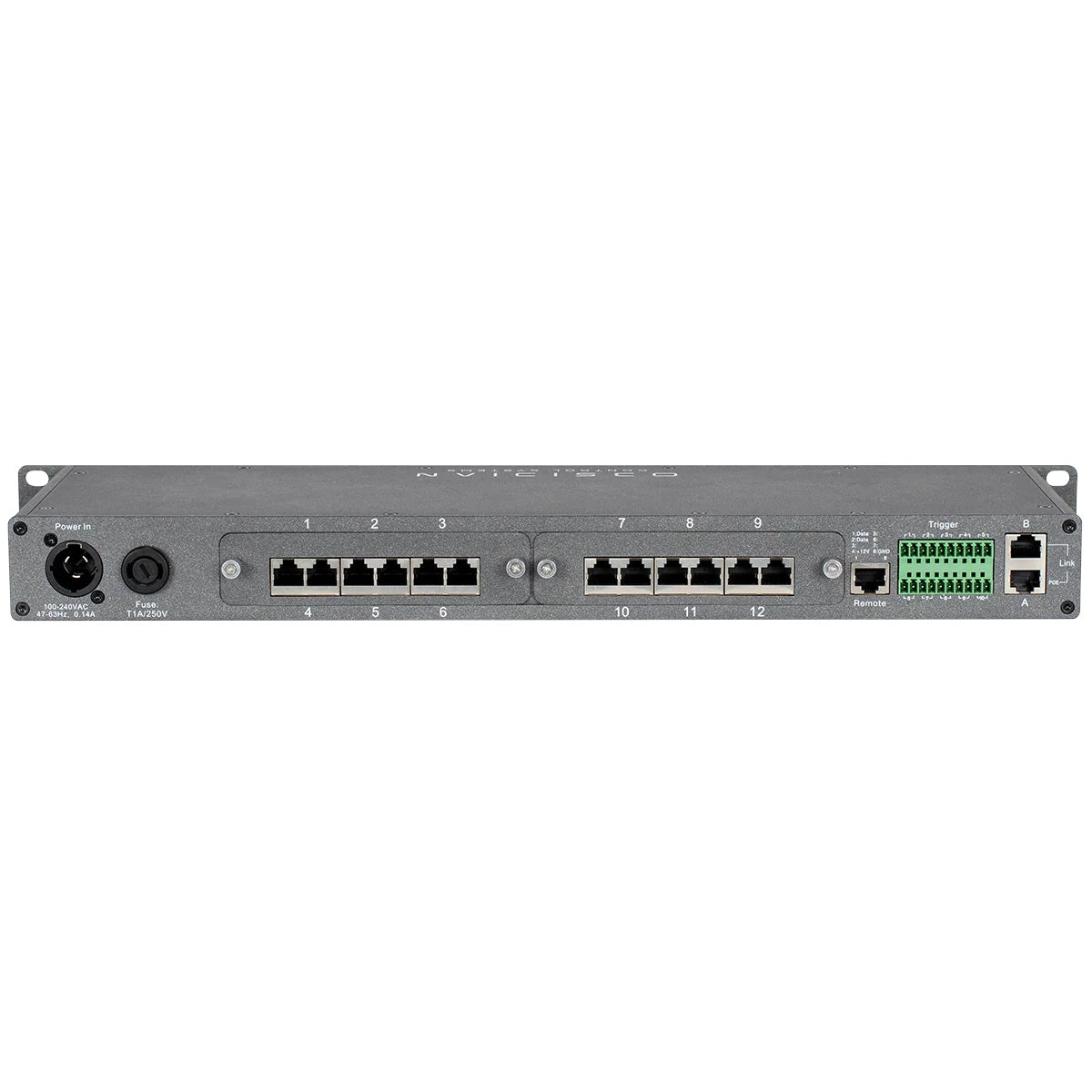

DMX Connection Plates
2 x 6-port RJ45 ESTA
Terminal Block Plates
2 x 6-port

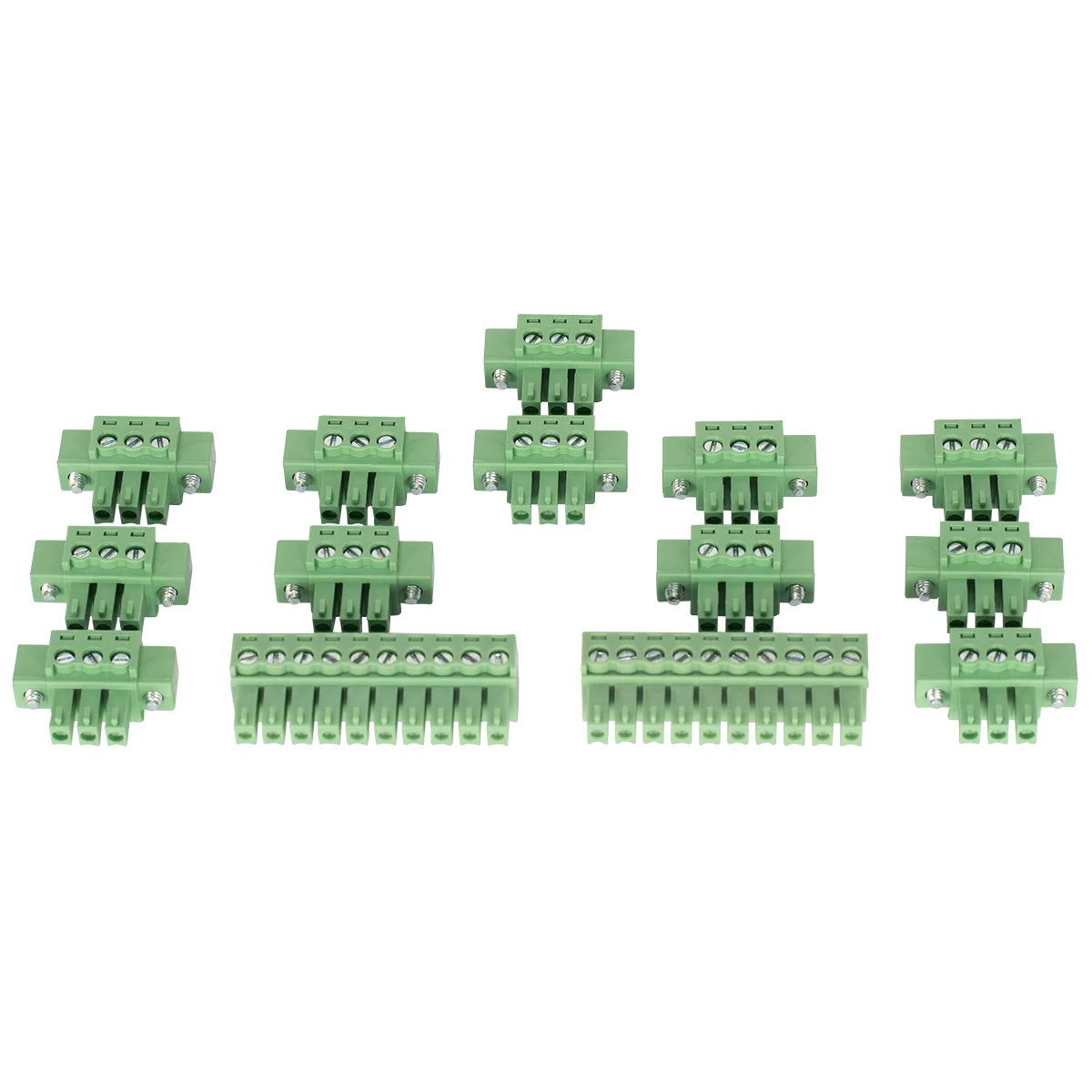

Terminal Connectors
12 x Screw Terminal with Security Screws

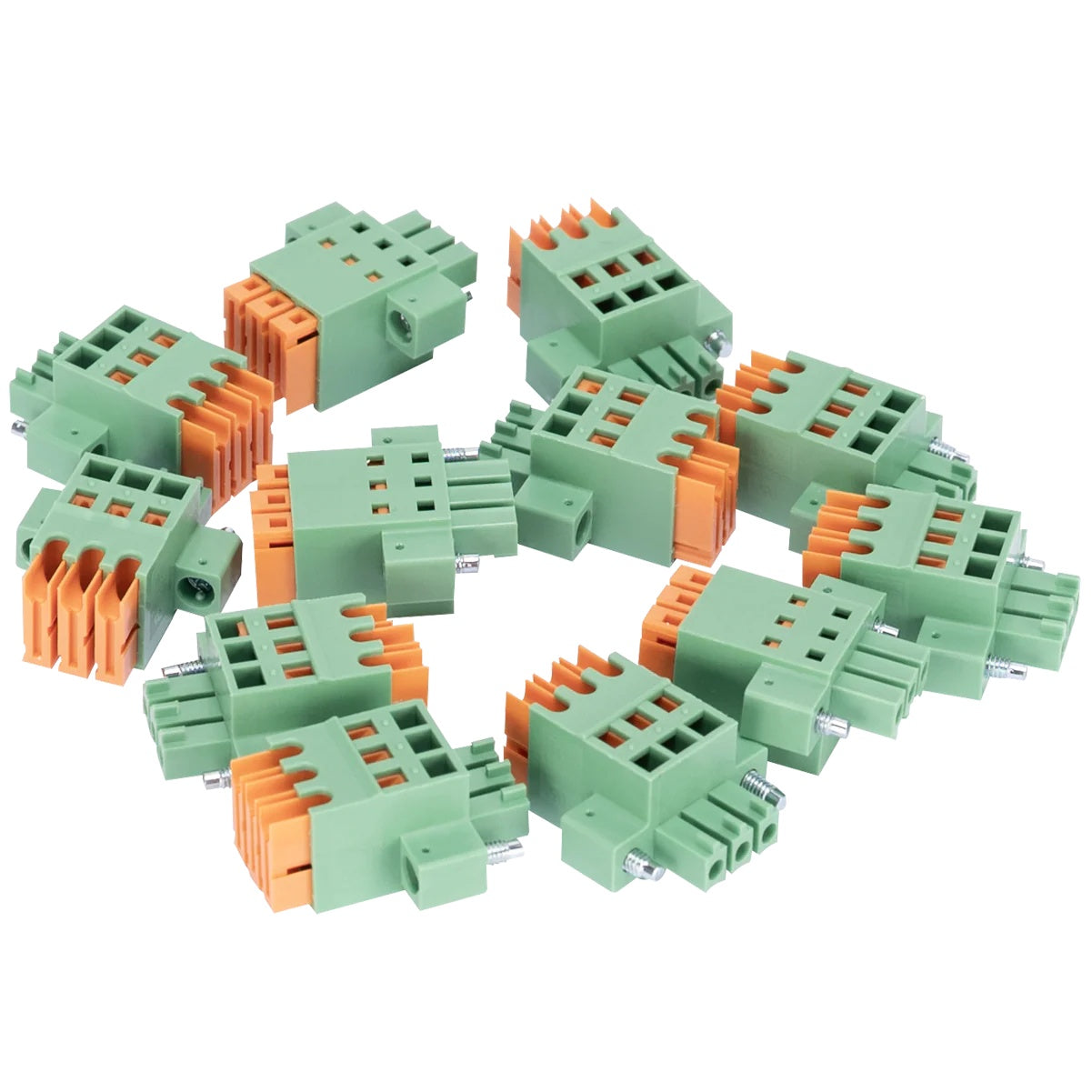

IDC Connectors
12 x IDC with Security Screws
Contact Closure Blocks
2 x 10-port Terminal Block
Identifiers
UPC
810008264119
