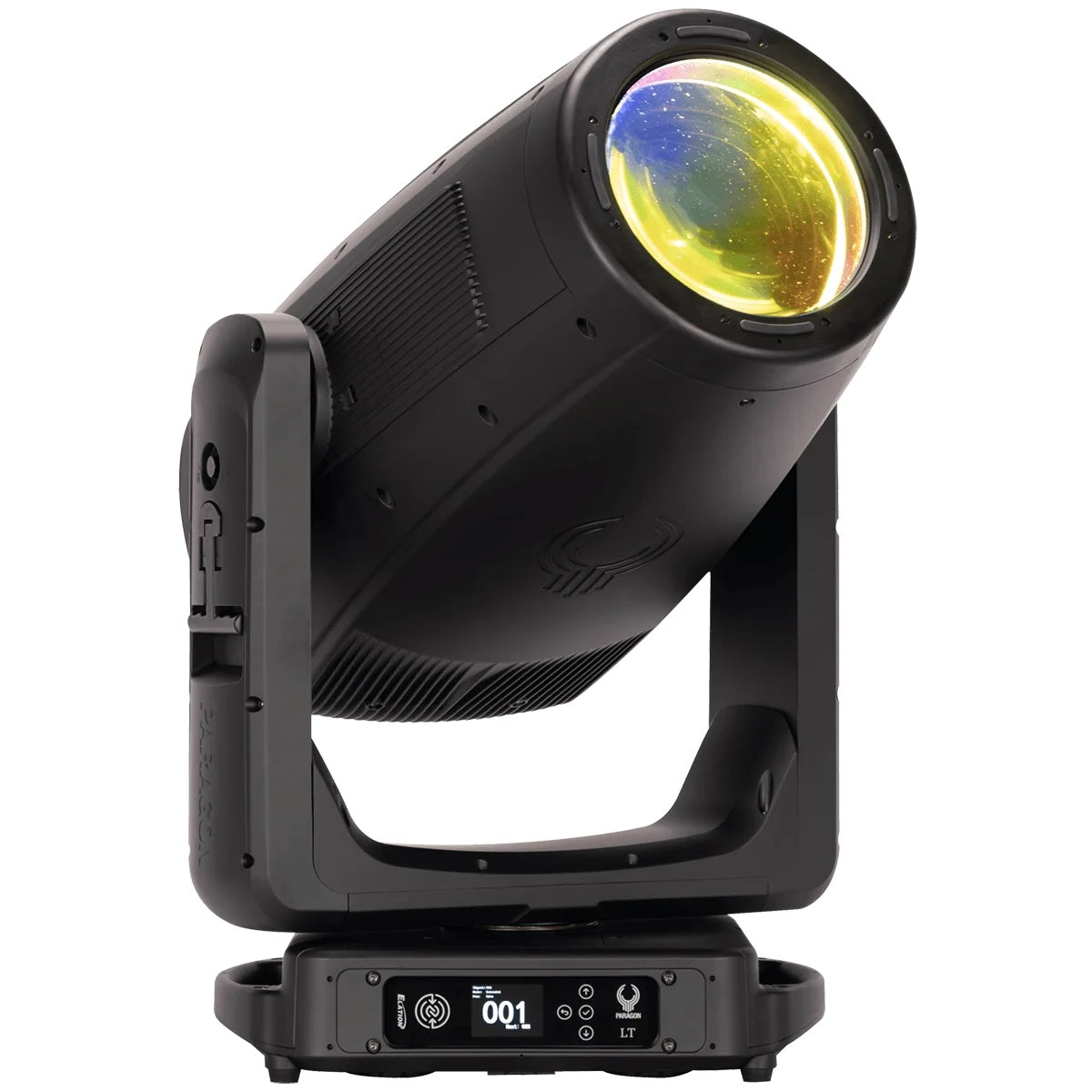

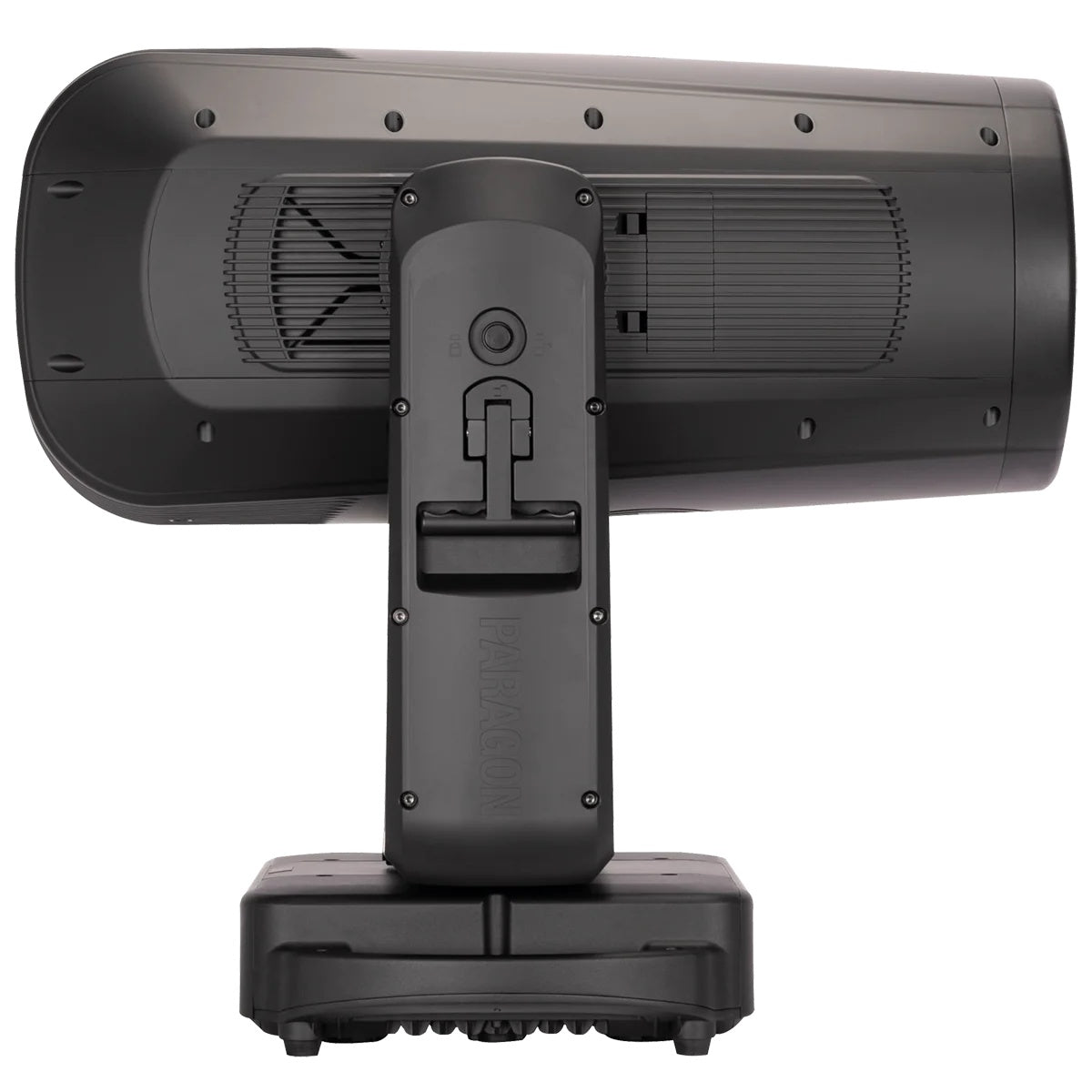

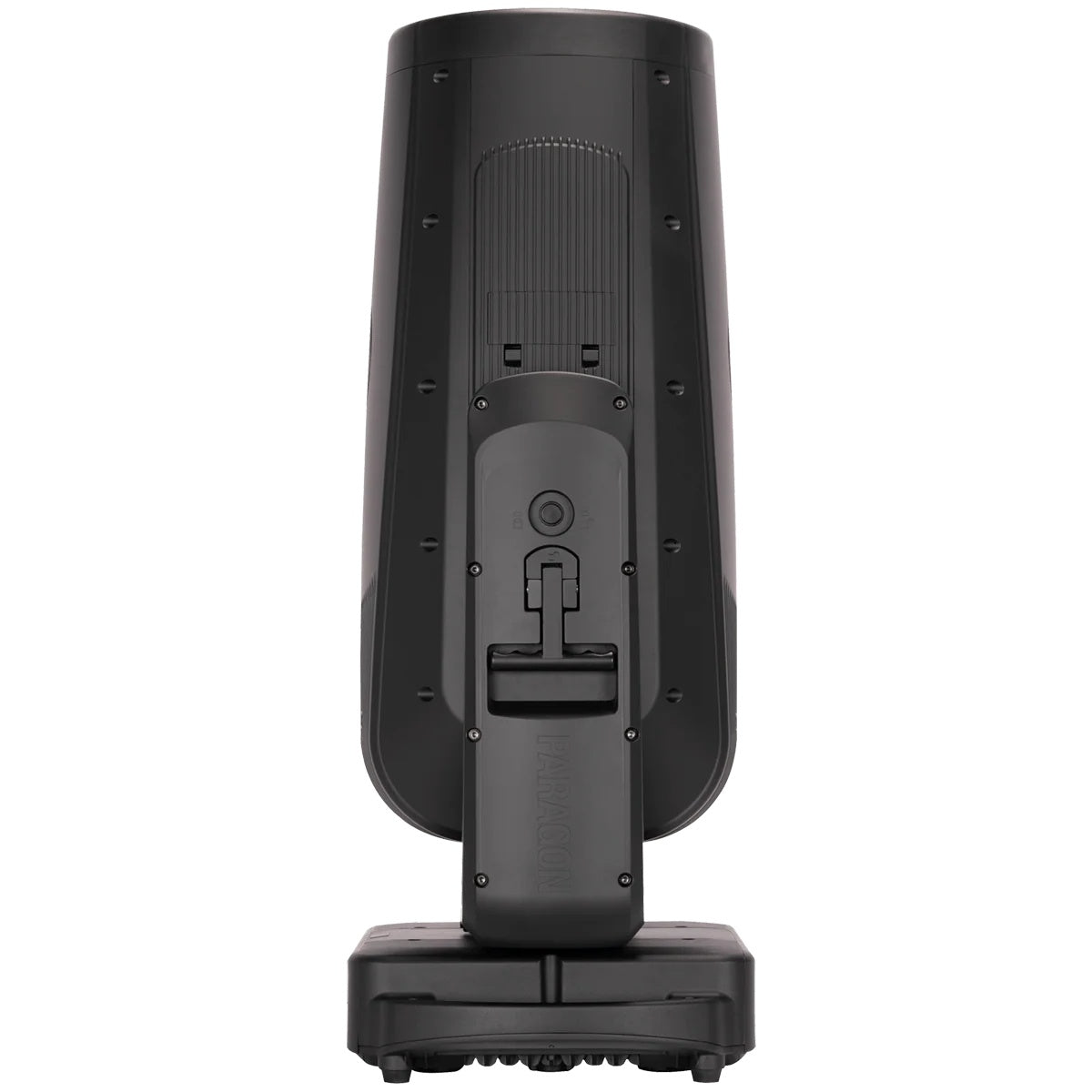

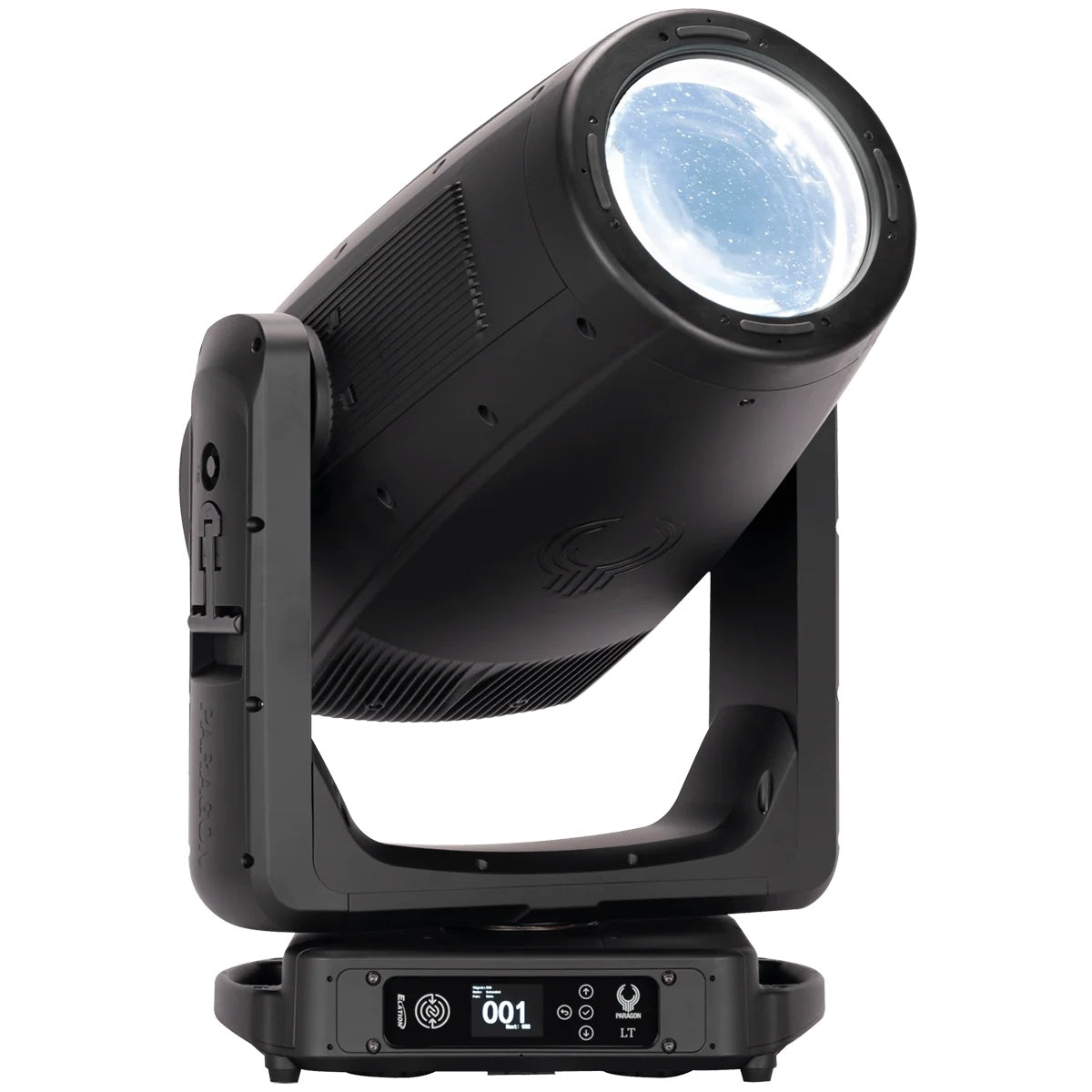

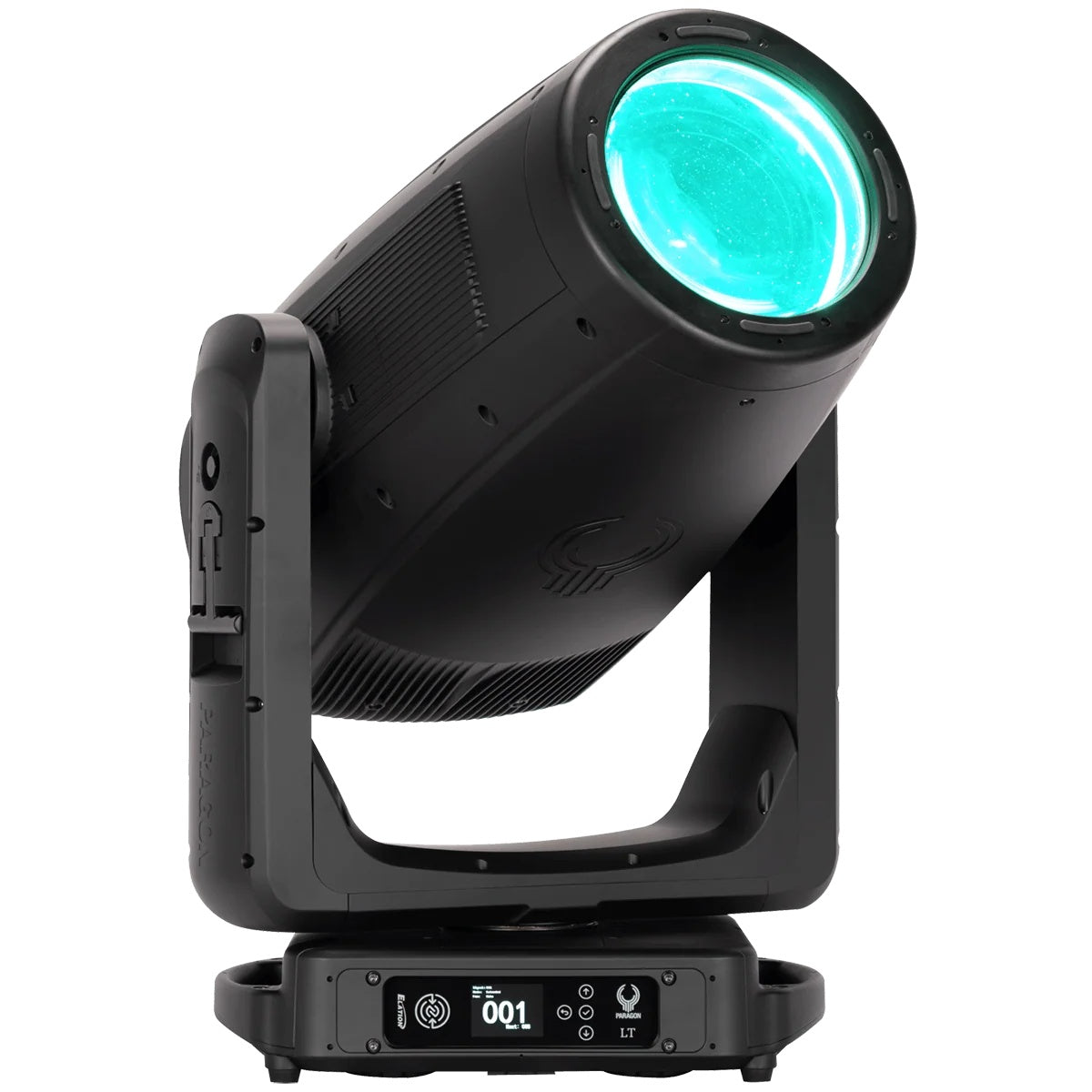

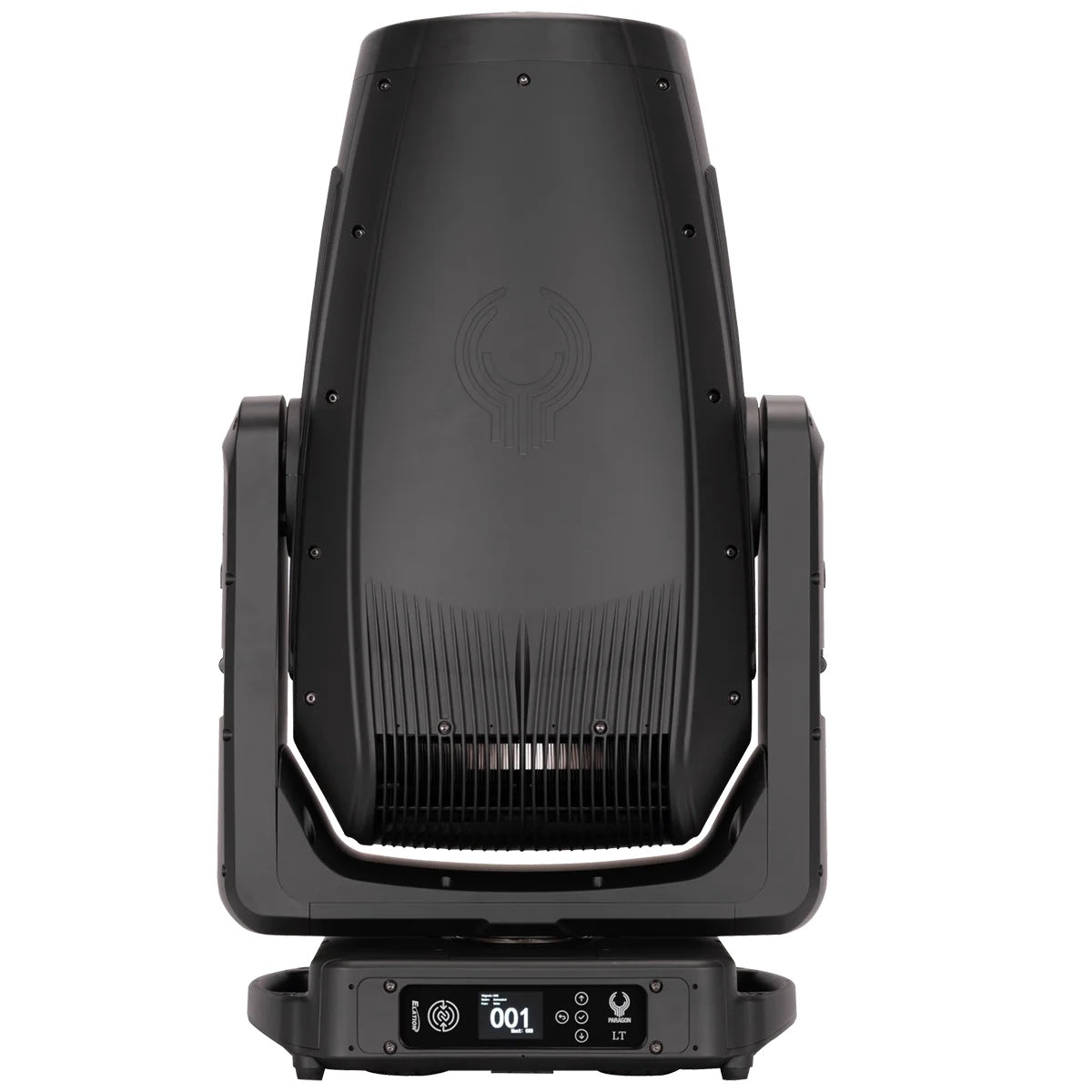

Elation PAR135 Paragon LT 1300W Variable CRI LED Profile Fixture

Elation PAR135 Paragon LT 1300W Variable CRI LED Profile Fixture

SoundPro Item: 208950 | Part Number: PAR135

Regular price $16,995.00
Regular price $18,895.00 Sale price $16,995.00
Your Price Sold out
MSRP: $18,895.00 | MAP: $16,995.00

Usually ships in 5-7 business days

  • TruTone Variable CRI From 73 To 93 For Accurate Color Rendering Across Applications
  • Motorized Zoom With Profile, PC, And Fresnel Lens Options For Versatile Beam Shaping
  • Four Full Blackout Framing Blades With Indexing For Precise Edge Control
  • Bi-Directional Animation Wheel Plus Dual Rotating Prisms Expand Creative FX Options
  • IP54 Fixture Body With IP65 Locking Connectors Supports Outdoor And Install Use
  • DMX, RDM, Art-NET, And sACN Protocol Support With NFC Configuration
  • CMY Color Mixing With CTO Correction And Five Dichroic Colors For Rich Palette Control

The Elation PAR135 Paragon LT is engineered for lighting designers and production companies who need maximum output and versatility from a single moving light. Built around a 1300W high-efficiency LED engine producing up to 50,000 lumens in Turbo Mode, it covers profile, beam, and wash applications without requiring additional fixtures in the rig. The TruTone variable CRI system spans CRI 73 to 93, giving designers control over color rendering that is critical for broadcast environments, concert touring, and high-profile theatrical productions where skin tones and set colors must read accurately under camera.

For live production and touring applications, the PAR135 offers a motorized zoom spanning 3.7 to 49.2 degrees with the standard Profile lens, motorized focus with auto-focus presets, and four full blackout framing blades with plus or minus 45-degree index. The full FX suite includes 4-facet and linear rotating prisms, a bi-directional animation wheel, motorized iris, and two variable frost filters covering light and wash duties. CMY color mixing is standard, with CTO correction and five dichroic colors included. Three gobo wheels, including two sets of seven rotating and indexing interchangeable glass gobos, extend creative range further.

The IP54-rated enclosure and IP65-rated locking connectors for power, DMX, and Ethernet make the PAR135 viable for permanent install and outdoor festival use where environmental exposure is a real concern. Control flexibility covers DMX, RDM, Art-NET, and sACN across four channel modes, with NFC configuration support and a full-color reversible LCD display. Optional PC and Fresnel lenses swap in for different beam characteristics, and the optional SpectraColor RGB module is available as the PAR193 variant for expanded color output.

View full details

Specifications

Certifications
Approvals
CE, cETLus, FCC, UKCA
IP Rating
IP54
Connector IP Rating
IP65
Photometrics
LED Source
High Efficiency 1300W 6500K Variable CRI White LED Engine
LED Life
30,000 hours average
Total Lumen Output at 80 CRI (Integrating Sphere)
44,000 lm
Total Lumen Output at 80 CRI (Goniometer)
34,900 lm
Total Lumen Output Turbo Mode CRI78 (Integrating Sphere)
50,000 lm
Total Lumen Output Turbo Mode CRI78 (Goniometer)
39,600 lm
Variable CRI Range
CRI 73-93

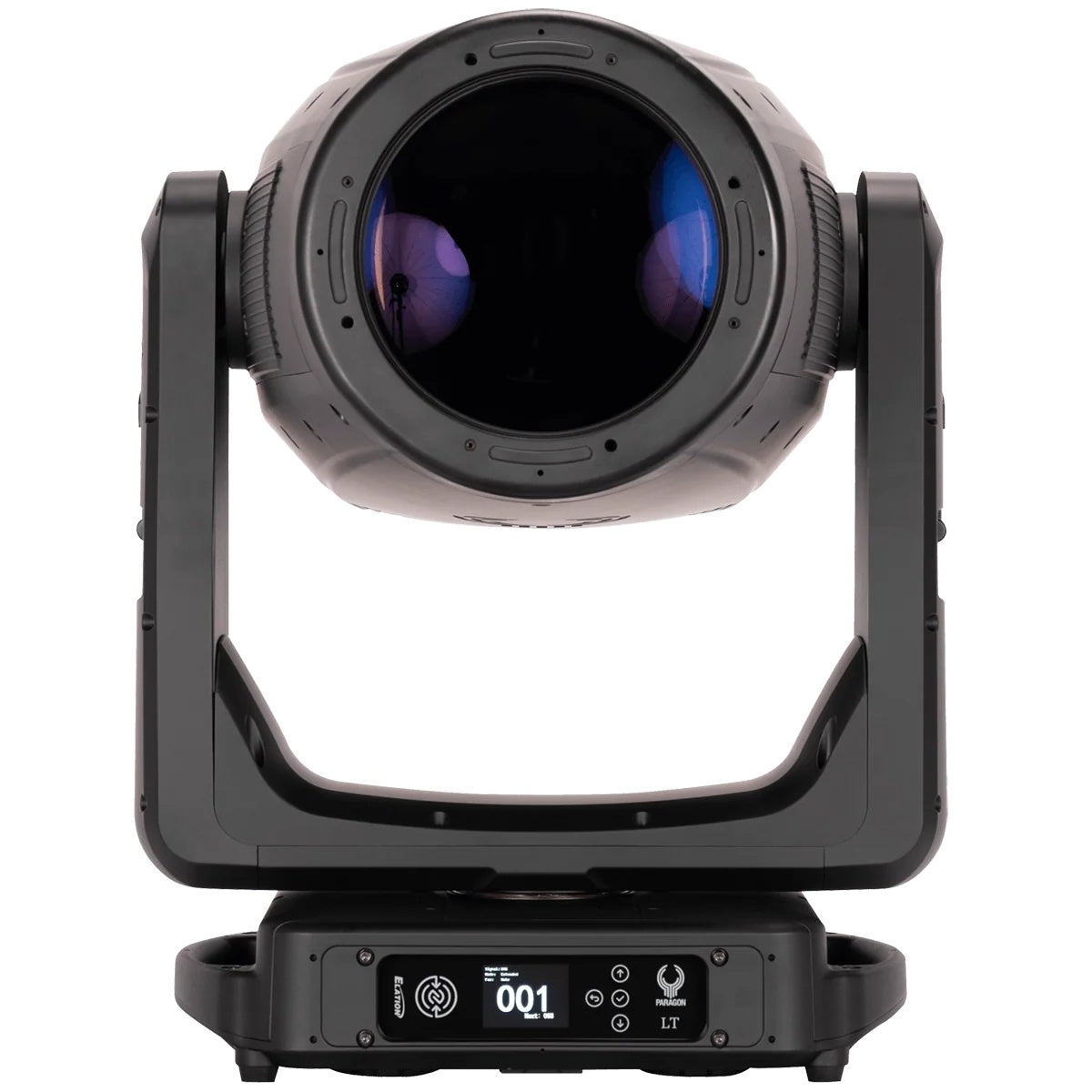

Front Lens Diameter
8" (200mm)
Optics
Profile Lens Zoom Range
3.7° - 49.2°
Profile Lens Beam Angle
3.4° - 43.9°
Profile Lens Field Angle
3.7° - 46.9°
Profile Lens Cutoff Angle
3.8° - 47.8°
PC Lens Zoom Range (optional)
3.5° - 47.2°
PC Lens Beam Angle (optional)
3.5° - 43.4°
PC Lens Field Angle (optional)
5.6° - 47.2°
PC Lens Cutoff Angle (optional)
6.5° - 48.6°
Fresnel Lens Zoom Range (optional)
5° - 52.9°
Fresnel Lens Beam Angle (optional)
5° - 46.7°
Fresnel Lens Field Angle (optional)
10° - 52.9°
Fresnel Lens Cutoff Angle (optional)
15.1° - 59.9°
Effects
Zoom
Motorized
Framing Blades
4 Full Blackout, +/-45° Index, +/-120° Framing Index
Animation Wheel
Full 360° Bi-Directional with Variable Angle and Index Orientation
Prisms
4-Facet and Linear Rotating
Frost Filters
2 Variable (Light and Wash)
Iris
Motorized with Variable Pulse Effects
Dimming
Variable 16-bit Dimming Curve Modes
Shutter
High Speed Electronic Shutter and Strobe
LED Refresh Rate
DMX Controllable
Ultra Dimming
25,000Hz
Pan Angle
540°
Tilt Angle
260°
Motionless Reset
Yes
Color
Color System
CMY Color Mixing Array
Optional Color
SpectraColor RGB Array
CTO
Linear CTO Color Correction
Dichroic Colors
5 including Quad Color
Gobos
Gobo Wheels
3
Rotating/Indexing Glass Gobos
2x 7 Interchangeable Glass Gobos
Fixed Metal Gobos
5
Connectivity
DMX Channels
44 / 67 / 47 / 73 (4 modes)
Dimming Control
16-bit
Pan/Tilt Control
16-bit
Protocols
DMX, RDM, Art-NET, sACN

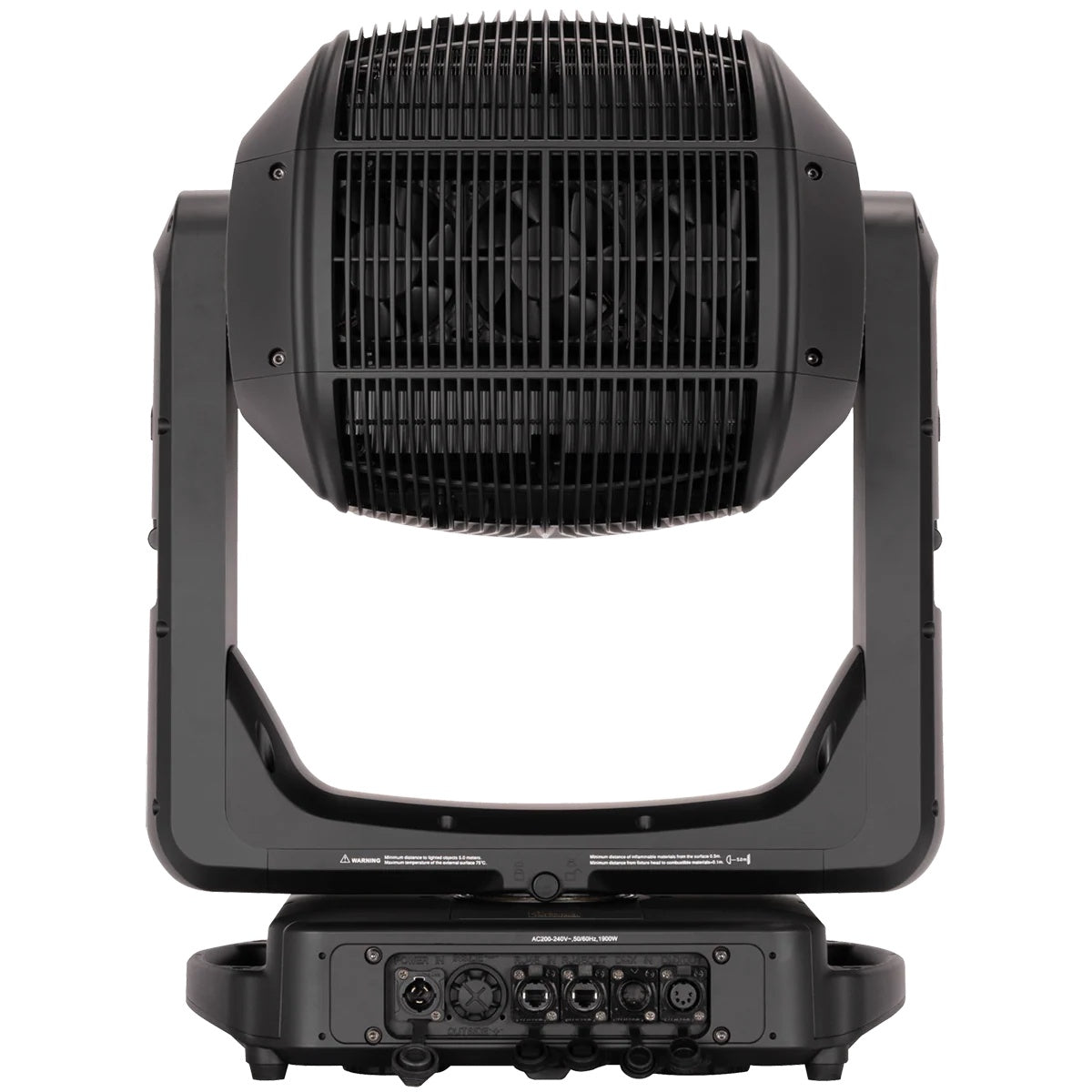

DMX Connectors
IP65 Locking 5-pin XLR In/Out
Ethernet Connectors
IP65 Locking RJ45 In/Out
Power Connector
IP65 Locking
NFC
Yes
Controls
Control Panel
(4) Button Touch Control Panel
Display
Full Color 180° Reversible LCD Menu Display
Hibernation Mode
Yes
Dimensions
Length
19.4" (492mm)
Width
12.4" (315mm)
Height
32.7" (830mm)
Weight
Product Weight
96.1 lbs (43.6 kg)
Weight With RGB Module
97.9 lbs (44.4 kg)
Electrical
Input Voltage
AC 200-240V 50/60Hz
Max Power Consumption
1900W
Operating Temperature
-4°F to 113°F (-20°C to 45°C)
Included Items

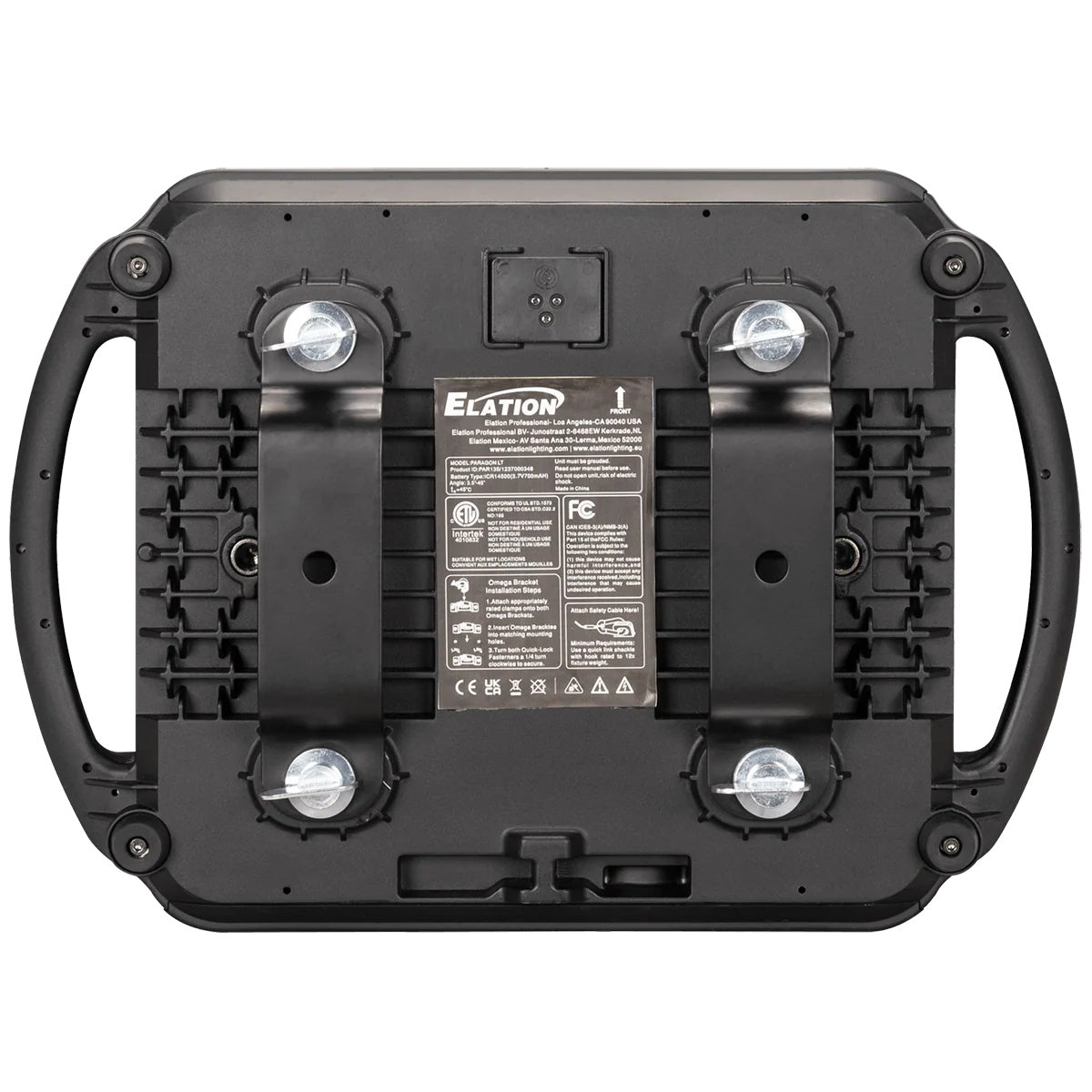

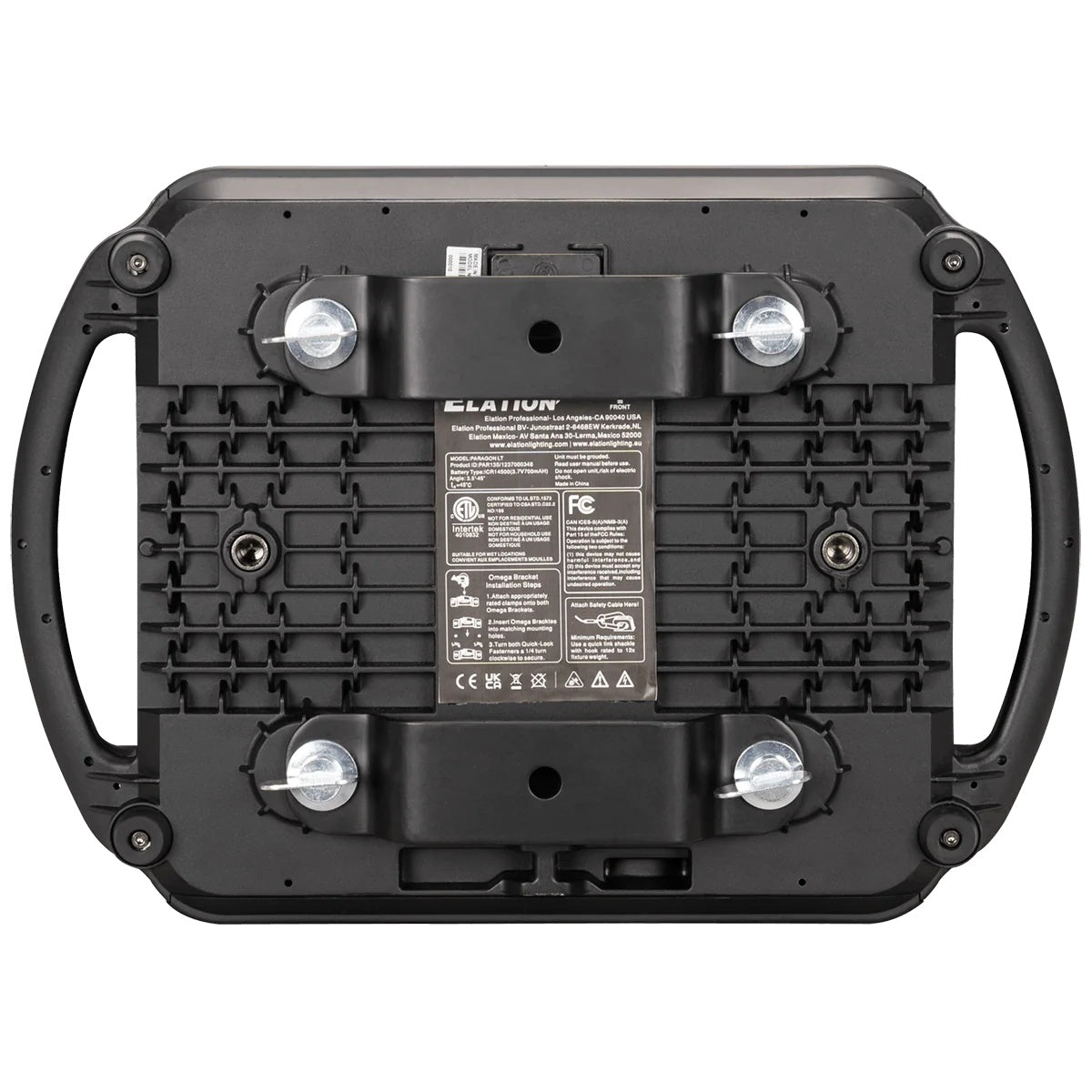

Omega Brackets
x2
Power Cable
IP65 Rated Locking Power Cable
Safety Cable
Stainless Steel
Foam Inlay
Yes
Shipping
Package Weight
133 lbs
Package Length
30"
Package Width
30"
Package Height
24"
Identifiers
UPC
810008265611
Firmware Version
V1.6.3
