Elation PIXEL DRIVER 4000 V3
Elation PIXEL DRIVER 4000 V3
SoundPro Item: 141958 | Part Number: PIX698
Usually ships in 5-7 business days
- Power/Data Supply for Elation PIXEL TAPE 16IP, 40IP, PIXEL BAR 30IP, 60IP, 120IP, and PIXEL WASH 40IP
- Simple On-Board Manual Dimming and Strobe Control
- Kling-Net, Art-Net, and sACN Protocol Support
- 4,080 Max Pixel Mapping via Kling-Net, Art-Net and sACN (1,020 Pixels per Port)
- 10 Artnet / sACN Universes per Port (1,020 Pixels per Port)
- 19-inch (483mm) Rack Mount Kit Included

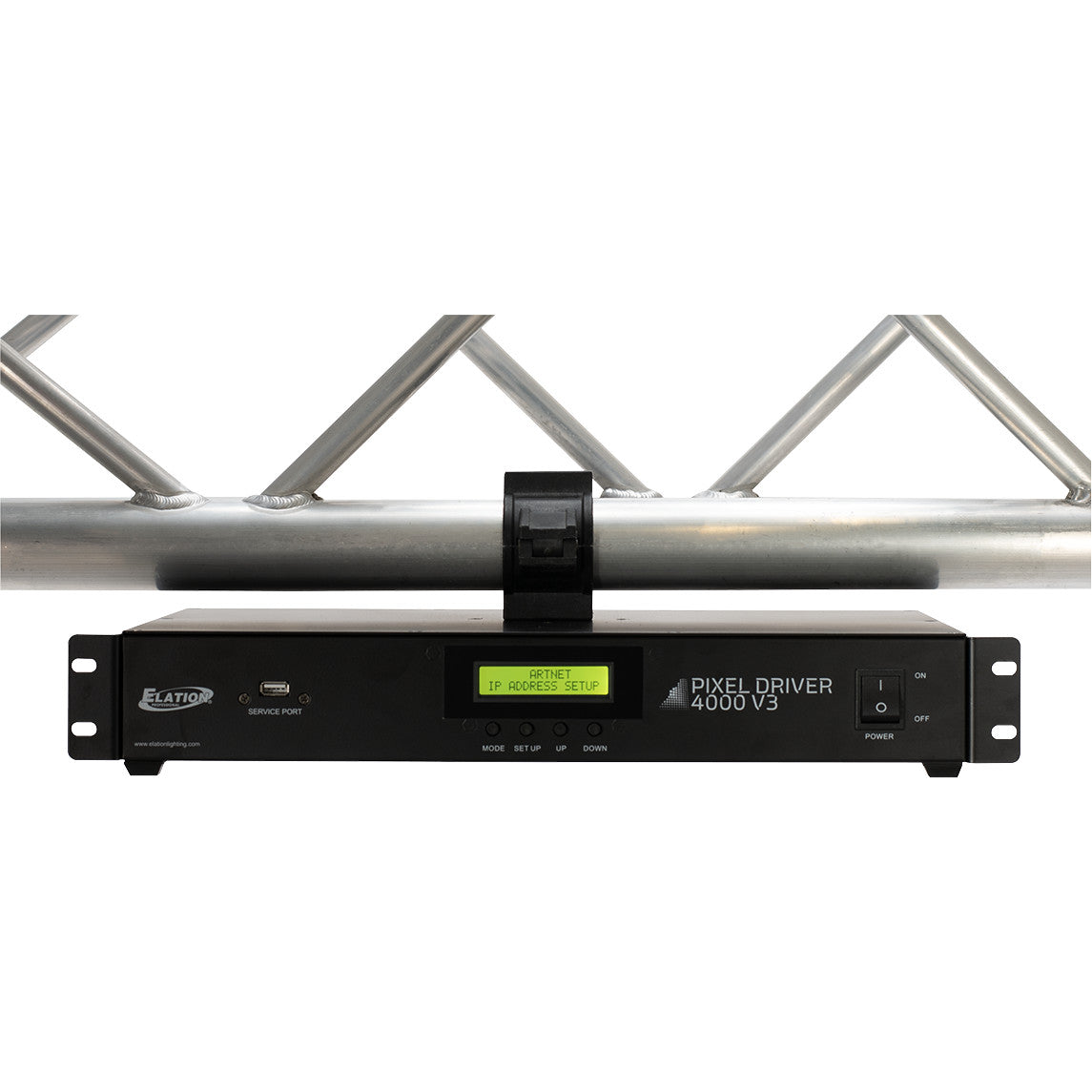

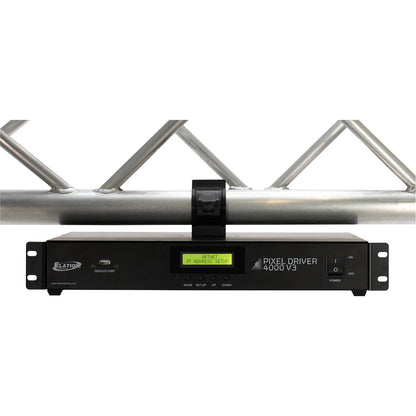

- Truss Mounting Options (clamp not included)
- Multi Unit Linking via RJ45 Ethernet
- (4) Outputs
- 5.65ft (1.7m) Power Cable Included

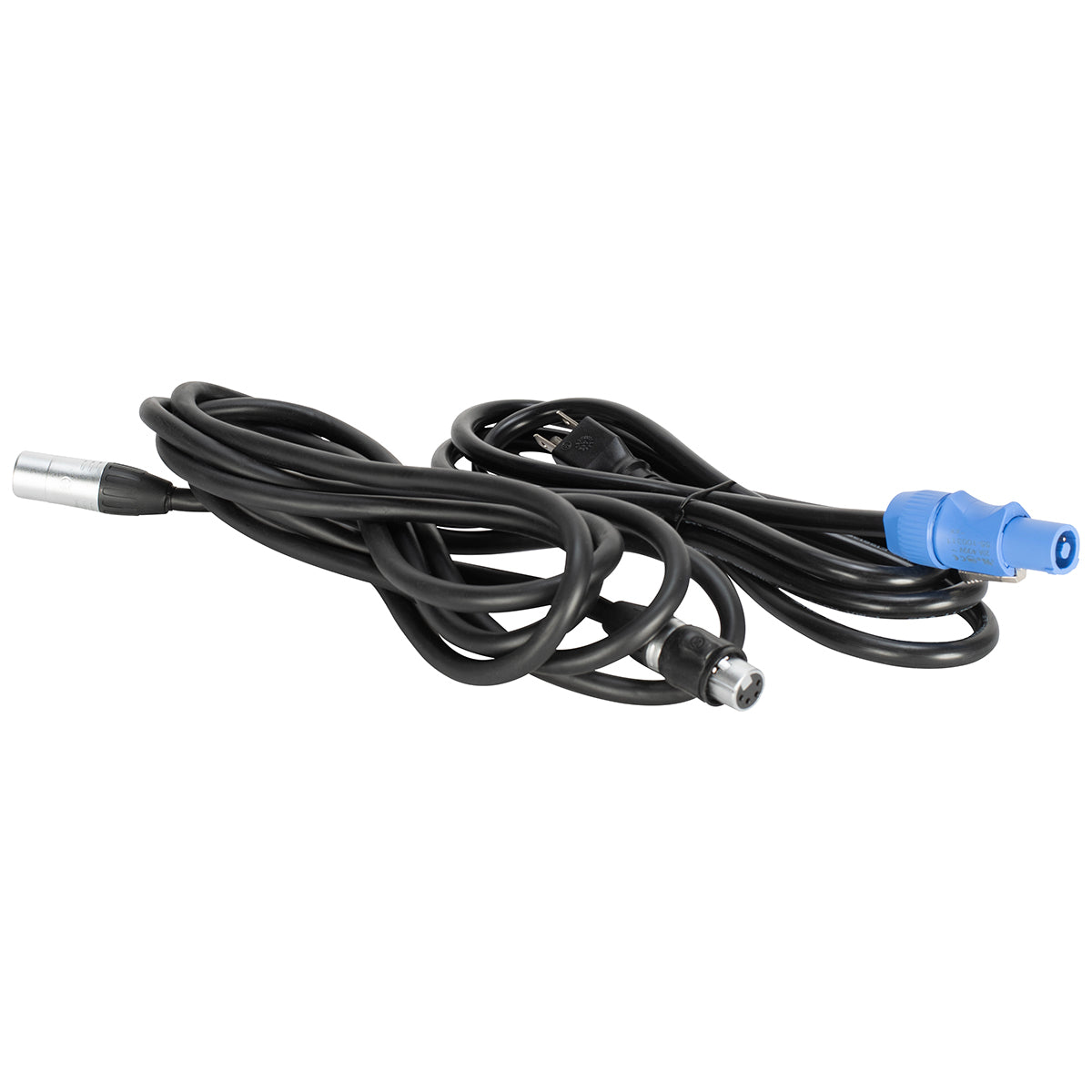

- 9.25ft (2.8m) 16AWG Power/Data Cable Included

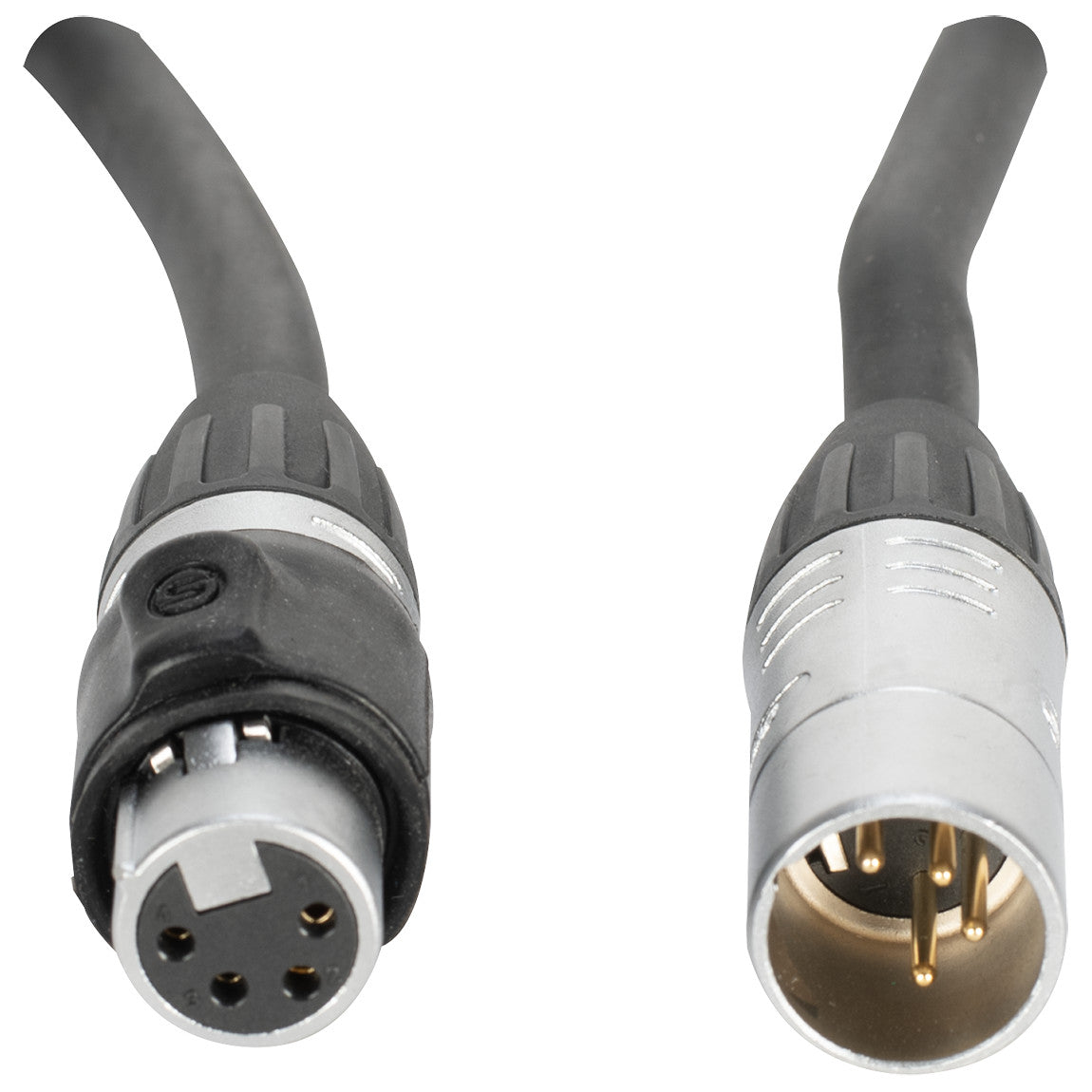

- Proprietary IP Rated Power/Data Combo Cables
- Available in, 16AWG; 2/3/5/10/12/15/20/25/30/50 Foot Lengths and 12AWG; 20/25/30/50 Foot Lengths
PIXEL DRIVER 4000 V3™ is designed specifically for the Elation PIXEL TAPE 16IP, 40IP, PIXEL BAR 30IP, 60IP, 120IP series and PIXEL WASH 40IP, and provides easy and versatile control options including simple on-board manual dimming and strobe control, and full pixel mapping control of 4,080 max pixels, 1,020 pixels per port, via Kling-Net, Art-Net and sACN (streaming ACN) protocols.

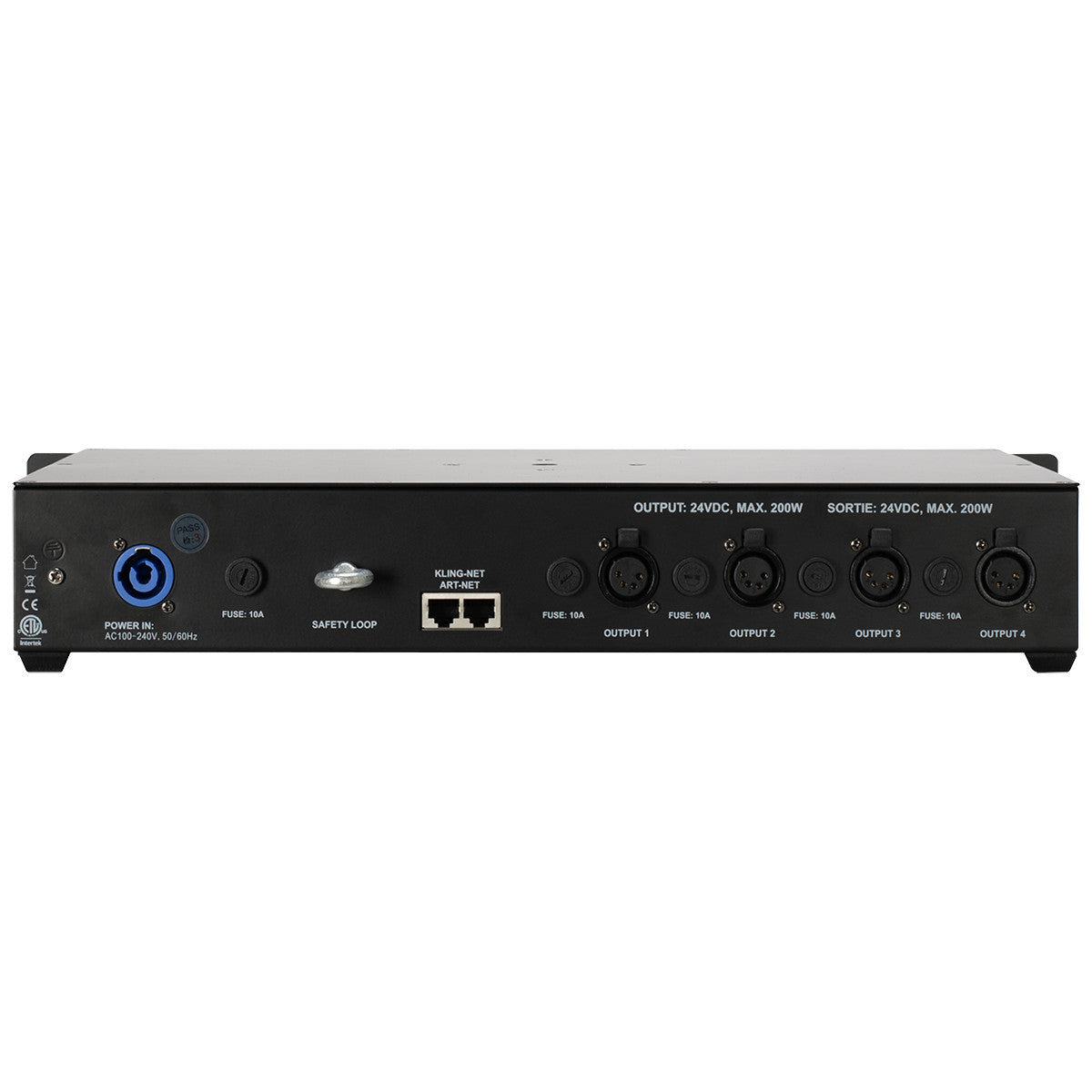

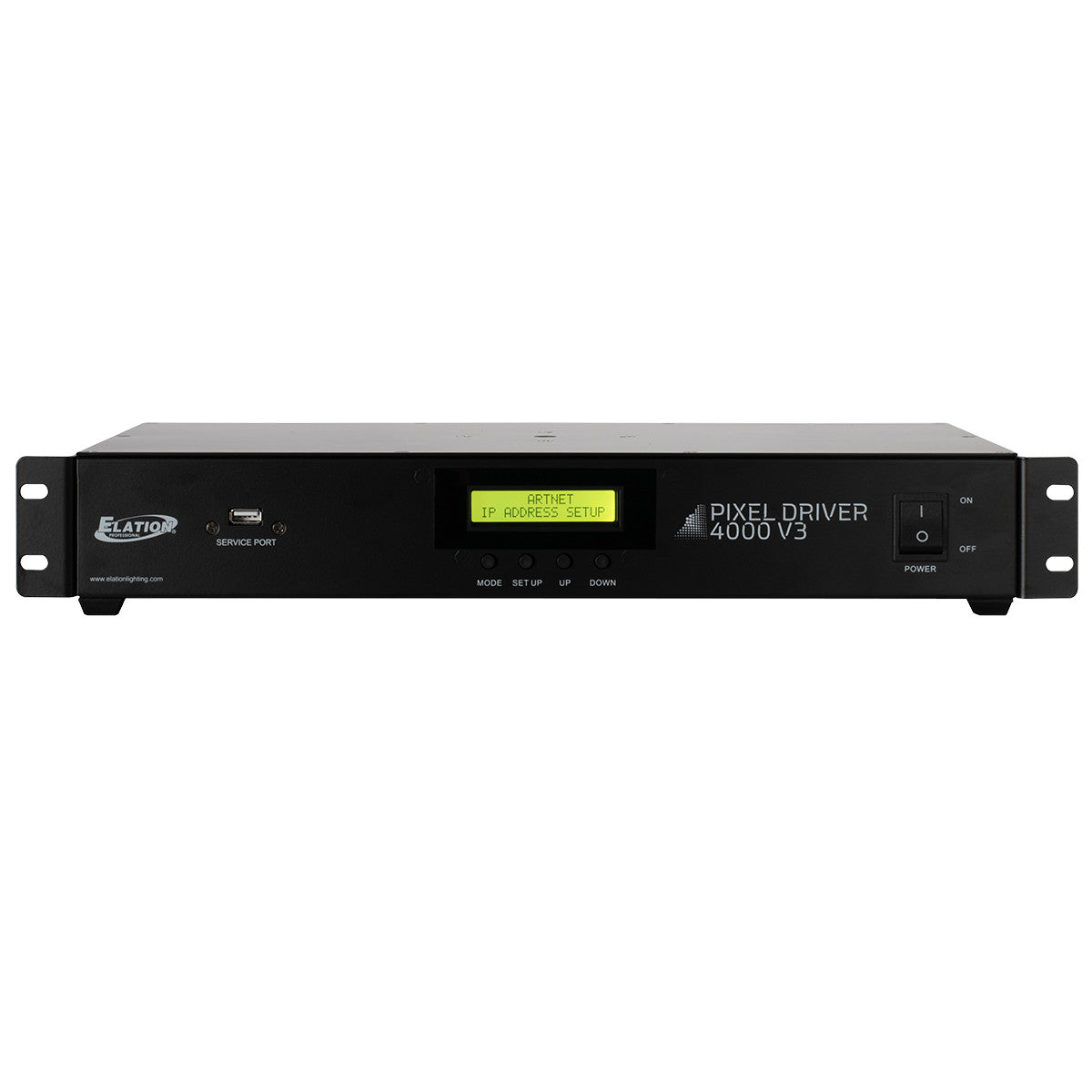

The PIXEL DRIVER 4000 V3 features a universal auto switching power supply (100-240v), a 4-button LCD control menu display, RJ45 Ethernet in/out ports, and (4) outputs which use proprietary IP rated 4pin combo cables (sold separately) that supply power and data to each pixel product, (available in lengths from 2 to 50 feet). The PIXEL DRIVER 4000 V3 can be mounted in a standard 19-inch rack (rack ears included) or attached to truss with a clamp (not included).
