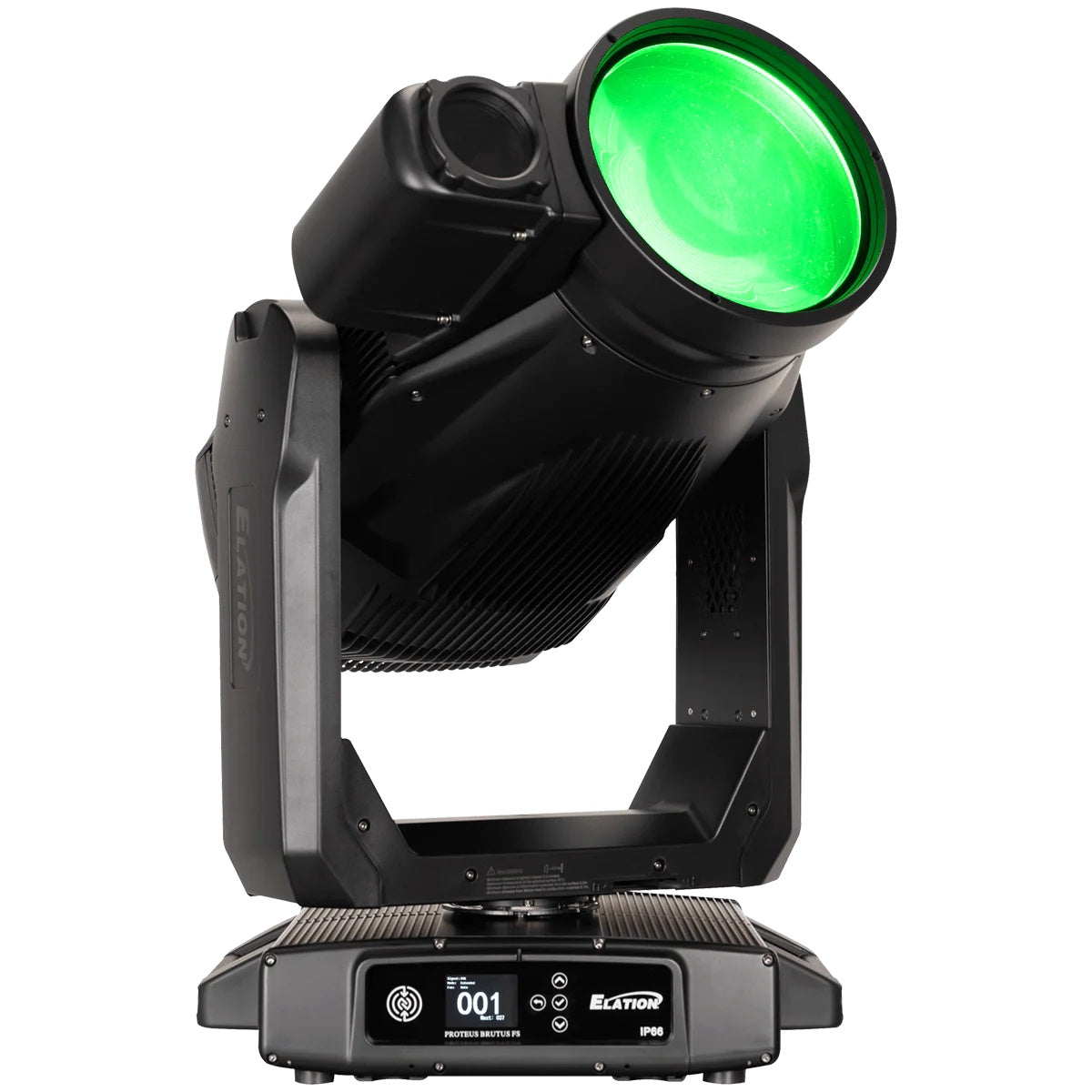

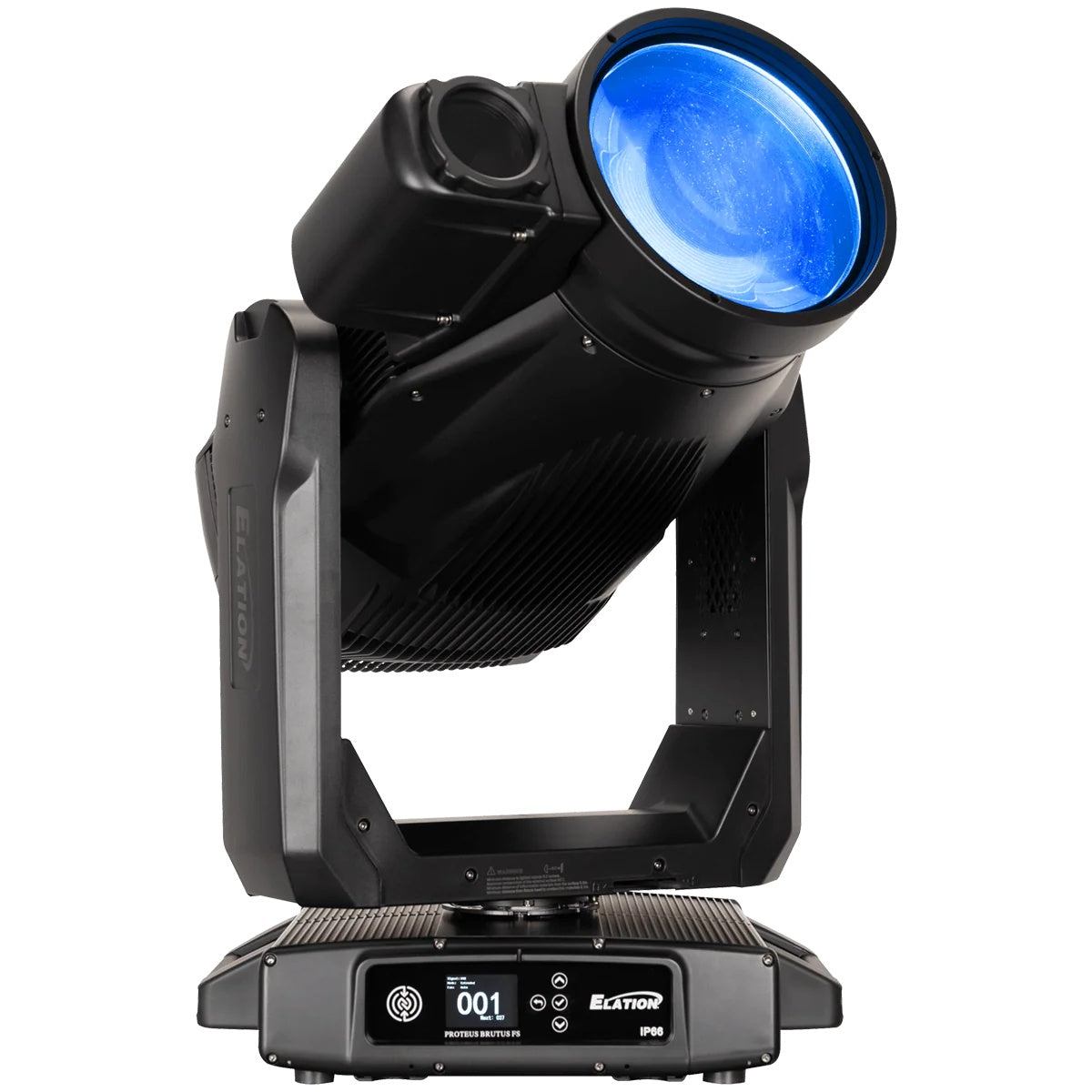

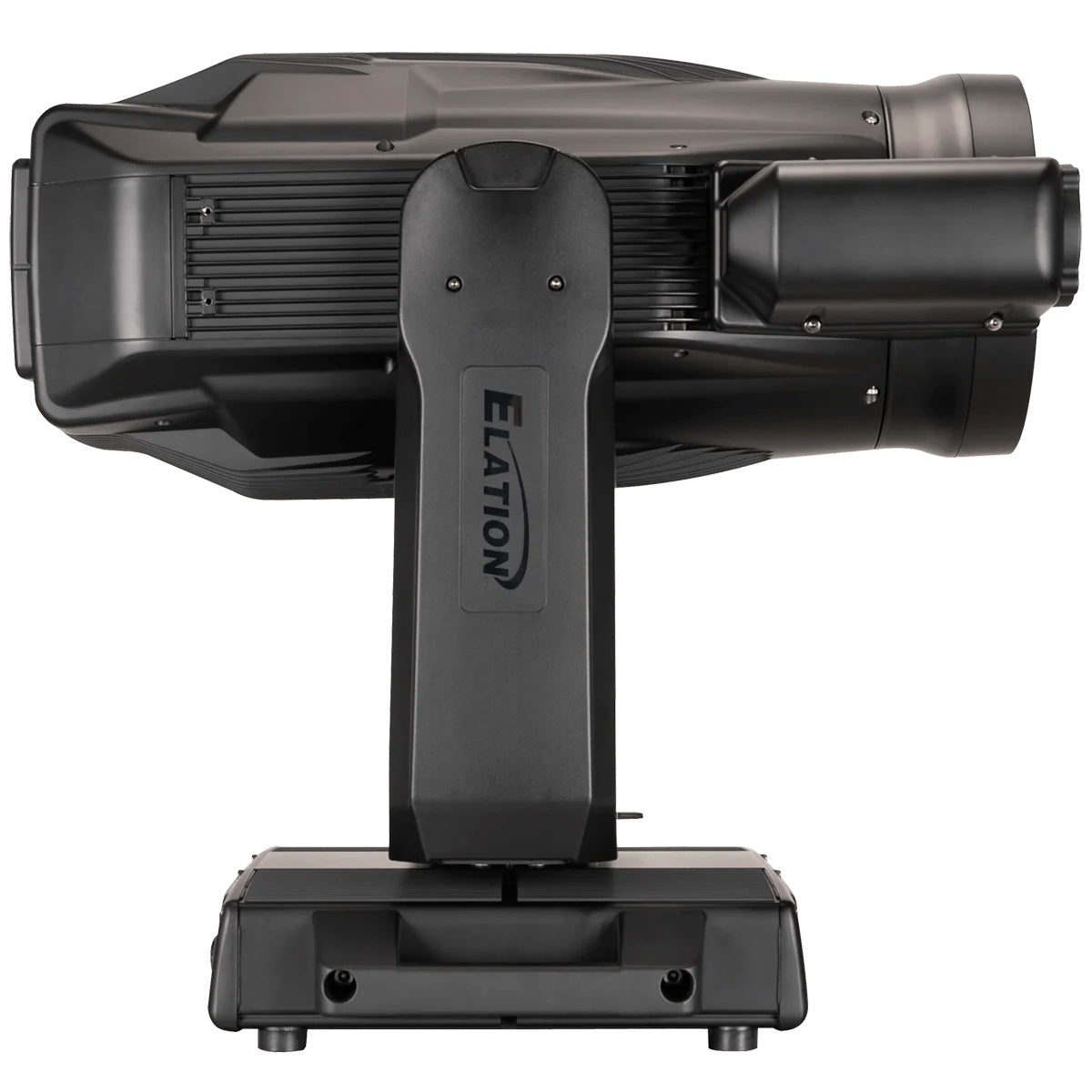

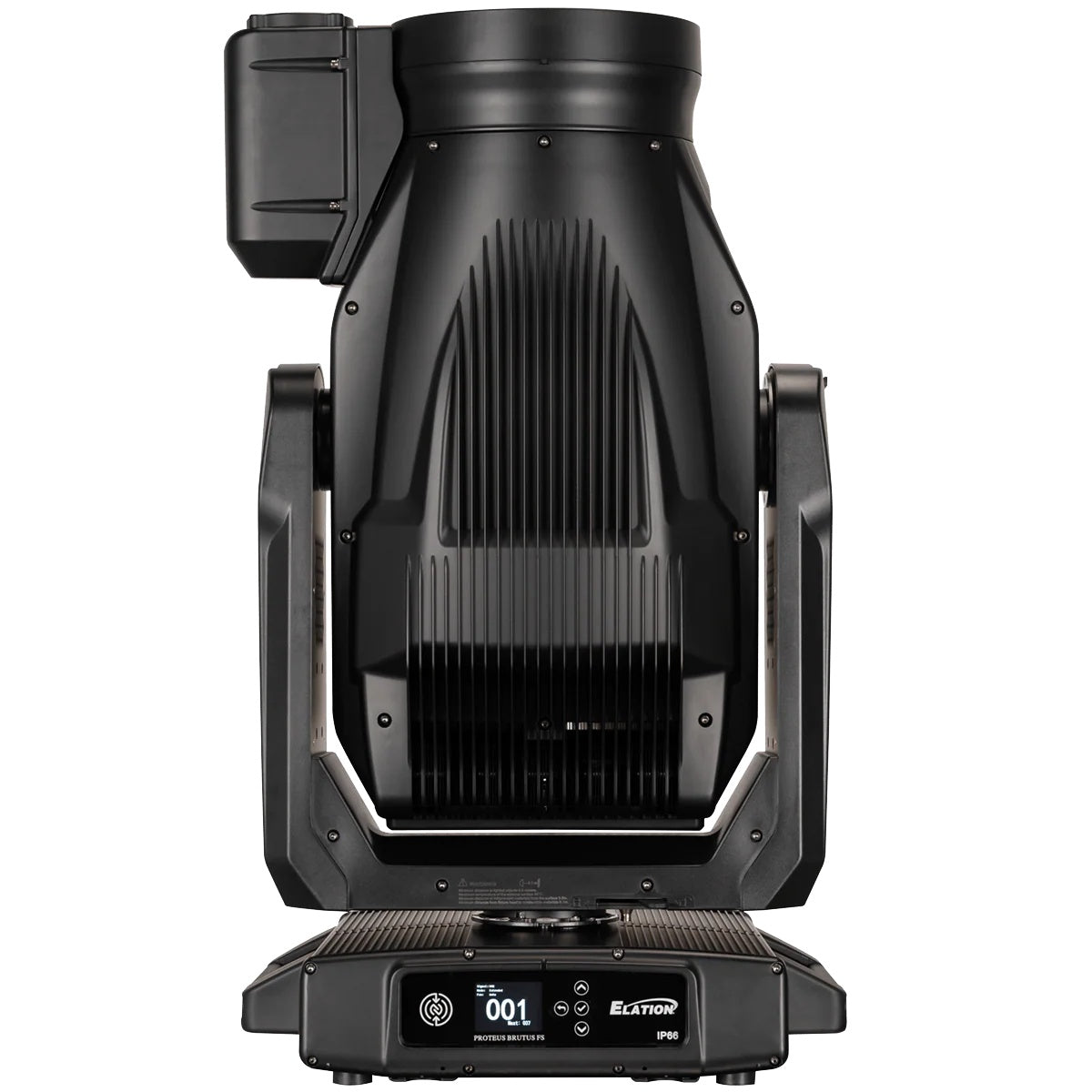

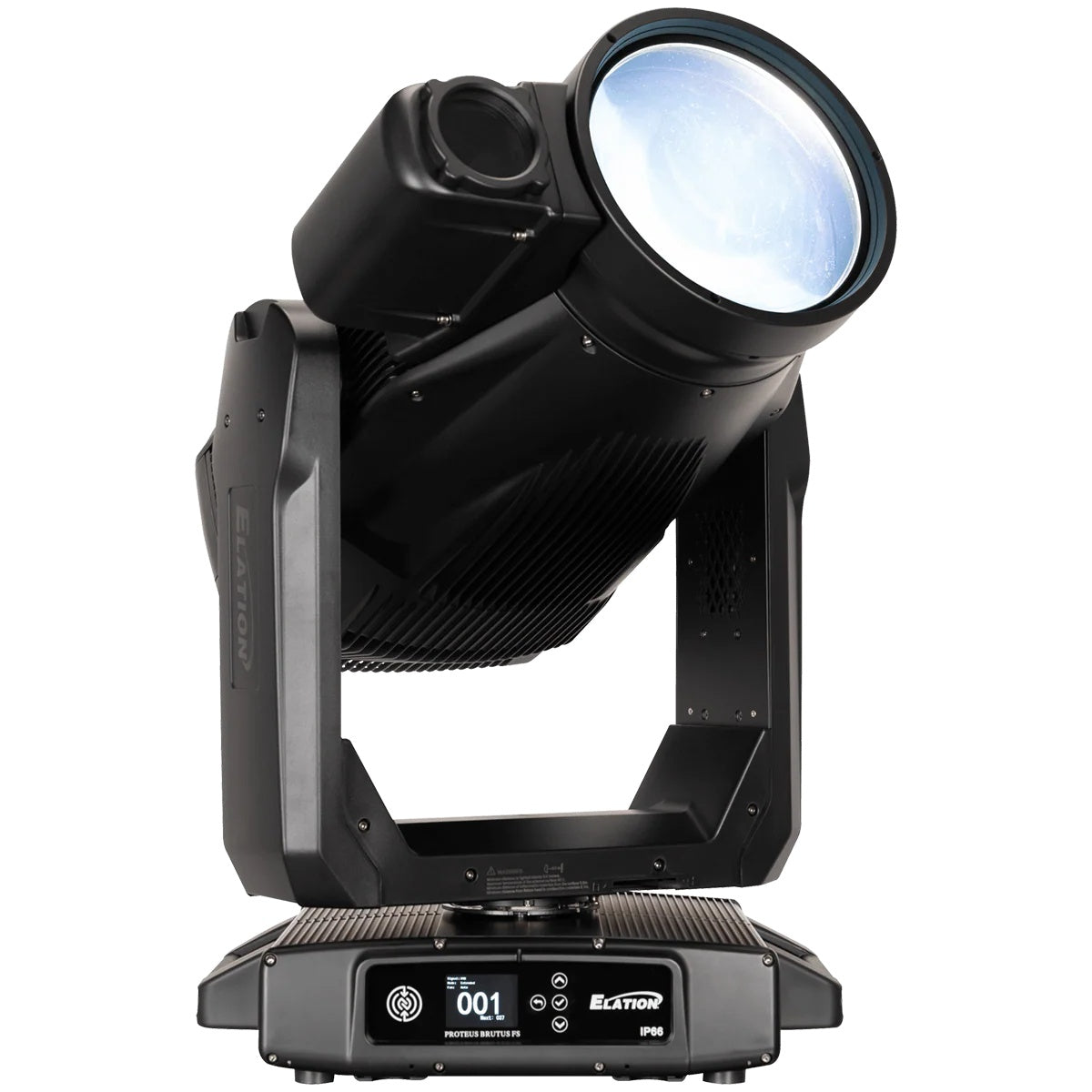

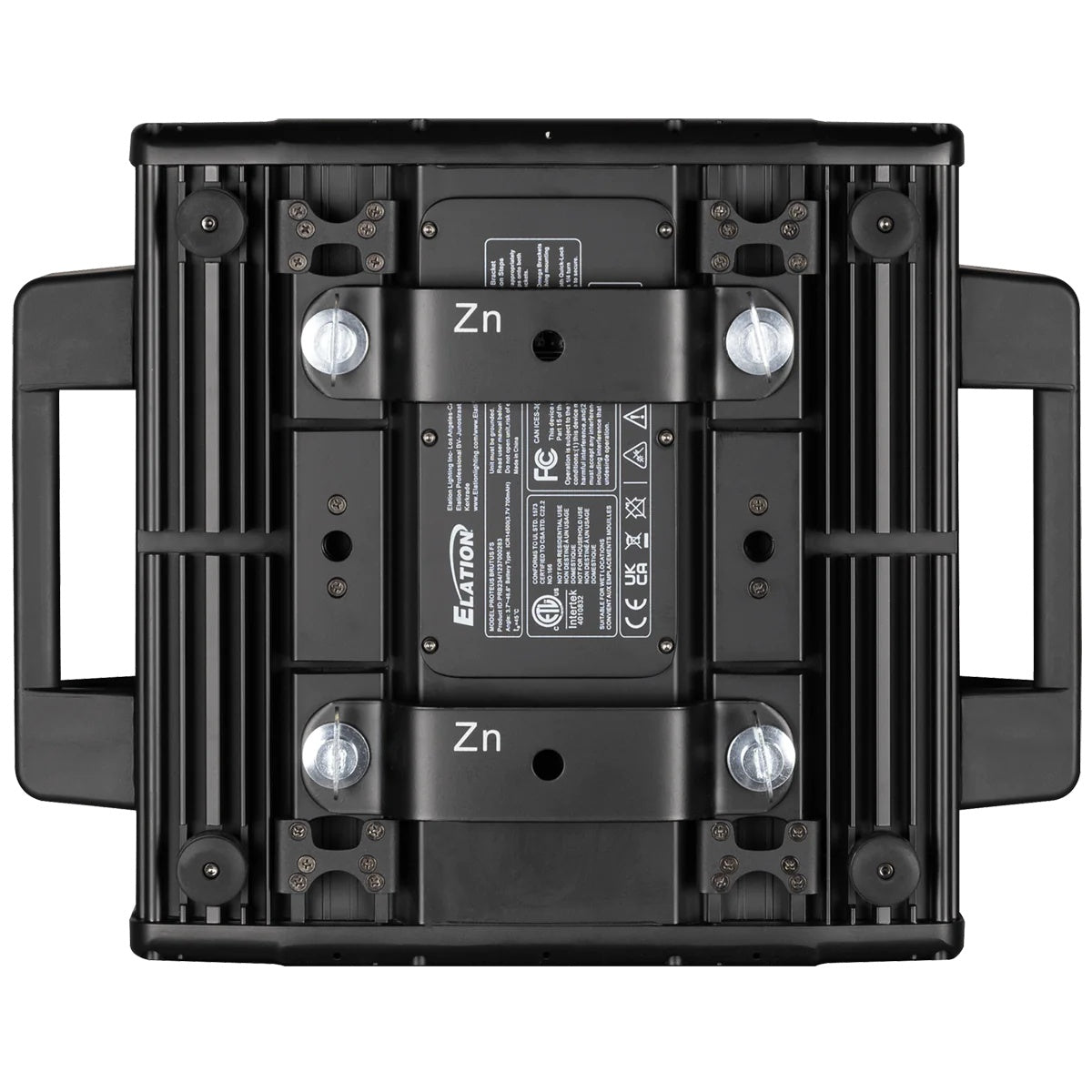

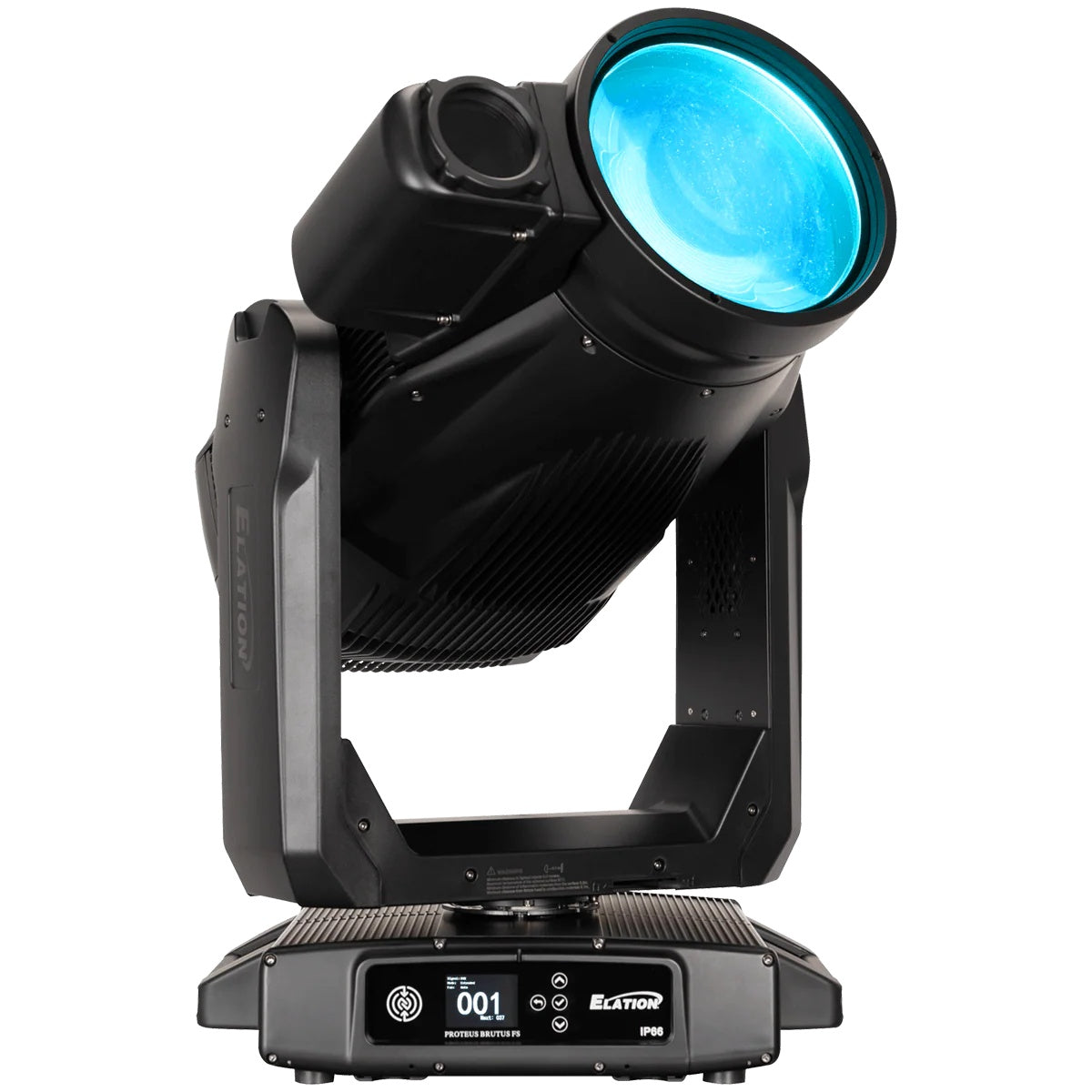

Elation PRB234 PROTEUS BRUTUS FS LED Follow Spot

Elation PRB234 PROTEUS BRUTUS FS LED Follow Spot

SoundPro Item: 144275 | Part Number: PRB234

$15,525.00
$15,525.00 $15,525.00
Your Price Sold out
MSRP: $15,525.00 | MAP: $15,525.00

Usually ships in 5-7 business days

  • 1200W 6,500K Bright White LED Engine With 30,000 Hour Average Life
  • Motorized Zoom, Focus, Iris, And Electronic Shutter For Precise Beam Control
  • IP66 Environmental Rating For Indoor And Outdoor Applications
  • CMY Color Mixing With Adjustable CRI Filter Achieving 70+ To 90+ Rendering
  • DMX, Art-NET, And sACN Protocol Support With 16-Bit Pan And Tilt Control
  • Optional Camera Integration For NDI, HD-SDI, And Automated Tracking Systems
Log in or register for YOUR best price

The PROTEUS BRUTUS FS is purpose-built for touring and installed follow spot applications where brightness, reliability, and color control matter. With a 1200W 6,500K LED engine rated IP66, it excels in medium to long throw follow spot work—from theater to live concert production to outdoor events. The 3.5° to 35° zoom range and motorized focus deliver the precision that follow spot operators demand, while CMY color mixing with CRI adjustment (70–90) ensures skin tones remain natural across color washes.

Operation is flexible: use the removable handles for manual tracking, or integrate with any standard automated remote tracking system via DMX, Art-NET, or sACN. The fixture supports optional camera integration (Marshall Electronics, Aida Imaging NDI, Hanwha Vision, BirdDog) for automated tracking workflows in larger productions. At 119.1 lbs and rated for continuous outdoor use, the PROTEUS BRUTUS FS handles both touring rental demands and permanent install rigging with the durability required in professional AV.

View full details

Specifications

Source
LED Power|1200W
Color Temperature|6,500K
Average LED Life|30,000 hours
Photometric Data
Illuminance @ 20m|16000 lx (1470 fc)
Color Rendering Index|70+ (90 with adjustable HCRI Filter)
Zoom Range|3.5° - 35°
Beam Angle|2.9° - 35°
Field Angle|3.8° - 41°
Effects
Motorized Zoom|Yes
Beam Mode|Long Throw / Ultra Long Throw
Motorized Focus|Yes
Motorized Iris|Yes
Variable Frost Filter|Yes
Dimming Modes|16-bit Variable Curve
Shutter|High Speed Electronic Strobe
Pan Range|540°
Tilt Range|260°
Color Control
Color System|CMY Mixing
Color Correction|Linear CTO
CRI Adjustment|CRI 70 - CRI 90
Gobo System
Rotating / Indexing Gobos|5 Metal Interchangeable
Control
DMX Modes|27 / 36 Channels
Control Panel|4 Button Touch With 180° Reversible LCD
Protocols|DMX, RDM, Art-NET, sACN

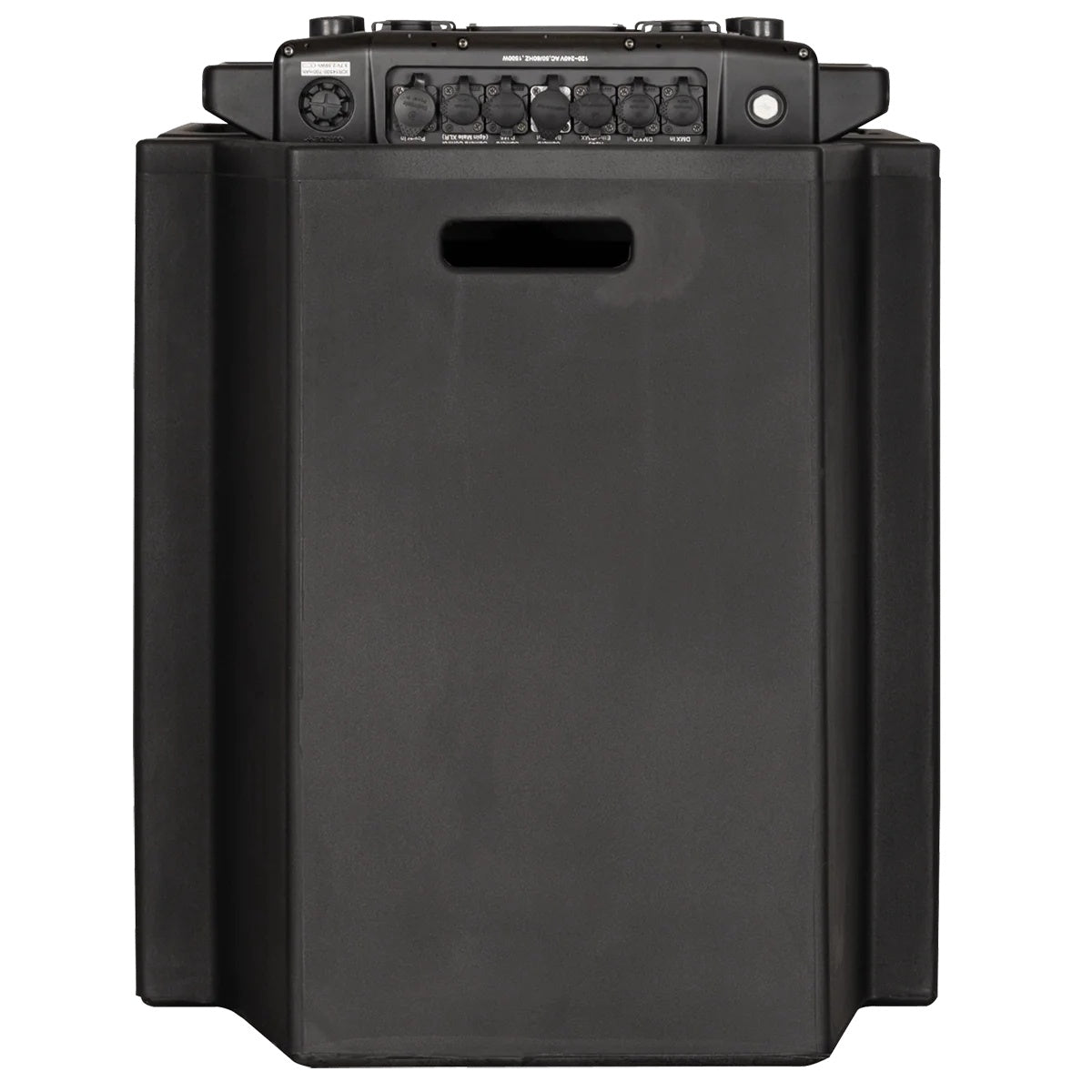

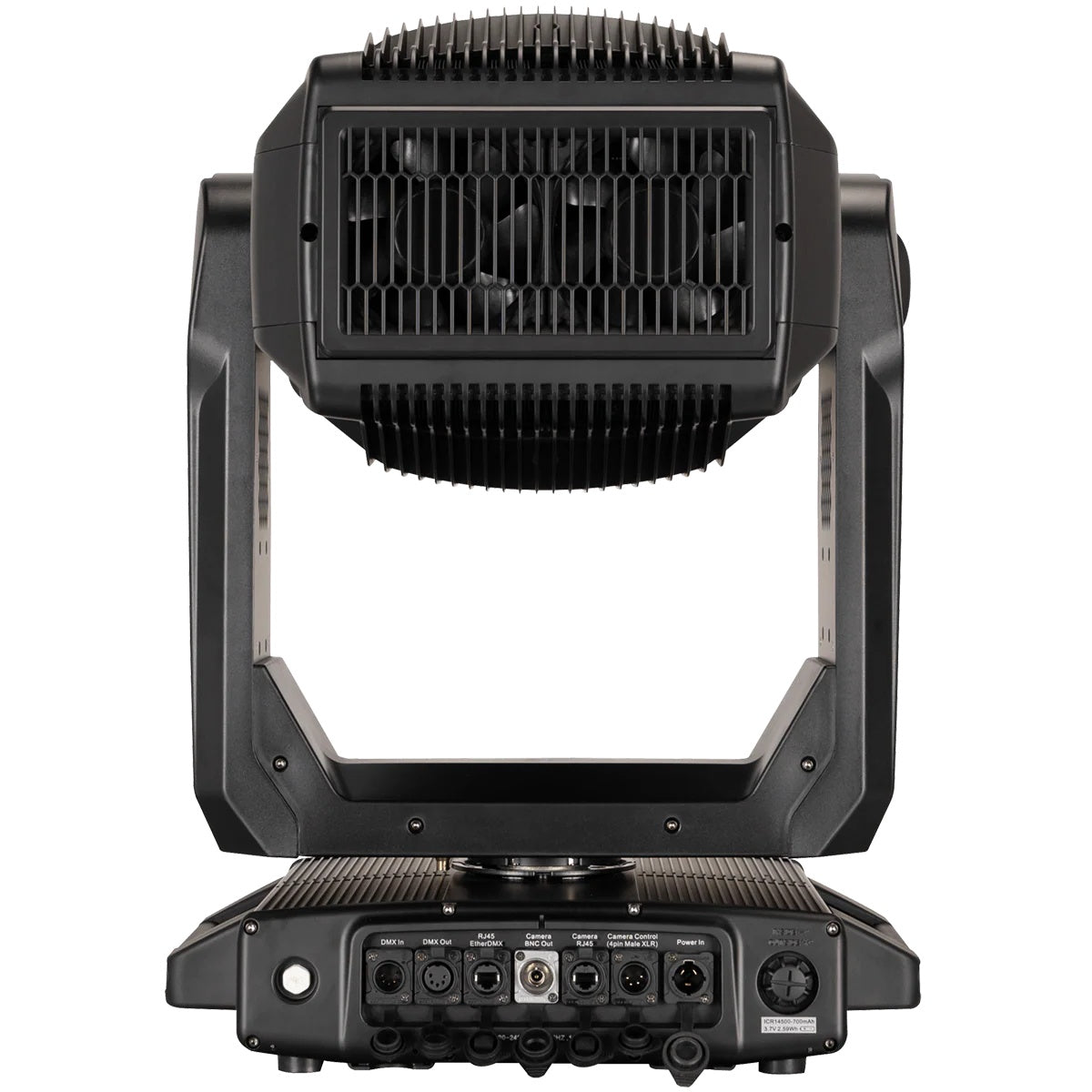

Connectivity
DMX|5pin XLR In/Out
Ethernet|IP65 RJ45 In
Power|IP65 Locking Cable In
Camera Connections|NDI (RJ45 with POE++), HD-SDI (BNC), AUX (4pin XLR), 12V Power
Camera Compatibility
Supported Models|Marshall Electronics CV350 / CV355 / CV5056, Aida Imaging NDI 200 / NDI3-300, Hanwha Vision SNZ6320 / SNZ6320A, BirdDog PF120
Dimensions
Length|18.40"
Width|14.60"
Height|32.50"
Weight
Unit Weight|119.10 lbs
Electrical
Voltage|AC 120-240V 50/60Hz
Max Power Consumption|1,500W
Operating Temperature|-4°F to 113°F
Certifications
Environmental Rating|IP66
Compliance|CE, cETLus, UKCA, FCC
Identifiers
UPC|840063546974
