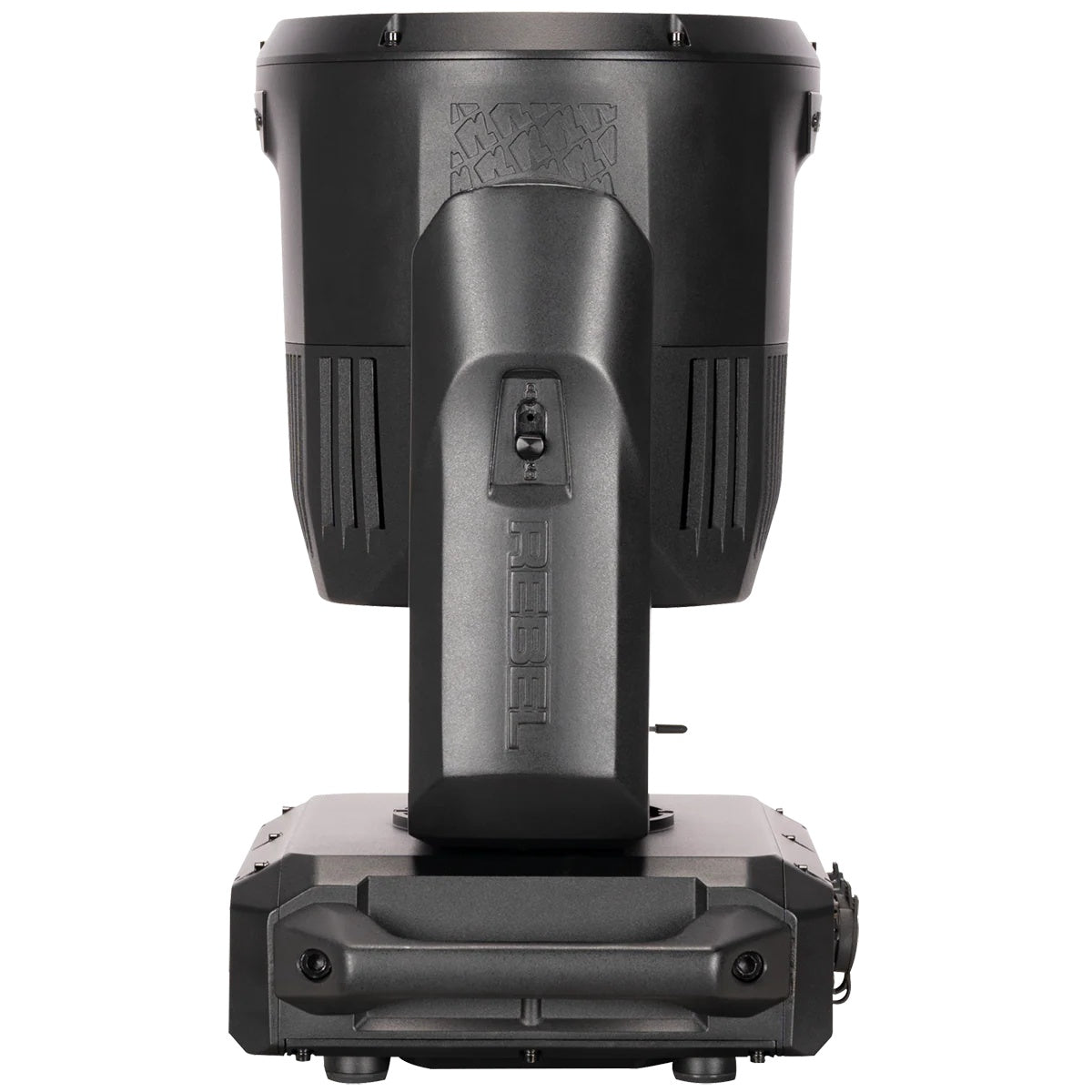

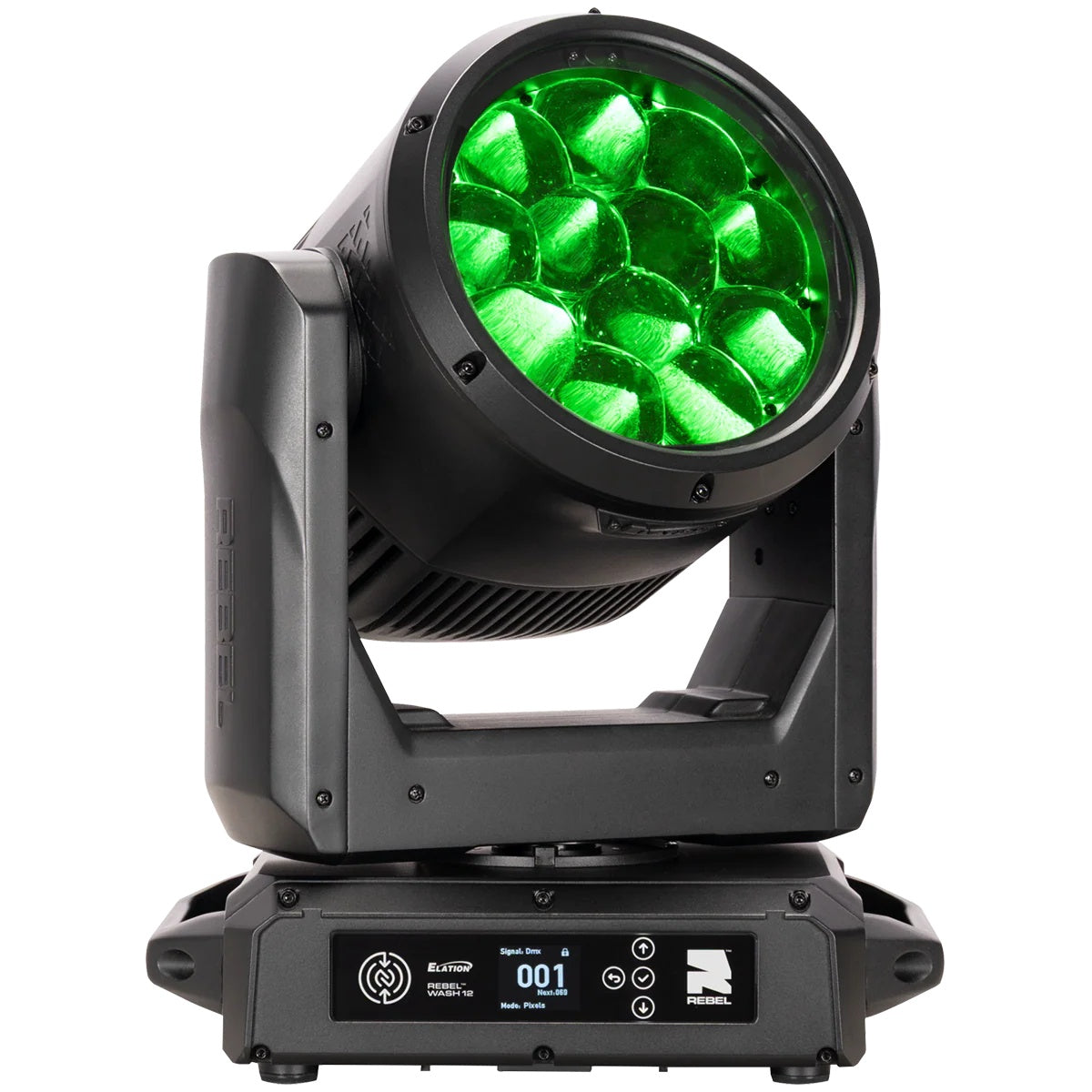

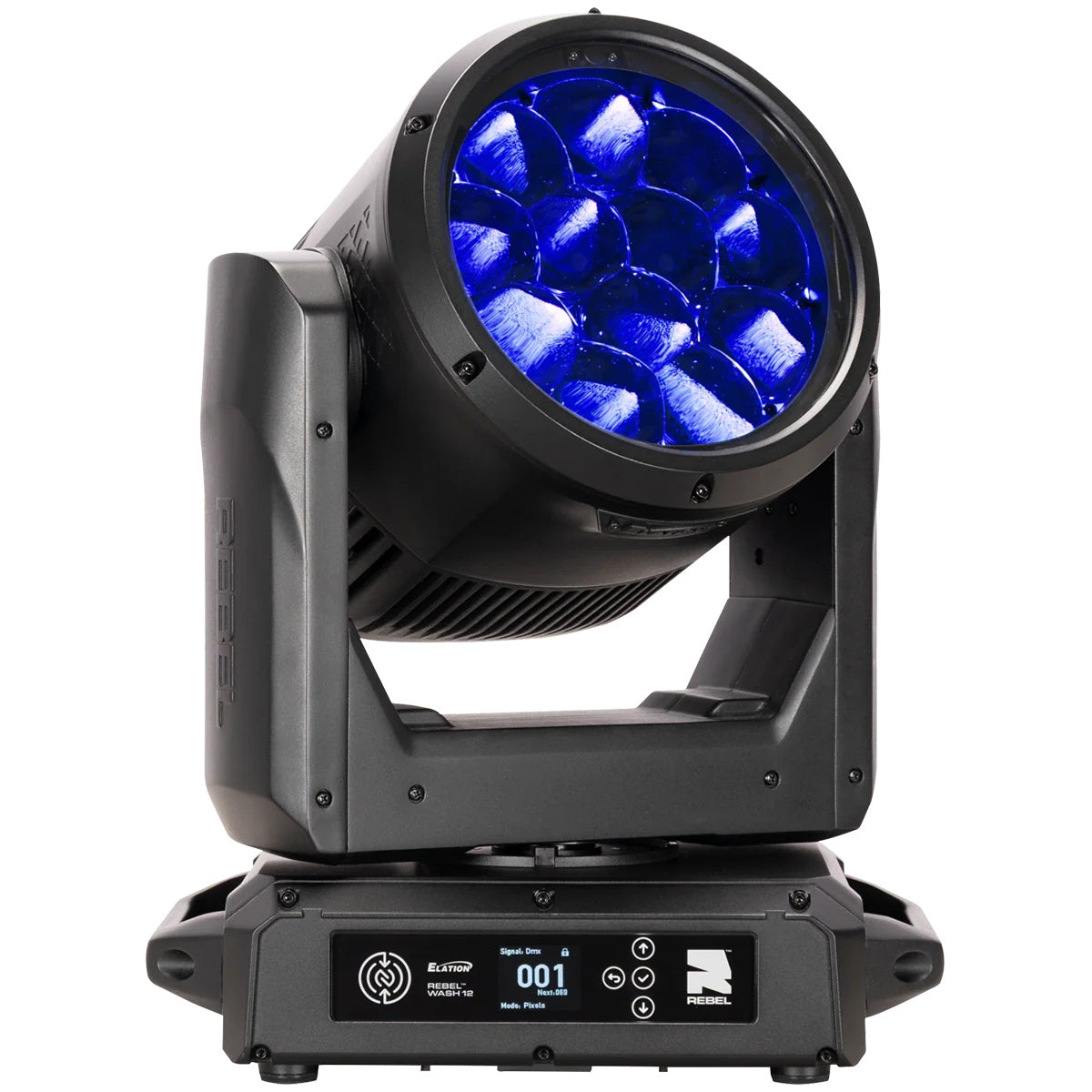

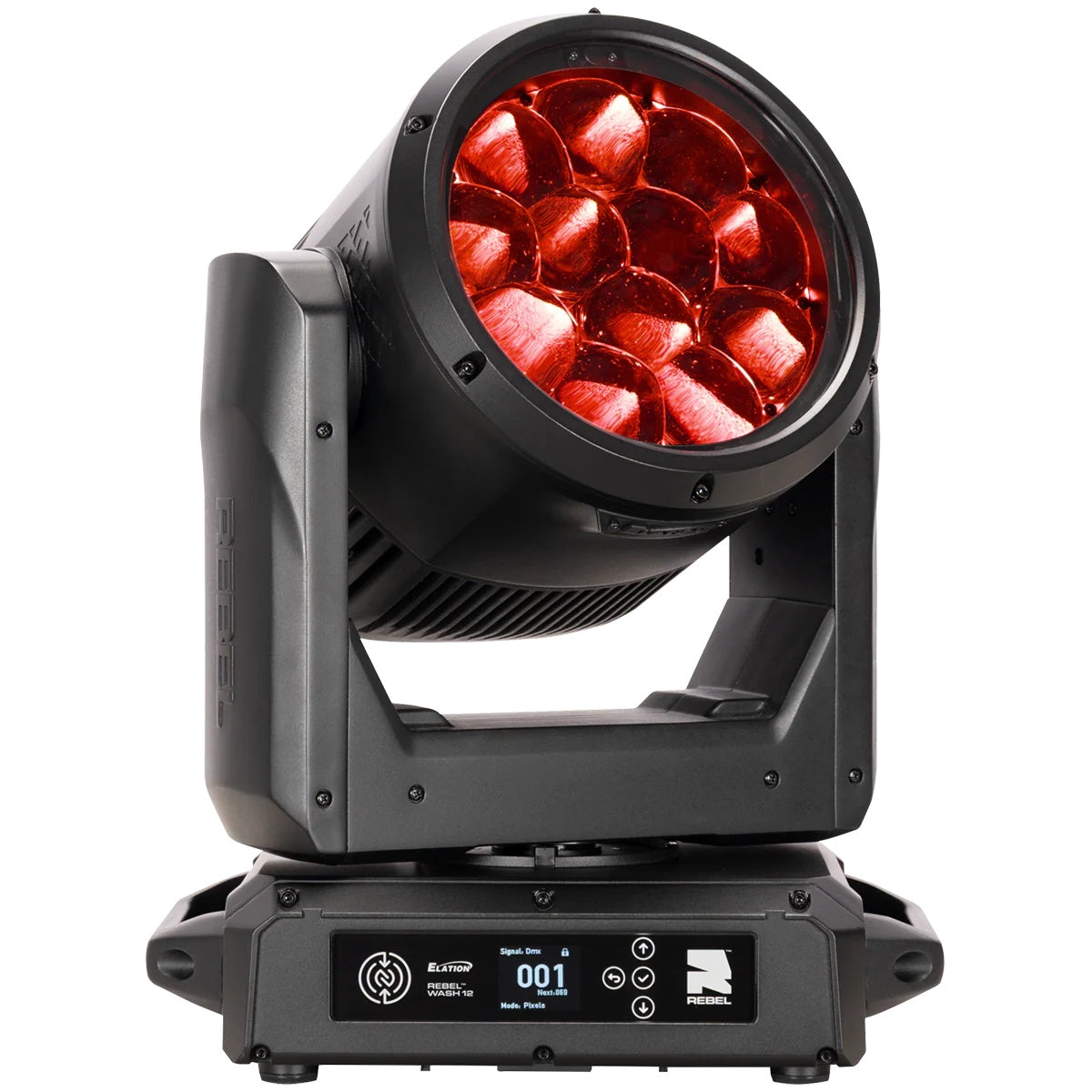

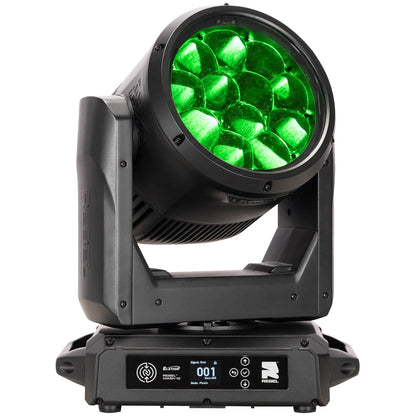

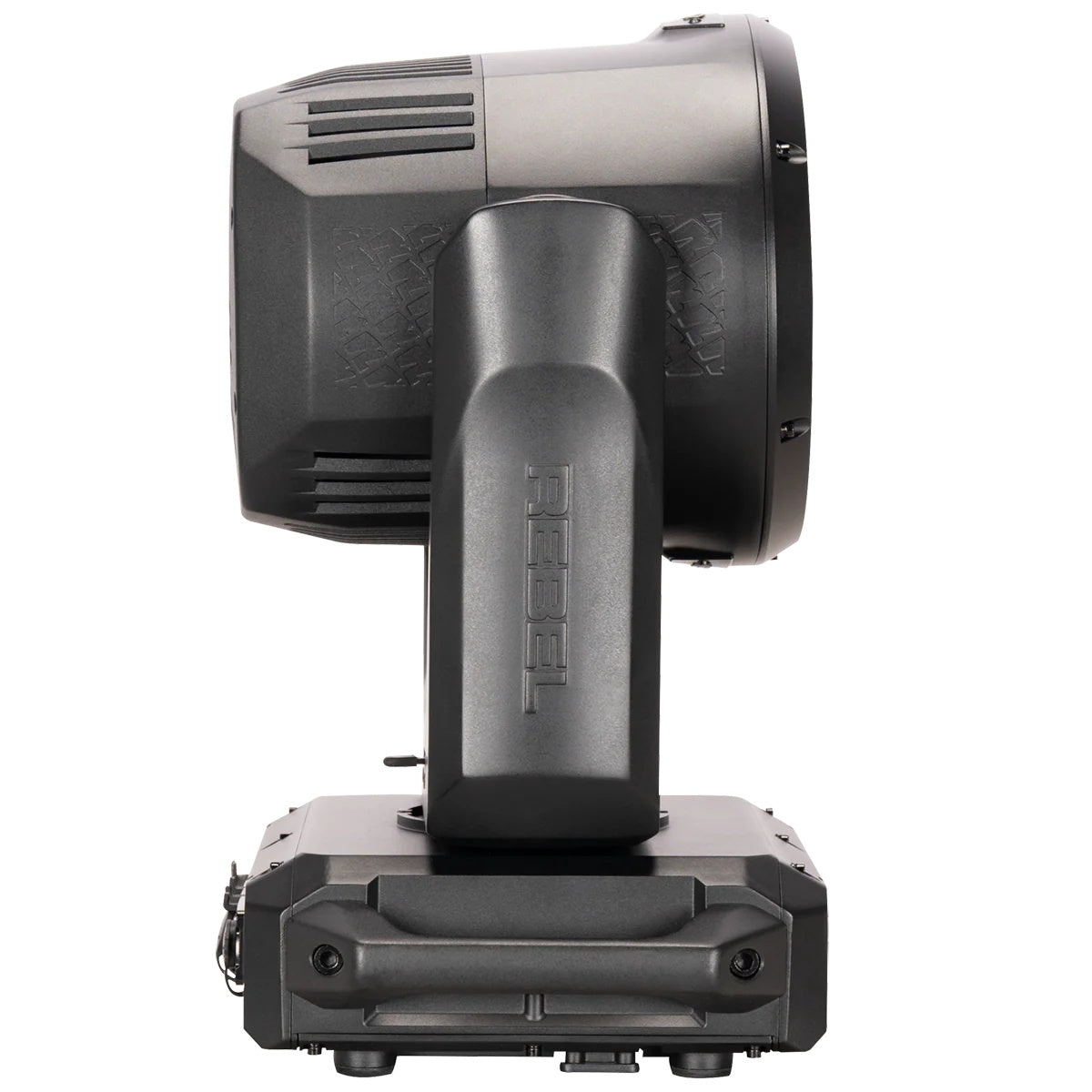

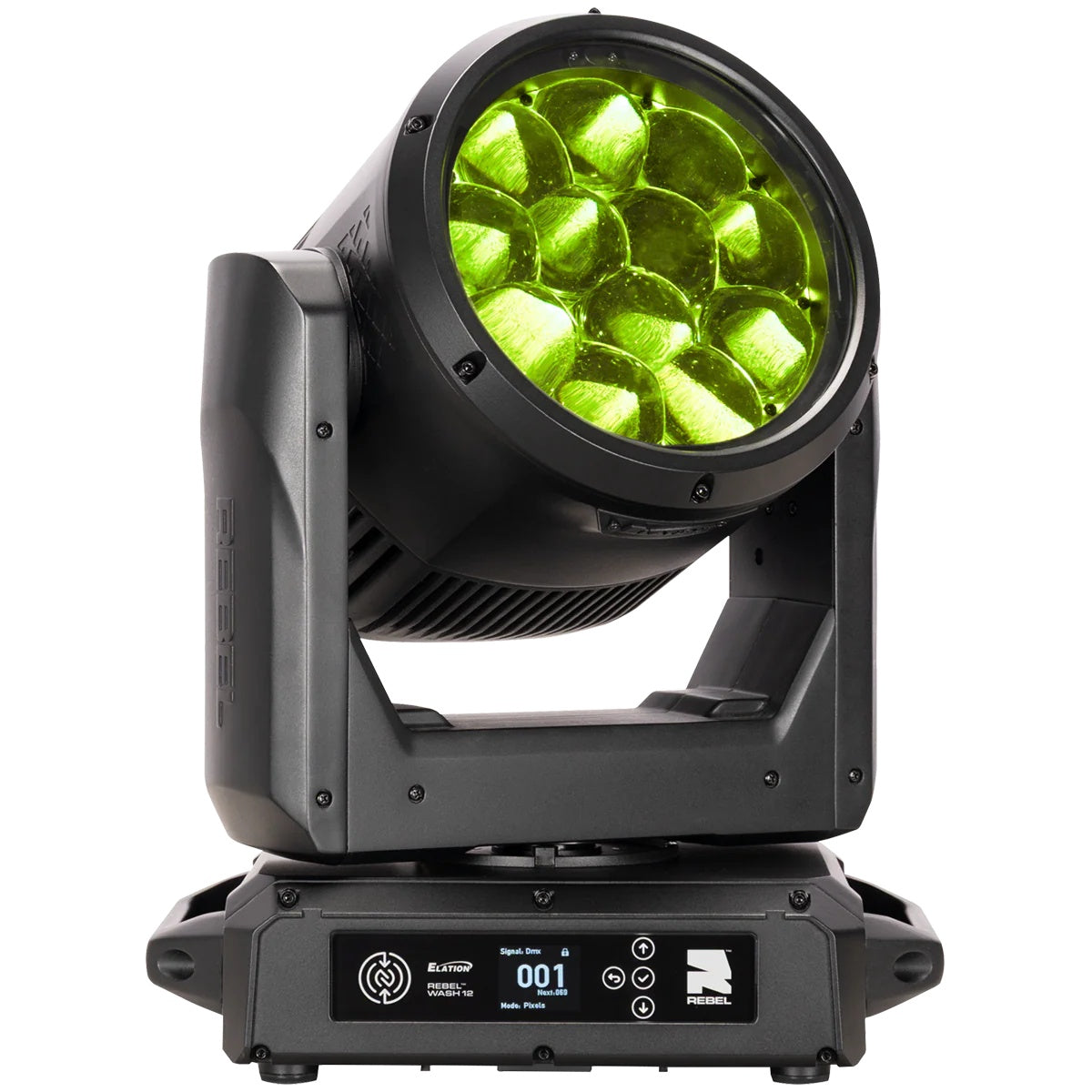

Elation REB112 Rebel Series IP65 RGBL LED Moving Wash

Elation REB112 Rebel Series IP65 RGBL LED Moving Wash

SoundPro Item: 207598 | Part Number: REB112

Regular price $3,699.00
Regular price $4,599.00 Sale price $3,699.00
Your Price Sold out
MSRP: $4,599.00 | MAP: $3,699.00

Usually ships in 5-7 business days

  • IP65 Sealed Construction Supports Temporary Outdoor And All Indoor Environments

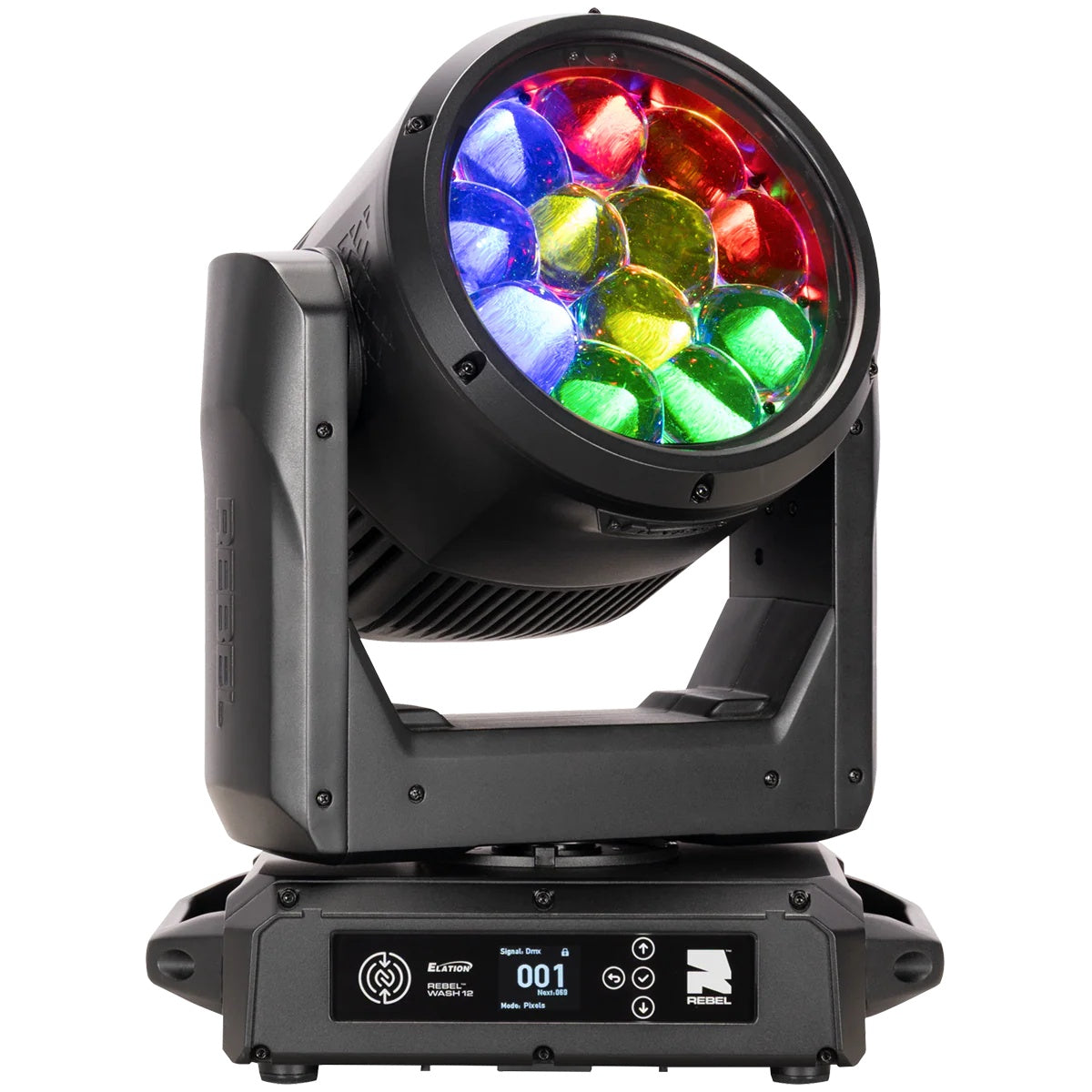

  • Pixel Control Across All Emitters Enables Chase And Gradient Effects Without Extra Fixtures
  • Motorized Zoom Transitions From Tight Beam To Wide Wash In A Single Unit
  • Continuous 360° Pan And Tilt Rotation Eliminates Dead Zones In Complex Cue Stacks
  • Calibrated CCT And Virtual Gel Swatch Book Deliver Consistent Repeatable Color Across A Rig
  • Aria x2 Wireless Management And NFC Configuration Speed Up Programming In Tight Turnarounds
  • DMX, RDM, Art-NET, And sACN Support Integrates Into Any Professional Control Environment

The Elation REB112 is engineered for touring LD teams, production designers, and lighting integrators who need a high-output wash capable of surviving outdoor environments without sacrificing color precision. Its fully sealed IP65 construction makes it a legitimate choice for festival stages, architectural installs, and any application where weather or dust exposure is a realistic concern — not just a theoretical one.

Where the REB112 earns its place on a rider is in versatility. The 5° to 40° motorized zoom transitions seamlessly from tight beam effects to wide wash coverage, and pixel control across the 12-emitter array opens up chase and gradient looks without adding a separate effects fixture. Calibrated color temperatures spanning 2400K to 8500K with a virtual gel swatch book give programmers consistent, repeatable looks across a rig, while the 360° continuous pan and tilt rotation removes dead zones entirely — a critical advantage on complex multi-axis cue stacks.

Control integration is handled through DMX, RDM, Art-NET, and sACN with three channel mode options, and Aria x2 wireless device management plus NFC configuration reduce programming time in tight venue turnarounds. Locking IP65-rated XLR and RJ45 connectors maintain data and power integrity in wet conditions, and the included omega brackets and safety cable mean the fixture is stage-ready out of the box.

Downloads

View full details

Specifications

Certifications
IP Rating
IP65
Approvals
CE, cETLus, FCC, UKCA
Photometrics
Total Lumen Output
14000 lm
CRI
83.4
TLCI
67
Zoom Range
5° – 40°
Beam Angle
5° – 40°
Field Angle
8.5° – 56.5°
Source
LED Configuration
(12) 60W RGBL LED
Average LED Life
30,000 hours
Color
Color Array
RGBL
Variable CCT
2400K – 8500K
Effects
Pan Angle
360°/540°
Tilt Angle
360°/270°
Dimming
Variable 16-bit Dimming Curves
Shutter
High Speed Electronic Shutter and Strobe
Control & Connectivity
DMX Channel Modes
3 (21/28/68)
Protocols
DMX, RDM, Art-NET, sACN
Wireless Management
Aria x2
Configuration
NFC

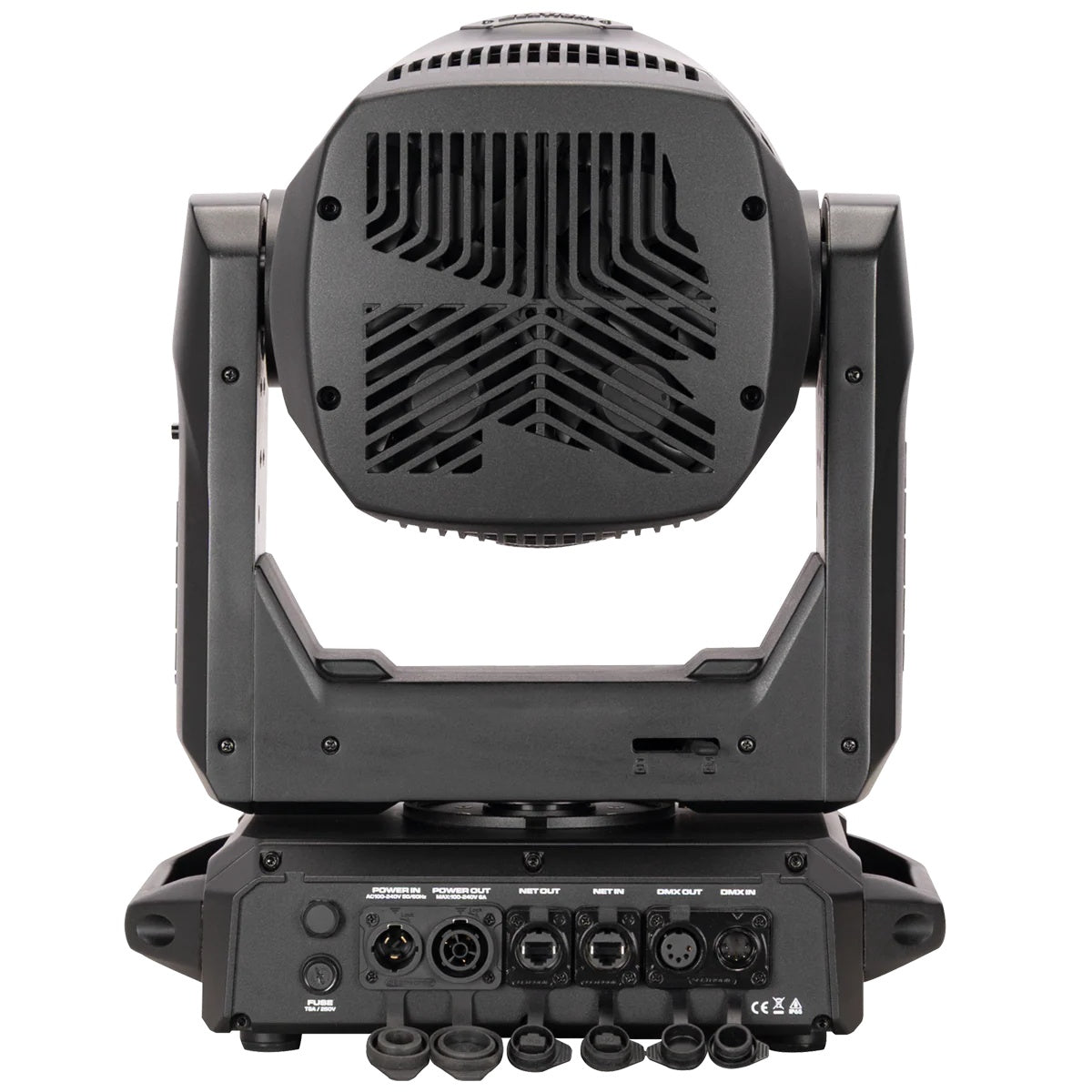

Data Connectors
IP65 Locking 5-pin XLR In/Out; IP65 Locking RJ45 Ethernet In/Out
Power Connector
IP65 Locking Power Connector In

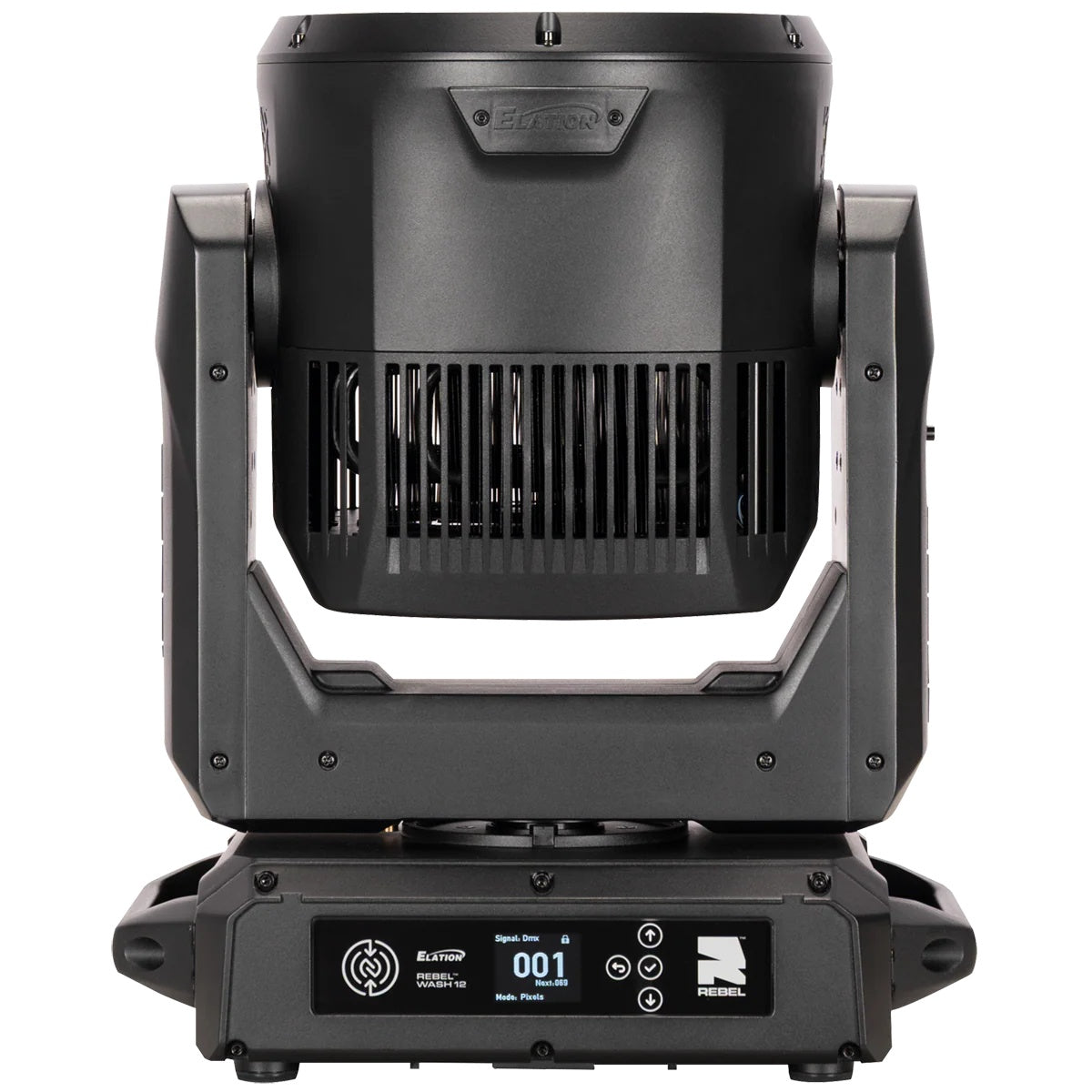

Control Panel
(4) Button Touch Control Panel
Display
Full Color 180° Reversible LCD Menu Display
Electrical
Input Voltage
AC 100–240V, 50/60 Hz
Max Power Consumption
730W
Power Thru Capacity
4A (0 units @ 115V, 1 unit @ 240V)
BTU/hr (±10%)
2489.3
Operating Temperature
-4°F to 113°F (-20°C to 45°C)
Dimensions
Length
14.2" (361 mm)
Width
10.2" (259 mm)
Height
17.5" (445 mm)
Weight
Product Weight
36.4 lbs (16.5 kg)
Included Items

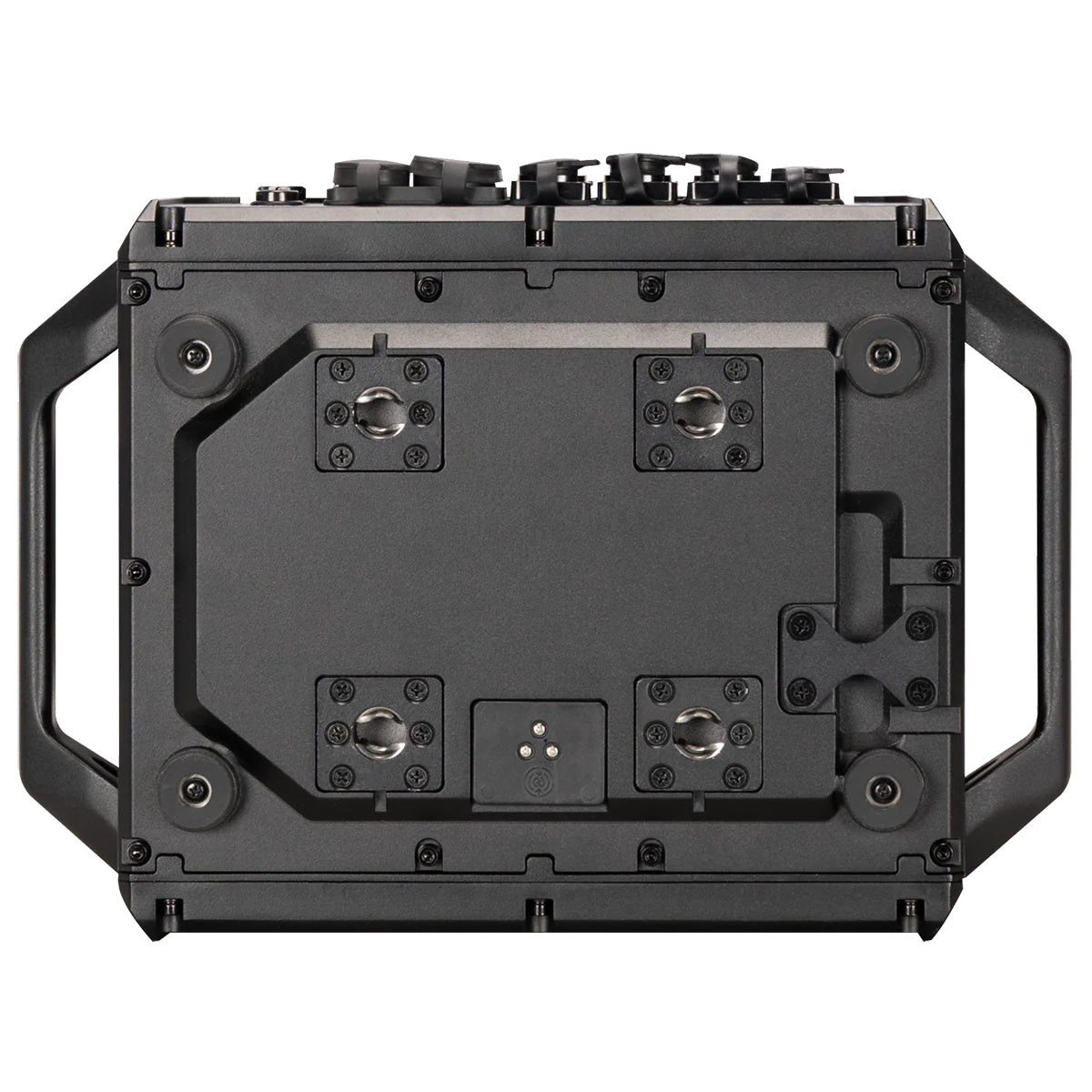

Mounting
Omega Brackets (x2)
Safety
Safety Cable
Power
IP65 Rated Locking Power Cable
Shipping
Package Weight
47 lbs
Package Length
24"
Package Width
19"
Package Height
19"
