Specifications
Certifications
IP Rating
IP65
Approvals
CE, cETLus, FCC
Dimensions
Length
13.3" (337mm)
Width
8.6" (219mm)
Height
18.8" (478mm)
Weight
Product Weight
35 lbs. (15.9kg)
Electrical
Input Voltage
AC 100-240V 50/60Hz
Max Power Consumption
240W
Power Thru Capacity
10A (4 units @115V, 9 units @240V)
Operating Temperature
-4°F to 113°F (-20°C to 45°C)
Performance
LED Engine
150W RBL
Average LED Life
20,000 Hours
Total Lumen Output
1,785 (Integrating Sphere)
Peak Illuminance
125,475 lux @ 5M
Beam Angle
1.5°
Variable CCT Range
3200K–16000K
Strobe Rate
1–20Hz
Optics
Pan Angle
360°/540°
Tilt Angle
360°/270°
Gobo Wheels
2
Interchangeable Rotating/Indexing Metal Gobos
10
Static Stamped Metal Gobos
16
Prisms
Dual Independent Stacking (6-Facet Linear & 8-Facet Circular)

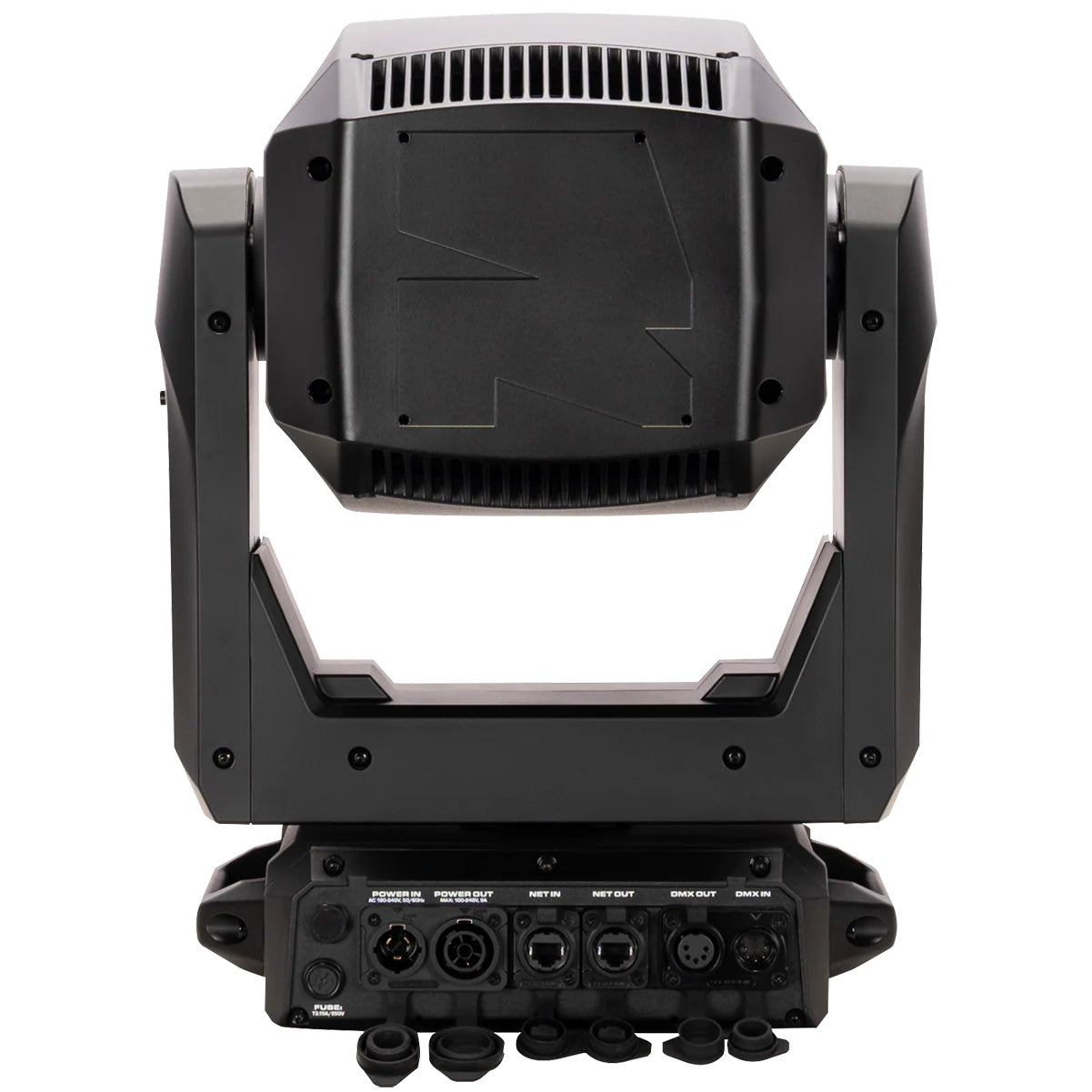

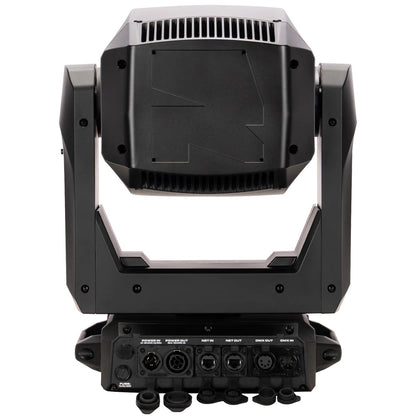

Connectivity
DMX In/Out
IP65 5-Pin
Ethernet In/Out
IP65 RJ45
Power In/Out
IP65 Locking
Protocols
DMX, RDM, Art-Net, sACN
Wireless
Aria X2
NFC
Yes
Controls
DMX Channel Modes
2
Menu Display
180° Reversible LCD
User Interface
(4) Button Touch Panel
Power Save
Hibernation Mode
LED Refresh Rate
DMX Controllable
Dimming
Variable 16-Bit Dim Curve Modes
