Elation SIXBAR 1000 12W RGBAW+UV LED Bar Fixture
Elation SIXBAR 1000 12W RGBAW+UV LED Bar Fixture
SoundPro Item: 73622 | Part Number: SIX086
Usually ships in 5-7 business days
- 30° Beam Angle
- ArtNet and KlingNet Support
- RDM - Remote Device Management
- Individual LED Control
- Variable Dimming Curve Modes
- Multiple Unit Power Linking
- Rugged Die-Cast Aluminum Exterior
- Flicker Free Operation for TV and FILM

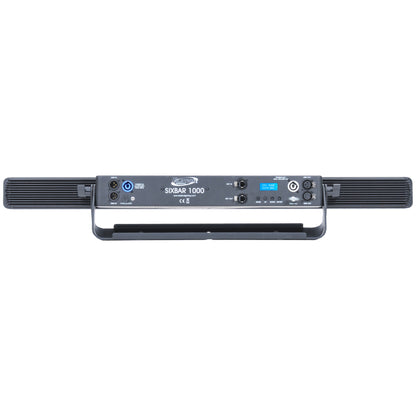

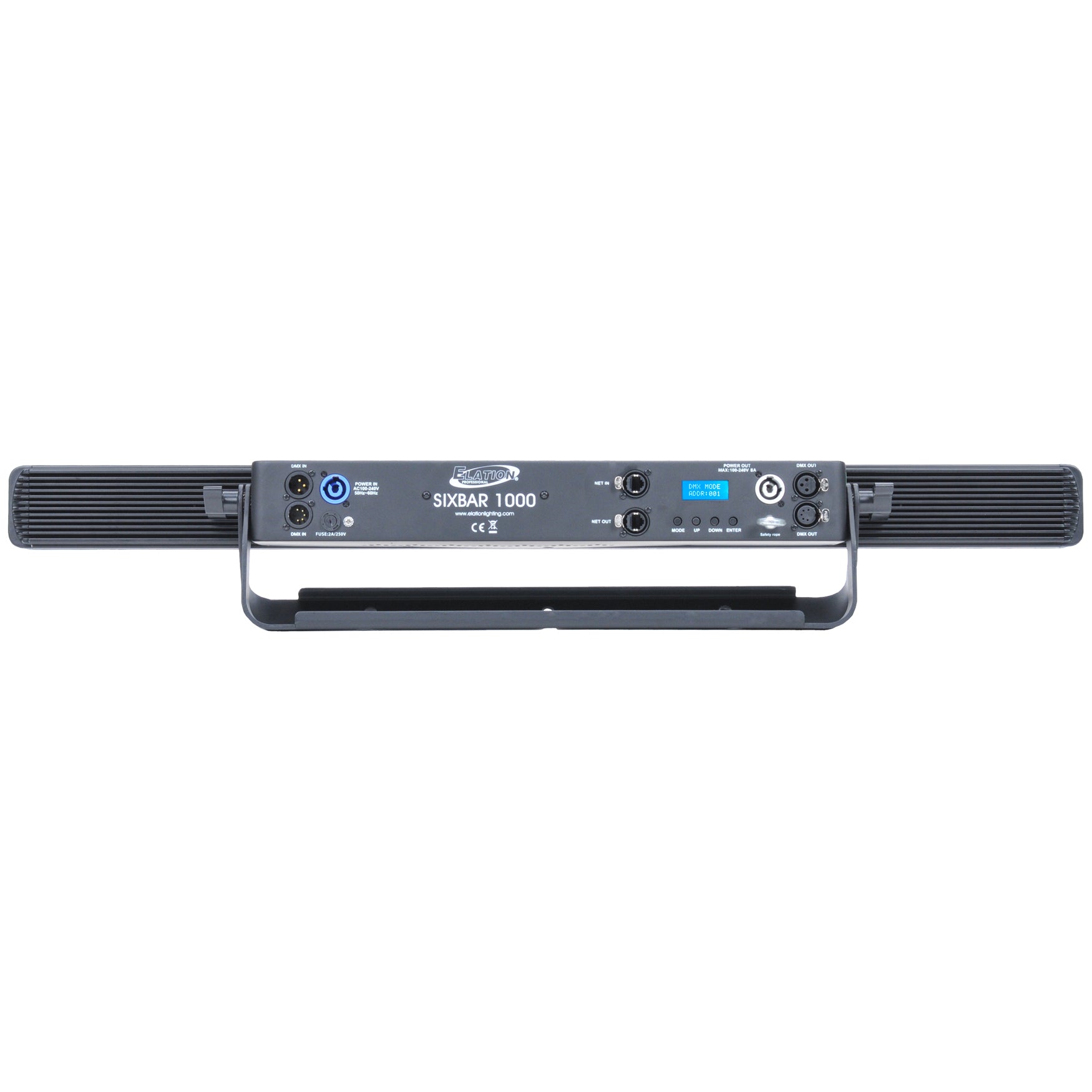

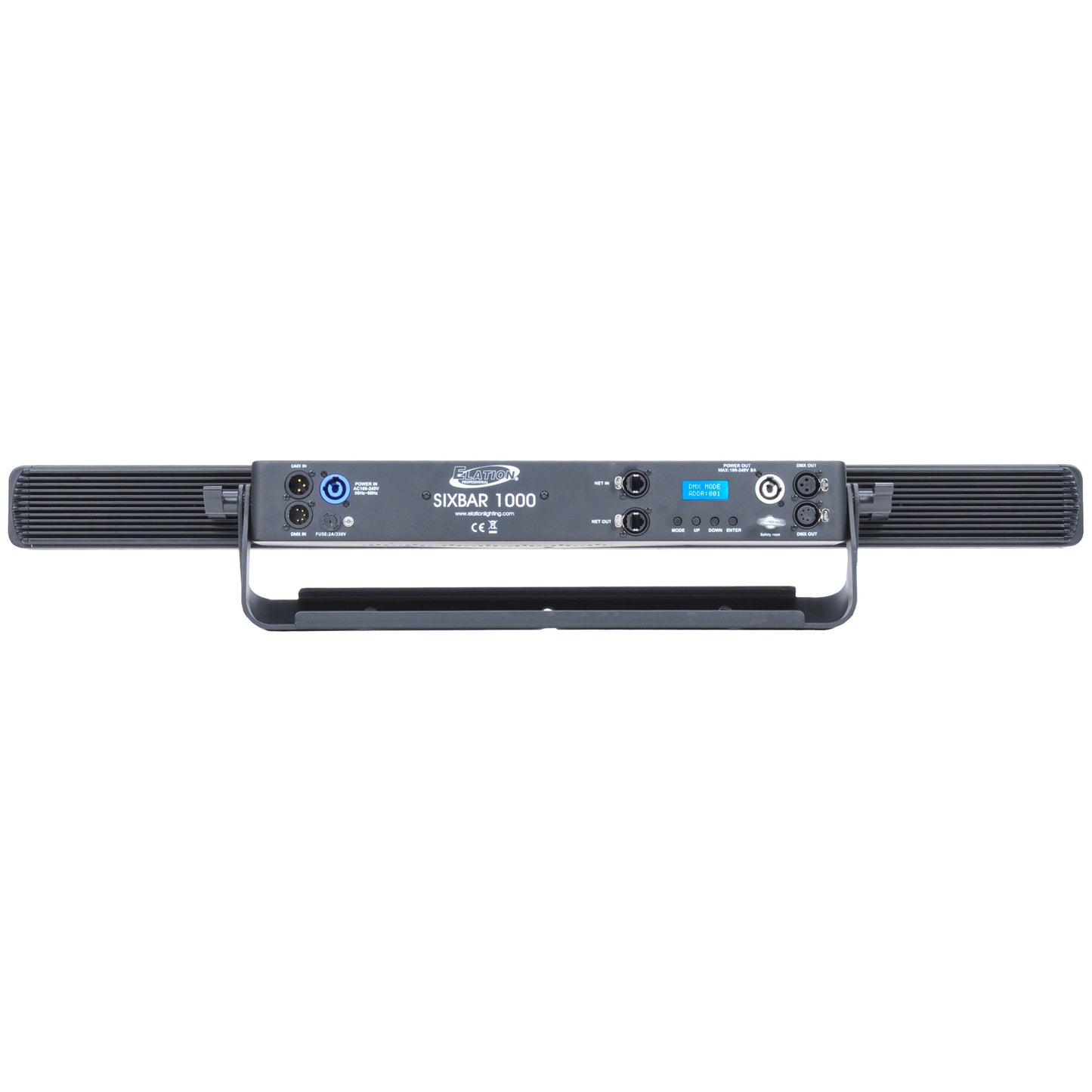

The SIXBAR 1000™ boasts 100,000 average hours of LED life, strobe and chase effects, a UV wavelength of 395nm, ArtNet, KlingNet, and RDM (remote device management) protocol support. It provides 3pin and 5pin DMX, Locking Power Cable, and RJ45 in/out connections, LCD menu with 4 button control panel, integrated dual rigging brackets, multiple unit power linking, rugged die-cast aluminum exterior, 145W max power consumption, and a multi-voltage universal auto-switching power supply (110-240v).

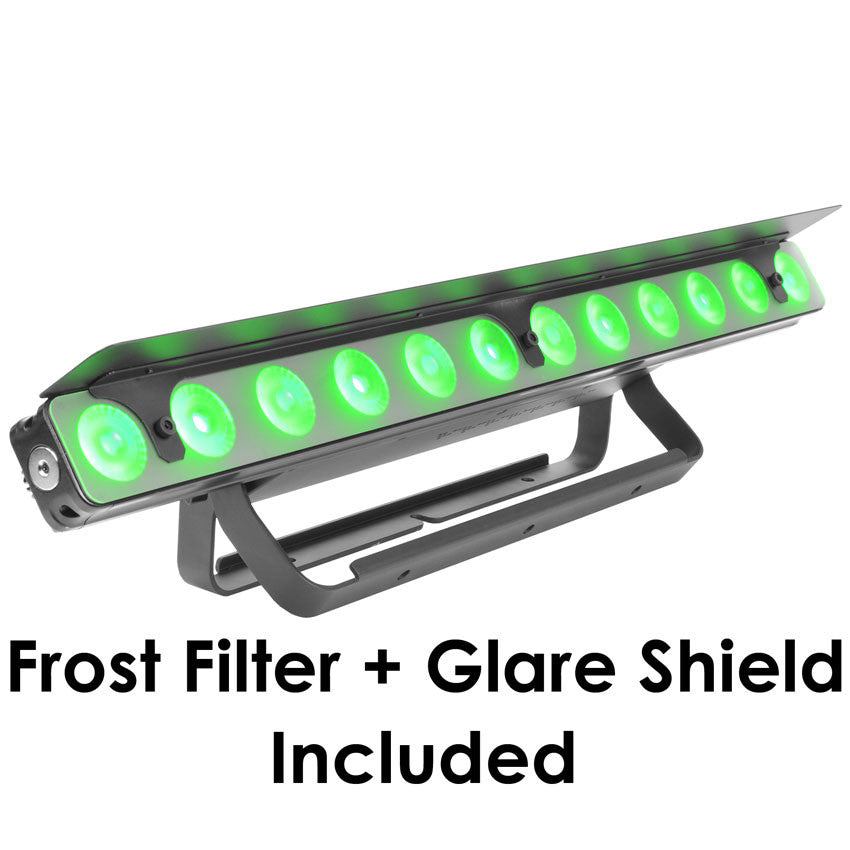

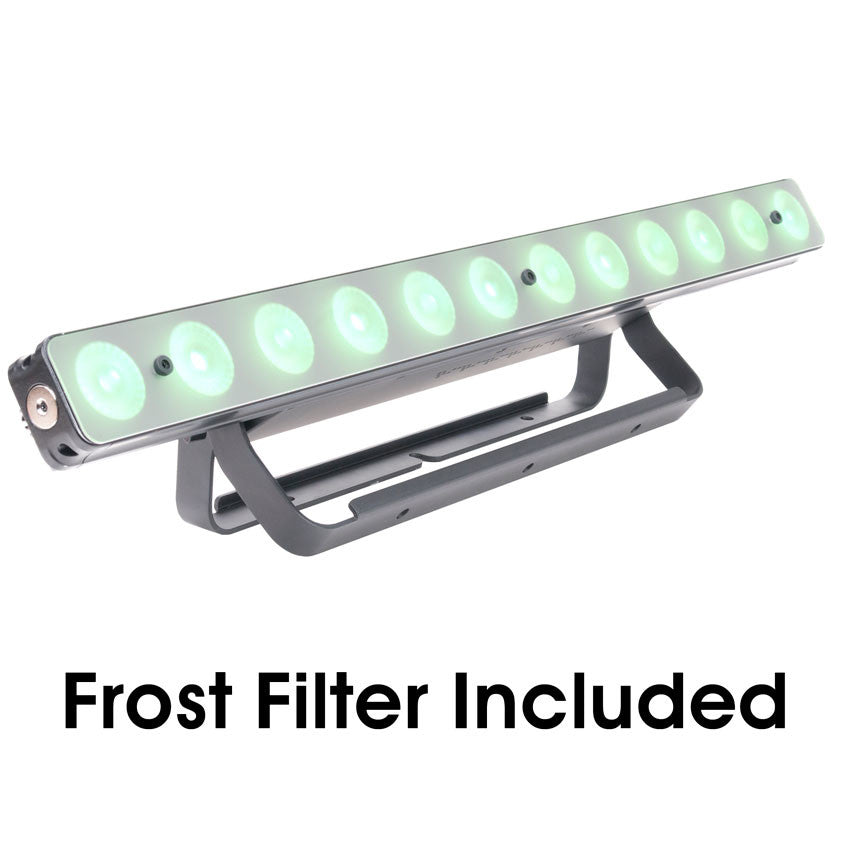

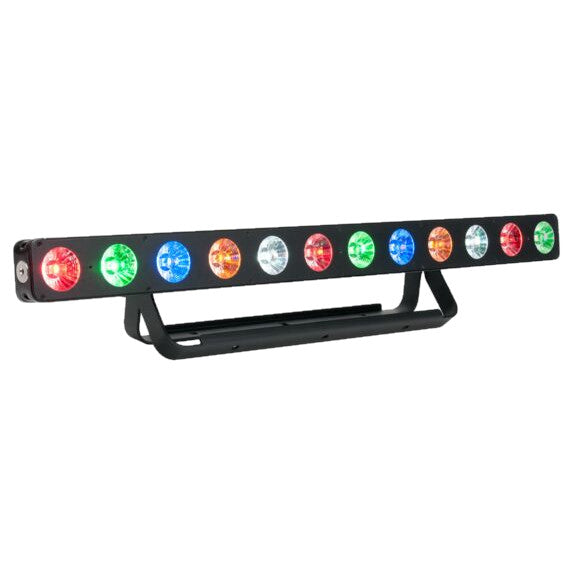

This LED strip light features 12x 12W RGBAW+UW LEDs that allow for a wide spectrum of color mixing capabilities. Each LED can also be controlled individually for pixel effects. Other features include a 30° beam angle, variable LED dimming curve options, and flicker-free operation for use on-camera. The SIXBAR 1000 also ships with a frost filter to diffuse the beam and a glare shield to prevent any light bleed when needed.
- SOURCE
- (12) 12W 6-in-1 RGBAW+UV LEDs
- 100,000 Hour Average LED Life*
- *LED Life may vary depending on several factors including but not limited to:
- Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
- PHOTOMETRIC DATA
- 8,500 LUX 790 FC @3.3’ (1m) (30° Full ON)
- 3,660 LUX 340 FC @6.6’ (2m) (30° Full ON)
- 2,040 LUX 190 FC @9.8’ (3m) (30° Full ON)
- 1,290 LUX 120 FC @13.1’ (4m) (30° Full ON)
- 878 LUX 82 FC @16.4’ (5m) (30° Full ON)
- EFFECTS
- Strobe and Chase Effects
- Individual LED Control
- Variable and Selectable Dimming Curves
- CONTROL / CONNECTIONS
- 8 DMX Channel Modes (6 / 7 / 11 / 13 / 36 / 72 / 75 / 79)
- 4 Button Control Panel and LCD Menu Display
- ArtNet + KlingNET Protocol Support
- RDM (Remote Device Management)
- (2) ethernet Ports
- 3pin and 5pin DMX In/Out
- Locking Power Cable In/Out
- With Wired Digital Communication Network
- SIZE / WEIGHT
- Length: 35.4” (900mm)
- Width: 8.1” (206.4mm) *with included glare shield
- Vertical Height: 6.1” (155mm)
- Weight: 16.0 lbs. (7.3 kg)
- ELECTRICAL / THERMAL
- AC 110-240V - 50/60Hz
- 145W Max Power Consumption
- Power Linking: 6pcs @110V / 15pcs @240V
- 5°F to 113°F (-15°C to 45°C)
- UV Wavelength: 395nm
- APPROVALS / RATINGSCE | cETLus | IP20
