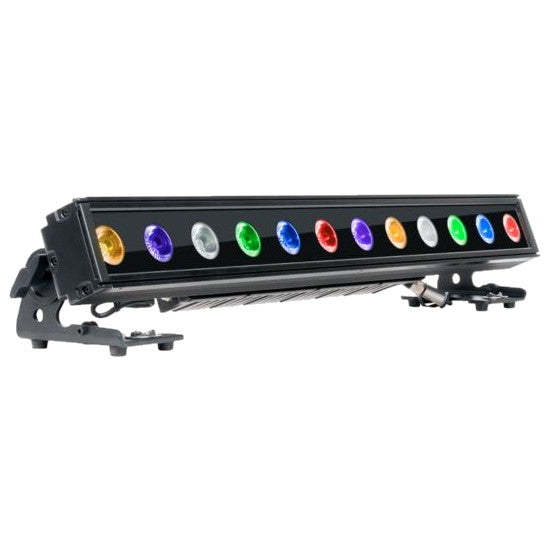

• Elation SIXBAR 1000 IP 6-in-1 RGBAW+UV LED Fixture

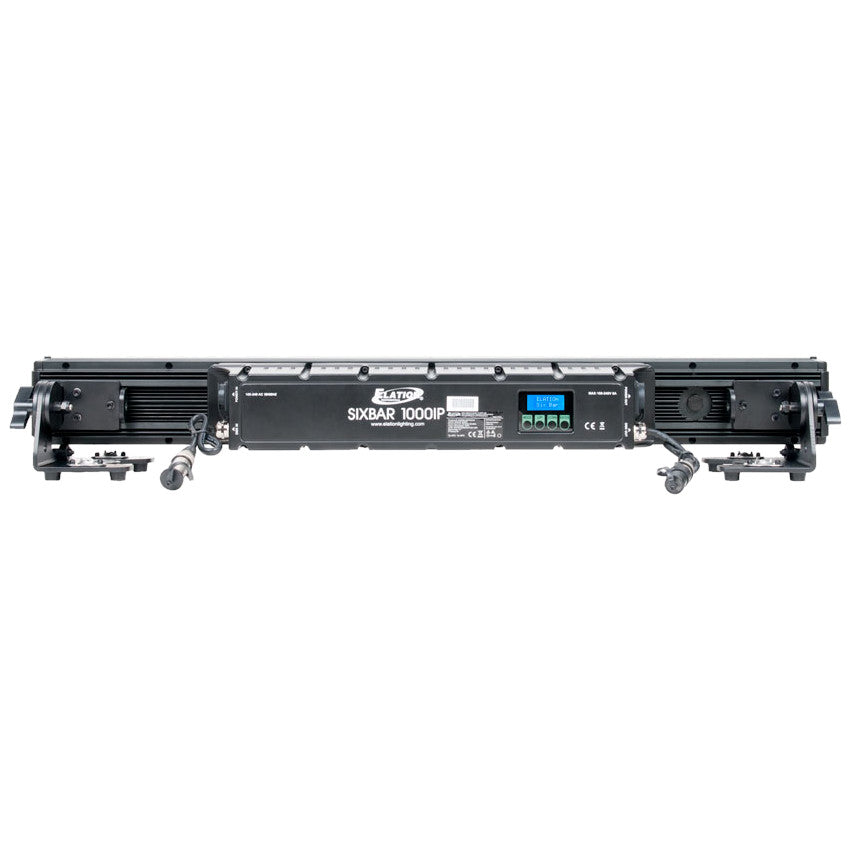

  • Elation SIXBAR 1000 IP 6-in-1 RGBAW+UV LED Fixture back

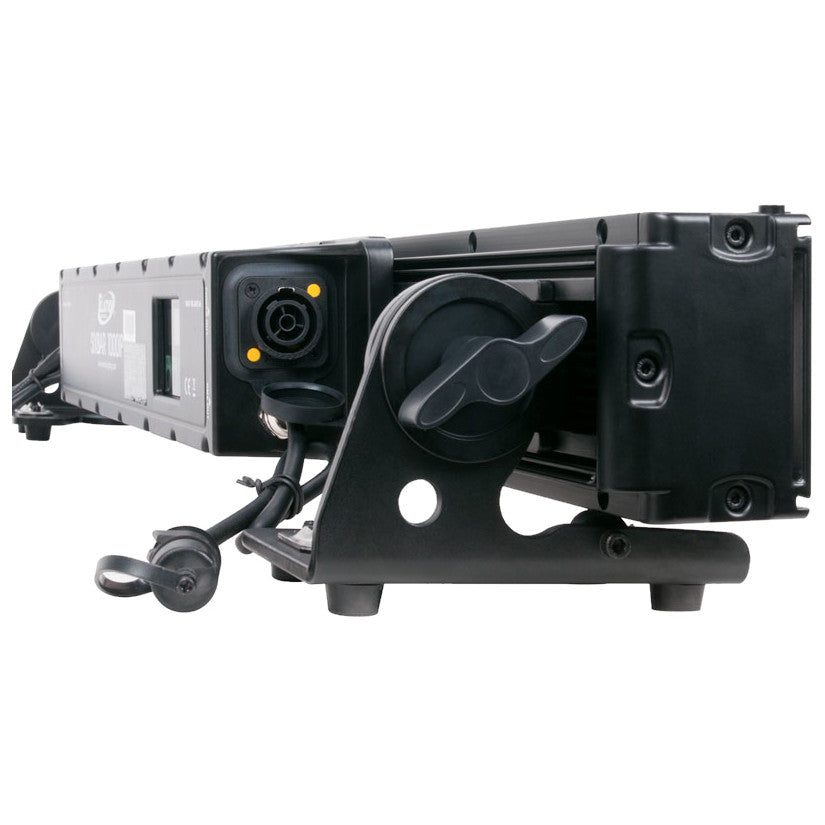

  • Elation SIXBAR 1000 IP 6-in-1 RGBAW+UV LED Fixture side

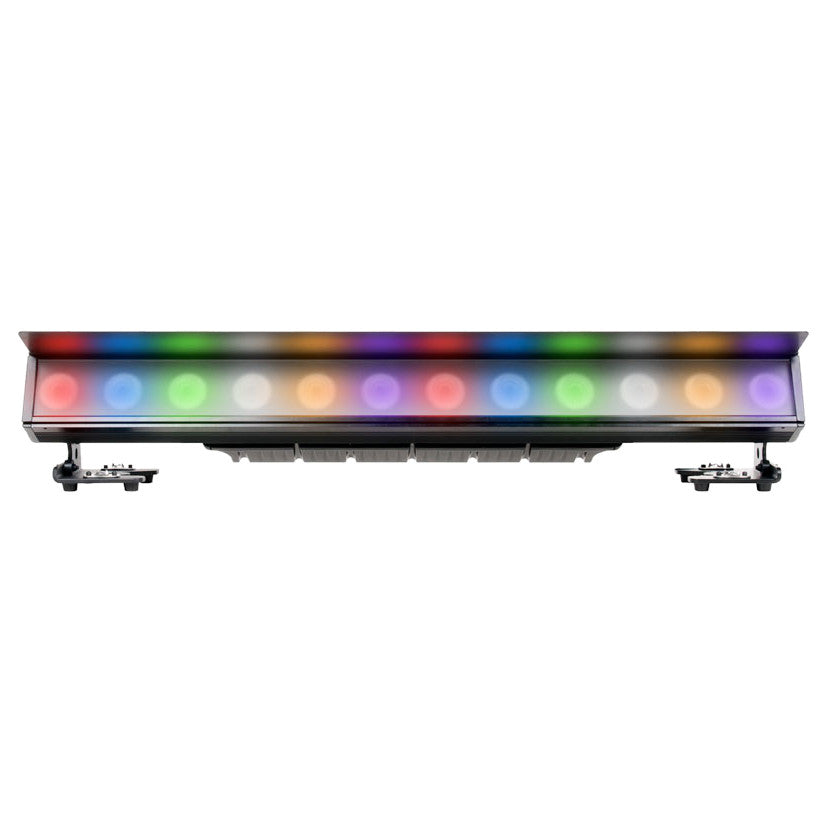

  • Elation SIXBAR 1000 IP 6-in-1 RGBAW+UV LED Fixture with filter
1 4

Elation SIXBAR 1000 IP 12W RGBAW+UV LED Bar Fixture

Elation SIXBAR 1000 IP 12W RGBAW+UV LED Bar Fixture

SoundPro Item: 75665 | Part Number: SIX098

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • IP65 Rated
  • 12 x 12W 6-in-1 RGBAW+UV LEDs
  • 25° Beam Angle
  • Pixel Control
  • Rugged Die-Cast Aluminum Exterior
  • Glare Shield and (2) Lens Filters Included
Log in or register for YOUR best price

The IP65 rated SIXBAR 1000 IP features (12) 12W 6-IN-1 RGBAW+UV LEDs, 25° beam angle, pixel control, variable dimming curve modes, strobe and chase effects, a UV wavelength of 395nm, RDM (remote device management) protocol support, IP rated DMX and power in/out connections, LCD menu display with 4 touch button control panel, dual adjustable rigging/floor stand brackets, glare shield and frost filter included, multiple unit power linking, rugged die-cast aluminum exterior, flicker free operation for TV and film, 145W max power consumption, and a multi-voltage universal auto switching power supply (110-240v).

View full details

Specifications

Dimensions
Width
5.6” (141.4mm)
Vertical Height
4.7” (120.5mm)
Electrical
ELECTRICAL / THERMAL
AC 110-240V - 50/60Hz, 145W Max Power Consumption, Multiple Unit Power Linking, 5°F to 113°F (-15°C to 45°C)
Shipping
Weight
19.0 lbs. (8.6 kg)
Identifiers
Length
33.6” (853mm)
General
SOURCE
(12) 12W 6-in-1 RGBAW+UV LEDs, 100,000 Hour Average LED Life**, **LED Life may vary depending on several factors including but not limited to:, Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
7,149 LUX 664 FC @3.3’ (1m) (25° Full ON)
EFFECTS
Pixel Control, Strobe and Chase Effects, Variable and Selectable Dimming Curves
CONTROL / CONNECTIONS
(8) DMX Channel Modes (6 / 7 / 11 / 13 / 36 / 72 / 75 / 79), 4 Button Touch Control Panel and LCD Menu Display, RDM (Remote Device Management), IP Rated 5pin DMX In/Out, IP65 Locking Power Cable In/Out, With Wired Digital Communication Network
UV Wavelength
395nm
APPROVALS / RATINGS
CE | cETLus | IP65
