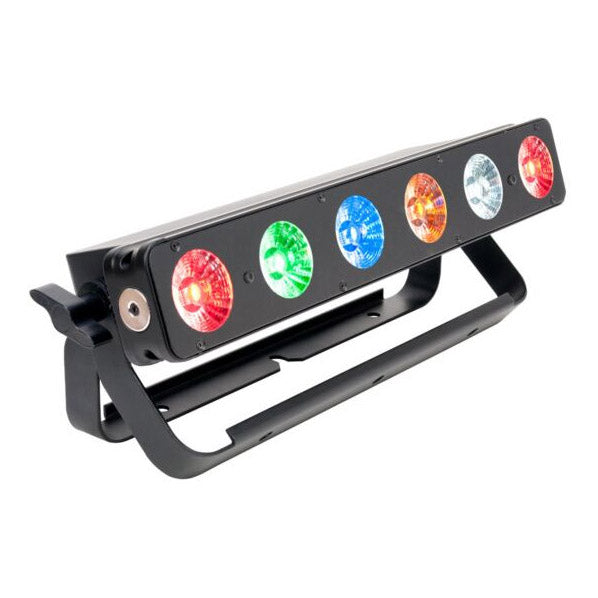

• Elation SIXBAR 500 12W RGBAW+UV LED Bar Fixture

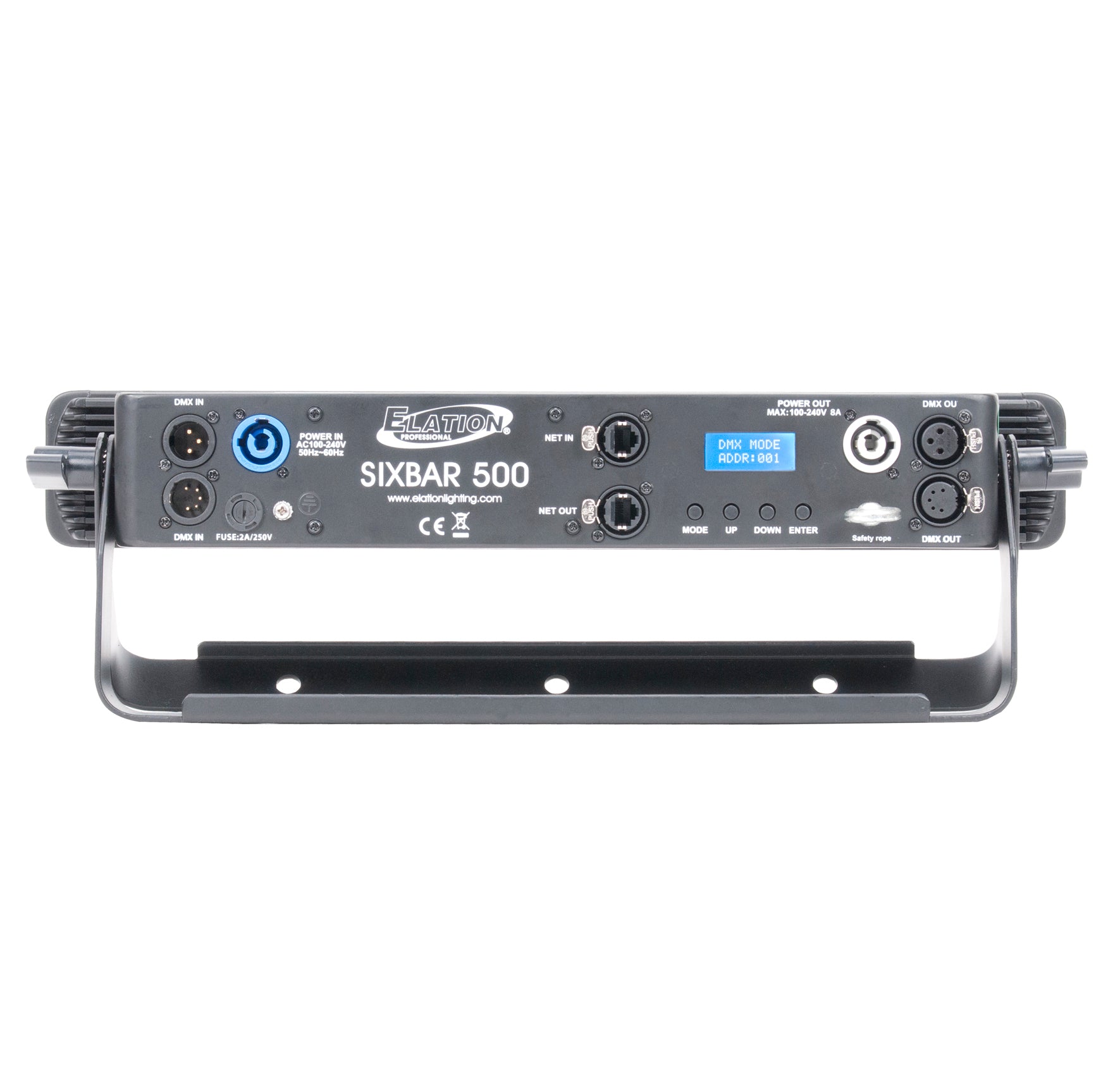

  • Elation SIXBAR 500 12W RGBAW+UV LED Bar Fixture back

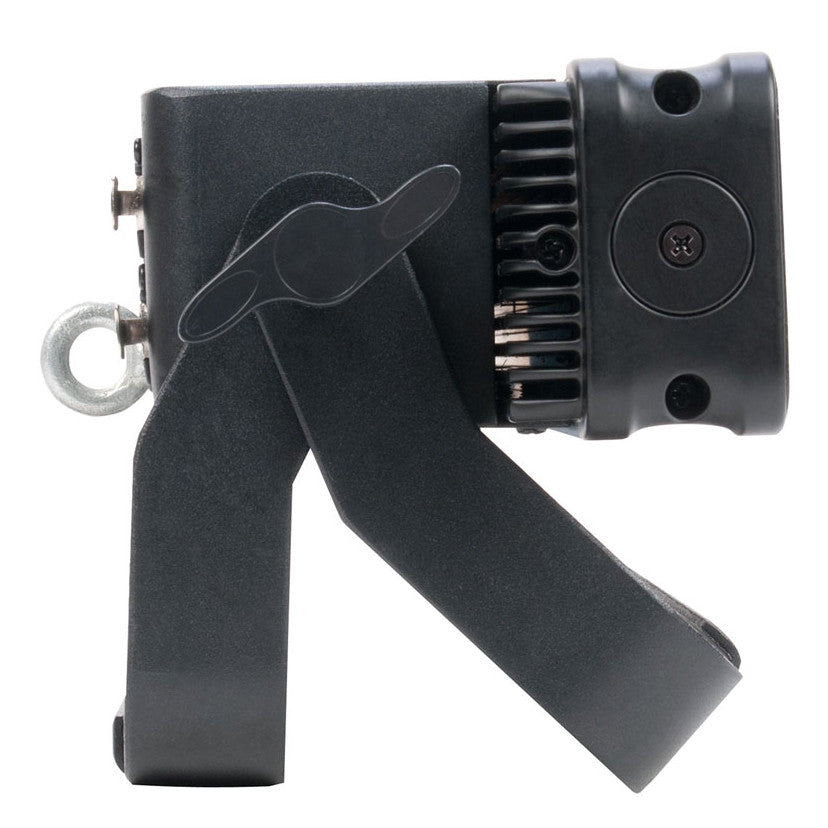

  • Elation SIXBAR 500 12W RGBAW+UV LED Bar Fixture side
1 3

Elation SIXBAR 500 12W RGBAW+UV LED Bar Fixture

Elation SIXBAR 500 12W RGBAW+UV LED Bar Fixture

SoundPro Item: 73621 | Part Number: SIX074

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • 30° beam angle
  • ArtNet and KlingNet support
  • RDM - Remote Device Management
  • Individual LED control
  • Variable dimming curve modes
  • Multiple unit power linking
  • Rugged die-cast aluminum exterior
  • Flicker free operation for TV and film
Log in or register for YOUR best price

The SIXBAR 500™ features (6) 12W 6-IN-1 RGBAW+UV LEDs, 100,000 average hour LED life, 30° beam angle, individual control of each LED, variable dimming curve modes, strobe and chase effects, a UV wavelength of 395nm, ArtNet, KlingNet and RDM (remote device management) protocol support, 3pin and 5pin DMX, Locking Power Cable and RJ45 in/out connections, LCD menu display with 4 button control panel, integrated dual rigging brackets, multiple unit power linking, rugged die-cast aluminum exterior, frost filter and glare shield included, flicker free operation for TV and FILM, 93W max power consumption, and a multi-voltage universal auto switching power supply (110-240v).

View full details

Specifications

Dimensions
Dimensions (LxWxH)
17.7" x 8.1" x 6.1"
Electrical
Electrical / Thermal
AC 110-240V - 50/60Hz, 93W Max Power Consumption, 5°F to 113°F (-15°C to 45°C)
Shipping
Weight
9 pounds
General
Source
(6) 12W 6-in-1 RGBAW+UV LEDs
Average LED Life
100,000 hours
Photometric Data
6,500 LUX 604 FC @3.3’ (1m) (30° Full ON), 1,934 LUX 180 FC @6.6’ (2m) (30° Full ON), 901 LUX 84 FC @9.8’ (3m) (30° Full ON), 508 LUX 47 FC @13.1’ (4m) (30° Full ON), 318 LUX 30 FC @16.4’ (5m) (30° Full ON)
Effects
Strobe and chase effects, Individual LED control, Variable and selectable dimming curves
Control / Connections
8 DMX Channel Modes (6 / 7 / 11 / 13 / 18 / 36 / 39 / 43), 4 Button Control Panel and LCD Menu Display, ArtNet + KlingNET Protocol Support, RDM (Remote Device Management), (2) ethernet Ports, 3pin and 5pin DMX In/Out, Locking Power Cable In/Out, With Wired Digital Communication Network
Power Linking
11pcs @110V / 25pcs @240V
UV Wavelength
395nm
