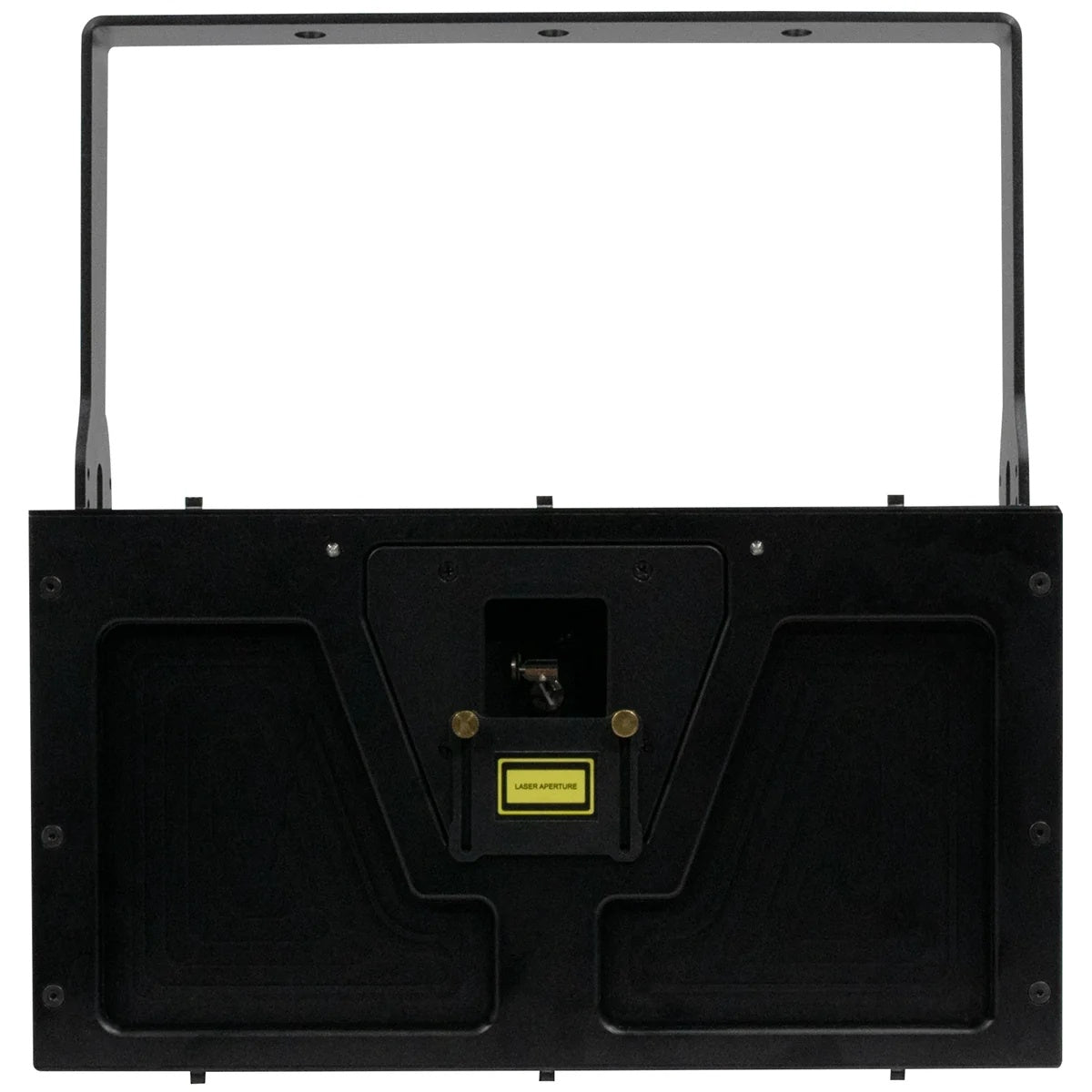

• 209019_Elation-XLT001-Triton-T-10-IP65-RGB-Laser-Fixture-With-Mercury_ALT01sqr

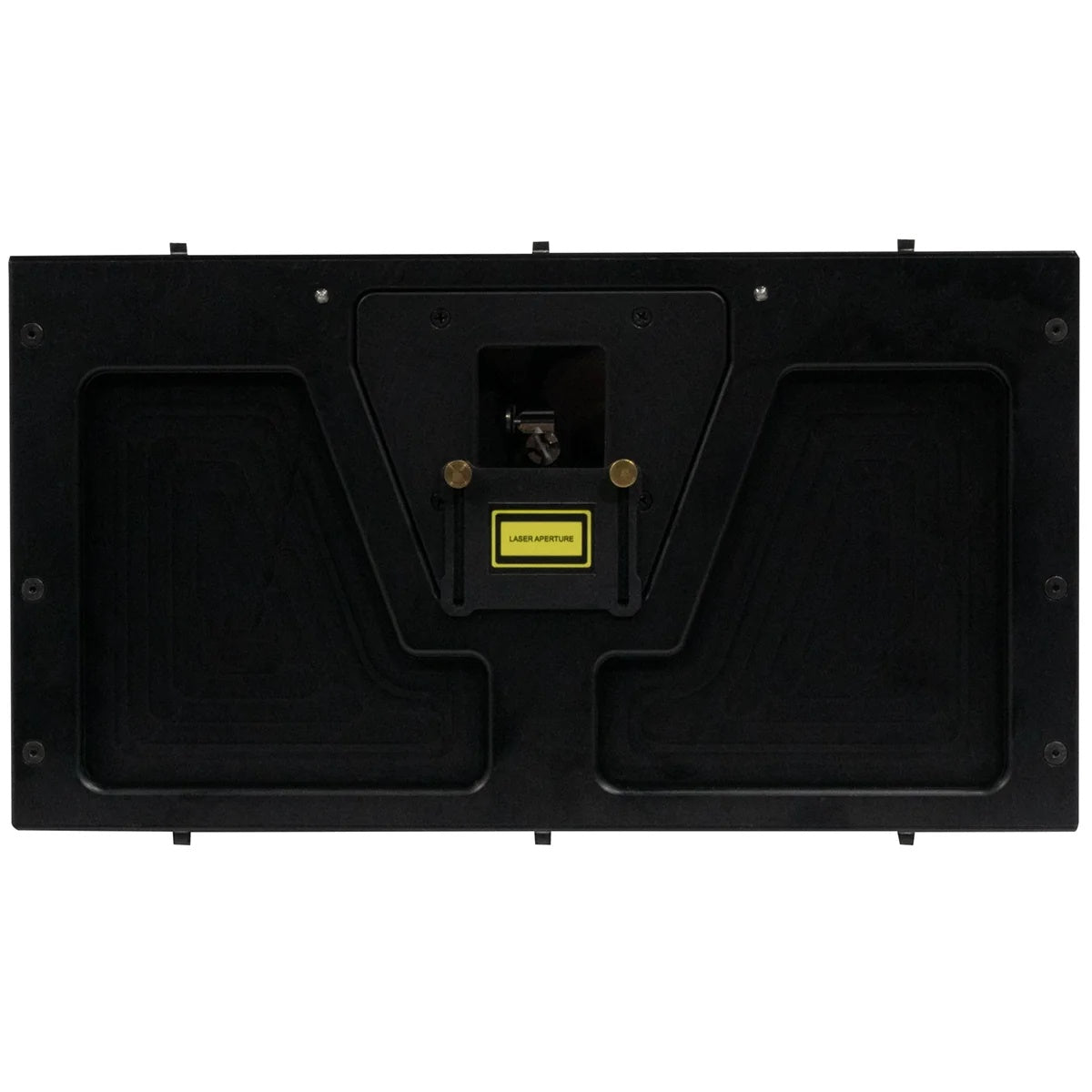

  • 209019_Elation-XLT001-Triton-T-10-IP65-RGB-Laser-Fixture-With-Mercury_ALT02sqr

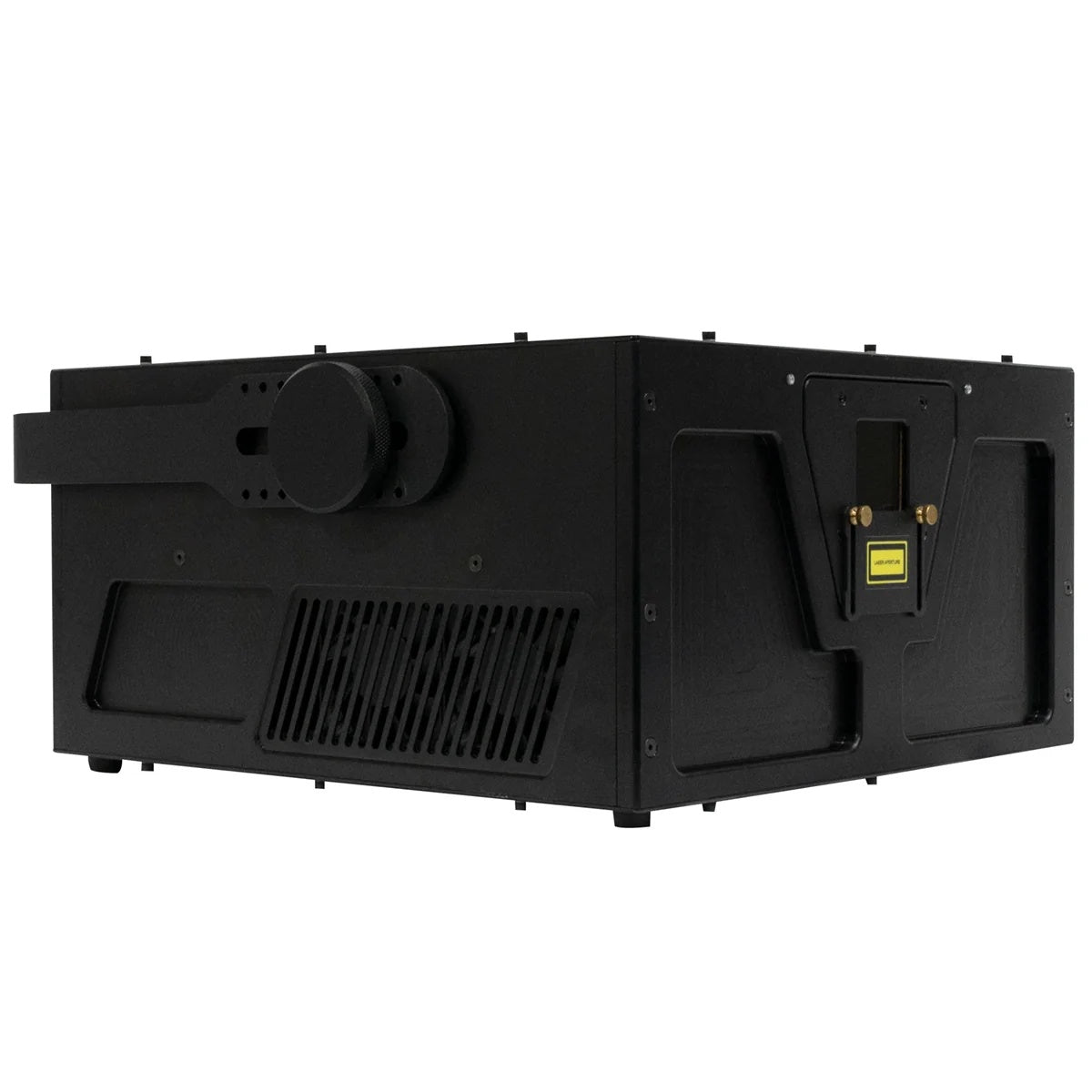

  • 209019_Elation-XLT001-Triton-T-10-IP65-RGB-Laser-Fixture-With-Mercury_ALT03sqr

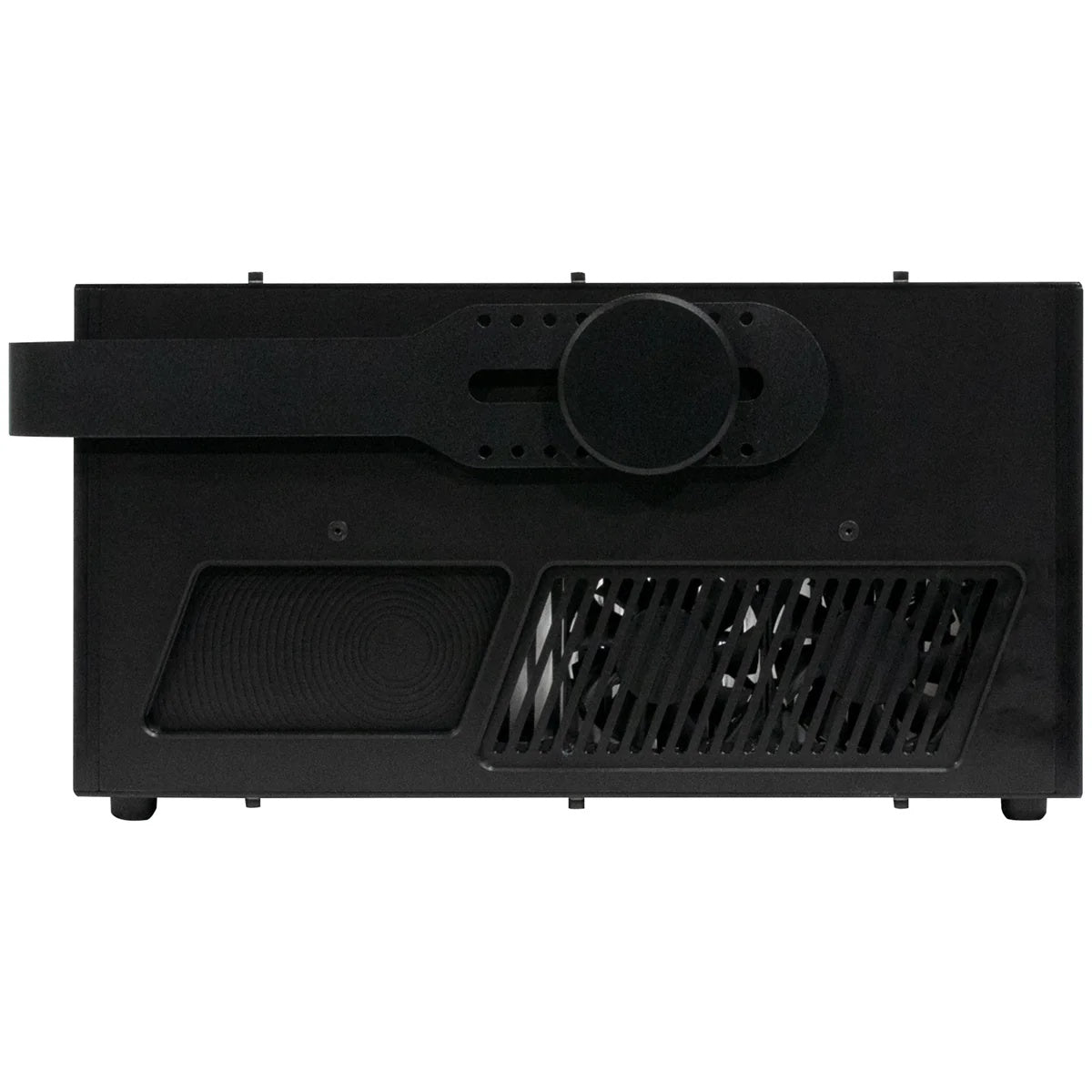

  • 209019_Elation-XLT001-Triton-T-10-IP65-RGB-Laser-Fixture-With-Mercury_ALT04sqr

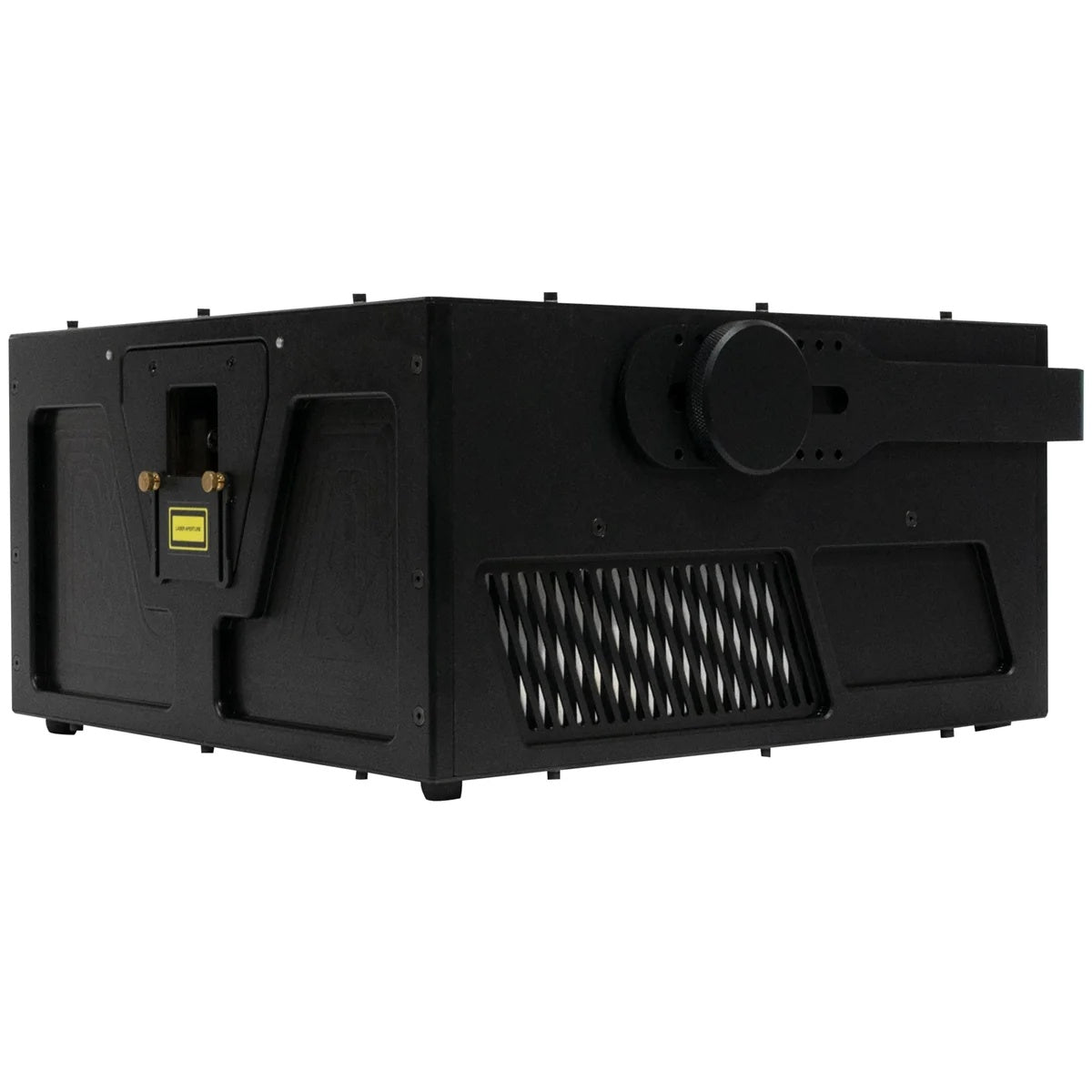

  • 209019_Elation-XLT001-Triton-T-10-IP65-RGB-Laser-Fixture-With-Mercury_ALT05sqr

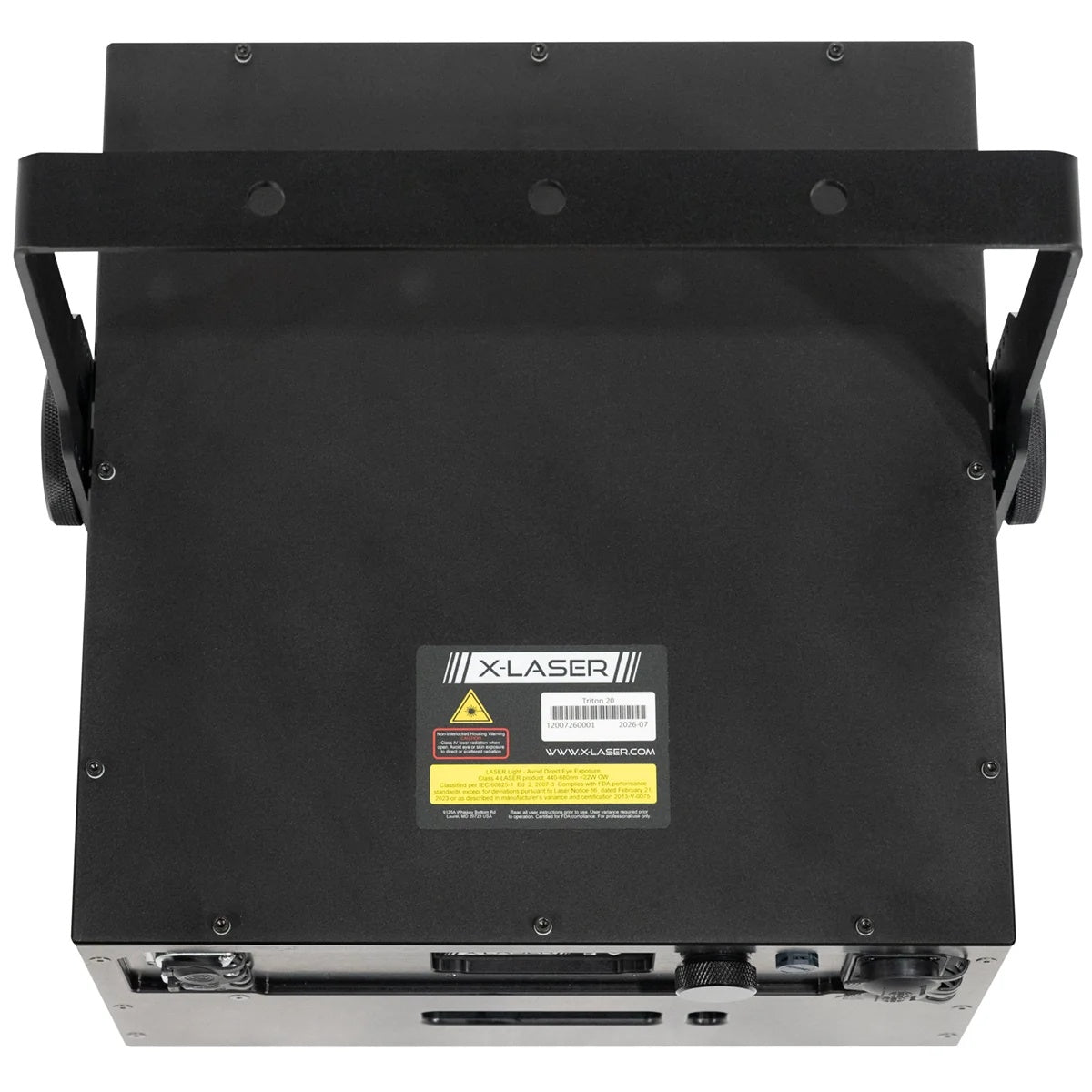

  • 209019_Elation-XLT001-Triton-T-10-IP65-RGB-Laser-Fixture-With-Mercury_ALT06sqr

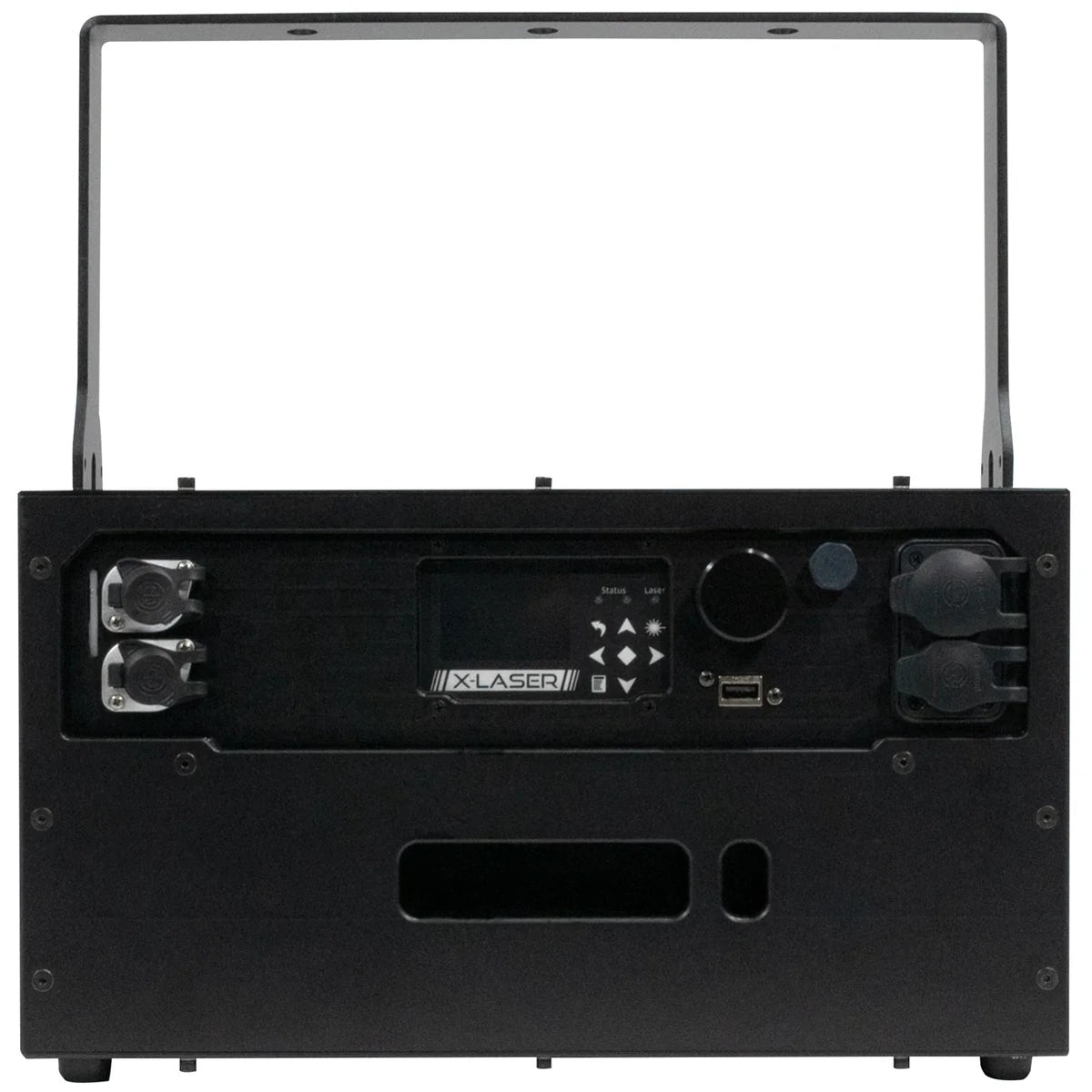

  • 209019_Elation-XLT001-Triton-T-10-IP65-RGB-Laser-Fixture-With-Mercury_ALT07sqr

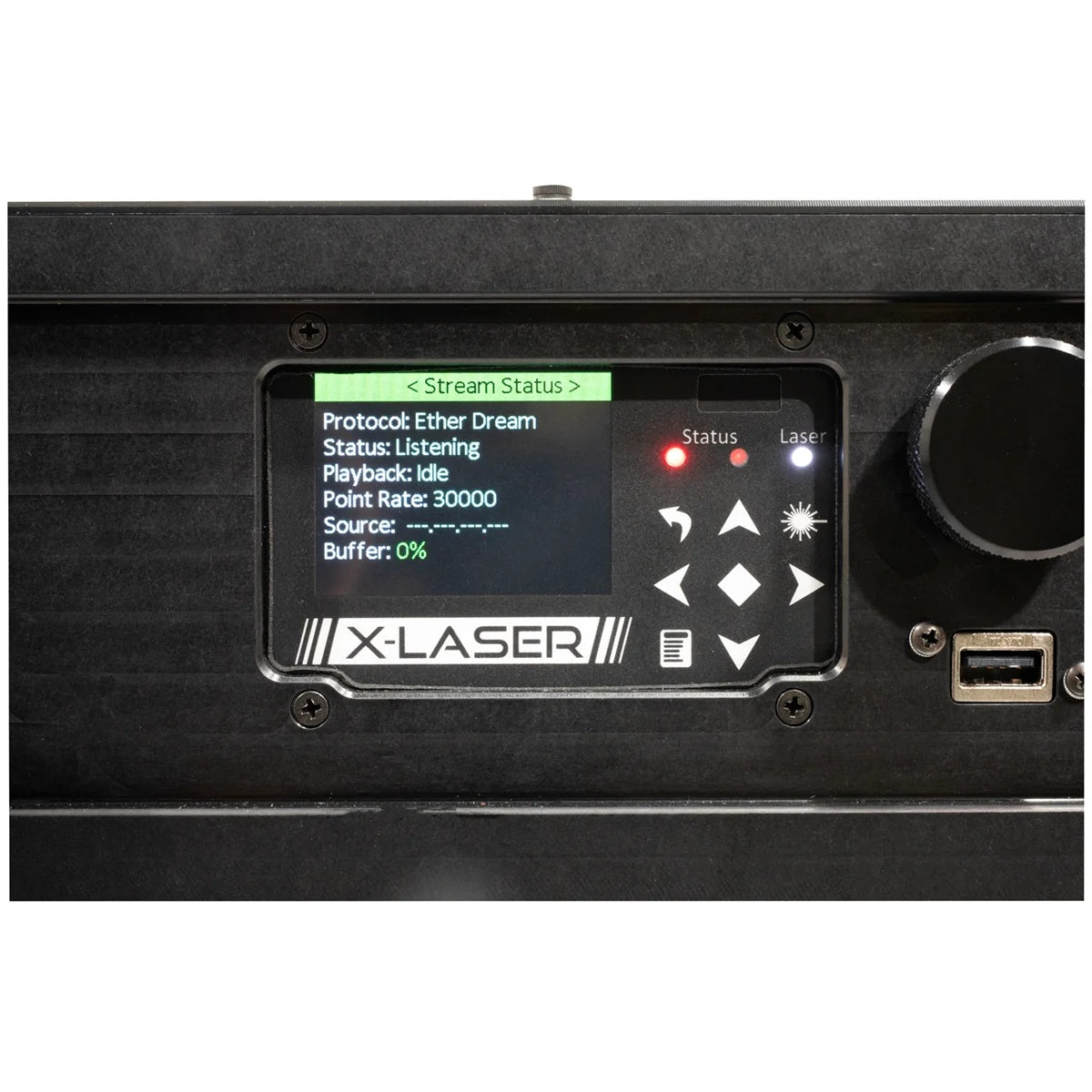

  • 209019_Elation-XLT001-Triton-T-10-IP65-RGB-Laser-Fixture-With-Mercury_ALT08sqr
1 8

Elation XLT001 Triton T-10 IP65 RGB Laser Fixture With Mercury

Elation XLT001 Triton T-10 IP65 RGB Laser Fixture With Mercury

SoundPro Item: 209019 | Part Number: XLT001

$12,099.00
$12,099.00 $12,099.00
Your Price Sold out
MSRP: $12,099.00 | MAP: $12,099.00

Usually ships in 5-7 business days

  • IP65 Sealed Construction Handles Outdoor Events And Permanent Installations
  • Mercury Firmware Enables Direct Console Control Without A Separate Laser Desk
  • Instant Digital Pattern Changes From 450-Plus Built-In Gobos For Live Programming
  • 30K PPS Galvanometers Deliver Smooth, Continuous Pattern Motion Under Show Conditions
  • Additive RGB Analog Color Mixing Blends Seamlessly With Traditional Moving Head Fixtures
  • EtherStop Port Combines Remote Safety Stop And Control Data In A Single Connection
  • X-Laser No-Hassle 2-Year Warranty Covers The Fixture For Extended Production Schedules
Log in or register for YOUR best price

The X-Laser Triton T-10 is built for lighting designers and production teams who need a professional-grade IP65 laser fixture that integrates directly into an existing console workflow. With Mercury firmware onboard, the fixture responds to sACN and Art-Net just like any top-tier moving light, eliminating the need for a separate laser control interface and flattening the learning curve for programmers working under show pressure.

Its 10W balanced direct-diode RGB engine, 30,000 PPS galvanometers, and 0.1 to 45 degree zoom range give designers the creative range to deliver tight aerial beams or wide washes from a single compact unit. Instant digital gobo changes drawn from a library of 450 or more built-in patterns, 11 digital prisms, and 60 motion macros with variable speed make complex laser programming accessible without dedicated laser software. The fully sealed optical deck and rugged 6061 aluminum enclosure back up all of that creative output with genuine IP65 durability for outdoor festivals, permanent architectural installs, and road-heavy touring schedules.

Proven on high-profile touring productions, the Triton T-10 fills the gap between consumer laser toys and large-format laser systems that require dedicated operators. EtherStop combined remote stop and data connectivity, Neutrik PowerCON TRUE1 power in and through, and RJ45 in and out make it a clean addition to any touring or installed rack without custom adaptation. For teams that need reliable, compliant IP65 laser output without a separate laser desk, the Triton T-10 is the most accessible entry point at this performance level.

View full details

Specifications

Certifications
IP Rating
IP65
Laser Hazard Class
FDA / IEC Hazard Class IV
Regulatory Requirement
U.S. FDA Variance Required
Dimensions
Length
15.6"
Width
14.7"
Height (Without Yoke)
8.0"
Height (With Yoke Up)
13.8"
Length (mm)
396 mm
Width (mm)
373 mm
Height (mm)
203 mm
Height With Yoke Up (mm)
351 mm
Weight
Product Weight
45 lbs (20.4 kg)
Electrical
Input Voltage
90-246V AC Auto-Switching
Power Draw
300W peak
Power Connector
Neutrik PowerCON TRUE1
Operating Temperature
0 F to 105 F (-17 C to 41 C)
Source
Laser Engine
10W Balanced RGB Direct-Injection Diode Modules
Red Wavelength
638 nm
Green Wavelength
520 nm
Blue Wavelength
450 nm
Red Power
3.2W
Green Power
3.2W
Blue Power
4.0W
Performance
Scanner Speed
30,000 PPS at 8 degree scan angle
Max Scan Angle
45 degrees
Beam Divergence
<1.2 mRad
Zoom Range
0.1 to 45 degrees
Optical Deck
Fully Sealed
Color And Effects
Color Mixing
Additive RGB Analog
Color Count
1,000+
Color Macros
50
Digital Prisms
11
Built-In Gobos / Digital Patterns
450+
Motion Macros
60 (variable speed and amplitude)
Connectivity
Control Firmware
X-Laser Mercury Integrated
Display
2.25" LCD Panel
Supported Protocols
sACN, Art-Net
Data Connectors
RJ45 In / Out
Power Connectors
Neutrik PowerCON TRUE1 In / Thru
Safety Interface
EtherStop Combined Remote Stop And Control Data
Construction
Enclosure Material
Rugged 6061 Aluminum
