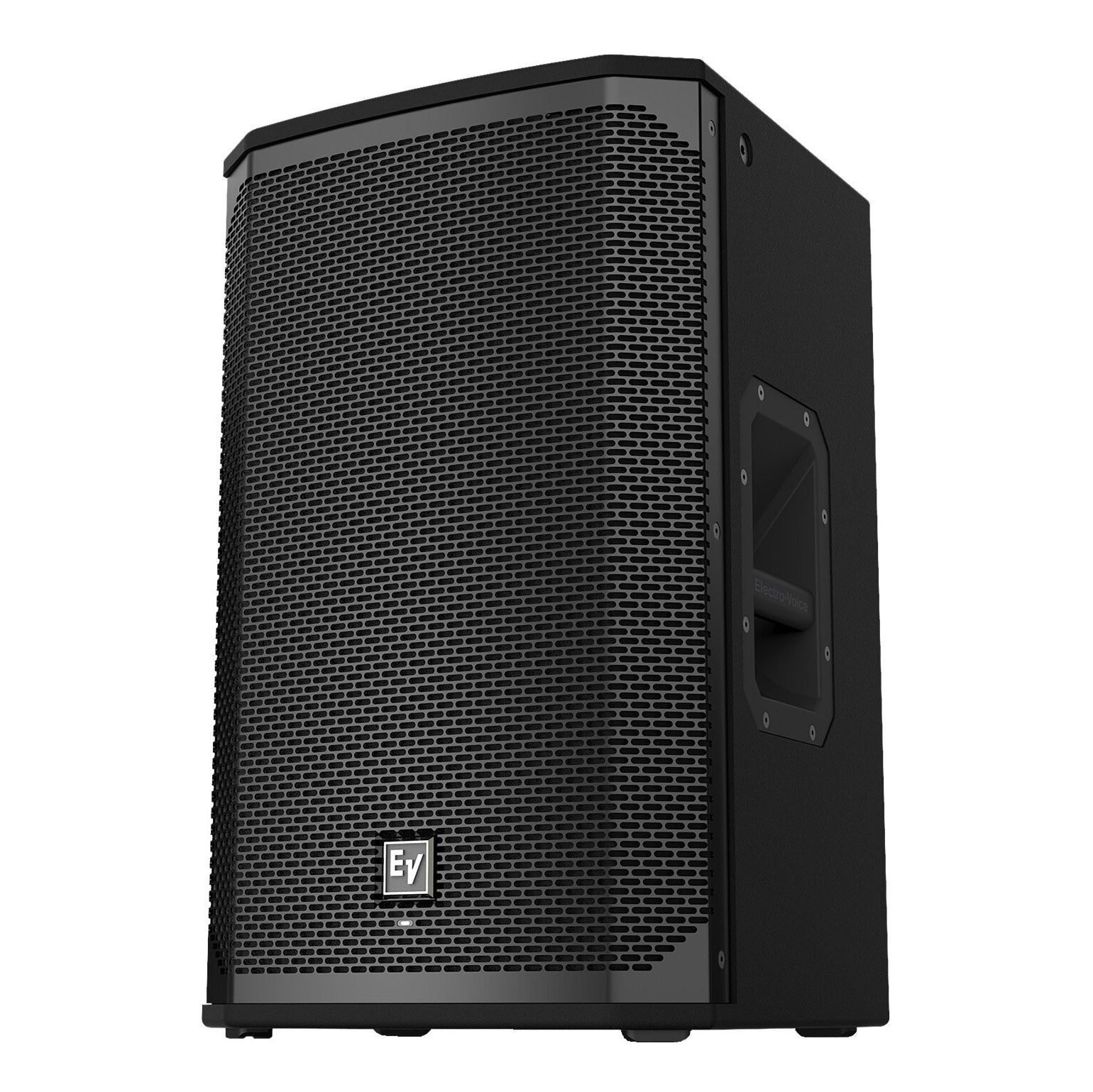

Electro-Voice EKX-12 12-Inch Passive Speaker
Electro-Voice EKX-12 12-Inch Passive Speaker
SoundPro Item: 21800 | Part Number: EKX-12
Usually ships in 5-7 business days
- 1400W (peak), 131 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV
- EV-patented Signal Synchronized Transducers™ (SST) waveguide design provides superior drive time alignment and precise and consistent coverage to enhance audio impact and intelligibility
- Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish
- Eight M10 threaded mounting points
- Aluminum pole mounts, and all-metal handles
- 90° x 60° pattern for best coverage on mid-size stages
The EKX-12 passive speaker combines quality and reliability in a compact package suitable for a wide range of sound reinforcement scenarios. Ideal for musicians, DJs and live performance, and installed sound applications, the innovative EKX-12 is equipped with features that optimize performance and versatility, including EV-engineered speaker and amplifier components and on-board signal processing with user-friendly single-knob control and application presets for easy set-up. Electro-Voice’s award-winning industrial design – incorporating robust wood enclosures, premium-quality hardware, and durable EVCoat finish – ensures that EKX speakers look as great as they sound.
- Frequency range (-10 dB)55Hz - 20kHz (full space measurement)
- Suspension8x M10 threaded mounting points
- Minimum impedance7.5Ω
- HF transducerDH-1M 1-inch titanium compression driver
- Speaker typefull-range, two-way
- Woofer size12 inch
- Frequency response (-3 dB)82Hz - 18kHz (full space measurement)
- Max. SPL/1m (calc)131dB
- Coverage (nominal -6 dB) H90°
- LF transducerEVS-12M 300 mm (12 in)
- Power rating1400W
- Crossover frequency1.6 kHz
- Connector typeDual NL4
- Enclosure material15 mm, plywood with EVCoat
- Grille18 AWG steel with powdercoat
- Recommended high-pass frequency55Hz
- Power handling350W (continuous), 1400W (peak)
- Nominal impedance8Ω
- Axial sensitivity (SPL, 1W @ 1 m)95dB
- Dimensions (HxWxD)23.9x14.76x14.02"
- Weight38.36lbs (17.4kg)
