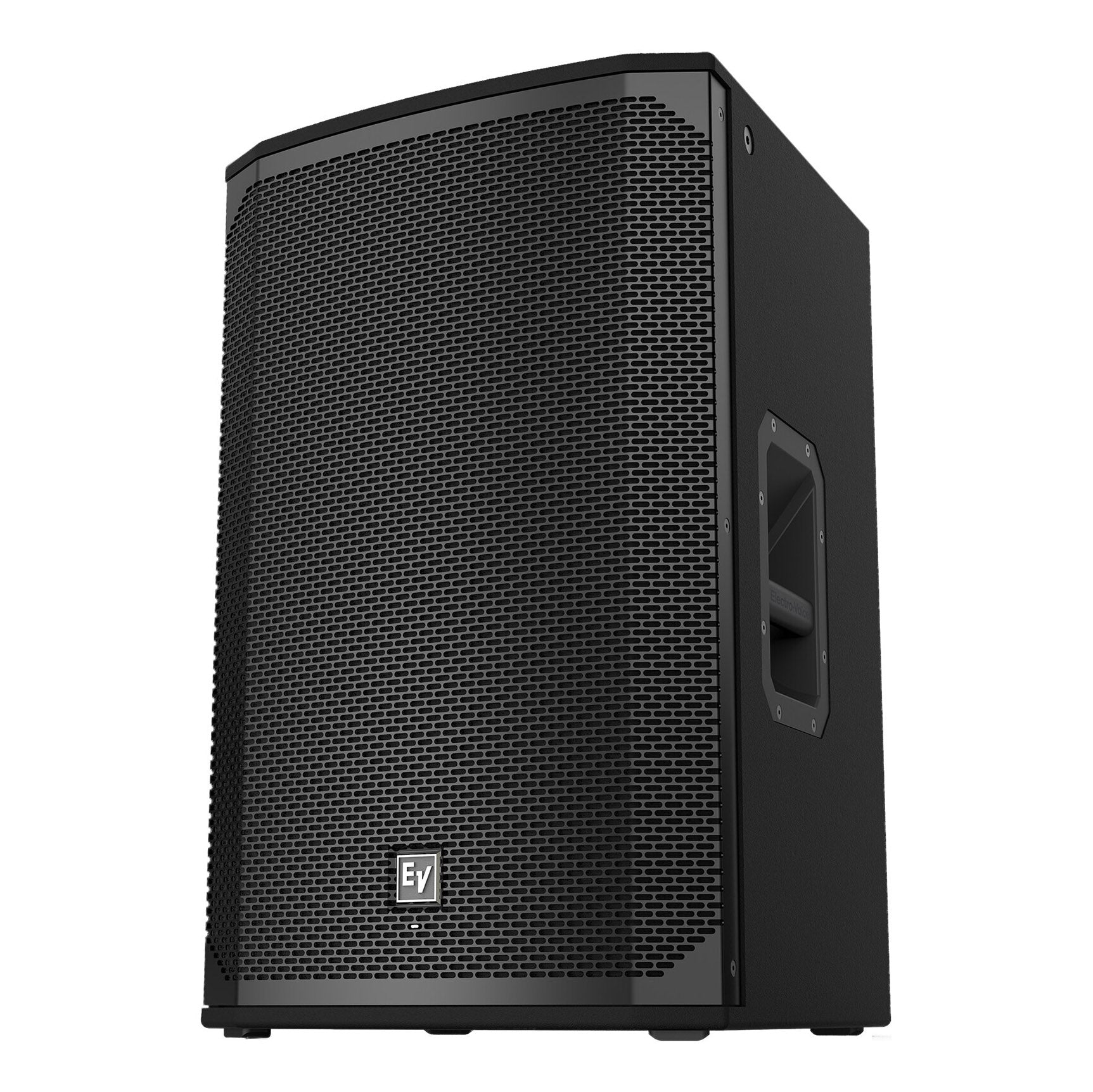

Electro-Voice EKX-15 15-Inch Passive Speaker
Electro-Voice EKX-15 15-Inch Passive Speaker
SoundPro Item: 21801 | Part Number: EKX-15
Usually ships in 5-7 business days
- EKX-15: 1600W (peak), 132 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV
- EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage
- Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish
- 8 M10 threaded mounting points, aluminum pole mounts, and all-metal handles
- 90° x 60° pattern for best coverage on mid-size stages. 40° monitor angle with rubber feet
- Single-knob Quicksmart DSP control with LCD display
- Application and location presets
The EKX-15 15” passive speaker combines quality and reliability in a compact package suitable for a wide range of sound reinforcement scenarios. Ideal for musicians, DJs and live performance, and installed sound applications, the innovative EKX-15 is equipped with features that optimize performance and versatility, including EV-engineered speaker and amplifier components and on-board signal processing with user-friendly single-knob control and application presets for easy set-up. Electro-Voice’s award-winning industrial design – incorporating robust wood enclosures, premium-quality hardware, and durable EVCoat finish – ensures that EKX speakers look as great as they sound.
- Frequency Range (-10 dB) 50 Hz - 20 kkHz (Full Space Measurement)
- Suspension 8x M10 threaded mounting points
- Minimum Impedance 7.2Ω
- HF Transducer DH-1M 1-inch titanium compression driver
- Speaker Type Full-Range, two way
- Woofer Size 15 inches
- Powered or Passive Passive
- Frequency Response (-3 dB) 75 Hz - 18 kHz (Full Space Measurement)
- Max. SPL/1m (calc)² 132dB
- Coverage (Nominal -6 dB) H 90°
- LF Transducer EVS-15M 381 mm (15 in)
- Coverage (Nominal -6 dB) V 60°
- Power Rating 1600W
- Crossover Frequency 1.6 kHz
- Connector Type Dual NL4
- Enclosure Material 15 mm, plywood with EVCoat
- Grille 18 AWG steel with powdercoat
- Dimensions (HxWxD)26.97" x 17.01" x 16.89"
- Recommended High-Pass Frequency 50Hz
- Weight Net 51.15lbs (23.2kg)
- Family EKX
- Nominal Impedance 8Ω
- Axial Sensitivity (SPL, 1 W @ 1 m) 96dB (Full Space Measurement)
- Power Handling (Continuous / Peak)400 W/1600W
- Maximum SPL 132dB (Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating)
- Passive Power Handling 1600W peak
