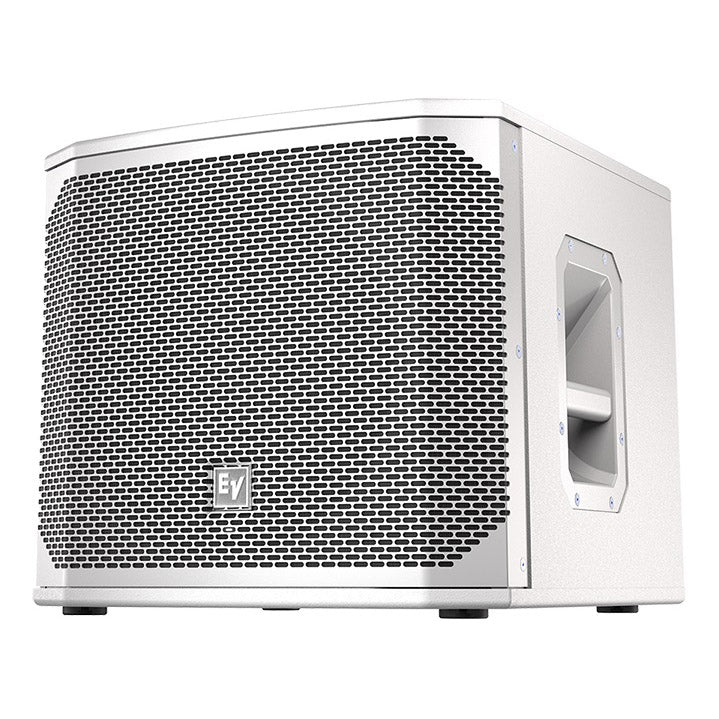

Electro-Voice ELX200-12S 12-Inch Passive Subwoofer | Color: White
Electro-Voice ELX200-12S 12-Inch Passive Subwoofer | Color: White
SoundPro Item: 45326 | Part Number: ELX200-12S-W
Usually ships in 5-7 business days
- 1600W (peak), 129 dB peak SPL
- High-output EVS-12L woofer designed for superior durability and exceptional low-frequency reproduction
- System reliability verified with over 500 hours of abuse testing and endurance testing
- Ideal for portable and installed applications
- Lightweight, compact 15 mm wood enclosure with internal bracing with durable finish
- Integrated M20 threaded pole mount plate and two-handle design for easy lifting
The ELX200-12S passive subwoofer from Electro-Voice packs a powerful low-frequency output into a surprisingly compact footprint that delivers an unprecedented combination of sound quality, portability, and durability that makes it ideal for both portable and installed applications. Unified in a sturdy, full-range enclosure, the ELX200-12S is characterized by strength and efficiency both acoustically and physically and can handle 129 decibels (1600 watts) peak sound pressure levels.
- Minimum Impedance 6.9Ω
- Speaker Type Subwoofer
- Woofer Size 12inch
- Frequency Response (-3 dB) 42 Hz - 220 Hz
- Frequency Range (-10 dB) 33 Hz - 300 Hz
- Max. SPL/1m (calc) 129dB
- LF Transducer EVS-12L 300 mm (12 in)
- Power Rating 1600W
- Connector Type Dual NL4
- Enclosure Material 15 mm plywood with durable polyurea top-coat finish
- Grille 18 AWG steel with powdercoat
- Available Color Black or White
- Height 15.63" (397mm)
- Width 17.52" (445mm)
- Recommended High-Pass Frequency 42Hz
- Depth 17.99" (457 mm)
- Weight Net 44.53 lbs (20.2 kg)
- Shipping Weight 44.53 lbs (20.2 kg)
- Family ELX200
- Nominal Impedance 8 ΩΩ
- Axial Sensitivity (SPL, 1W @ 1 m) 93dB
- Power Handling (Continuous / Peak) 400W/1600W
