• Electro-Voice EVA-2151D Dual 15 Subwoofer Line Array Element
1 1

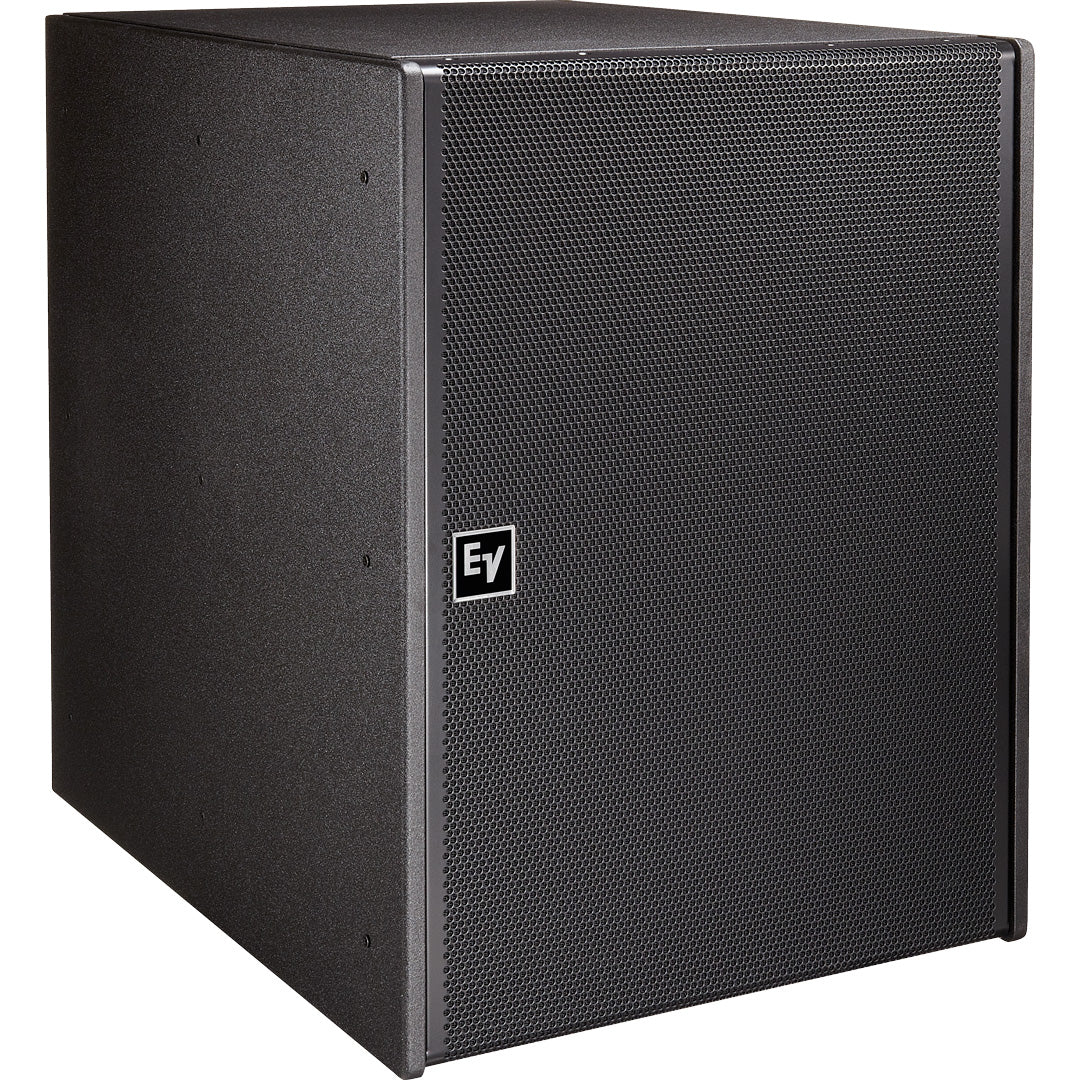

Electro-Voice EVA-2151D Dual 15-Inch Line Array Subwoofer | Color: Black

Electro-Voice EVA-2151D Dual 15-Inch Line Array Subwoofer | Color: Black

SoundPro Item: 45378 | Part Number: F.01U.416.689

$4,881.00
$4,881.00 $4,881.00
Your Price Sold out
MSRP: $4,881.00 | MAP: $4,881.00

Usually ships in 5-7 business days

  • High power, front loaded
  • Ideal for fixed installations
  • Seamless rigging with EVA line arrays
  • DVX3159A woofer for low distortion at high SPL
  • Steel-reinforced 13-ply birch enclosure
  • Two DVX3159A woofers for low distortion at high SPL
  • 100 dB sensitivity (1 W / 1 m half space)
  • Power handling: 1000 W continuous, 4000 W peak
  • 130/136dB maximum SPL (continuous/peak)
Log in or register for YOUR best price

The Electro-Voice EVA-2151D is a high-power, front-loaded subwoofer module for use with EVA full-range line-array modules, designed exclusively for fixed installation applications. The unique acoustic and integrated rigging design of the EVA series allows for construction of vertical arrays up to eight modules high using any combination of EVA-2151D and/or EVA-2082S modules. The enclosure is constructed of 18-mm 13-ply birch plywood reinforced with internal steel rigging top to bottom and coated with EVCoatTM for durability and professional appearance.

The EVA-2151D’s DVX3159A 15” woofer is specially designed for subwoofer duty to provide reliable low-frequency performance with solid impact and low distortion at high sound pressure levels. Intermodule tie plates included with the EVA-2151D provide for splays of 0° or 5° between subwoofer modules to help accommodate the wide variety of array configurations possible, including stand-alone subwoofer arrays.

The Expandable Vertical Array (EVA) series from Electro-Voice is a vertical line array with a unique, elegant system design that provides a simple solution for installed sound applications. EVA is an affordable array option that offers true line array performance, streamlined and minimalistic rigging, and versatile and user-friendly installation options.

View full details

Specifications

Dimensions
Height
36.63" (930.4mm)
Width
23.5" (597mm)
Depth
31.2" (792.5mm)
Weight
Weight Net
178.13lbs (80.8kg)
Electrical
Minimum Impedance
2.8Ω
Nominal Impedance (Passive)
4Ω
Audio
Speaker Type
Subwoofer, Line-array
Max. SPL/1m (calc)
136dB (Half Space)
Crossover Frequency
100Hz (active)
Sensitivity 1 W/1 M
100dB (Arithmetic average, 55-100Hz, half space measurement. )
Connectivity
Input Connections
Phoenix Euroblock
Construction
Enclosure Material
Birch Plywood
Grille
16 GA Galvanneal, powder-coated; PI Version: stainless steel with hydrophobic cloth
General
Frequency Range (-10 dB)
28 - 200kHz (Half space)
Suspension
EVA grid (sold separately)
Frequency Response (-3 dB)
200Hz (Half space)
Coverage (Nominal -6 dB) H
360°
LF Transducer
2 x DVX3159A
Coverage (Nominal -6 dB) V
Omnidirectional°
System Power Handling (Continuous/Program/Peak)
1000/2000/4000Watts
Recommended High-Pass Frequency
32Hz (24dB per Octave BW, Half Space)
Passive Power Handling
4000W peak
