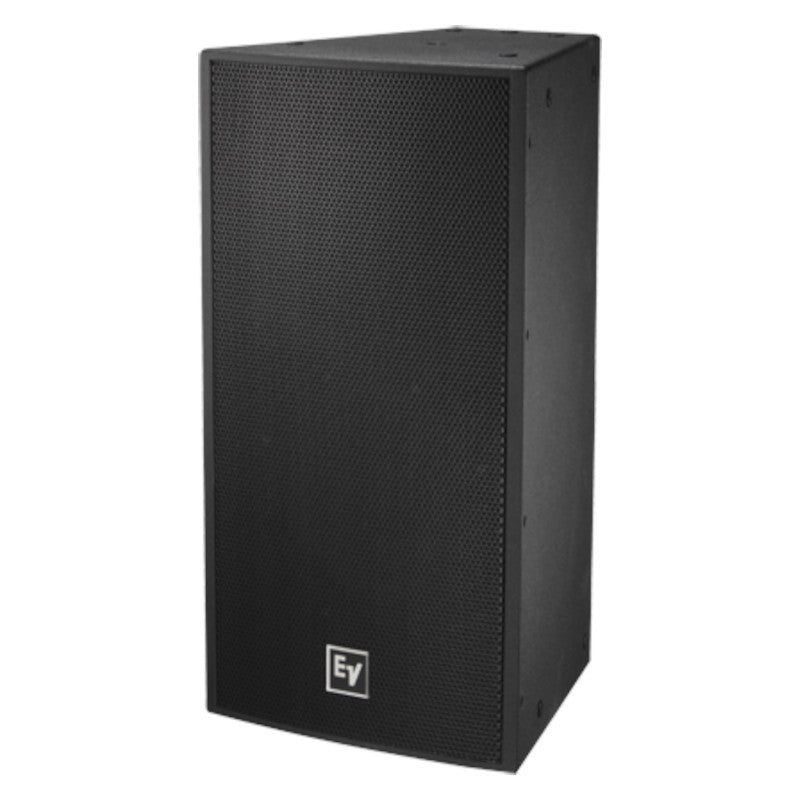

Electro-Voice EVF-1122D 12-Inch Passive Speaker | Color: Black, Coverage: 60 x 45

Electro-Voice EVF-1122D 12-Inch Passive Speaker | Color: Black, Coverage: 60 x 45

SoundPro Item: 45432 | Part Number: F.01U.272.586

$3,489.00
$3,489.00 $3,489.00
Your Price Sold out
MSRP: $3,489.00 | MAP: $3,489.00

Usually ships in 5-7 business days

  • 3-inch DH7N titanium/neodymium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Six available patterns with coverage from 60º to 120º
  • 97 dB sensitivity, 131 dB maximum SPL
  • Power handling: 600W continuous, 2400W peak
  • 4th-order passive crossover with HF protection
  • Trapezoidal 13-ply birch enclosure in three finishes: EVCoat, PI, and fiberglass (FG)
Log in or register for YOUR best price

EVF-1122D/64 features a 60° x 40° rotatable waveguide, design for far field long throw coverage pattern.

View full details

Specifications

Dimensions
Height
30.26" (768.6mm)
Width
16" (406.3mm)
Depth
16.27" (413.3mm)
Dimensions (HxWxD)
30.26x16x16.27" (768.6x406.3x413.3mm)
Weight
Weight Net
65.48lbs (29.7kg)
Shipping Weight
75.84lbs (34.4kg)
Net Weight
65.5 lb (29.7 kg)
Electrical
Minimum Impedance
6Ω
Nominal Impedance (Passive)
8Ω
LF Nominal Impedance
8Ω
Audio
Speaker Type
Full-Range, Two-Way
Max. SPL/1m (calc)²
131dB
Crossover Frequency
1300Hz
Sensitivity 1 W/1 M
97dB
Connectivity
Input Connections
Euroblock; PI and FG versions include dual-gland-nut input-panel cover
Construction
Enclosure Material
13-ply weather-resistant birch
Grille
Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind
General
Frequency Range (-10 dB)
49 Hz – 21 kHz
Suspension
22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)
Weatherized
No
HF Transducer
3" DH7N diaphragm compression driver
Frequency Response (-3 dB)¹
57 Hz – 18 Hz
Coverage (Nominal -6 dB) H
90°
Coverage (Nominal -6 dB) V
40°
LF Transducer
12" DVX3121A woofer
System Power Handling (Continuous/Program/Peak)
600 , 1200 , 2400 Watts
Recommended High-Pass Frequency
65Hz
Available Coverage Patterns (Nominal -6 dB) HxV
90 x 40°
Environmental Specs
Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55
Internal Passive Crossover Frequency
1300Hz
Passive Power Handling
2400W peak
