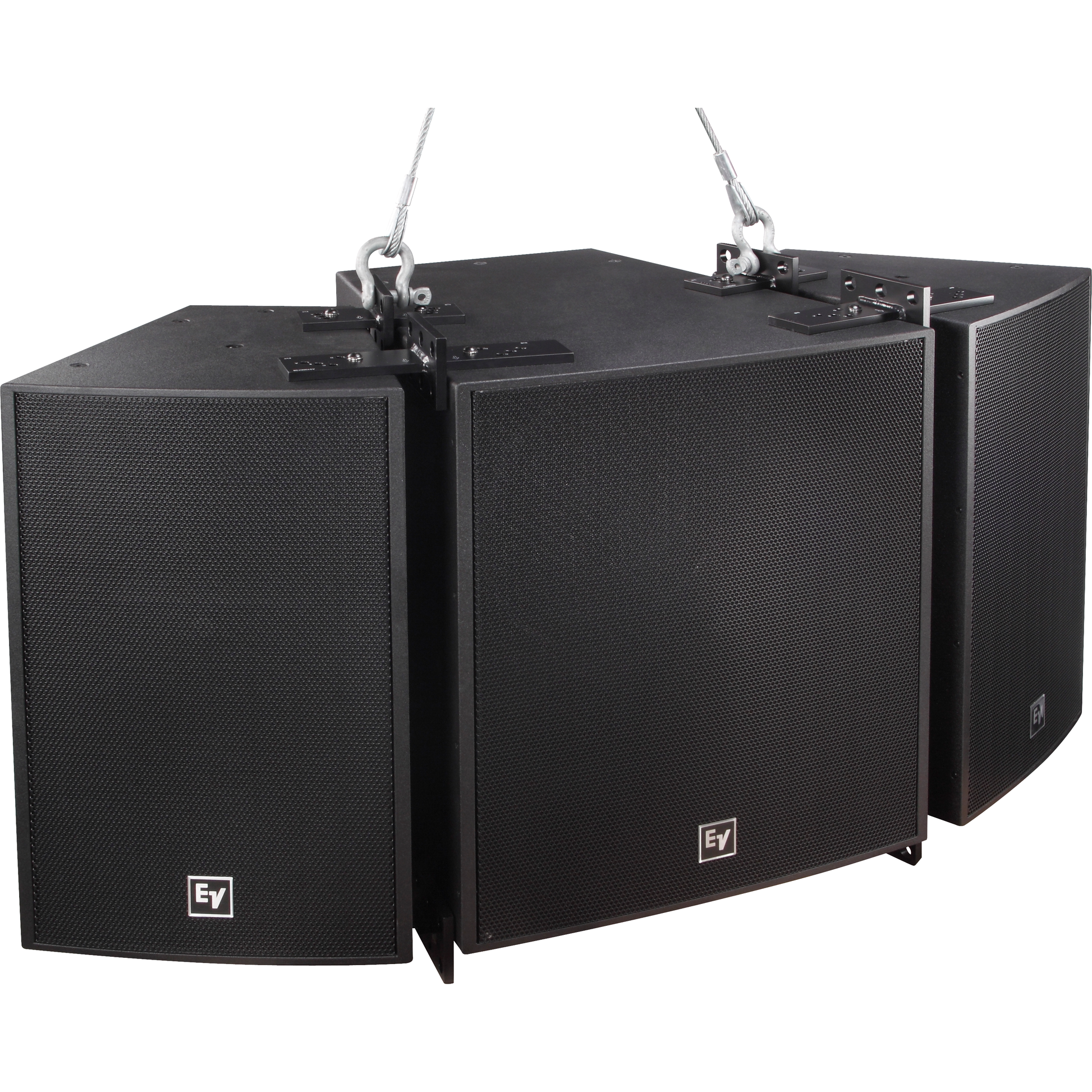

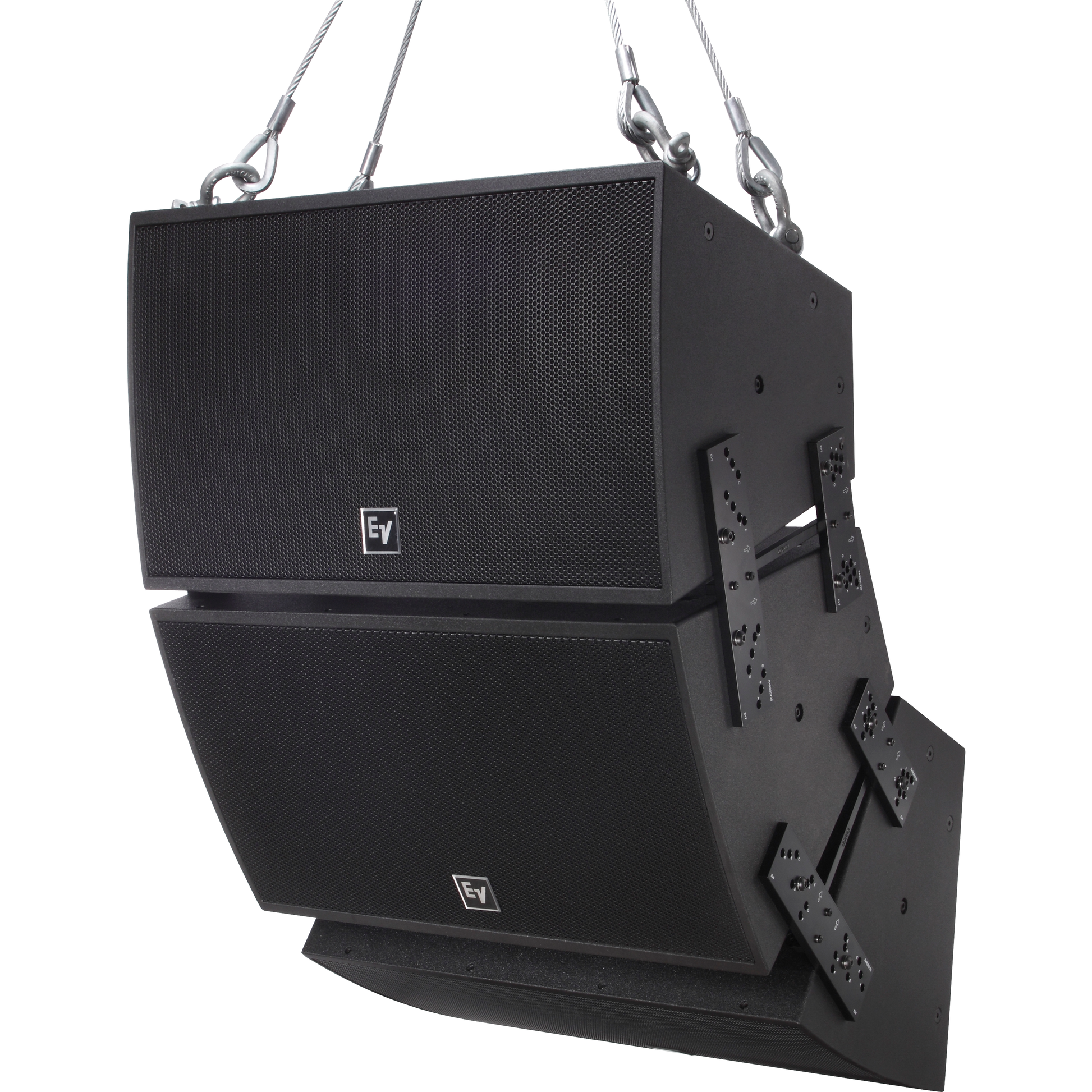

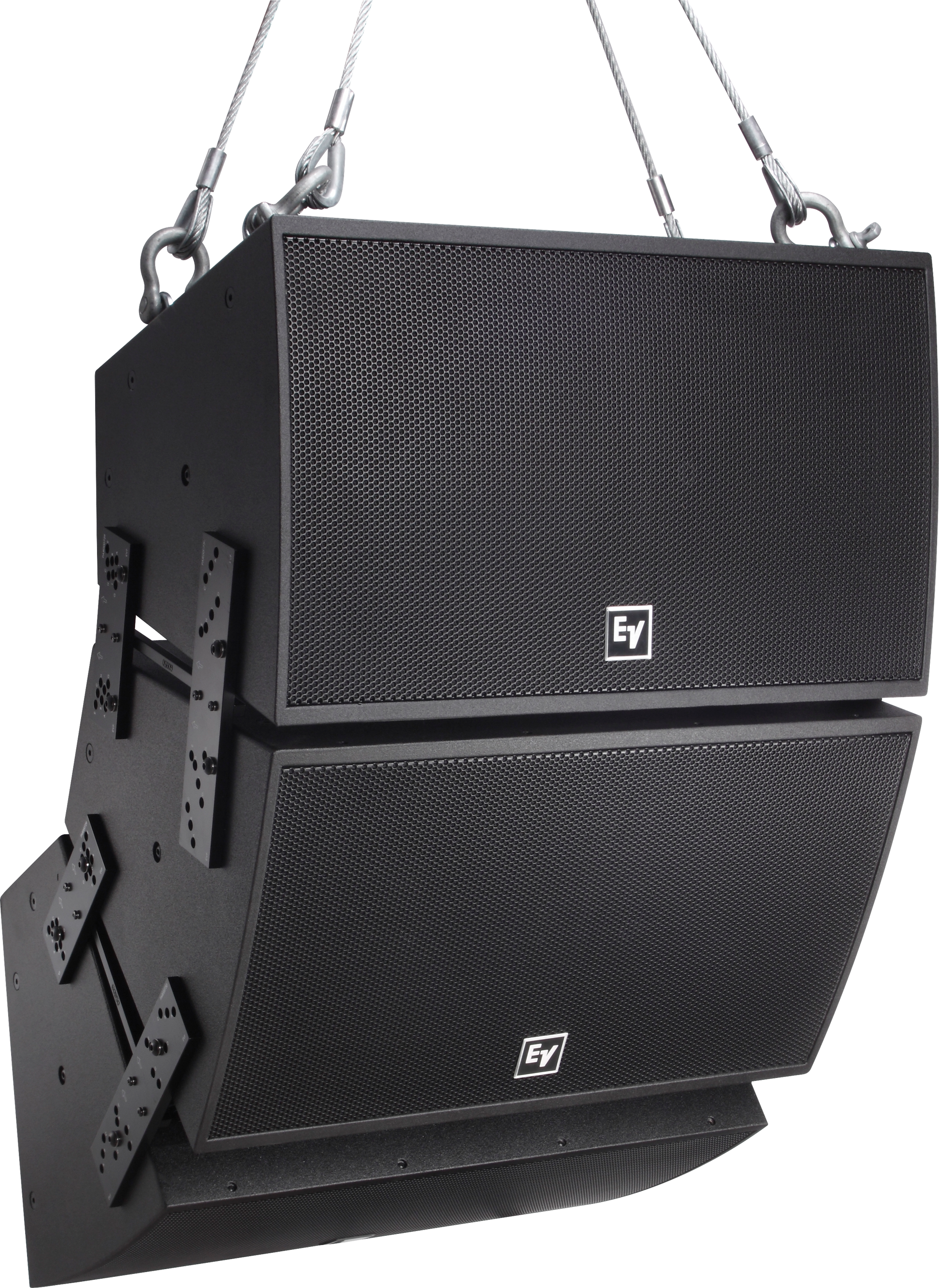

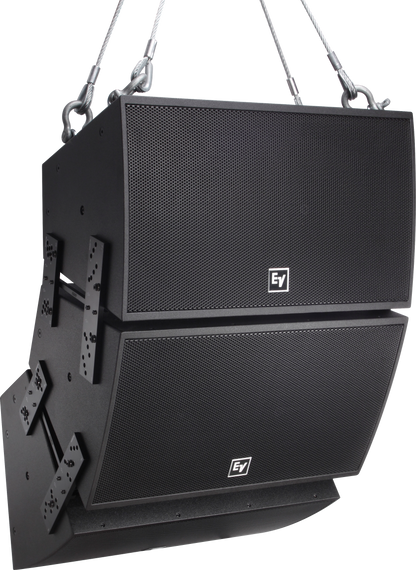

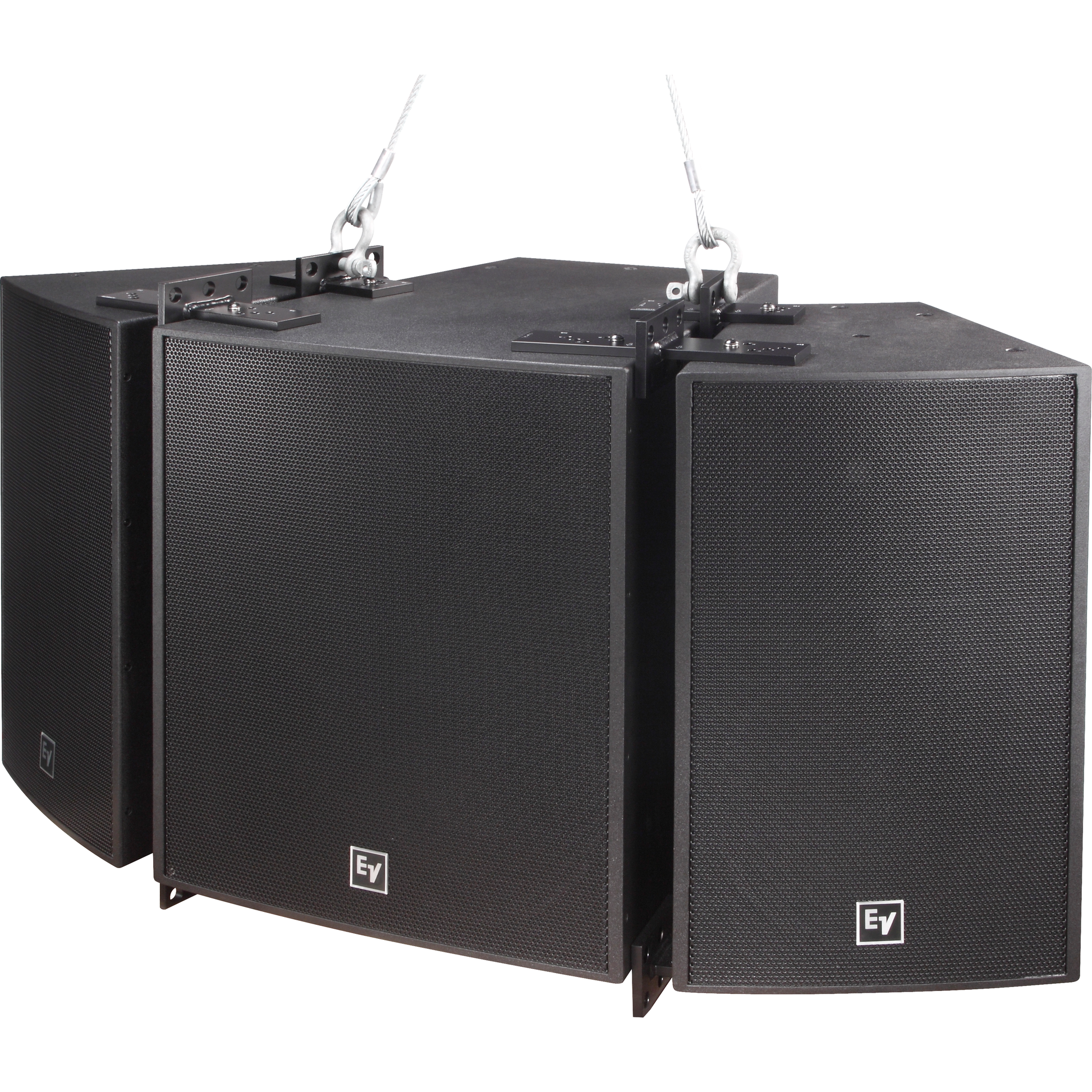

Electro-Voice EVF-1122D/126 Loudspeaker | Color: Black

Electro-Voice EVF-1122D/126 Loudspeaker | Color: Black

SoundPro Item: 45420 | Part Number: EVF-1122D/126

$3,246.00
$3,246.00 $3,246.00
Your Price Sold out
MSRP: $3,246.00 | MAP: $3,246.00

In stock and ready to ship

  • 3-inch DH7N titanium/neodymium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Six available patterns with coverage from 60° to 120°
  • 97 dB sensitivity, 131 dB maximum SPL
  • Power handling: 600 W continuous, 2400 W peak
  • 4th-order passive crossover with HF protection
  • Trapezoidal 13-ply plywood enclosure in three finishes: EVCoat, PI, and fiberglass (FG)
Log in or register for YOUR best price

Premium Arrayable point-source 12" loudspeaker. EVF-1122D/126 features a 120° x 60° rotatable waveguide, design for near field widest throw coverage pattern.

View full details

Specifications

Frequency Range (-10 dB)
49 Hz – 21
Suspension
22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)
Weatherized
No
Minimum Impedance
6
Nominal Impedance (Passive)
8
HF Transducer
3" DH7N diaphragm compression driver
Speaker Type
Full-Range, Two-Way
Frequency Response (-3 dB)
57 Hz – 18
LF Nominal Impedance
8
Max. SPL/1m (calc)
131
Coverage (Nominal -6 dB) H
120
Coverage (Nominal -6 dB) V
60
LF Transducer
12" DVX3121A woofer
System Power Handling (Continuous/Program/Peak)
600 , 1200 , 2400
Crossover Frequency
1300
Enclosure Material
13-ply weather-resistant birch
Grille
Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind
Sensitivity 1 W/1 m
97
Recommended High-Pass Frequency
65
Input Connections
Euroblock; PI and FG versions include dual-gland-nut input-panel cover
Available Coverage Patterns (Nominal -6 dB) HxV
120 x 60
Environmental Specs
Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55
Internal Passive Crossover Frequency
1300
Passive Power Handling
2400
Net Weight and Shipping Weight
65.5 lb (29.7 kg) and 34.4 lbs
Dimensions (H x W x D)
30.26" x 16.00" x 16.27" (768.6 x 406.3 x 413.3 )
