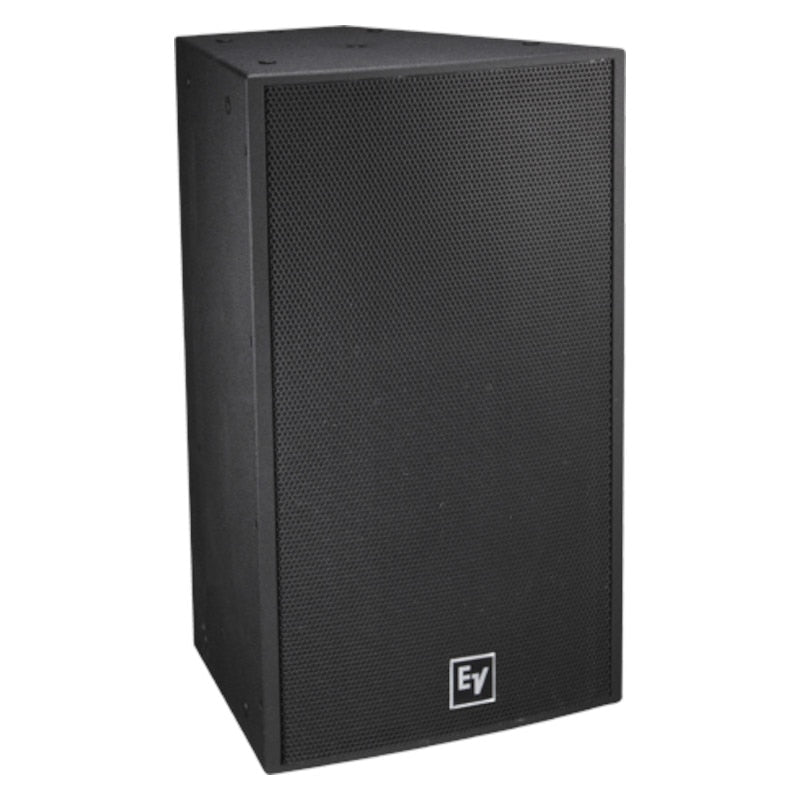

Electro-Voice EVF-1151S 15-Inch Passive Subwoofer | Color: Black
Electro-Voice EVF-1151S 15-Inch Passive Subwoofer | Color: Black
SoundPro Item: 45645 | Part Number: EVF-1151S-BLK
Usually ships in 5-7 business days
- Enhanced bass for installations
- Low-distortion EVS15SB woofer
- 99 dB sensitivity, 131 dB maximum SPL
- Power: 400W continuous, 1600W peak
- Trapezoidal 13-ply birch enclosure
- EVCoat, PI, or fiberglass (FG) finish
- M10 threaded suspension points (22)
- Available in black (pictured) and white (not pictured)
EVF-1151S single 15" woofer more bass system is design to work as a low frequency reinforcement unit for EVF Series products, with equal footprint as the full range models, allows for perfect clustering in vertical and horizontal groupings.
- Frequency Range (-10 dB) 46–124 HzkHz
- Suspension 22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)
- Weatherized No
- Minimum Impedance Ω
- Nominal Impedance (Passive) Passive: 4 , Biamp: 8 Ω
- HF Transducer-
- Speaker Type Subwoofer
- Frequency Response (-3 dB)¹ 67–95 HzHz
- Max. SPL/1m (calc)² 131dB
- Coverage (Nominal -6 dB) H 360°
- LF Transducer 15" EVS15SB driver
- System Power Handling (Continuous/Program/Peak) 400 , 800 , 1600 Watts
- Enclosure Material 13-ply weather-resistant birch
- Grille Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind
- Sensitivity 1 W/1 m 99dB
- Height 30.26" (768.6mm)
- Width 18.5" (470mm)
- Recommended High-Pass Frequency 35Hz
- Depth 18.39" (467mm)
- Weight Net 62.61lbs (28.4kg)
- Available Coverage Patterns (Nominal -6 dB) HxV Omnidirectional in normal operating range°
- Environmental Specs Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55
- Internal Passive Crossover Frequency Hz
- Internal Passive Low-Pass Filter100 (12 dB per octave)
- Coverage (Nominal -6 dB)Omnidirectional in normal operating range
- Passive Power Handling1600W peak
- Net Weight62.6 lbs (28.4 kg)
- Dimensions (HxWxD)30.26x18.5x18.4" (768.6x470x467mm)
- Input ConnectionsEuroblock; PI and FG versions include dual gland nut input panel cover
