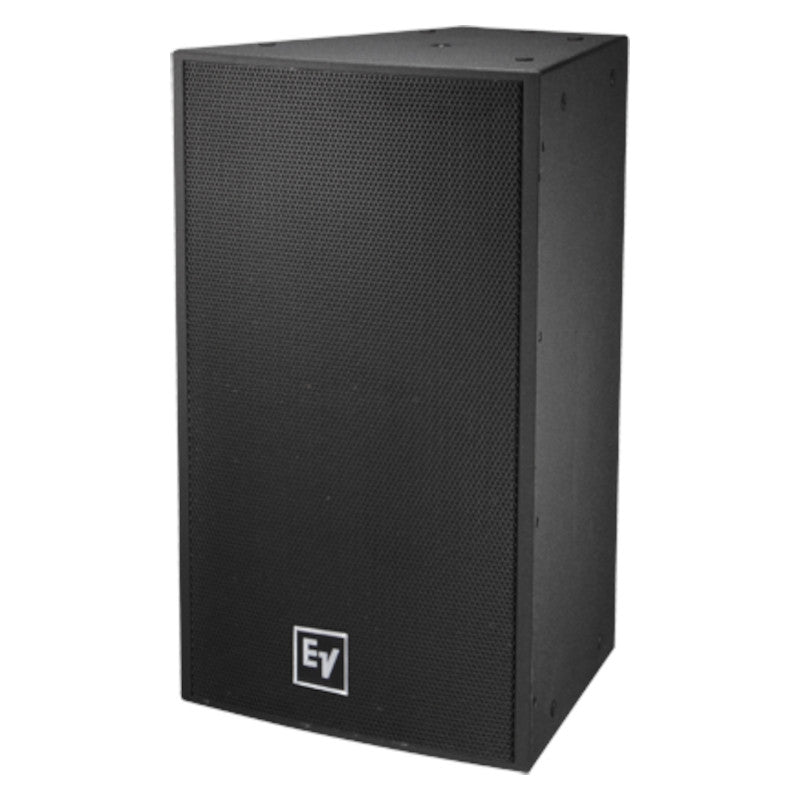

Electro-Voice EVF-1152D 15-Inch Passive Speaker | Color: Black, Coverage: 60 x 45
Electro-Voice EVF-1152D 15-Inch Passive Speaker | Color: Black, Coverage: 60 x 45
SoundPro Item: 45462 | Part Number: EVF-1152D/64-BLK
Usually ships in 5-7 business days
- Compact and lightweight
- Low distortion, high efficiency
- Ideal for fixed installations
- DVX3151A woofer with fully symmetric drive
- 3-inch DH7N titanium/neodymium HF compression driver
- Rotatable Constant-directivity waveguide
- Six available patterns with coverage from 40º to 90º
- 100 dB sensitivity, 134 dB maximum SPL
- Power handling: 600W continuous, 2400W peak
- 4th-order crossover with HF protection
- Trapezoidal 13-ply birch enclosure in three finishes: EVCoat, PI, and fiberglass (FG)
- M10 threaded suspension points (22)
- Transformer kit available for distributed systems
EVF-1152D/43 features a 40° x 30° rotatable waveguide, design for extreme far field long throw raw spread coverage pattern.
- Frequency Range (-10 dB) 40 Hz – 21 kHz
- Suspension 22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)
- Weatherized No
- Minimum Impedance 6Ω
- Nominal Impedance (Passive) 8Ω
- HF Transducer 3" DH7N diaphragm compression driver
- Speaker Type Full-Range, Two-Way
- Frequency Response (-3 dB)¹ 70 Hz – 18 Hz
- LF Nominal Impedance 8Ω
- Max. SPL/1m (calc)² 134dB
- Coverage (Nominal -6 dB) H 60°
- Coverage (Nominal -6 dB) V 60°
- LF Transducer 15" DVX3151A woofer
- System Power Handling (Continuous/Program/Peak) 600 , 1200 , 2400 Watts
- Crossover Frequency 1300Hz
- Enclosure Material 13-ply weather-resistant birch
- Grille Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind
- Sensitivity 1 W/1 m 100dB
- Height 30.26" (768.6mm)
- Width 18.5" (469.8mm)
- Recommended High-Pass Frequency 45Hz
- Depth 18.37" (466.6mm)
- Weight Net 75.84lbs (34.4kg)
- Shipping Weight 86.2lbs (39.1kg)
- Available Coverage Patterns (Nominal -6 dB) HxV 60 x 60°
- Environmental Specs Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55
- Internal Passive Crossover Frequency 1300Hz
- Passive Power Handling2400W peak
- Net Weight75.7 lbs (34.4 kg)
- Dimensions (HxWxD)30.26x18.5x18.37" (768.6x469.8x466.6mm)
- Input ConnectionsEuroblock; PI and FG versions include dual-gland-nut input-panel cover
