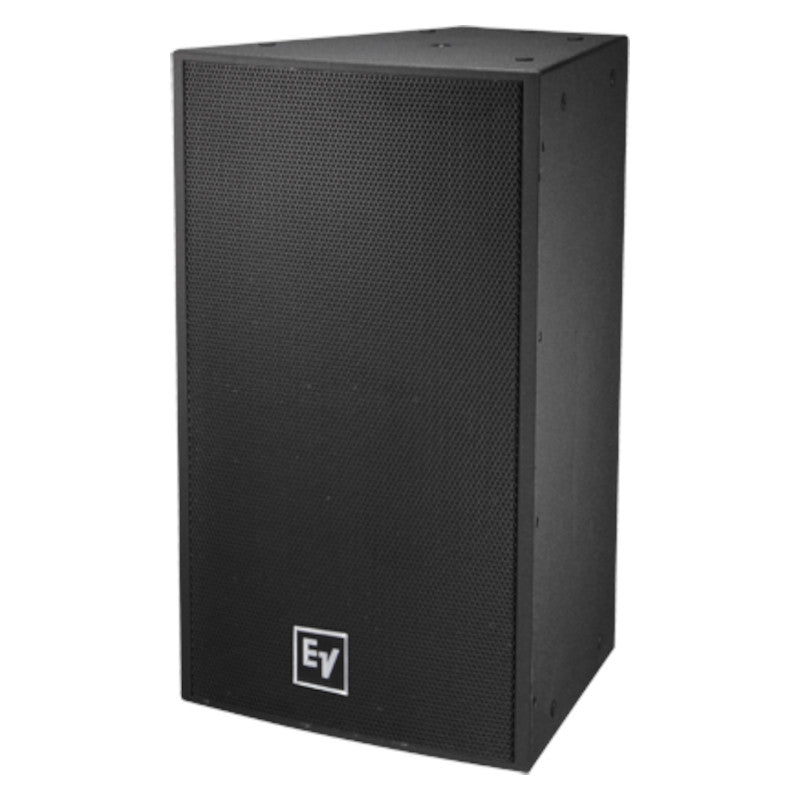

• Electro-Voice EVF-1152D 15 2-Way Full-Range Speaker
1 1

Electro-Voice EVF-1152D 15-Inch Passive Speaker | Color: Black, Coverage: 90 x 60

Electro-Voice EVF-1152D 15-Inch Passive Speaker | Color: Black, Coverage: 90 x 60

SoundPro Item: 45480 | Part Number: F.01U.272.578

$3,775.00
$3,775.00 $3,775.00
Your Price Sold out
MSRP: $3,775.00 | MAP: $3,775.00

Usually ships in 5-7 business days

  • Compact and lightweight
  • Low distortion, high efficiency
  • Ideal for fixed installations
  • DVX3151A woofer with fully symmetric drive
  • 3-inch DH7N titanium/neodymium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Six available patterns with coverage from 40º to 90º
  • 100 dB sensitivity, 134 dB maximum SPL
  • Power handling: 600W continuous, 2400W peak
  • 4th-order crossover with HF protection
  • Trapezoidal 13-ply birch enclosure in three finishes: EVCoat, PI, and fiberglass (FG)
  • M10 threaded suspension points (22)
  • Transformer kit available for distributed systems
Log in or register for YOUR best price

EVF-1152D/43 features a 40° x 30° rotatable waveguide, design for extreme far field long throw raw spread coverage pattern.

View full details

Specifications

Dimensions
Height
30.26" (768.6mm)
Width
18.5" (469.8mm)
Depth
18.37" (466.6mm)
Dimensions (HxWxD)
30.26x18.5x18.37" (768.6x469.8x466.6mm)
Weight
Weight Net
75.84lbs (34.4kg)
Shipping Weight
86.2lbs (39.1kg)
Net Weight
75.7 lbs (34.4 kg)
Electrical
Minimum Impedance
6Ω
Nominal Impedance (Passive)
8Ω
LF Nominal Impedance
8Ω
Audio
Speaker Type
Full-Range, Two-Way
Max. SPL/1m (calc)²
134dB
Crossover Frequency
1300Hz
Sensitivity 1 W/1 M
100dB
Connectivity
Input Connections
Euroblock; PI and FG versions include dual-gland-nut input-panel cover
Construction
Enclosure Material
13-ply weather-resistant birch
Grille
Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind
General
Frequency Range (-10 dB)
40 Hz – 21 kHz
Suspension
22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)
Weatherized
No
HF Transducer
3" DH7N diaphragm compression driver
Frequency Response (-3 dB)¹
70 Hz – 18 Hz
Coverage (Nominal -6 dB) H
60°
Coverage (Nominal -6 dB) V
60°
LF Transducer
15" DVX3151A woofer
System Power Handling (Continuous/Program/Peak)
600 , 1200 , 2400 Watts
Recommended High-Pass Frequency
45Hz
Available Coverage Patterns (Nominal -6 dB) HxV
60 x 60°
Environmental Specs
Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55
Internal Passive Crossover Frequency
1300Hz
Passive Power Handling
2400W peak
