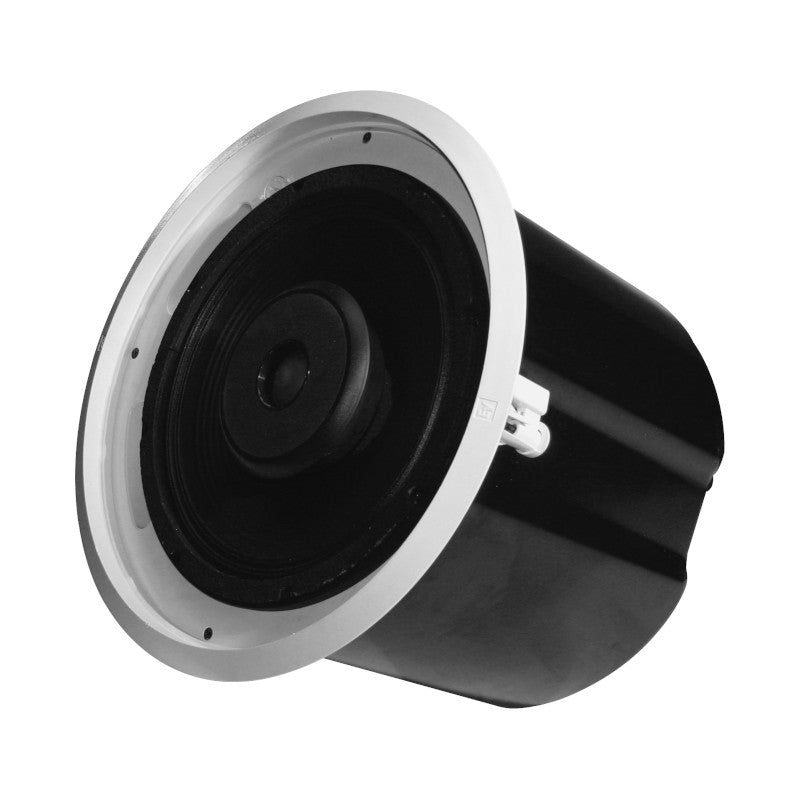

• Electro-Voice EVID C12.2 12'' 2-Way Coaxial Ceiling Speaker
1 1

Electro-Voice EVID C12.2 12-Inch Ceiling Speaker

Electro-Voice EVID C12.2 12-Inch Ceiling Speaker

SoundPro Item: 45494 | Part Number: F.01U.117.807

$857.00
$857.00 $857.00
Your Price Sold out
MSRP: $857.00 | MAP: $857.00

Usually ships in 5-7 business days

  • Full-range power for high ceilings, large spaces
  • High sensitivity, high power-handling
  • Integrated transformer with automatic saturation compensation for distortion free 70V, 100V, or 8 Ohm use
  • Front-panel mode/wattage selector
  • White semi-gloss perforated grille
  • Heavy-gauge steel enclosure in black
  • 3/8" threaded-rod mount points for open ceilings
  • Safe, easy installation with included tile bridge and mounting ring
  • Complete package, requires no additional accessories
Log in or register for YOUR best price

The EVID C12.2 loudspeaker system is a high-efficiency two-way ceiling loudspeaker package for high ceiling applications. The loudspeaker features the Electro-Voice® EVID 920-8B transducer, a 12" coaxial with high power handling and 100 dB sensitivity. The integrated 64W transformer allows for use in 70V/100V applications and includes automatic saturation compensation. Transformer tap selection is via a convenient switch on the front baffle.

The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle and bezel are constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from heavy gauge steel and has a durable black powder coat that blends in when used in open ceiling applications. The rear enclosure provides an optimum internal volume for extended low-frequency performance.

View full details

Specifications

Dimensions
Depth
13.12"
Diameter
16.31"
Cutout Diameter Size
15.35"
Audio
Axial Sensitivity
100 dB (SPL 1W/1m)
Max. Calculated SPL
126 dB
Impedance
8 Ω nominal (transformer bypass)
Crossover Frequency
2,000 Hz
Connectivity
Connectors
Phoenix type removable, with screw terminals and "loop-thru", accepts 12 AWG wire
Construction
Grille
perforated powder coated steel with safety tether
Shipping
Weight
29.3 lbs
General
Frequency Response (-3dB)
85Hz - 18,000Hz
Frequency Range (-10 dB)
65Hz - 20,000Hz
8 Ω
100W RMS
70V
up to 64W
100V
up to 64W
Rec. Highpass Frequency
60 Hz
Transducer
920-8B, 12 in. high-efficiency coaxial driver
Bypass
8 Ω nominal
Backcan
powdercoated steel
Baffle/Bezel
UL 94V-O rated ABS
Mounting System
Integrated 4-point toggle anchors, Integrated 3-point pendant mount, Integrated 3/8" threaded rod, Additional secondary mount
Support Hardware
tile bridge, backing plate support, cutout template, paint shield
