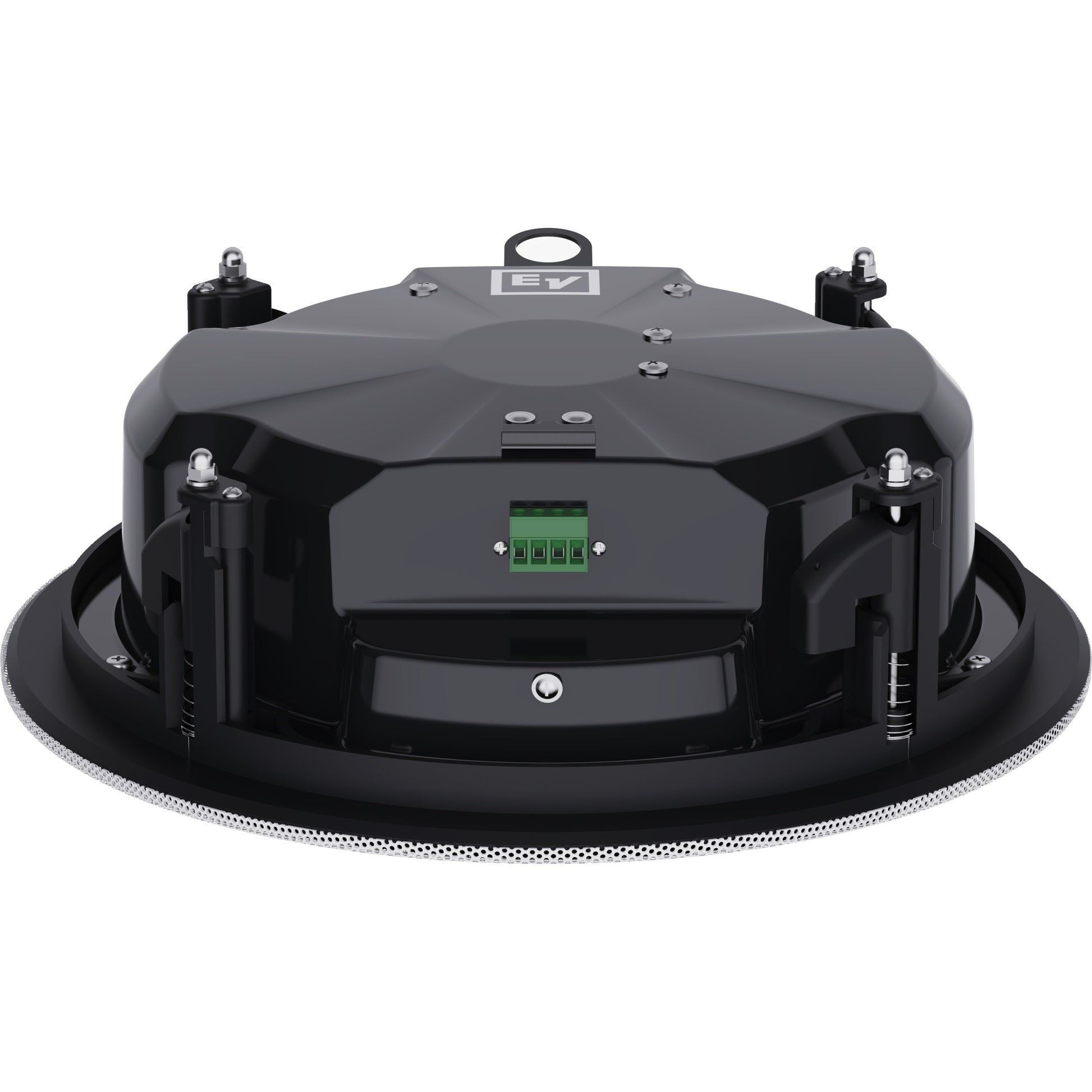

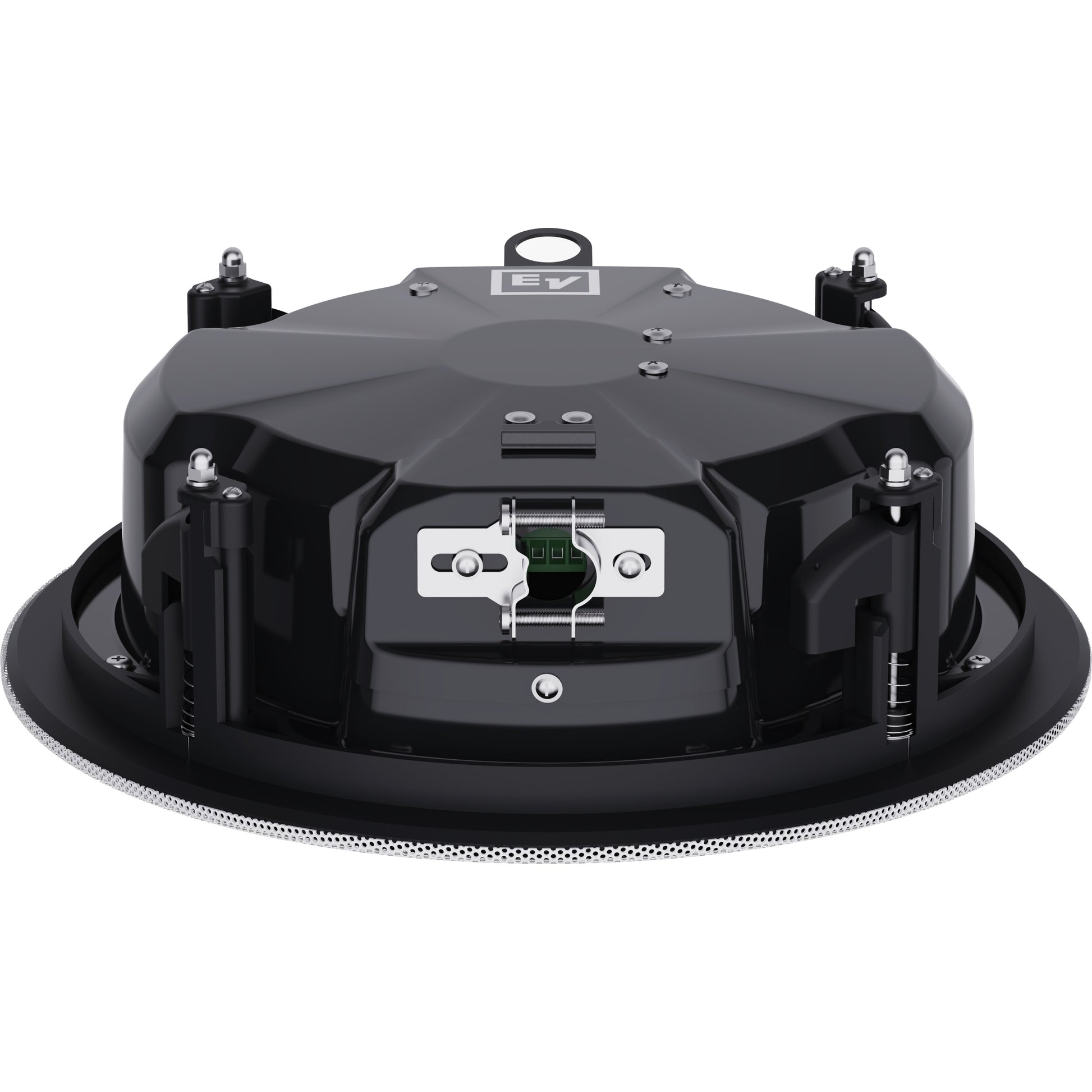

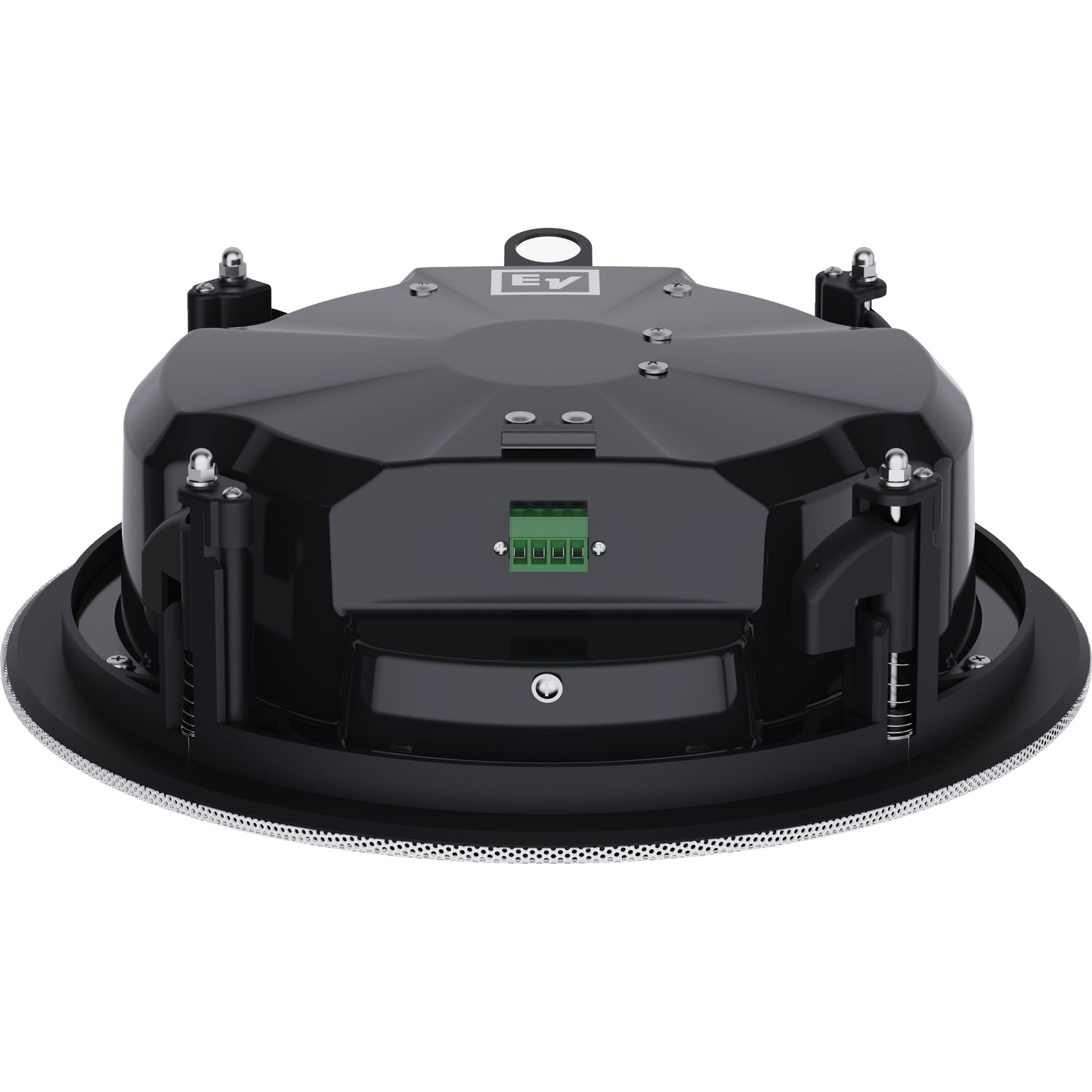

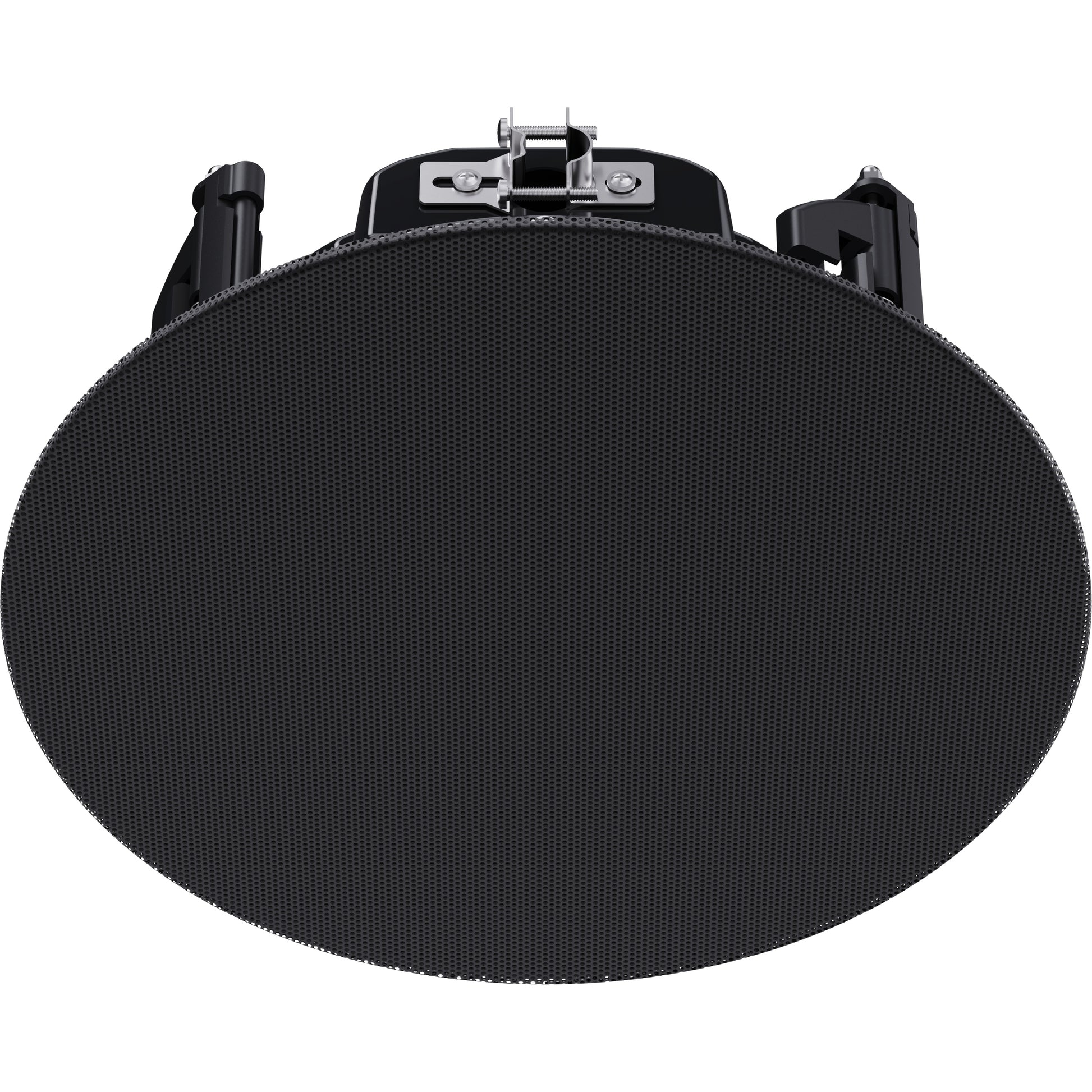

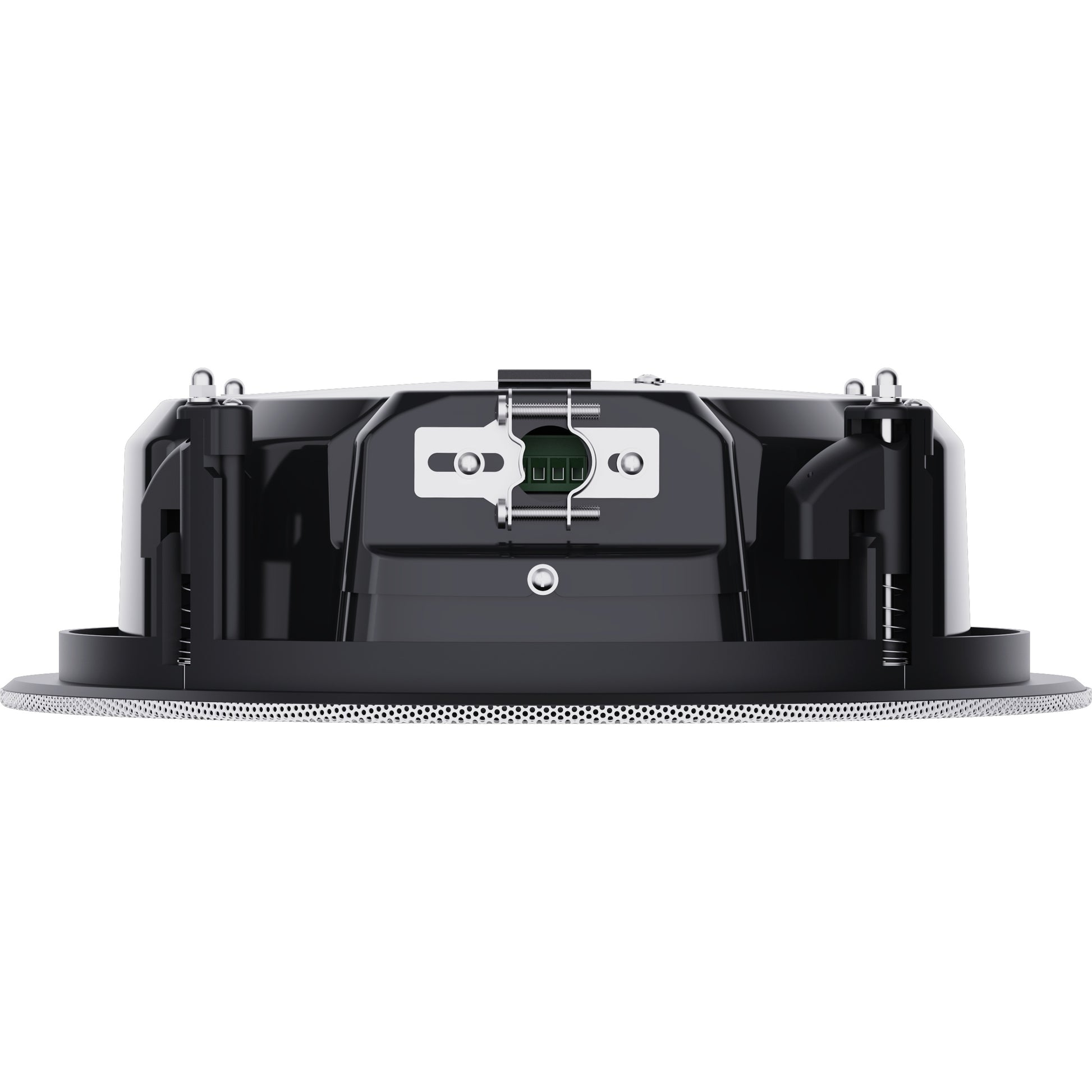

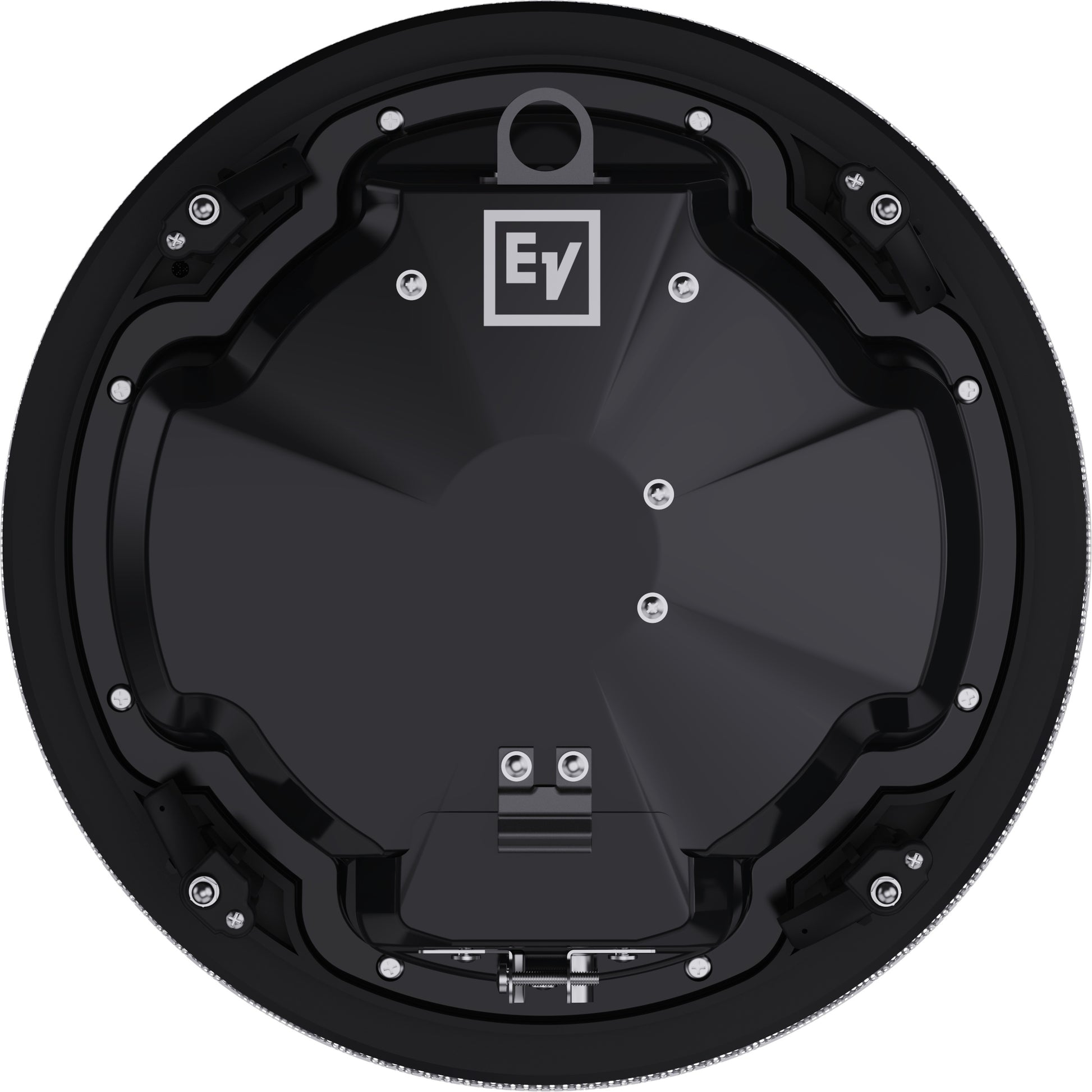

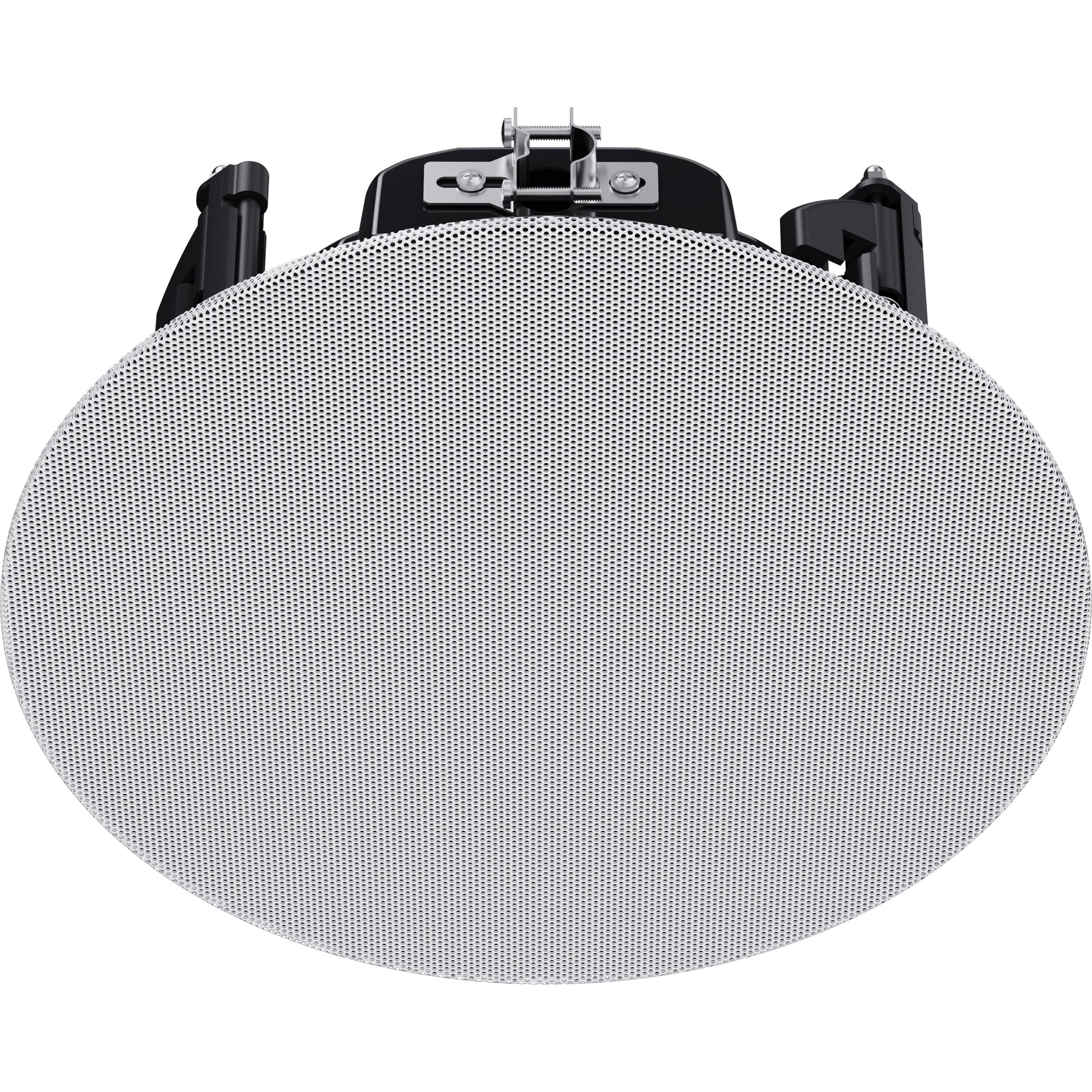

Electro-Voice EVID C4.2 4" Two-Way Coaxial Ceiling Speaker | Low-Profile

Electro-Voice EVID C4.2 4" Two-Way Coaxial Ceiling Speaker | Low-Profile

SoundPro Item: 151576 | Part Number: EVID-C4.2LP-G2

$209.00
$246.00 $209.00
Your Price Sold out
MSRP: $246.00 | MAP: $209.00

Usually ships in 5-7 business days

  • Waveguide-Coupled Titanium Tweeter Maintains Coherent On-Axis And Off-Axis Response
  • Ported Enclosure Architecture Extends Low-Frequency Output Without Increasing Driver Size
  • Front-Panel Transformer Selector Switches Between 70V, 100V, And Low-Impedance Modes
  • Integrated Three-Point Toggle Anchors Eliminate Separate Mounting Hardware
  • UL2043 Plenum Rating Permits Installation In Air-Handling Spaces

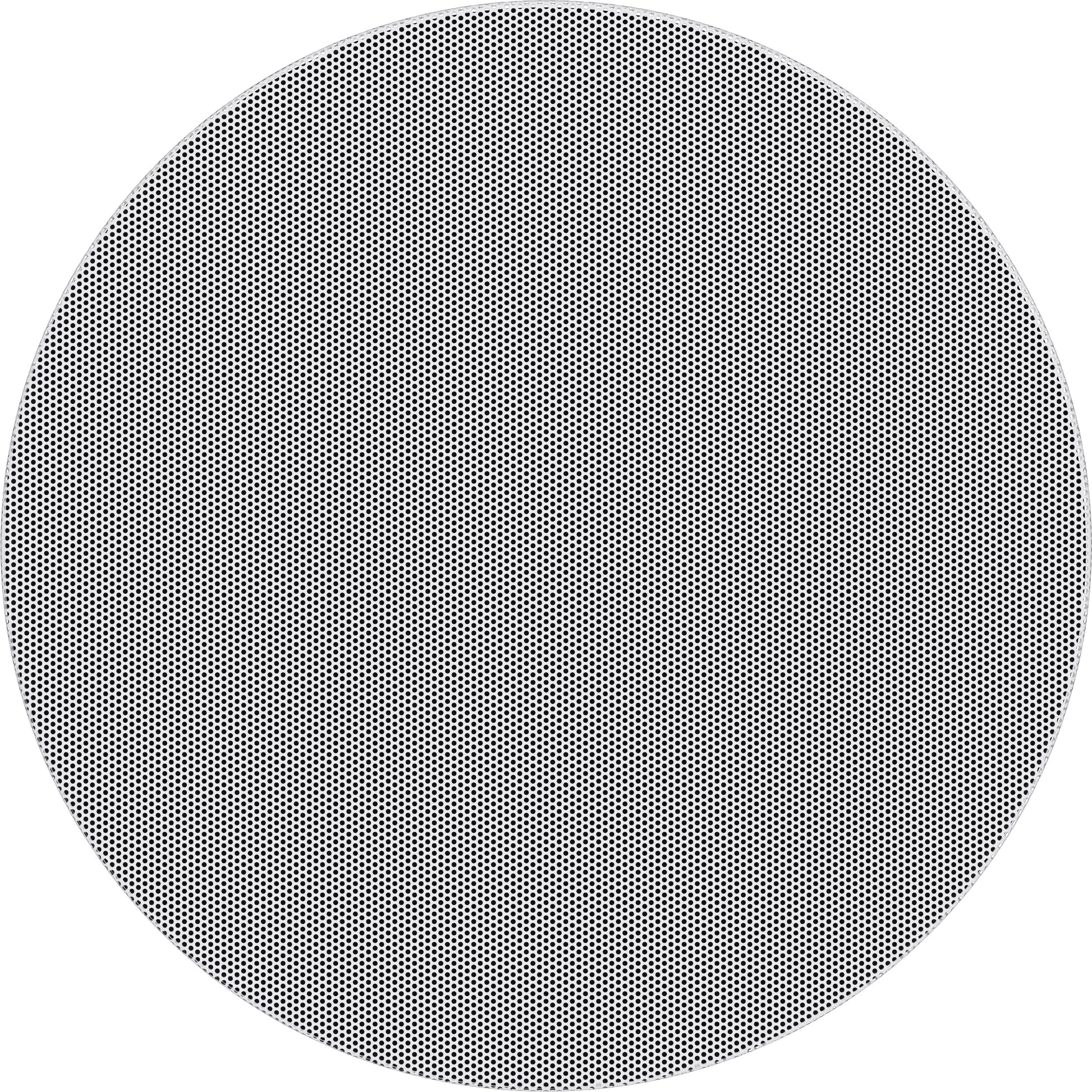

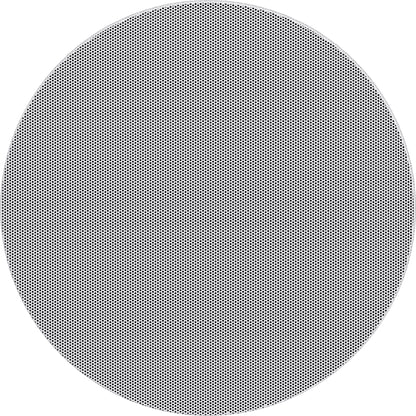

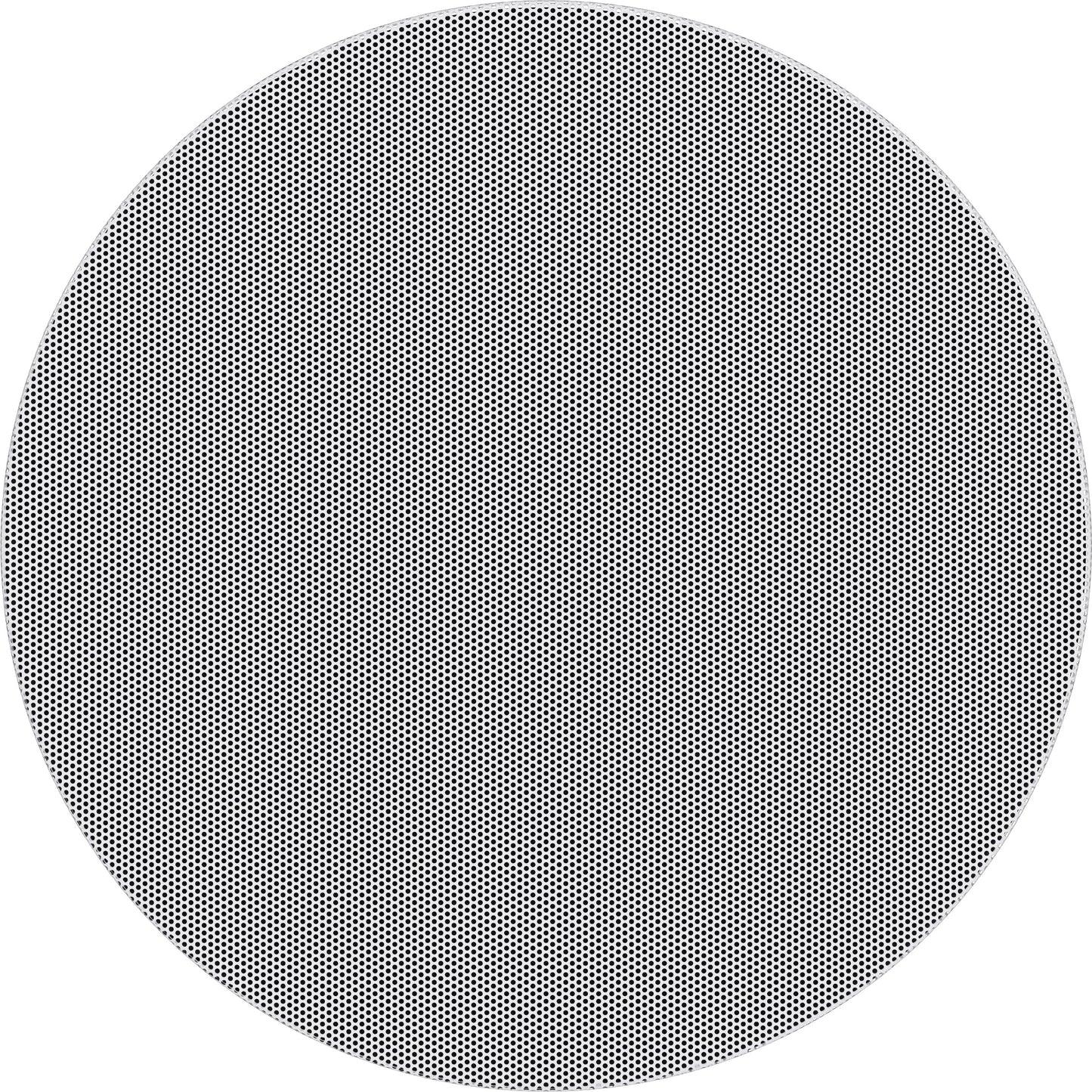

  • Powder-Coated Steel Grille Accepts Field Painting For Custom Color Matching
  • Full-Bandwidth Overload Protection Prevents Thermal And Mechanical Driver Damage
Log in or register for YOUR best price

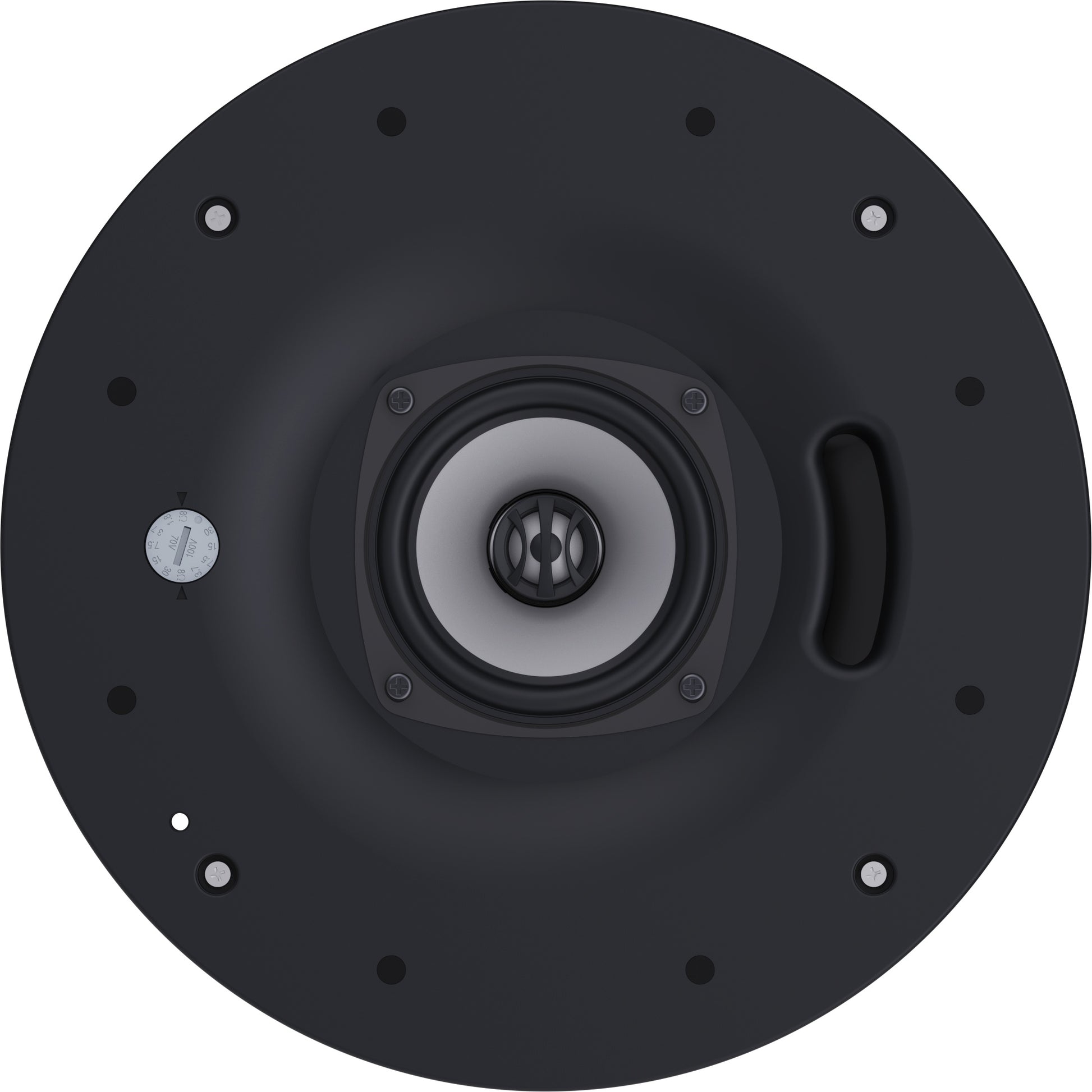

Built for contractors and integrators who need reliable distributed audio in commercial environments, this coaxial ceiling speaker combines a 4-inch polypropylene woofer with a waveguide-coupled 0.75-inch titanium-coated tweeter for balanced full-range reproduction. The ported enclosure extends bass response below typical compact ceiling models, making it suitable for retail spaces, restaurants, and corporate facilities where music playback quality matters.

The integrated transformer switches between 70V, 100V, and 8-ohm operation via a front-panel selector, eliminating external matching transformers and simplifying multi-zone installations. Full-bandwidth overload protection guards both drivers during peak program material. UL2043 plenum rating and UL1480 listing qualify it for air-handling spaces without additional enclosures.

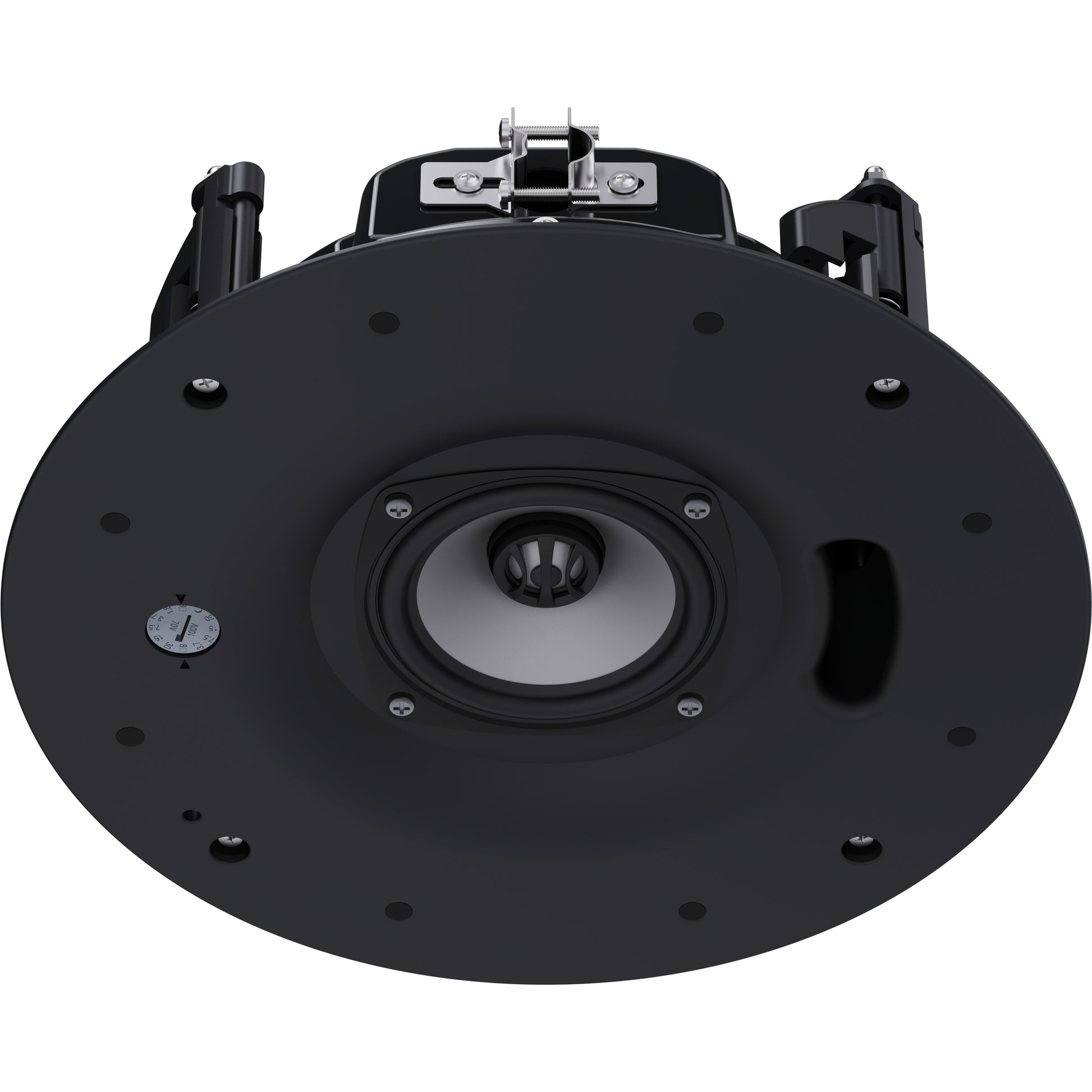

Installation hardware is included: tile bridge, mounting ring, and three-point toggle anchors secure the system in drop ceilings or drywall. The powder-coated steel grille accepts field painting to match interior finishes. No additional brackets, back cans, or accessories are required to complete the installation.

Downloads

View full details

Specifications

Certifications
Safety Agency Ratings
UL 1480A, safe for use in airhandling spaces per UL 2043, CSA 22.2 205 certified, IEC 62638
IP Rating
IP34
Audio
Frequency Range (-10 dB)
80 Hz – 20,000 Hz
Sensitivity (1 W, 1 m)
88 dB SPL 1 W, 1 m
Maximum SPL (Continuous)
106 dB
Maximum SPL (Peak)
112 dB
Coverage Angle Conical
130°
Recommended High Pass
70 Hz
Nominal Impedance (Low Z)
8 Ω
Performance
Power Handling (Continuous)
70 W
Power Handling (Peak)
280 W
Long Term Power Handling (Continuous)
70 W
Long Term Power Handling (Peak)
200 W
Transformer Taps 70 V Line
30 W; 15 W; 7.5 W; 3.75 W; 1.88 W
Transformer Taps 100 V Line
30 W; 15 W; 7.5 W; 3.75 W
Connectivity
Connector Type
4-pin Euroblock Input + Pass through
Wire Size (AWG)
12AWG (maximum)
Wire Diameter
3.3 mm 2 (maximum)
Construction
Material
Steel
Grille Material
Powder coated steel
LF Transducer Size
4 in
HF Transducer Size
0.75 in
Color
White; Customized colors
Color (RAL)
RAL 9003 Signal white
Dimensions
Dimensions (Ø x D)
11.9 in x 3.6 in (302 mm x 91 mm)
Mounting Cutout
10.7 in (272 mm)
Mounting Depth
3.4 in (86 mm)
Ceiling Thickness
0.5 in - 1.5 in (12.5 mm - 38 mm)
Weight
Weight
6.8 lb (3.1 kg)
Environmental
Weatherization
Indoor
Operating Temperature
32 °F – 104 °F (0 °C – 50 °C)
Shipping
Shipping Weight
15.4 lb (7 kg)
